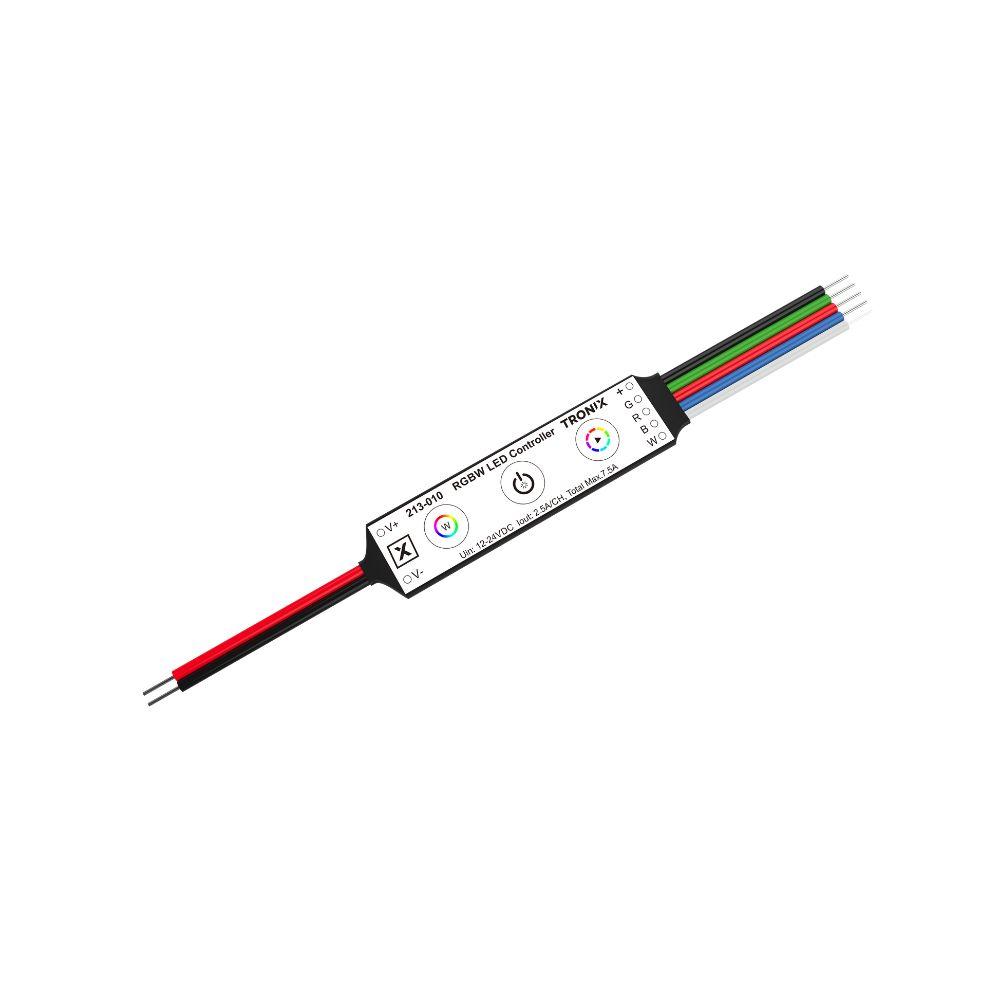

Controller | RGBW | 12~24V | push buttons
213-010Compact LED controller for RGBW lighting with 3 integrated buttons. Controls colour, white light, brightness and effects, either continuously or in steps. Ideal for short RGBW LED strips or space-limited installations.
Key product features
- Number of colour channels: 4
- Output voltage (V): 12 – 24
- Input voltage (V): 12 – 24
- Max. output current (A): 7.5
- Control type: Constant voltage
Product Name
Controller | RGBW | 12~24V | push buttons
Ean
8714984952959
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
No
Max. output current
7.5A
Output voltage
12 - 24V
Suitable for outdoor use
No
Degree of protection (IP)
IP20

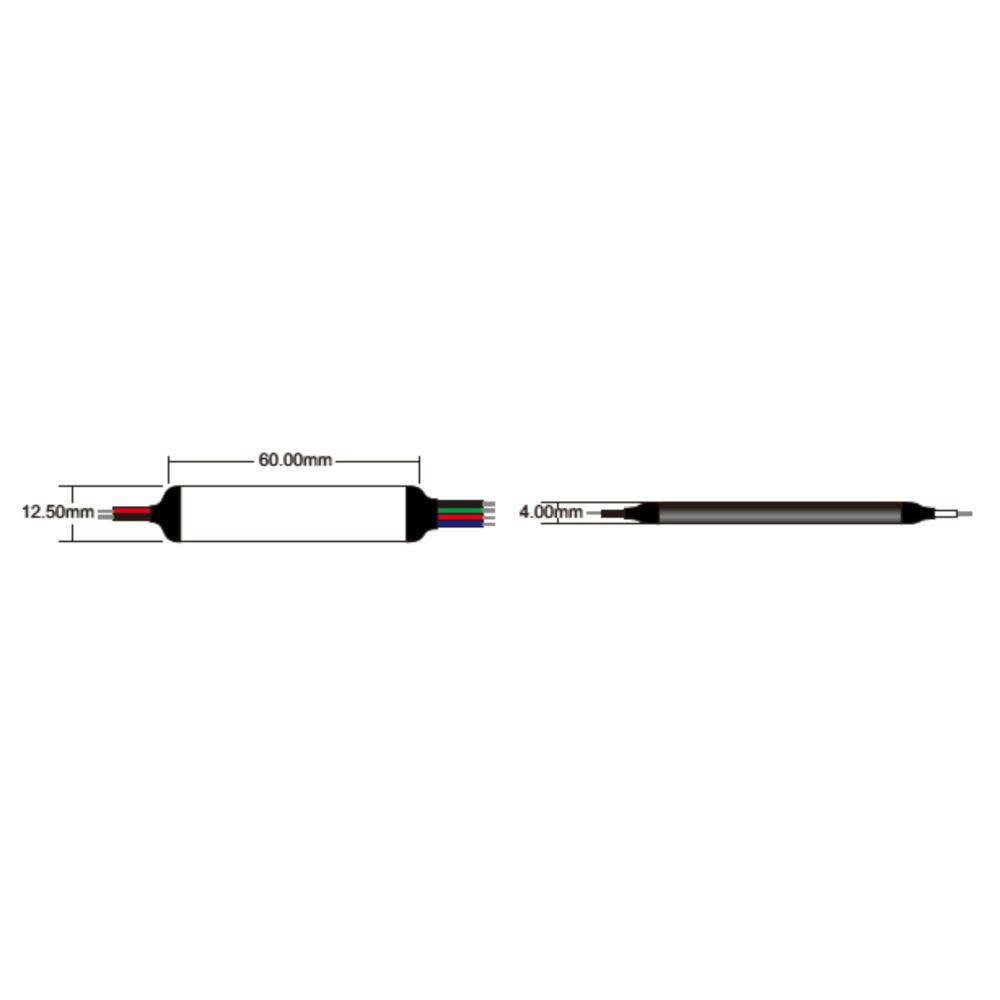

Length
60mm
Width
12.50mm
Height
4mm
Number of zones
1
Number of colour channels
4, RGBW
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Input voltage
12 - 24V
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Control type
Constant voltage
Warranty
5 years
Product Name
Controller | RGBW | 12~24V | push buttons
Height
4mm
Ean
8714984952959
Number of zones
1
Outer box qty
1st
Number of colour channels
4, RGBW
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
No
Input voltage
12 - 24V
Max. output current
7.5A
DIN-rail mounting
No
Output voltage
12 - 24V
Brand
Tronix Lighting
Suitable for outdoor use
No
Compatible with Casambi
No
Degree of protection (IP)
IP20
Control type
Constant voltage
Length
60mm
Warranty
5 years
Width
12.50mm
This RGBW controller offers full manual control via 3 buttons: for on/off, brightness adjustment and switching between colour modes. In RGB mode, select from 24 fixed colours or 10 dynamic effects such as fade, jump and smooth. In W mode, the white channel is dimmed continuously.
For added comfort during on/off switching, the controller includes an optional fade function (0.5 or 3 seconds). The 2Â kHz PWM frequency ensures flicker-free performance, even at low brightness levels. Thanks to its compact design, this controller is especially suitable for furniture, display or decorative applications.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-controller-rgbw-1224v-push-buttons-213-010.pdf
Characteristics sheet
213-010_manual.pdf
