Controller | SC | 12~24V | push buttons

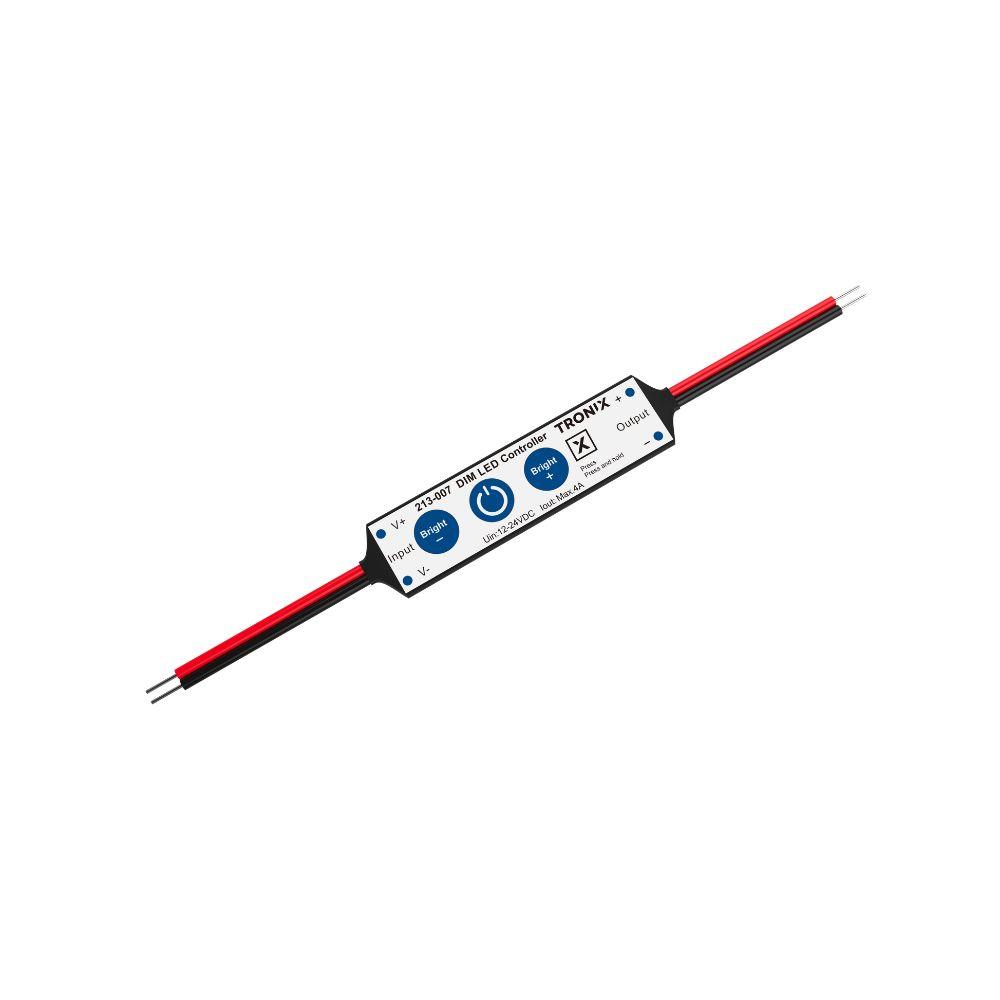

213-007Compact LED controller for single-colour lighting with 3 integrated buttons. Smooth 0–100% dimming, flicker-free operation and ideal for short LED strips or space-constrained installations.
Key product features
- Type of control: Manual
- Number of colour channels: 1
- Output voltage (V): 12 – 24
- Input voltage (V): 12 – 24
- Max. output current (A): 4
- Control type: Constant voltage
Product Name
Controller | SC | 12~24V | push buttons
Ean
8714984952928
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
No
Max. output current
4A
Output voltage
12 - 24V
Suitable for outdoor use
No
Degree of protection (IP)
IP20

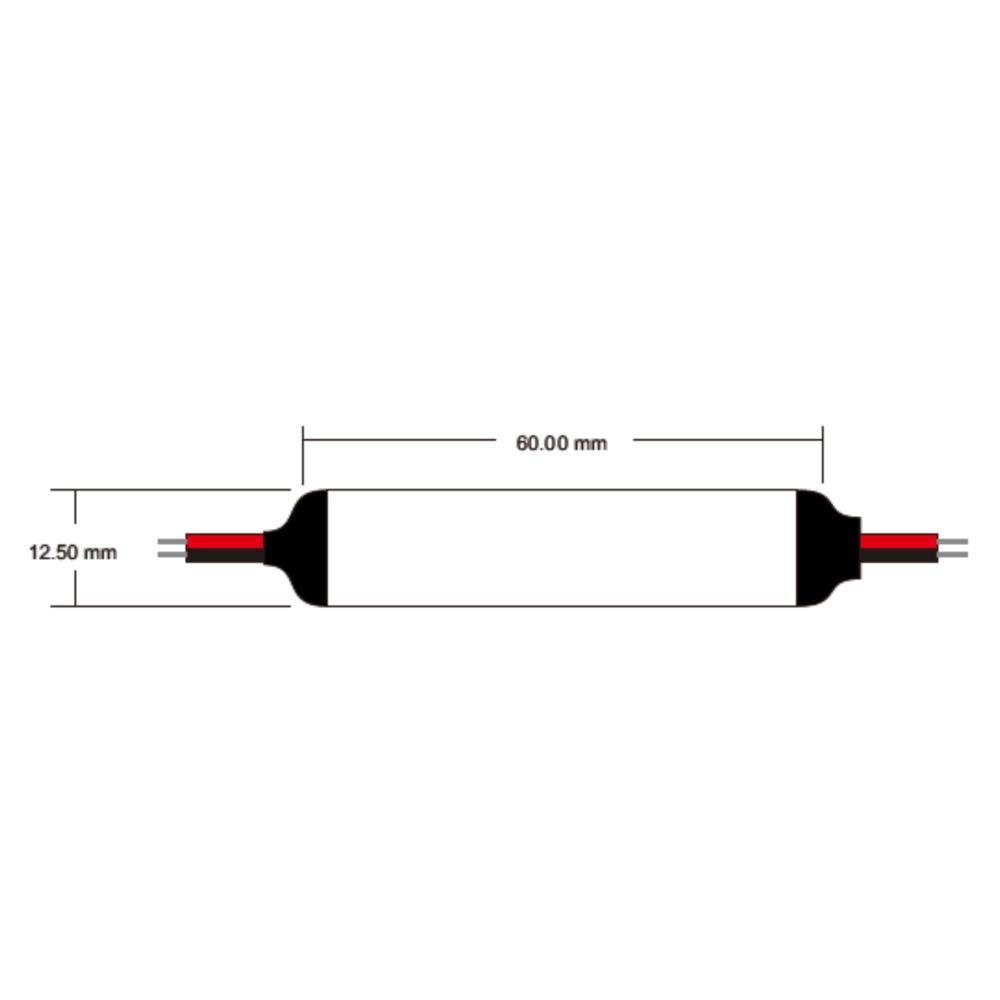

Length
60mm
Width
12.50mm
Height
4mm
Number of zones
1
Number of colour channels
1, Single Colour
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Input voltage
12 - 24V
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Control type
Constant voltage
Warranty
5 years
Product Name
Controller | SC | 12~24V | push buttons
Height
4mm
Ean
8714984952928
Number of zones
1
Outer box qty
1st
Number of colour channels
1, Single Colour
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
No
Input voltage
12 - 24V
Max. output current
4A
DIN-rail mounting
No
Output voltage
12 - 24V
Brand
Tronix Lighting
Suitable for outdoor use
No
Compatible with Casambi
No
Degree of protection (IP)
IP20
Control type
Constant voltage
Length
60mm
Warranty
5 years
Width
12.50mm
This mini controller is designed for simple, direct control of short LED strips. The 3 integrated buttons provide easy access to on/off switching and brightness adjustment. Short presses allow brightness to change in 10 steps, while long presses enable smooth dimming across 256 levels.
Operating on 12–24Â V DC with a max output of 4Â A, this compact model is ideal for tight spaces such as profiles, showcases or display units. The 2Â kHz PWM frequency ensures flicker-free performance, even at low brightness levels.
More information
More information about this product can be found in the product specifications. For accessories, available options and related items, see related products. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-controller-sc-1224v-push-buttons-213-007.pdf
Characteristics sheet
213-007_manual.pdf
