DALI | master | 4 channels | push dim to DALI

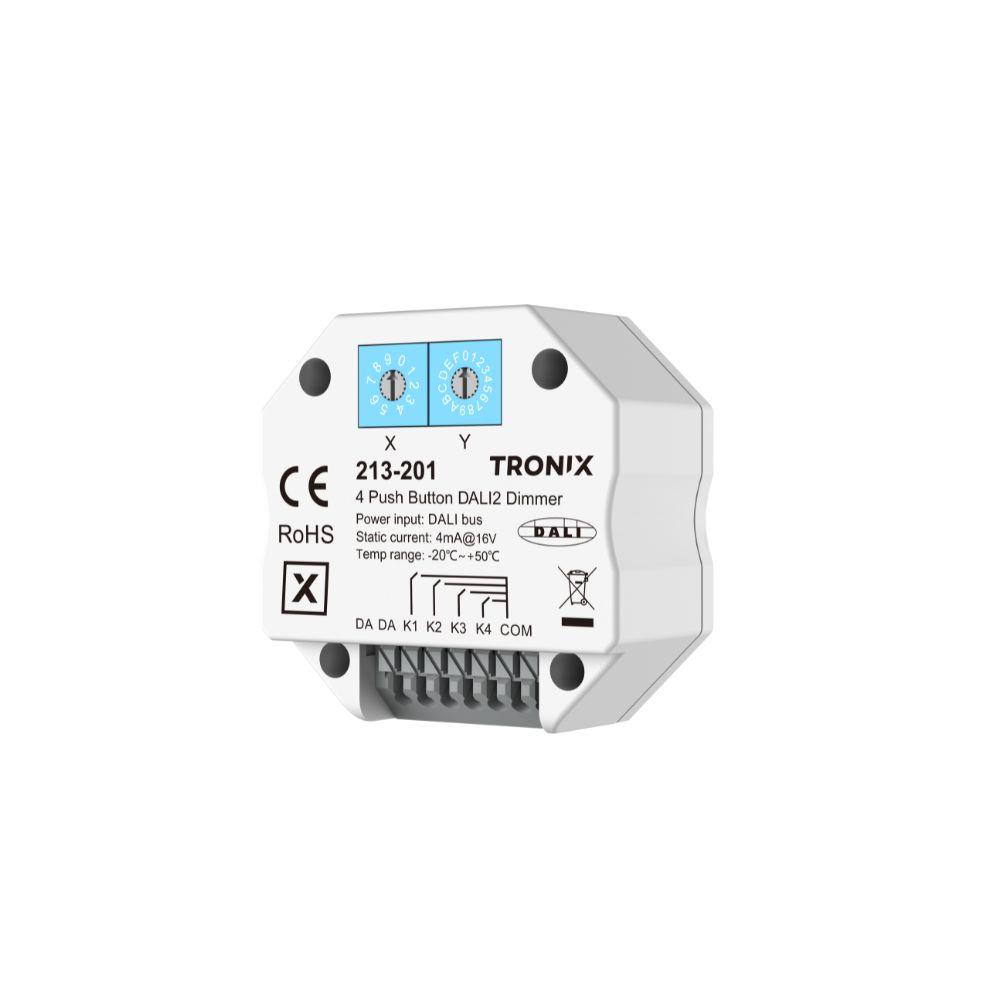

213-201This DALI-2 push dimmer is designed for central control of multiple DALI addresses via conventional push buttons. Ideal for professional installations where flexible zoning and clear, structured lighting control are required.
Product features
Type of control: DALI
Number of colour channels: 1
Number of zones: 4
Product Name
DALI | master | 4 channels | push dim to DALI
Ean
8714984953598
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
Yes
Max. output current
0.004A
Output voltage
16 - 16V
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Height
27mm
Diameter
52mm
Number of zones
4
Number of colour channels
1, Single Colour
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Input voltage
16 - 16V
Control method
DALI
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Warranty
5 years
Product Name
DALI | master | 4 channels | push dim to DALI
Diameter
52mm
Ean
8714984953598
Number of zones
4
Outer box qty
1st
Number of colour channels
1, Single Colour
Model
Dynamic
Suitable for surface mounting
No
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
Yes
Input voltage
16 - 16V
Max. output current
0.004A
Control method
DALI
Output voltage
16 - 16V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Compatible with Casambi
No
Height
27mm
Warranty
5 years
This DALI-2 push dimmer functions as a DALI master and enables independent control of up to 4 DALI addresses. The dimmer supports unicast, group, scene and broadcast modes and is fully compliant with the DALI-2 standard in accordance with IEC 62386, ensuring reliable compatibility with DALI drivers and electronic ballasts from different manufacturers.
Operation is carried out via up to 4 conventional push buttons. A short press is used for switching on and off, while a long press enables smooth dimming. Integrated rotary switches allow easy assignment of addresses, groups or scenes, making the dimmer highly flexible within a wide range of lighting concepts.
The dimmer is powered via the DALI bus and requires an external DALI bus power supply within the installation. Thanks to its compact design, installation in a standard flush-mounted box behind a push button is possible. The robust construction, low self-consumption and compliance with relevant safety and EMC standards make this product suitable for professional residential and commercial applications.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, please contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-dali-master-4-channels-push-dim-to-dali-213-201.pdf
Characteristics sheet
213-201_manual.pdf
