DALI | master | Zigbee/RF to DALI | recessed

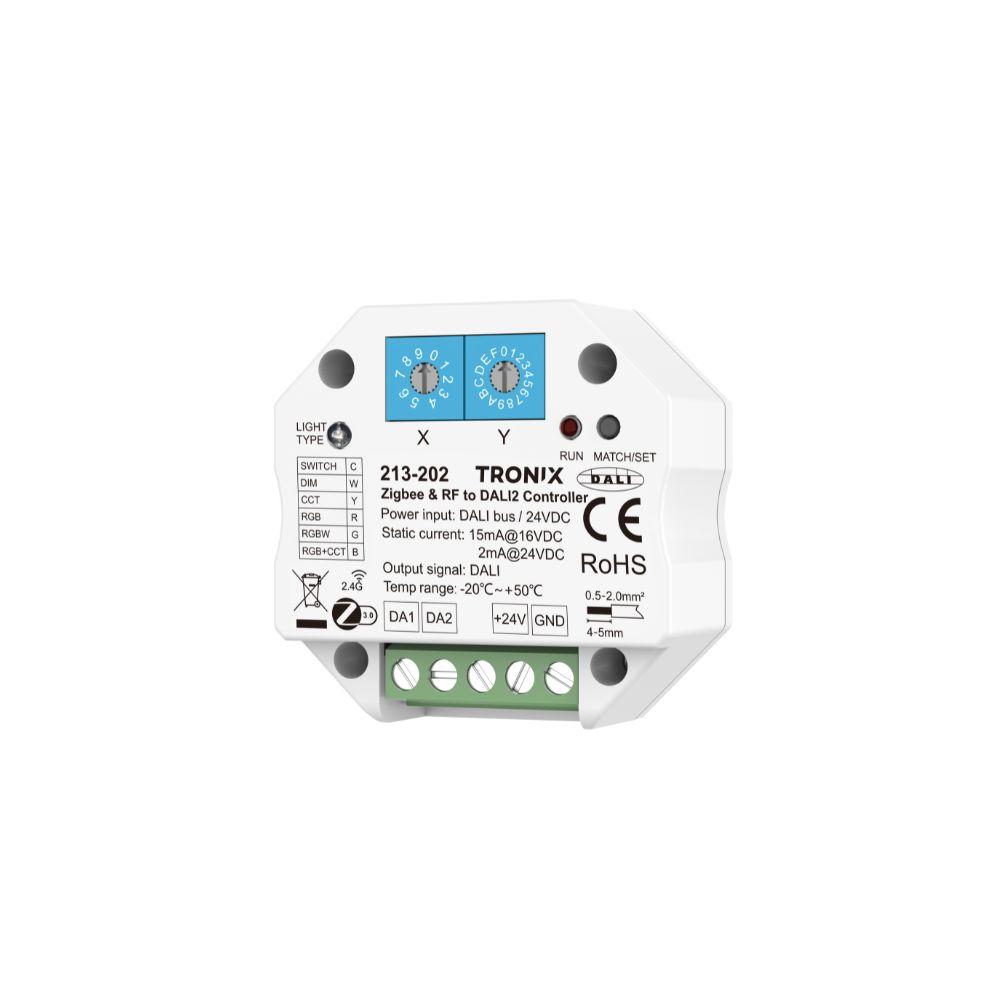

213-202This Zigbee & RF to DALI-2 converter enables smart, wireless control of DALI lighting via Dimmit, in combination with gateway 213-443. Suitable for professional applications with smart, wireless control.
Product features
- Type of control: DALI
- Number of colour channels: 5
- Suitable for built-in mounting: Yes
- Number of zones: 1
Product Name
DALI | master | Zigbee/RF to DALI | recessed
Ean
8714984953604
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
Yes
Max. output current
0.015A
Output voltage
16 - 16V
Suitable for outdoor use
No
Degree of protection (IP)
IP20

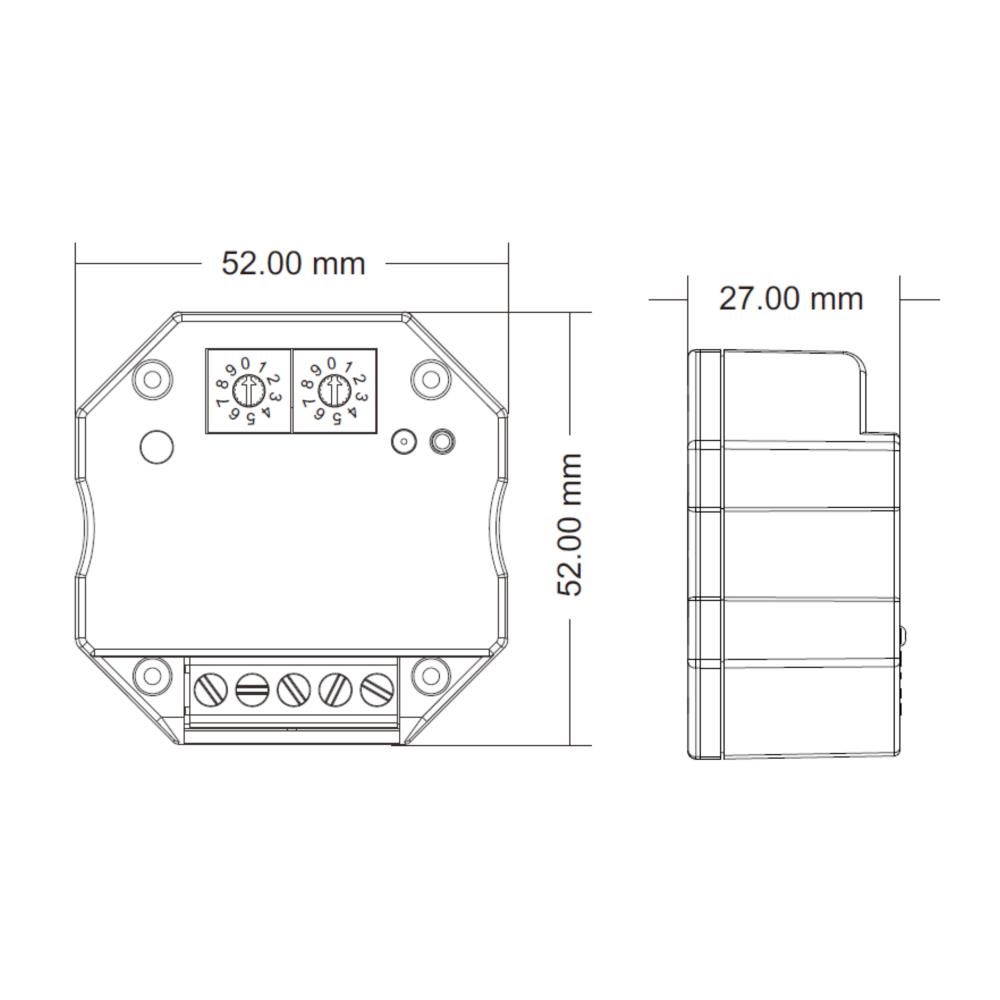

Length
52mm
Width
52mm
Height
27mm
Number of zones
1
Number of colour channels
5, RGBTW
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Input voltage
24 - 24V
Control method
DALI
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Warranty
5 years
Product Name
DALI | master | Zigbee/RF to DALI | recessed
Height
27mm
Ean
8714984953604
Number of zones
1
Outer box qty
1st
Number of colour channels
5, RGBTW
Model
Dynamic
Suitable for surface mounting
No
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
Yes
Input voltage
24 - 24V
Max. output current
0.015A
Control method
DALI
Output voltage
16 - 16V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Compatible with Casambi
No
Length
52mm
Warranty
5 years
Width
52mm
This Zigbee & RF to DALI-2 converter functions as a DALI master and acts as the interface between wireless control platforms and wired DALI lighting systems. The converter supports various lighting types, including single colour, Tuneable White, RGB, RGBW, RGB+CCT and switching applications, and is suitable for DT6, DT7 and DT8 DALI configurations in accordance with IEC 62386.
Control via the Dimmit app is possible in combination with the Dimmit Zigbee gateway, which is required for network connectivity, cloud functionality and remote control. Without this gateway, Dimmit control is not possible. In addition, the converter can be integrated into a Philips Hue environment, where control takes place exclusively via a Philips Hue Bridge.
The converter can be powered via the DALI bus or via an external 24 V DC power supply and controls a single DALI address in unicast, group or broadcast mode. Local control is possible via optional RF 2.4 GHz remote controls. The compact design enables easy installation in standard flush-mounted boxes. The converter complies with relevant DALI, safety and EMC standards and is suitable for professional residential and commercial installations with DALI lighting.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, please contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-dali-master-zigbeerf-to-dali-recessed-213-202.pdf
Characteristics sheet
213-202_manual.pdf
