DMX | controller | 4 channels | 4x5A | 12~48V

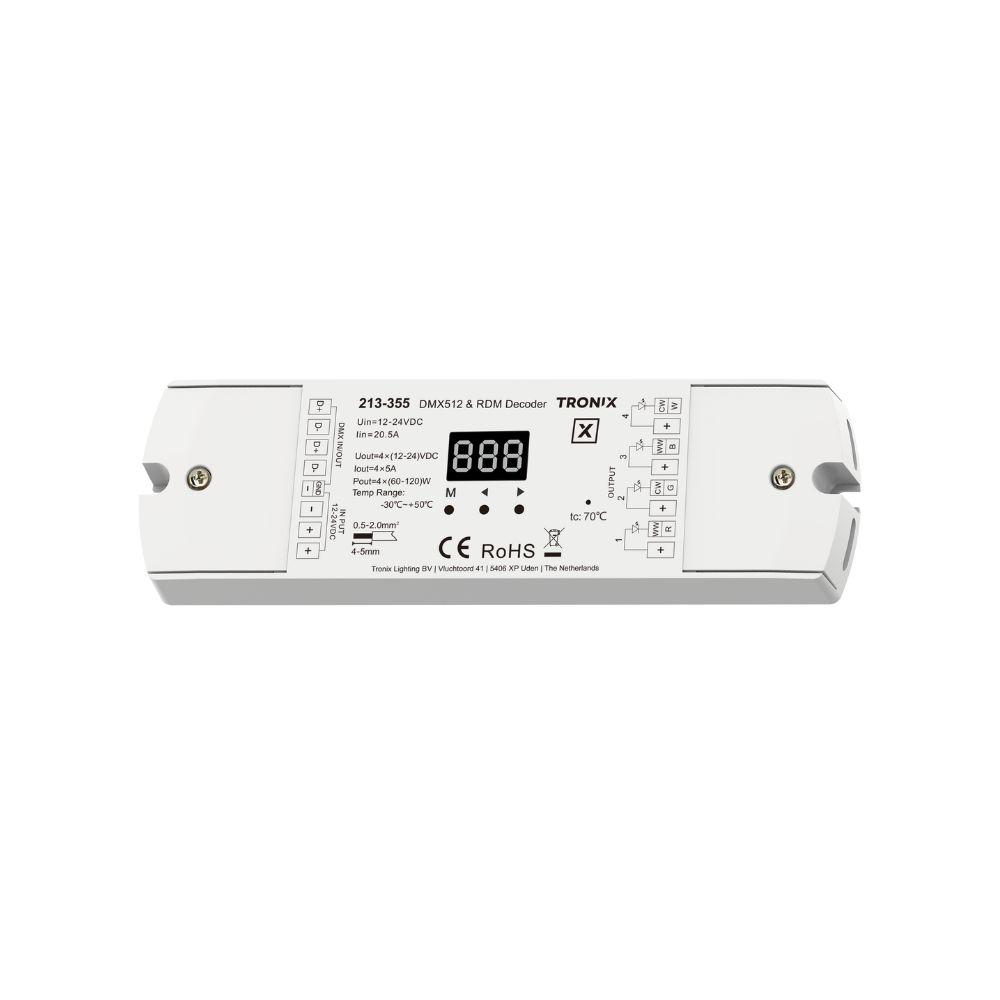

213-355This 4-channel constant voltage DMX512 & RDM decoder provides precise control of single-colour, Tuneable White and RGB(W) LED strips in professional DMX installations where flexibility and refined dimming control are required.
Key product features
- Type of control: DMX
- Number of colour channels: 4
- Output voltage (V): 12 – 48
- Input voltage (V): 12 – 48
- Max. output current (A): 20
- Control type: Constant voltage
Product Name
DMX | controller | 4 channels | 4x5A | 12~48V
Ean
8714984954939
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
Yes
Max. output current
20A
Output voltage
12 - 48V
Suitable for outdoor use
No
Degree of protection (IP)
IP20

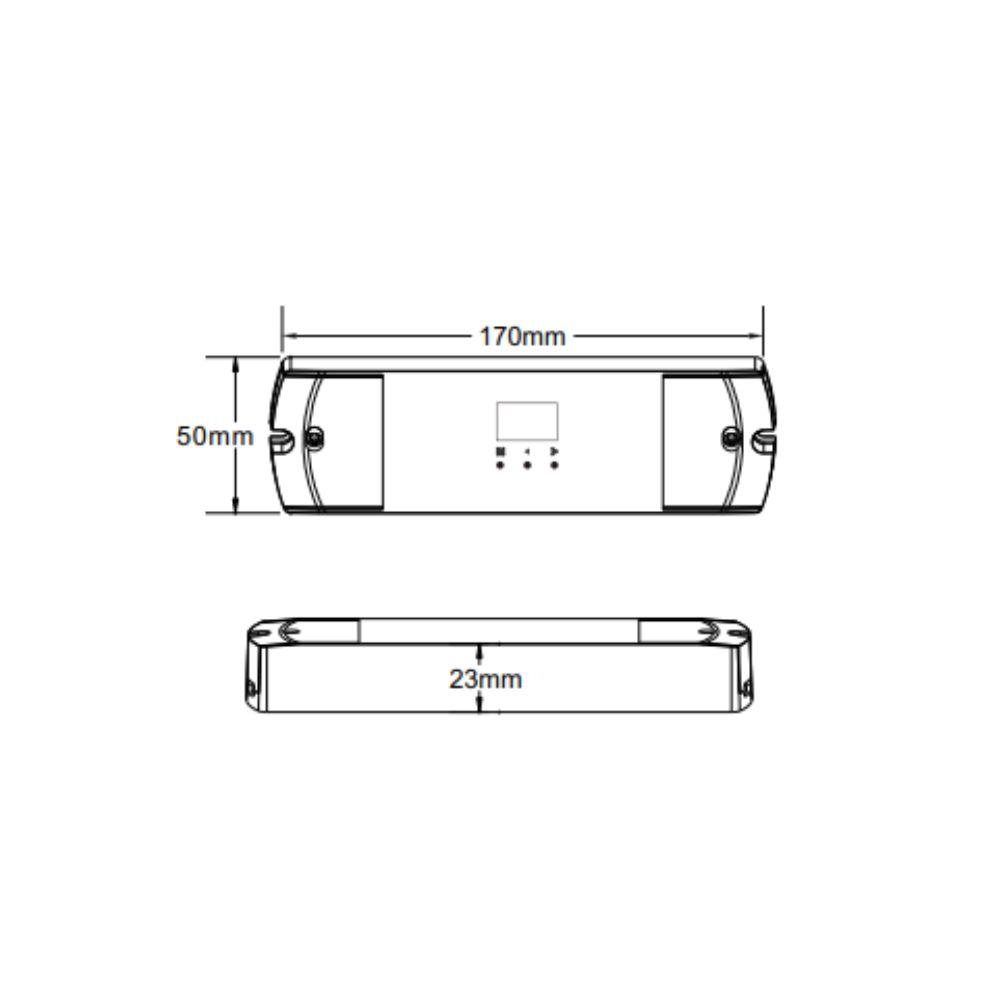

Length
170mm
Width
50mm
Height
23mm
Number of zones
1
Number of colour channels
4, RGBW
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Input voltage
12 - 48V
Control method
DMX
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Control type
Constant voltage
Warranty
5 years
Product Name
DMX | controller | 4 channels | 4x5A | 12~48V
Height
23mm
Ean
8714984954939
Number of zones
1
Outer box qty
1st
Number of colour channels
4, RGBW
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
Yes
Input voltage
12 - 48V
Max. output current
20A
Control method
DMX
Output voltage
12 - 48V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Compatible with Casambi
No
Length
170mm
Control type
Constant voltage
Width
50mm
Warranty
5 years
This 4-channel constant voltage DMX512 & RDM decoder is intended for dimming and switching LED strips based on constant voltage within professional DMX lighting systems. The decoder supports 1-, 2- or 4-channel DMX decoding and is suitable for single-colour, Tuneable White, RGB and RGBW configurations for broad applicability across various LED applications.
The decoder operates on 12–48 V DC and delivers an output current of up to 5 A per channel, making it suitable for medium to heavy applications. The DMX start address and settings such as channel mode, dimming resolution and PWM frequency are configurable via the integrated digital display and control buttons, or remotely via RDM communication from a DMX master.
Support for 8-bit and 16-bit dimming resolution enables highly precise light control. The PWM frequency is adjustable from 250 Hz up to 32 kHz, suitable for both standard and camera-friendly applications without visible flicker. A selectable linear or logarithmic dimming curve ensures natural light progression. In the event of DMX signal loss, the decoder operates in stand-alone dimmer or RGB/RGBW mode with internal programs.
Thermal and short-circuit protection with automatic recovery ensure safe and stable operation. The compact linear design allows easy installation in luminaires or distribution cabinets.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, please contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-dmx-controller-4-channels-4x5a-1248v-213-355.pdf
Characteristics sheet
213-355_manual.pdf
