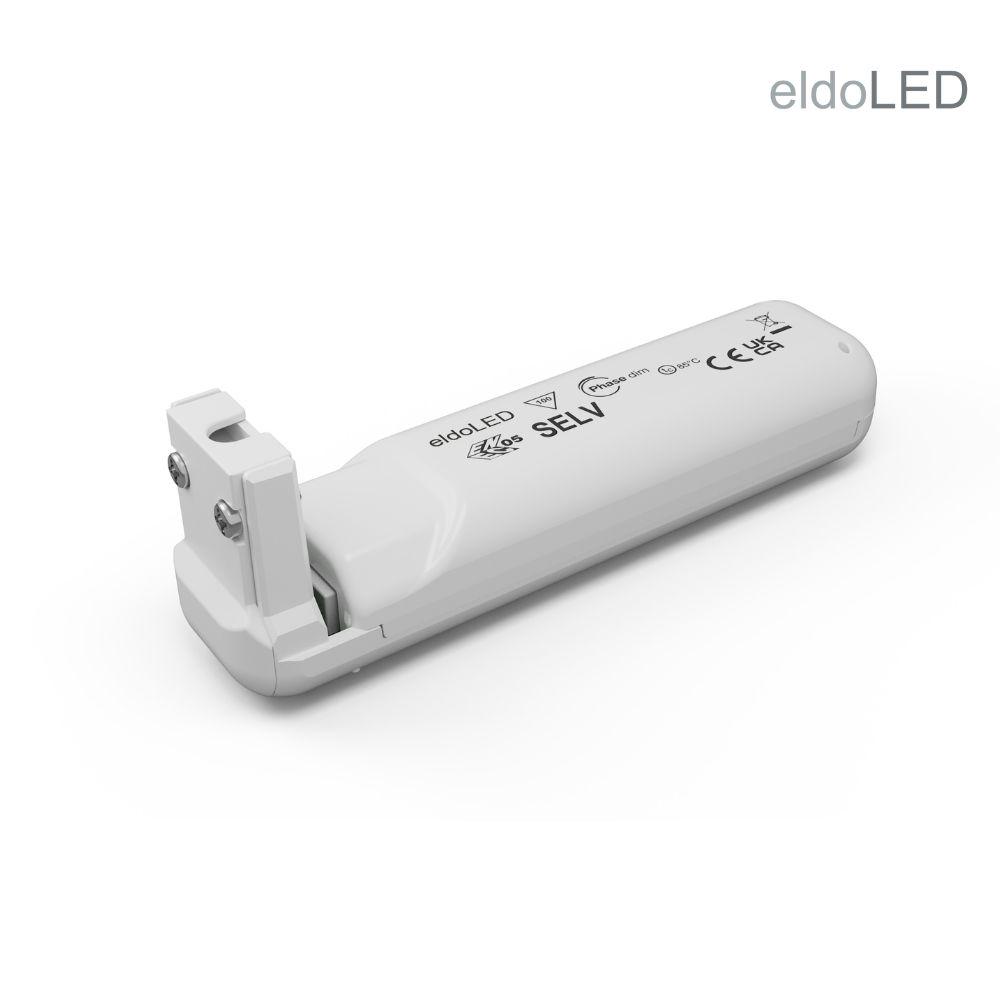

eldoLED ECOdrive | 12NA-E1ZLP | 350~700mA | 12W | TE dim.
215-666Ultra-compact phase-cut dimmable LED driver for constant current applications. Silent, flicker-free dimming to 1% and easy current selection via dipswitch. Fits fixtures with limited space.
Key product features:
- Suitable for constant current: Yes
- Output voltage (V): 10 - 20
- Output current (mA): 350 - 700
- Output power (W): 3,5 - 12
- Dimmig phase cut-off (trailing edge): Yes
- Dimmig phase cut-on (leading edge): Yes
Product Name
eldoLED ECOdrive | 12NA-E1ZLP | 350~700mA | 12W | TE dim.
Ean
8714984950702
Outer box qty
75st
Housing
Plastic housing
Model
Static
Output voltage
10 - 20V
Output current
350 - 700mA
Suitable for outdoor use
No
Suitable for DC-voltage (primary side)
No
Output power
3.5 - 12W
Degree of protection (IP)
IP20
Length
128.8mm
Width
32mm
Height
42.6mm
Power consumption
14W
Input voltage
220 - 240V
Frequency input voltage
50 - 50Hz
PWM modulation
No
Overload protection
Yes
Overtemperature protection
Yes
Control method
Trailing edge dimming
Short-circuit protected
Yes
Ambient temperature
-20 - 45°C
Driver lifetime
50000h
DIN-rail mounting
No
Brand
eldoLED
Dimmable
Yes
Emergency power supply system
None
Control type
Constant current
Warranty
5 years
Product Name
eldoLED ECOdrive | 12NA-E1ZLP | 350~700mA | 12W | TE dim.
Input voltage
220 - 240V
Ean
8714984950702
Frequency input voltage
50 - 50Hz
Outer box qty
75st
PWM modulation
No
Housing
Plastic housing
Overload protection
Yes
Model
Static
Overtemperature protection
Yes
Output voltage
10 - 20V
Control method
Trailing edge dimming
Output current
350 - 700mA
Short-circuit protected
Yes
Suitable for outdoor use
No
Ambient temperature
-20 - 45°C
Suitable for DC-voltage (primary side)
No
Driver lifetime
50000h
Output power
3.5 - 12W
DIN-rail mounting
No
Degree of protection (IP)
IP20
Brand
eldoLED
Length
128.8mm
Dimmable
Yes
Width
32mm
Emergency power supply system
None
Height
42.6mm
Control type
Constant current
Power consumption
14W
Warranty
5 years
The eldoLED ECOdrive 12W Nano is designed for installations with limited space and fits through 35 mm openings. It is NFC programmable and offers adjustable output current (150–500 mA). Supports DALI-2 and Pulse dimming down to 1%.
With >86% efficiency, low inrush current and operation up to 50°C, this driver is a reliable choice for residential and commercial applications. The durable housing with strain relief and screw terminals ensures safe and easy installation.
More information
More information about this product can be found in the product specifications. For accessories, available options, and related products, see the related items. For inquiries or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-eldoled-ecodrive-12na-e1zlp-350700ma-12w-te-dim-215-666.pdf
Characteristics sheet
Datasheet_ECOdrive 12W nano family.pdf
