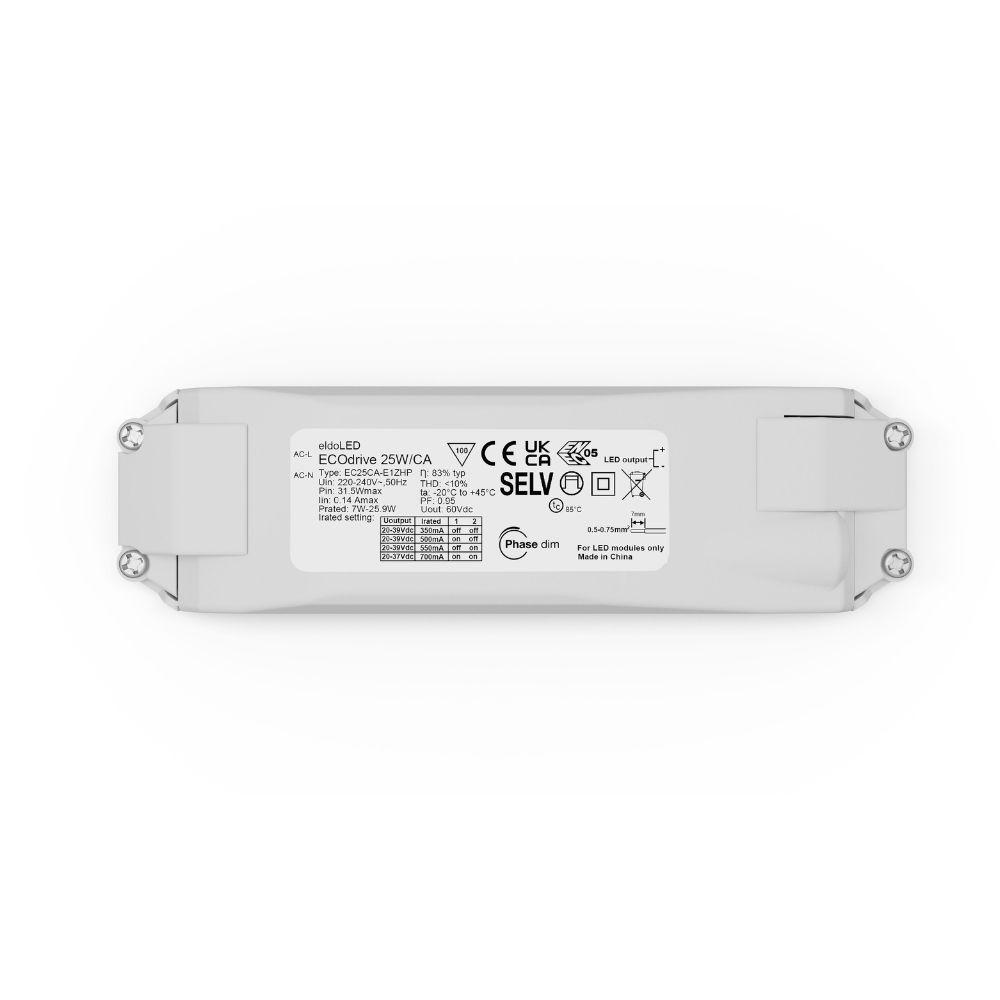

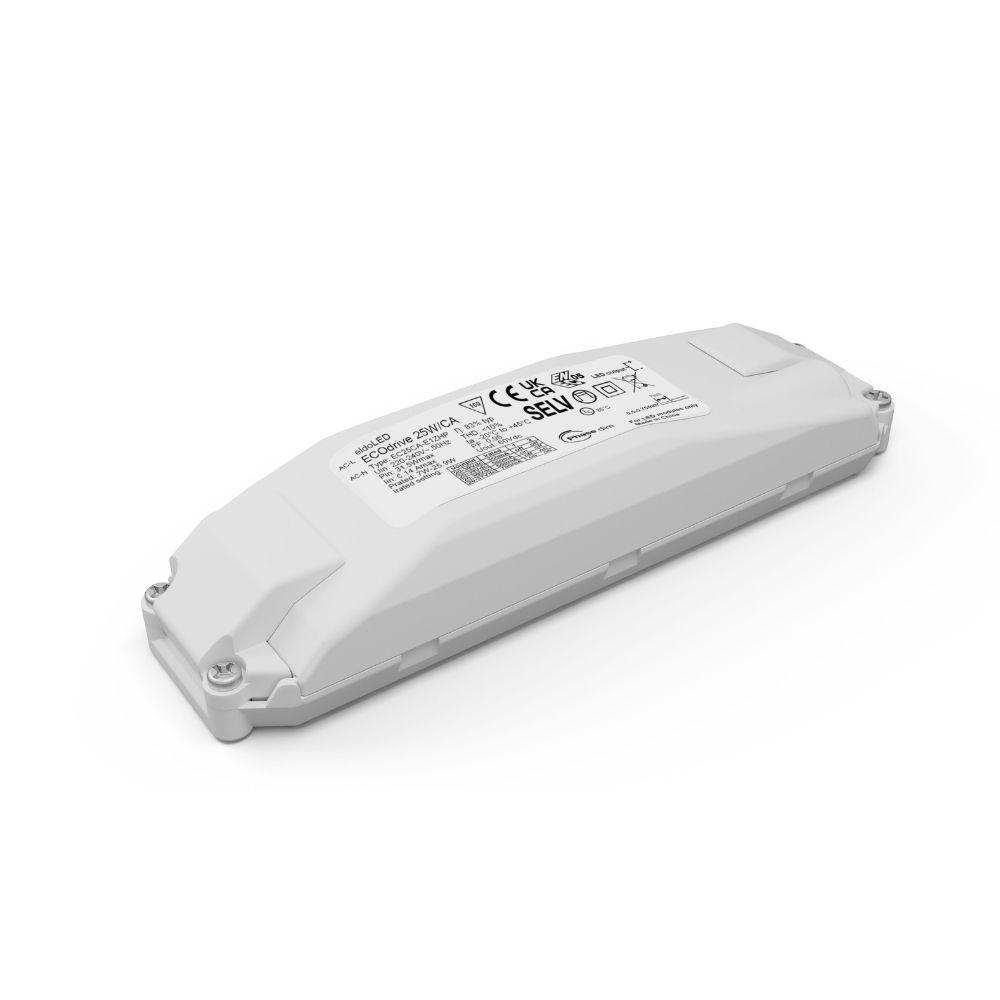

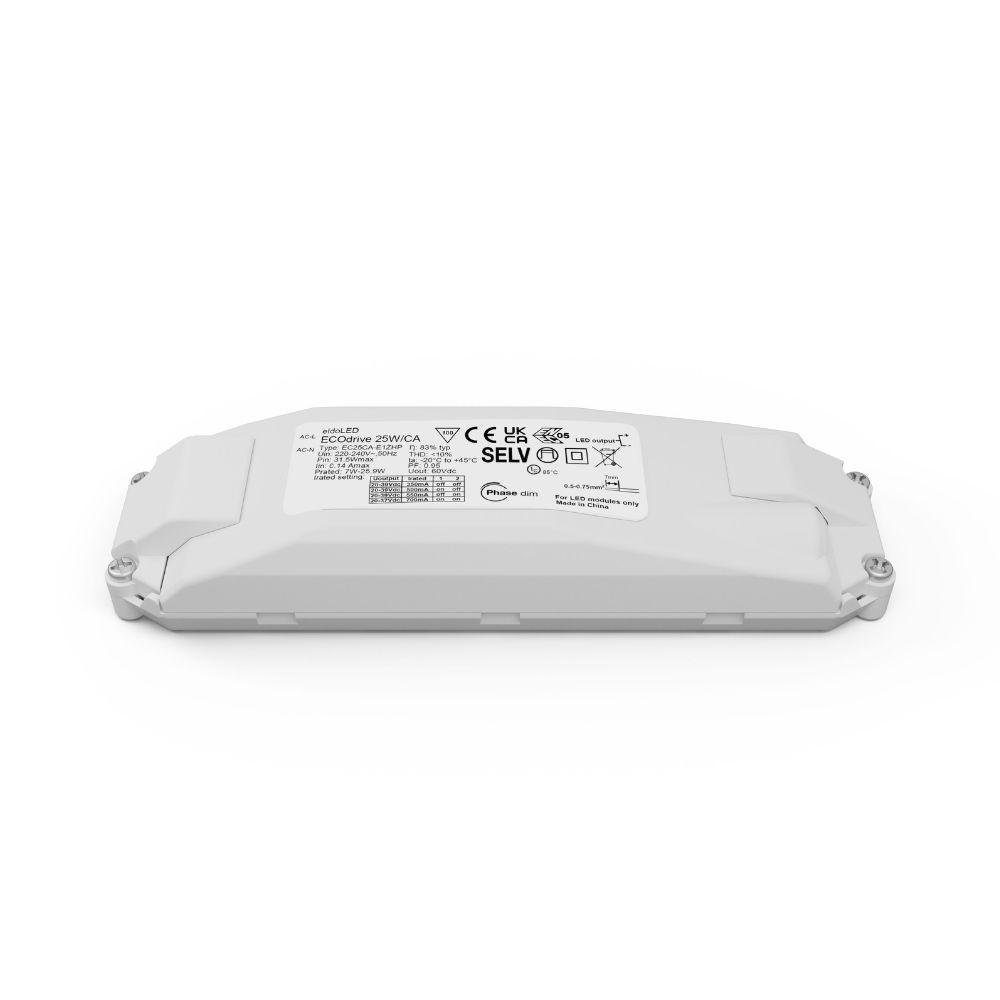

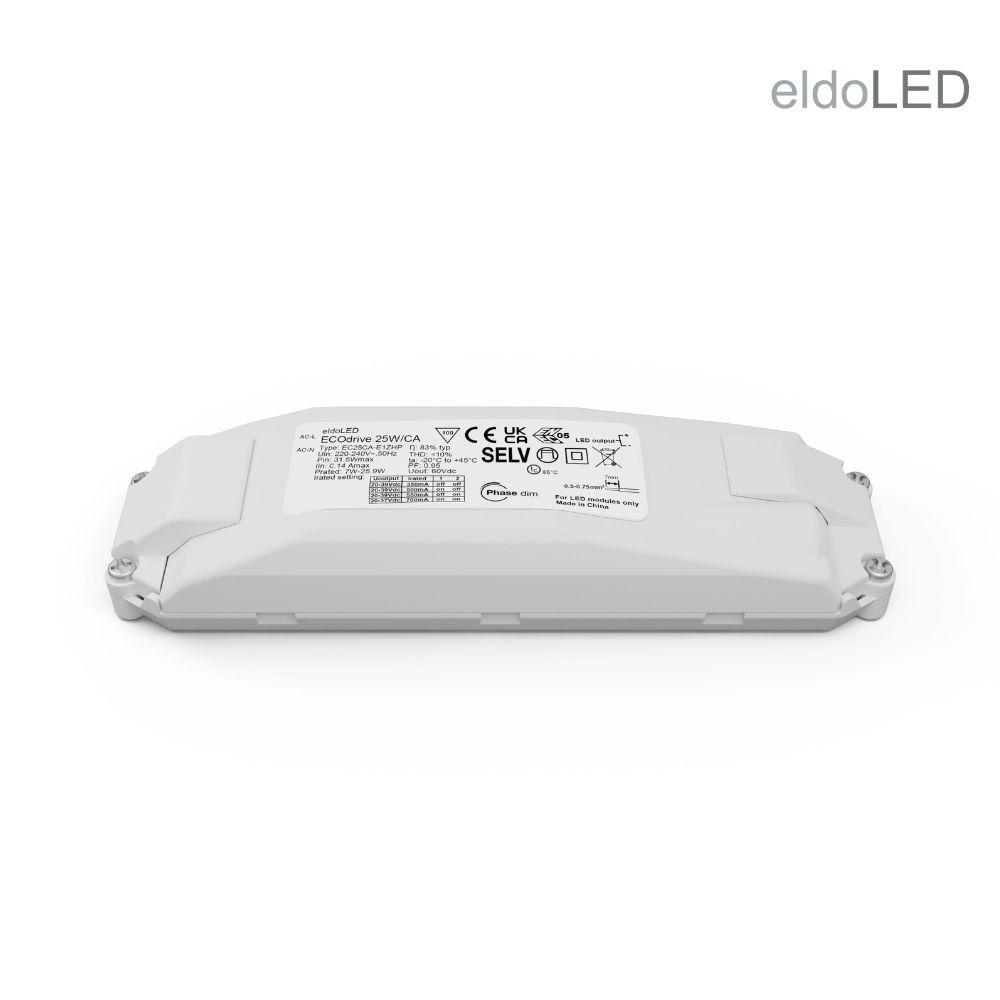

eldoLED ECOdrive EC25CA-E1ZHP | 350~700mA | 25W | TE dim
215-662Trailing edge LED driver (25 W) for compact spots and downlights. Smooth dimming down to 1%, featuring low inrush current, high power factor, and adjustable output current (350/500/550/700 mA) via 4-position DIP switch.
Key product features
- Suitable for constant current: Yes
- Output voltage (V): 20 – 39
- Output current (mA): 350 – 700
- Output power (W): 7 – 25.9
- Dimmig phase cut-off (trailing edge): Yes
- Control type: Constant current
Product Name
eldoLED ECOdrive EC25CA-E1ZHP | 350~700mA | 25W | TE dim
Ean
8714984952188
Outer box qty
50st
Housing
Plastic housing
Model
Static
Output voltage
20 - 39V
Output current
350 - 700mA
Suitable for outdoor use
No
Suitable for DC-voltage (primary side)
Yes
Output power
7 - 25W
Degree of protection (IP)
IP20

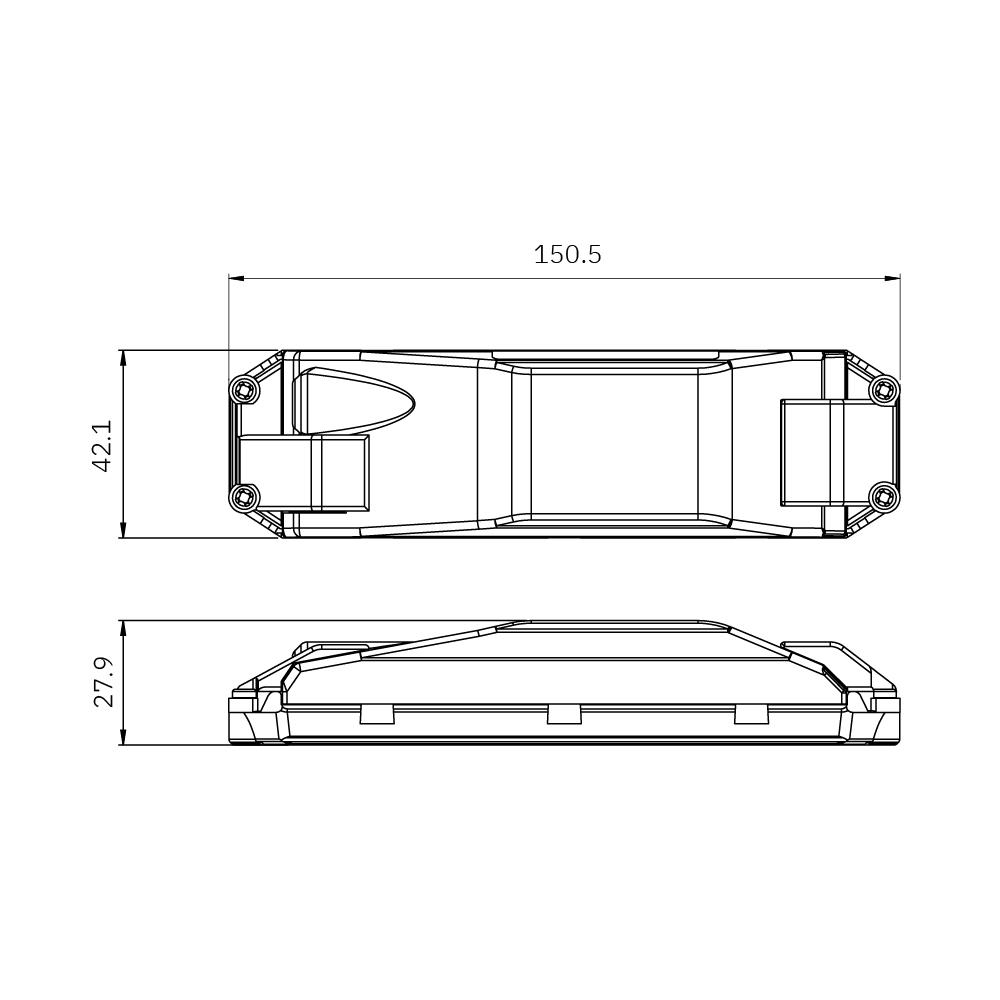

Length
150.5mm
Width
42.1mm
Height
27.9mm
Power consumption
25W
Input voltage
220 - 240V
Frequency input voltage
0 - 50Hz
PWM modulation
No
Overload protection
Yes
Overtemperature protection
Yes
Control method
Trailing edge dimming
Short-circuit protected
Yes
Ambient temperature
-20 - 45°C
Driver lifetime
50000h
DIN-rail mounting
No
Brand
eldoLED
Dimmable
Yes
Emergency power supply system
Central (central battery)
Control type
Constant current
Warranty
5 years
Product Name
eldoLED ECOdrive EC25CA-E1ZHP | 350~700mA | 25W | TE dim
Input voltage
220 - 240V
Ean
8714984952188
Frequency input voltage
0 - 50Hz
Outer box qty
50st
PWM modulation
No
Housing
Plastic housing
Overload protection
Yes
Model
Static
Overtemperature protection
Yes
Output voltage
20 - 39V
Control method
Trailing edge dimming
Output current
350 - 700mA
Short-circuit protected
Yes
Suitable for outdoor use
No
Ambient temperature
-20 - 45°C
Suitable for DC-voltage (primary side)
Yes
Driver lifetime
50000h
Output power
7 - 25W
DIN-rail mounting
No
Degree of protection (IP)
IP20
Brand
eldoLED
Length
150.5mm
Dimmable
Yes
Width
42.1mm
Emergency power supply system
Central (central battery)
Height
27.9mm
Control type
Constant current
Power consumption
25W
Warranty
5 years
This compact driver operates on 220–240 V AC and delivers a stable output voltage of 20–39 V DC. The output current can be set using a 4-position internal DIP switch (350, 500, 550 or 700 mA), allowing fast and flexible on-site configuration. The trailing edge dimming technology ensures smooth dimming performance down to just 1% when used with a compatible dimmer.
The driver offers high efficiency, low total harmonic distortion (THD), and an excellent power factor. Its low inrush current makes it suitable for installations with multiple luminaires on a single circuit. Protected against overheating, overloading, and short-circuiting. Thanks to the compact housing with strain relief, it is ideal for use in ceiling cavities with limited space.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-eldoled-ecodrive-ec25ca-e1zhp-350700ma-25w-te-dim-215-662.pdf
Characteristics sheet
215-662_technical_datasheet_extended.pdf
