IR hand wave sensor || 12~36V | IP20 | long sensor shell

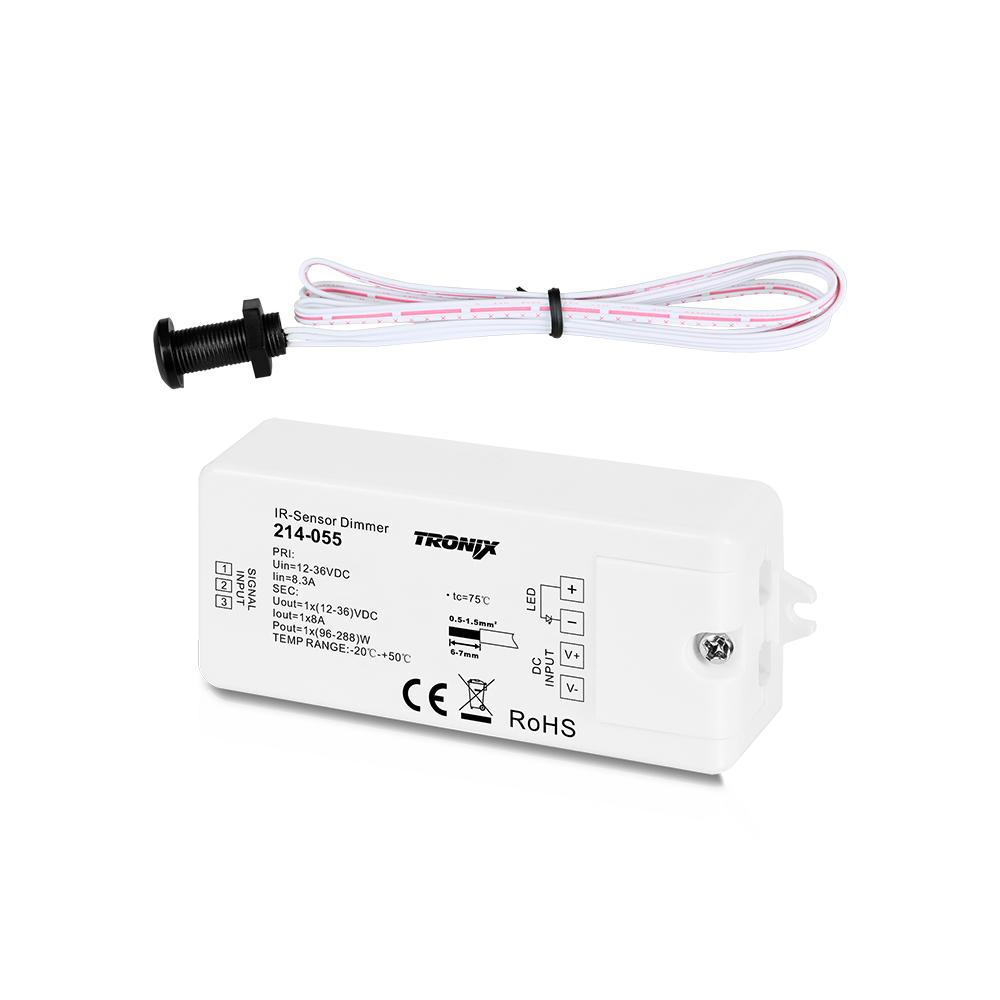

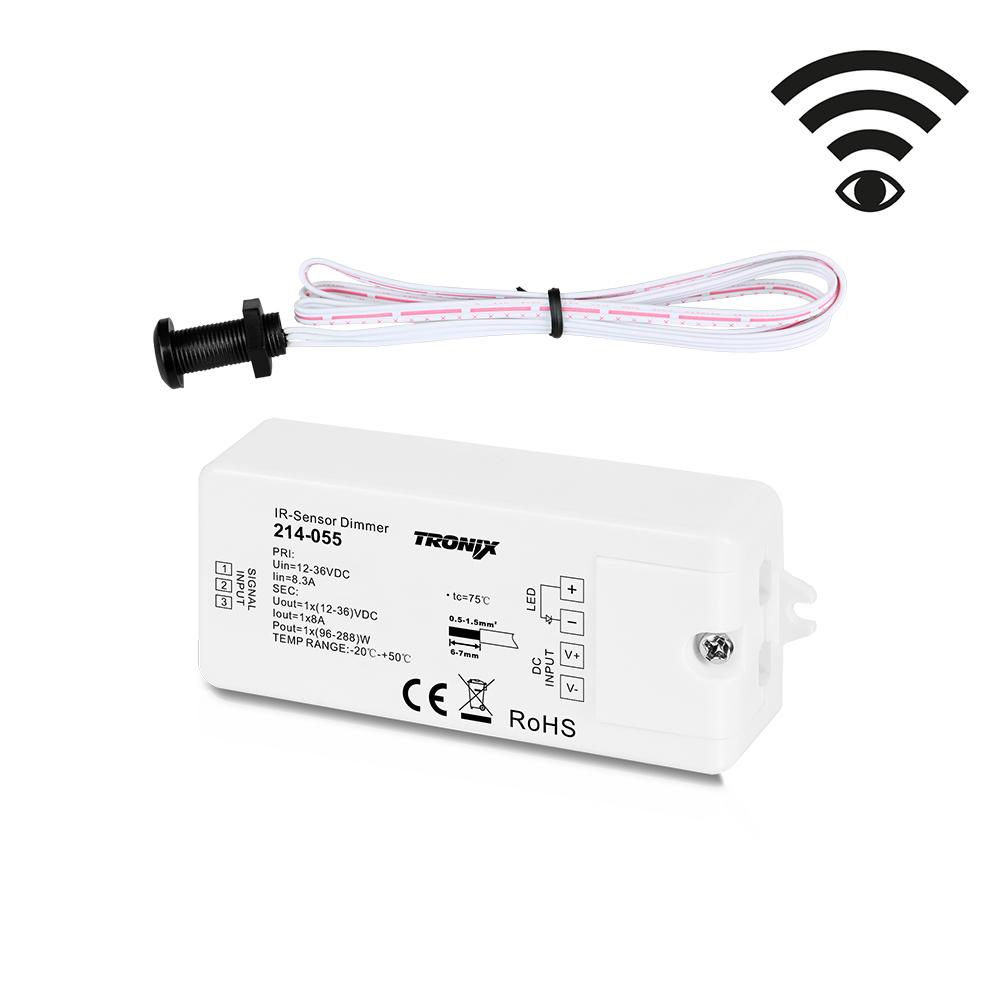

214-055IR handwave dimmer for single-colour LED lighting. Switches on/off and dims without contact via hand gesture. Suitable for LED strips and other 12–36V DC applications.
Key product features
- Mounting method: Recessed
- Max. reach frontally (m): 0.06
- With light sensor: Yes
Product Name
IR hand wave sensor || 12~36V | IP20 | long sensor shell
Ean
8714984941656
Colour
Black
Type
Hand wave sensor
Material
Plastic
Sensor connect
No
Material quality
Thermoplastic
Mounting method
Flush-mounted
Mounting height
0.06m
Suitable for degree of protection (IP)
IP20
Suitable for wireless transmission
No
Constant light control
No
Networkable
No
Max. reach sideways
0.06m
Max. reach frontally
0.06m
Detection angle horizontal
40 - 60°
Min. switch-on time
1s
With presence detector
No
With movement sensor
No
With light sensor
Yes
Response value sensitivity adjustable
No
Response value luminosity adjustable
No
Teach-function for response value luminosity
No
Dim function with dimmer basic element
Yes
Switch-off delay self-learning
No
Max. switching power
288W
Operation mode switch
No
Staircase light controller
No
Halogen free
Yes
RAL-number (similar)
9005
Surface finishing
Matt
Warranty
5 years
Product Name
IR hand wave sensor || 12~36V | IP20 | long sensor shell
Min. switch-on time
1s
Ean
8714984941656
With presence detector
No
Colour
Black
With movement sensor
No
Type
Hand wave sensor
With light sensor
Yes
Material
Plastic
Response value sensitivity adjustable
No
Sensor connect
No
Response value luminosity adjustable
No
Material quality
Thermoplastic
Teach-function for response value luminosity
No
Mounting method
Flush-mounted
Dim function with dimmer basic element
Yes
Mounting height
0.06m
Switch-off delay self-learning
No
Suitable for degree of protection (IP)
IP20
Max. switching power
288W
Suitable for wireless transmission
No
Operation mode switch
No
Constant light control
No
Staircase light controller
No
Networkable
No
Halogen free
Yes
Max. reach sideways
0.06m
RAL-number (similar)
9005
Max. reach frontally
0.06m
Surface finishing
Matt
Detection angle horizontal
40 - 60°
Warranty
5 years
This compact motion sensor with IR handwave technology switches the lighting on or off via a short hand gesture in front of the sensor (max. 6 cm). Holding the hand briefly within the detection zone starts a dimming cycle: the light intensity gradually changes from dark to bright and back again (duration: 16–20 seconds per cycle). The desired brightness level is automatically saved.
The dimmer operates on 12–36V DC, delivers up to 8 A, and has a maximum output of 288 W at 36V. Ideal for constant voltage sources such as LED strips. Thanks to the memory function, the last used brightness level is retained after power loss.
Items 214-055/056 differ only in sensor cap (long vs. short); functionality is identical. The choice depends on the intended installation setup.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
