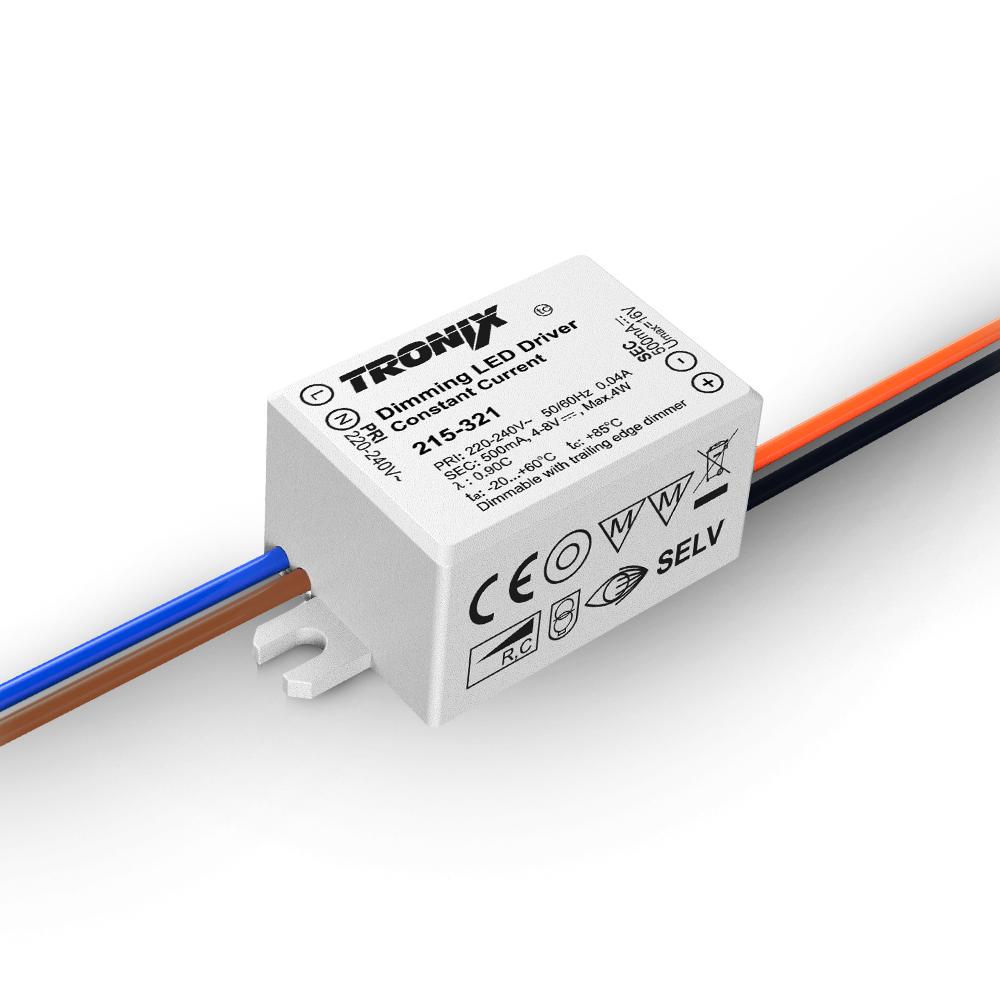

LED driver | 500mA | 4 watt | IP20 | 4 ~ 8 volt | dimmable
215-321This flicker-free LED driver has a maximum output of 4W and 500mA and is extremely well suited for use with various light sources. Thanks to the techniques present, this driver is flicker-free, which means that (dimmable) lighting looks calm at all times.
Features
- Dimmable on phase cut-off and cut-on
- Output voltage from 4 ~ 8 V
- Super compact size 38*27*21 mm
Product Name
LED driver | 500mA | 4 watt | IP20 | 4 ~ 8 volt | dimmable
Ean
8714984941038
Outer box qty
200st
Housing
Plastic housing
Model
Static
Output voltage
4 - 8V
Output current
500 - 500mA
Suitable for outdoor use
Yes
Suitable for DC-voltage (primary side)
No
Output power
4 - 4W
Degree of protection (IP)
IP20
Length
293mm
Width
38mm
Height
27mm
Diameter
21mm
Power consumption
4W
Input voltage
220 - 240V
Frequency input voltage
50 - 60Hz
Overload protection
Yes
Overtemperature protection
Yes
Control method
Trailing edge dimming
Short-circuit protected
Yes
Ambient temperature
-20 - 60°C
Driver lifetime
50000h
DIN-rail mounting
No
Brand
Tronix Lighting
Dimmable
Yes
Emergency power supply system
None
Control type
Constant current
Warranty
5 years
Product Name
LED driver | 500mA | 4 watt | IP20 | 4 ~ 8 volt | dimmable
Power consumption
4W
Ean
8714984941038
Input voltage
220 - 240V
Outer box qty
200st
Frequency input voltage
50 - 60Hz
Housing
Plastic housing
Overload protection
Yes
Model
Static
Overtemperature protection
Yes
Output voltage
4 - 8V
Control method
Trailing edge dimming
Output current
500 - 500mA
Short-circuit protected
Yes
Suitable for outdoor use
Yes
Ambient temperature
-20 - 60°C
Suitable for DC-voltage (primary side)
No
Driver lifetime
50000h
Output power
4 - 4W
DIN-rail mounting
No
Degree of protection (IP)
IP20
Brand
Tronix Lighting
Length
293mm
Dimmable
Yes
Width
38mm
Emergency power supply system
None
Height
27mm
Control type
Constant current
Diameter
21mm
Warranty
5 years
This flicker-free LED driver has a maximum output of 4W and 500mA and is extremely well suited for use with various light sources. Thanks to the techniques present, this driver is flicker-free, which means that (dimmable) lighting looks calm at all times.
Features
Dimmable on phase cut-off and cut-on
Output voltage from 4 ~ 8 V
Super compact size 38*27*21 mm
Datasheet
Datasheet-led-driver-500ma-4-watt-ip20-4-8-volt-dimmable-215-321.pdf
Characteristics sheet
215-321_technical_datasheet_extended.pdf
