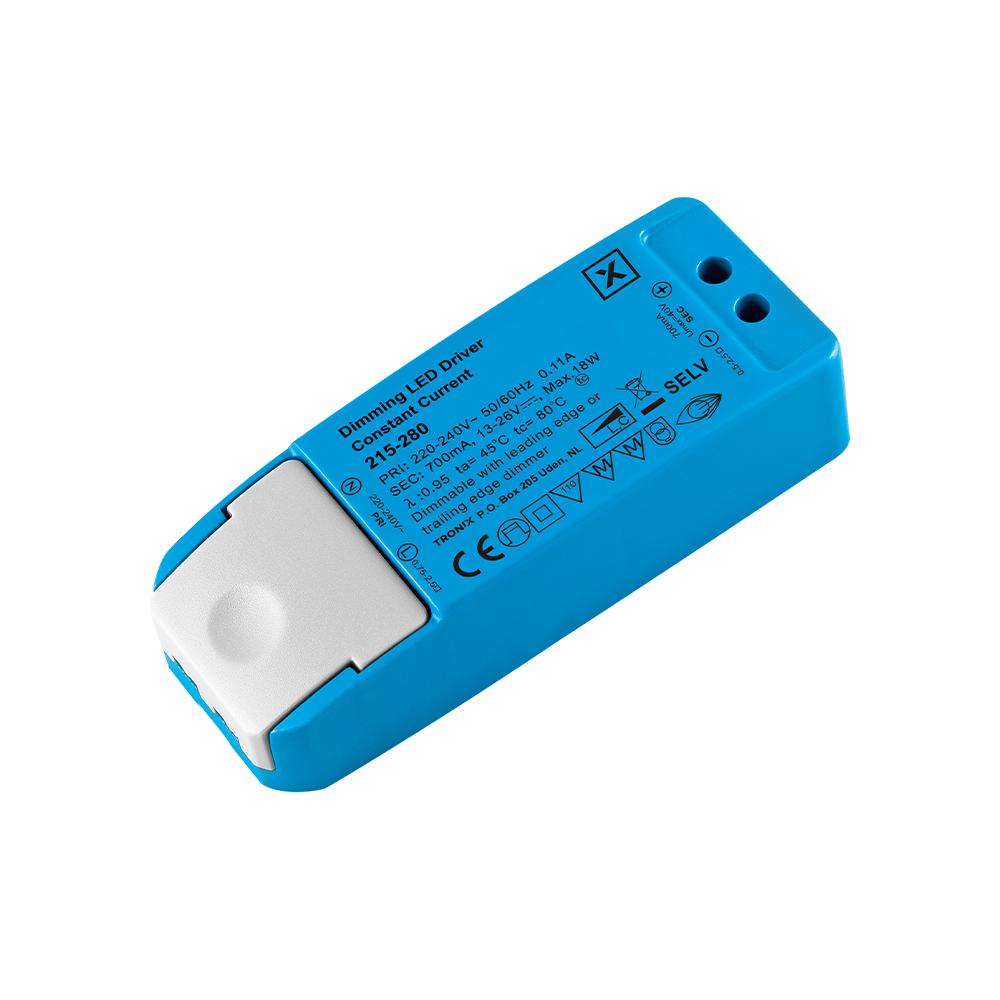

LED driver | 700mA | 18 watt | flicker free | trailing edge
215-280This flicker-free LED driver has a maximum output of 18W and 700mA and is extremely well suited for use with various light sources. Thanks to the techniques present, this driver is flicker-free, which means that (dimmable) lighting looks calm at all times.
Features
- Dimmable on phase cut-off and cut-on
- Output voltage from 13 ~ 26 V

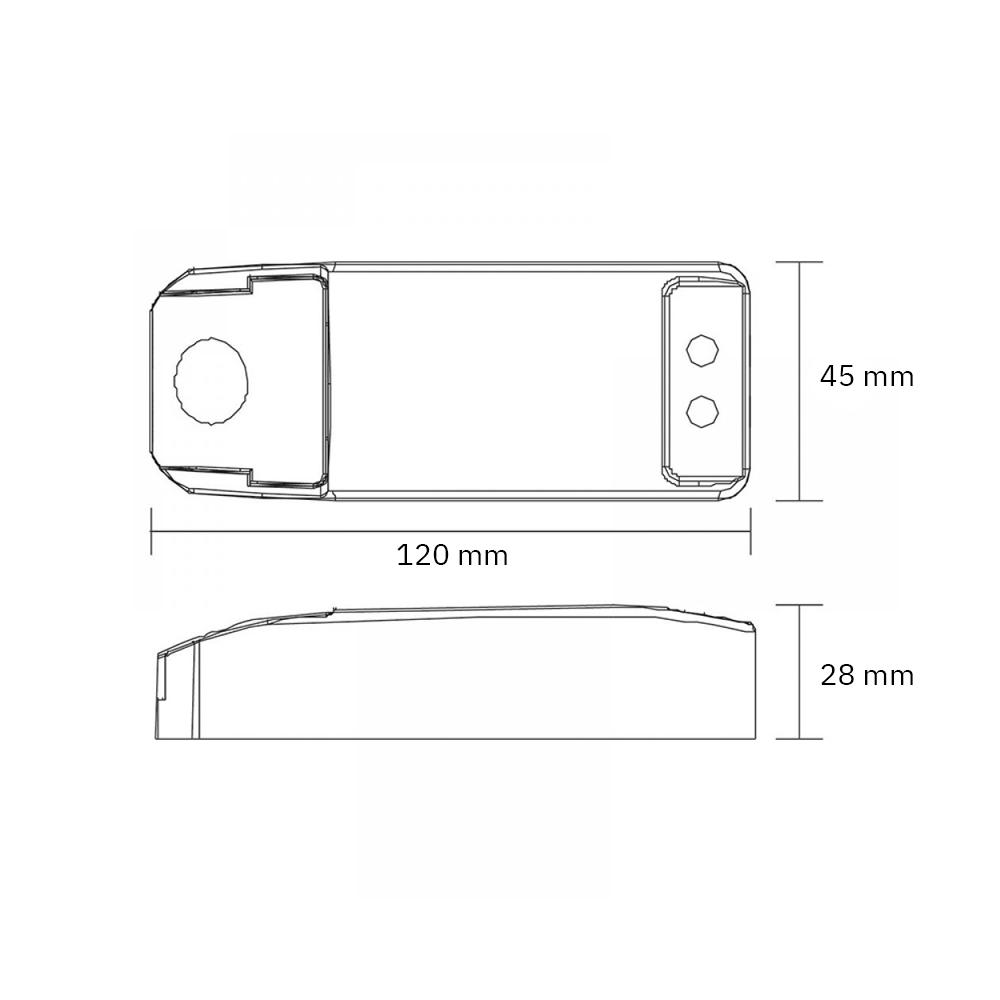

- Compact size 120*45*28 mm
Product Name
LED driver | 700mA | 18 watt | flicker free | trailing edge
Ean
8714984940918
Outer box qty
100st
Housing
Plastic housing
Model
Static
Output voltage
13 - 26V
Output current
700 - 700mA
Suitable for outdoor use
No
Suitable for DC-voltage (primary side)
No
Output power
18 - 18W
Degree of protection (IP)
IP20
Length
120mm
Width
45mm
Height
28mm
Power consumption
18W
Input voltage
220 - 240V
Frequency input voltage
50 - 60Hz
Overload protection
Yes
Overtemperature protection
Yes
Control method
Trailing edge dimming
Short-circuit protected
Yes
Ambient temperature
-20 - 45°C
Driver lifetime
50000h
DIN-rail mounting
No
Brand
Tronix Lighting
Dimmable
Yes
Emergency power supply system
None
Control type
Constant current
Warranty
5 years
Product Name
LED driver | 700mA | 18 watt | flicker free | trailing edge
Input voltage
220 - 240V
Ean
8714984940918
Frequency input voltage
50 - 60Hz
Outer box qty
100st
Overload protection
Yes
Housing
Plastic housing
Overtemperature protection
Yes
Model
Static
Control method
Trailing edge dimming
Output voltage
13 - 26V
Short-circuit protected
Yes
Output current
700 - 700mA
Ambient temperature
-20 - 45°C
Suitable for outdoor use
No
Driver lifetime
50000h
Suitable for DC-voltage (primary side)
No
DIN-rail mounting
No
Output power
18 - 18W
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Dimmable
Yes
Length
120mm
Emergency power supply system
None
Width
45mm
Control type
Constant current
Height
28mm
Warranty
5 years
Power consumption
18W
This flicker-free LED driver has a maximum output of 18W and 700mA and is extremely well suited for use with various light sources. Thanks to the techniques present, this driver is flicker-free, which means that (dimmable) lighting looks calm at all times.
Features
Dimmable on phase cut-off and cut-on
Output voltage from 13 ~ 26 V
Compact size 120*45*28 mm
Datasheet
Datasheet-led-driver-700ma-18-watt-flicker-free-trailing-edge-215-280.pdf
Characteristics sheet
215-280_technical_datasheet_extended.pdf
