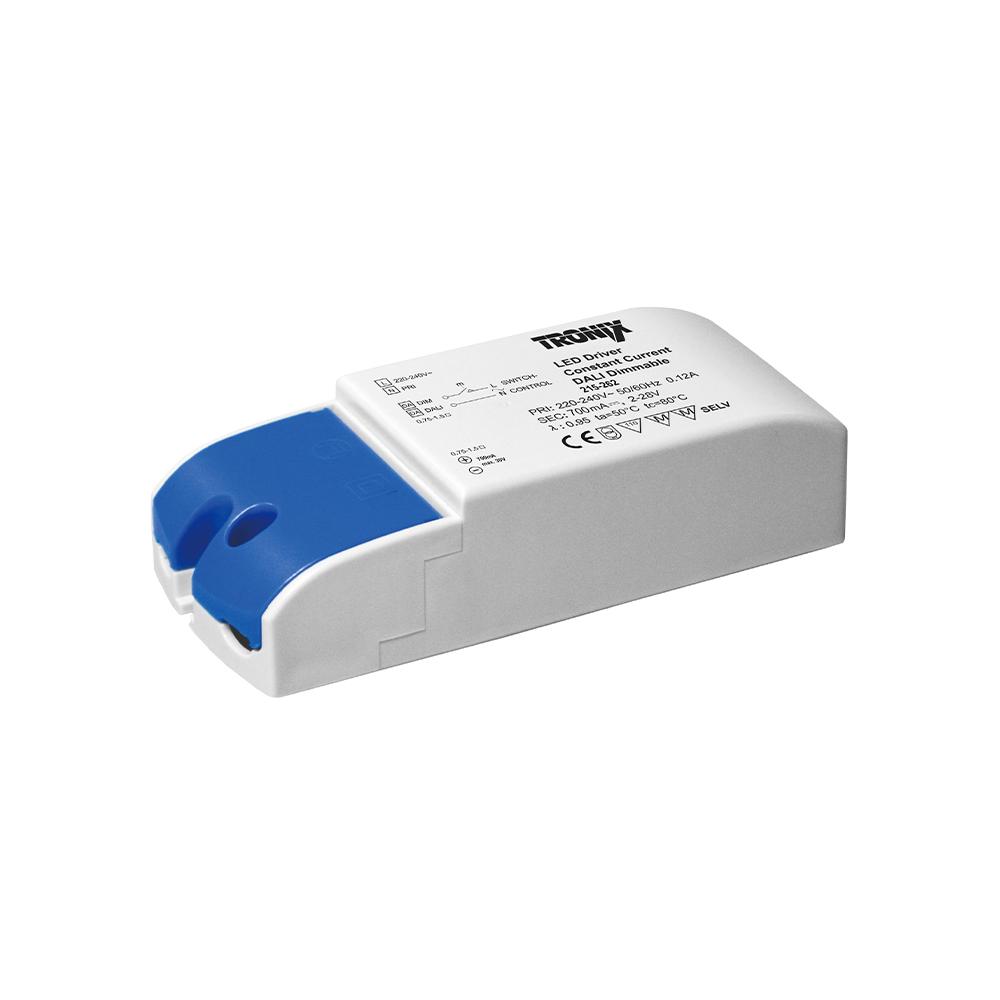

LED driver || 700mA | 20 watt | DALI dimmable
215-262This sturdy LED driver has a maximum output of 20W and 700mA and is extremely well suited for use with various light sources. In addition, the compact size ensures that the driver can be easily placed. In addition, this driver offers the ability to communicate with DALI, allowing lighting to be optimized.
Features
- Dimmable using DALI
- Output voltage 2 ~ 28 V

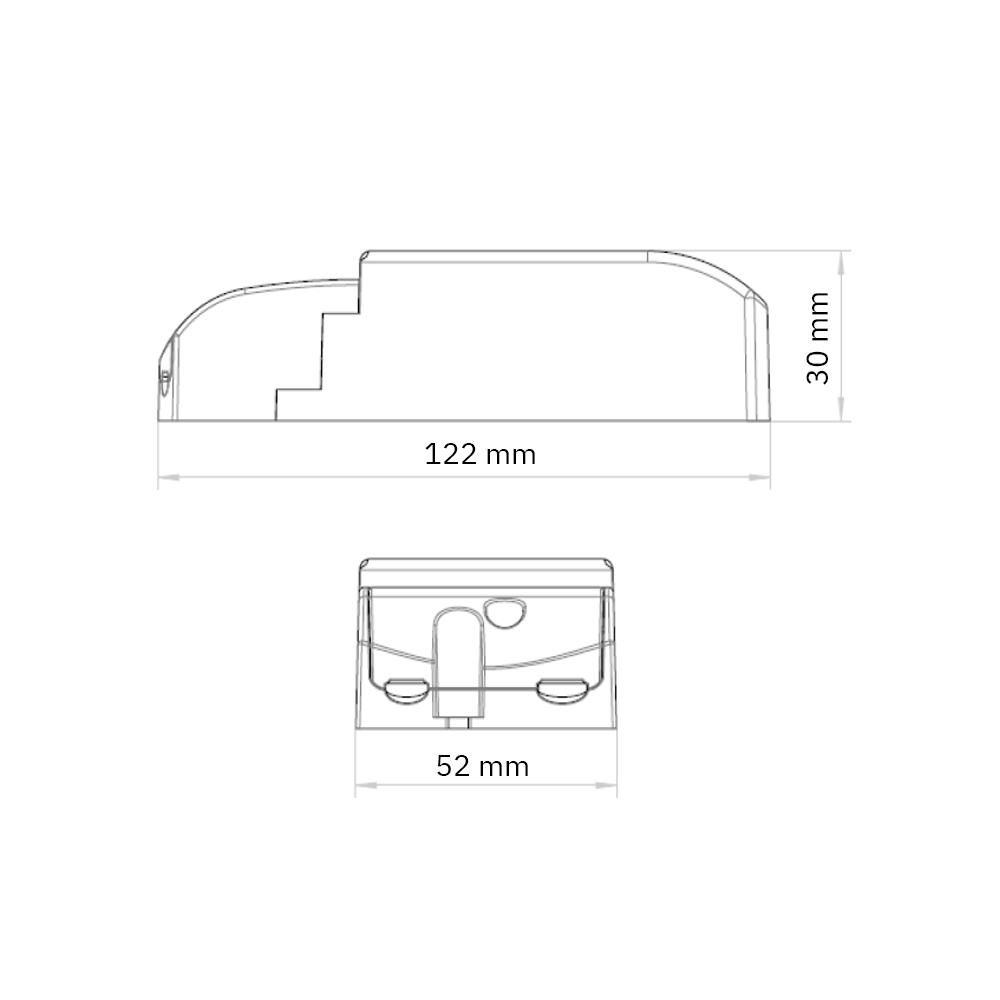

- Compact size 122*52*30 mm
Product Name
LED driver || 700mA | 20 watt | DALI dimmable
Ean
8714984920248
Outer box qty
100st
Housing
Plastic housing
Model
Static
Output voltage
2 - 28V
Output current
700 - 700mA
Suitable for outdoor use
No
Suitable for DC-voltage (primary side)
No
Output power
20 - 20W
Degree of protection (IP)
IP20
Length
122mm
Width
52mm
Height
30mm
Power consumption
20W
Input voltage
220 - 240V
Overload protection
Yes
Overtemperature protection
Yes
Control method
DALI
Short-circuit protected
Yes
Ambient temperature
-20 - 50°C
DIN-rail mounting
No
Brand
Tronix Lighting
Dimmable
Yes
Emergency power supply system
None
Control type
Constant current
Warranty
5 years
Product Name
LED driver || 700mA | 20 watt | DALI dimmable
Power consumption
20W
Ean
8714984920248
Input voltage
220 - 240V
Outer box qty
100st
Overload protection
Yes
Housing
Plastic housing
Overtemperature protection
Yes
Model
Static
Control method
DALI
Output voltage
2 - 28V
Short-circuit protected
Yes
Output current
700 - 700mA
Ambient temperature
-20 - 50°C
Suitable for outdoor use
No
DIN-rail mounting
No
Suitable for DC-voltage (primary side)
No
Brand
Tronix Lighting
Output power
20 - 20W
Dimmable
Yes
Degree of protection (IP)
IP20
Emergency power supply system
None
Length
122mm
Control type
Constant current
Width
52mm
Warranty
5 years
Height
30mm
This sturdy LED driver has a maximum output of 20W and 700mA and is extremely well suited for use with various light sources. In addition, the compact size ensures that the driver can be easily placed. In addition, this driver offers the ability to communicate with DALI, allowing lighting to be optimized.
Features
Dimmable using DALI
Output voltage 2 ~ 28 V
Compact size 122*52*30 mm
