This compact, non-dimmable LED power supply operates on a constant current basis. The power supply features a maximum output of 20 Watts and provides a smooth, fluid light experience.

Features

Maximum 20 Watts
2-29 Volt output voltage

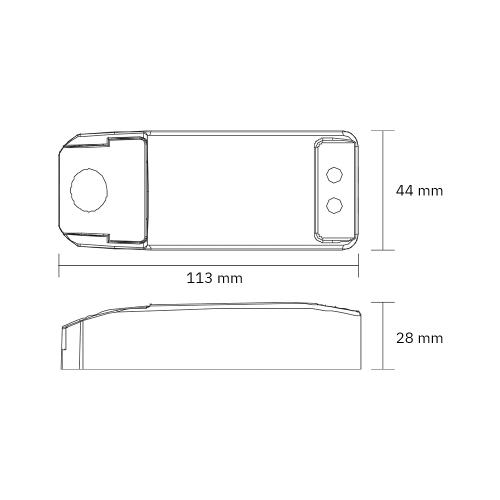

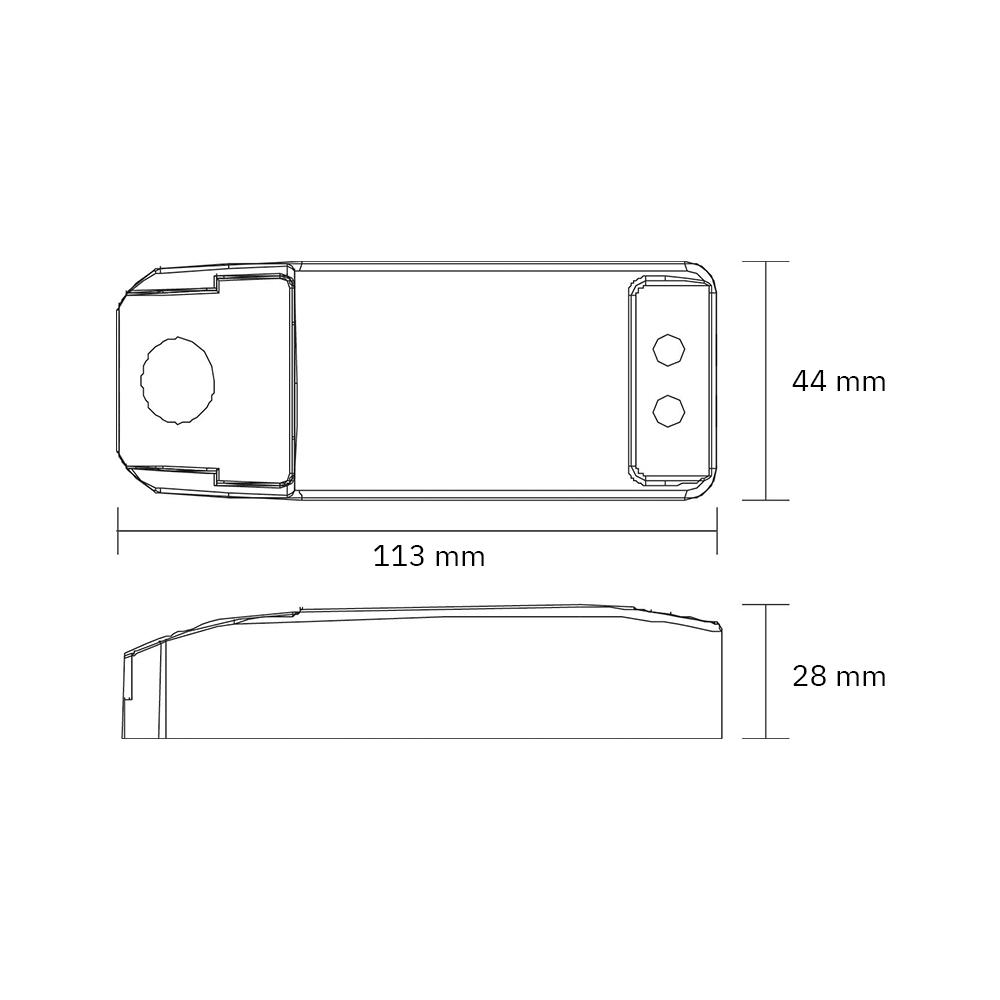

Compact size: 113x44x28 mm

230V AC switch receiver || 1 x 100W 214-174

GST18/3 | 30 centimeter cable | stripped wire 595-042

Product Name

LED driver || 700mA | 20 watt | non dimmable

Ean

8714984915503

Outer box qty

100st

Housing

Plastic housing

Model

Static

Output voltage

2 - 29V

Output current

700 - 700mA

Suitable for outdoor use

Suitable for DC-voltage (primary side)

Output power

20 - 20W

Degree of protection (IP)

IP20

Length

113mm

Width

44mm

Height

28mm

Power consumption

20W

Input voltage

220 - 240V

Frequency input voltage

50 - 60Hz

Overload protection

Yes

Overtemperature protection

Yes

Control method

Non-dimmable

Short-circuit protected

Yes

Ambient temperature

-20 - 50°C

Driver lifetime

30000h

DIN-rail mounting

Brand

Tronix Lighting

Dimmable

Emergency power supply system

None

Control type

Constant current

Warranty

5 years
