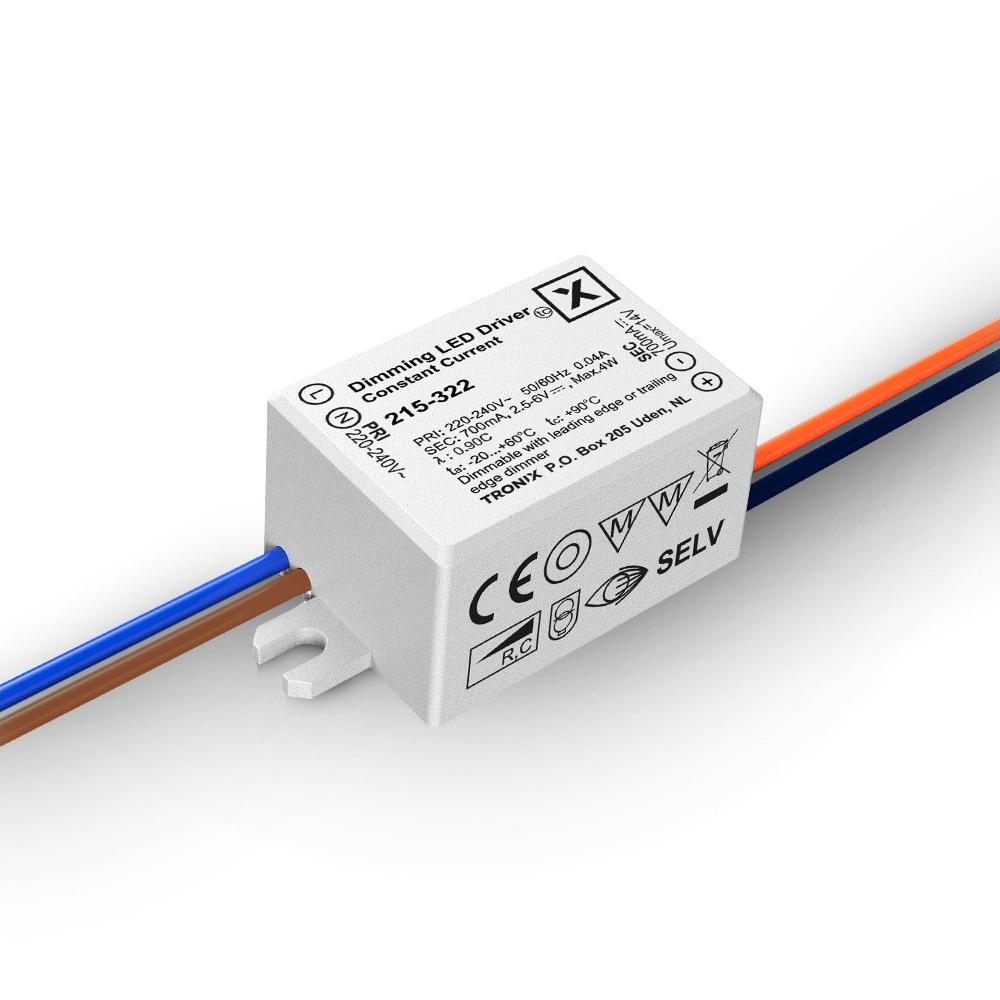

LED driver | 700mA | 4 watt | IP20 | 2.5 ~ 6 volt | dimmable
215-322This flicker-free LED driver has a maximum output of 4W and 700mA and is extremely well suited for use with various light sources. Thanks to the techniques present, this driver is flicker-free, which means that (dimmable) lighting looks calm at all times.
Features
- Dimmable on phase cut-off and cut-on
- Output voltage from 2 ~ 6 V
- Super compact size 38*27*21 mm
Product Name
LED driver | 700mA | 4 watt | IP20 | 2.5 ~ 6 volt | dimmable
Ean
8714984941045
Outer box qty
200st
Housing
Plastic housing
Model
Static
Output voltage
2 - 6V
Output current
700 - 700mA
Suitable for outdoor use
Yes
Suitable for DC-voltage (primary side)
No
Output power
4 - 4W
Degree of protection (IP)
IP20
Length
38mm
Width
27mm
Height
21mm
Power consumption
4W
Input voltage
220 - 240V
Frequency input voltage
50 - 60Hz
Overload protection
Yes
Overtemperature protection
Yes
Control method
RF
Short-circuit protected
Yes
Ambient temperature
-20 - 60°C
Driver lifetime
50000h
DIN-rail mounting
No
Brand
Tronix Lighting
Dimmable
Yes
Emergency power supply system
None
Control type
Constant current
Warranty
5 years
Product Name
LED driver | 700mA | 4 watt | IP20 | 2.5 ~ 6 volt | dimmable
Input voltage
220 - 240V
Ean
8714984941045
Frequency input voltage
50 - 60Hz
Outer box qty
200st
Overload protection
Yes
Housing
Plastic housing
Overtemperature protection
Yes
Model
Static
Control method
RF
Output voltage
2 - 6V
Short-circuit protected
Yes
Output current
700 - 700mA
Ambient temperature
-20 - 60°C
Suitable for outdoor use
Yes
Driver lifetime
50000h
Suitable for DC-voltage (primary side)
No
DIN-rail mounting
No
Output power
4 - 4W
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Dimmable
Yes
Length
38mm
Emergency power supply system
None
Width
27mm
Control type
Constant current
Height
21mm
Warranty
5 years
Power consumption
4W
This flicker-free LED driver has a maximum output of 4W and 700mA and is extremely well suited for use with various light sources. Thanks to the techniques present, this driver is flicker-free, which means that (dimmable) lighting looks calm at all times.
Features
Dimmable on phase cut-off and cut-on
Output voltage from 2 ~ 6 V
Super compact size 38*27*21 mm
Datasheet
Datasheet-led-driver-700ma-4-watt-ip20-25-6-volt-dimmable-215-322.pdf
Characteristics sheet
215-322_technical_datasheet_extended.pdf
