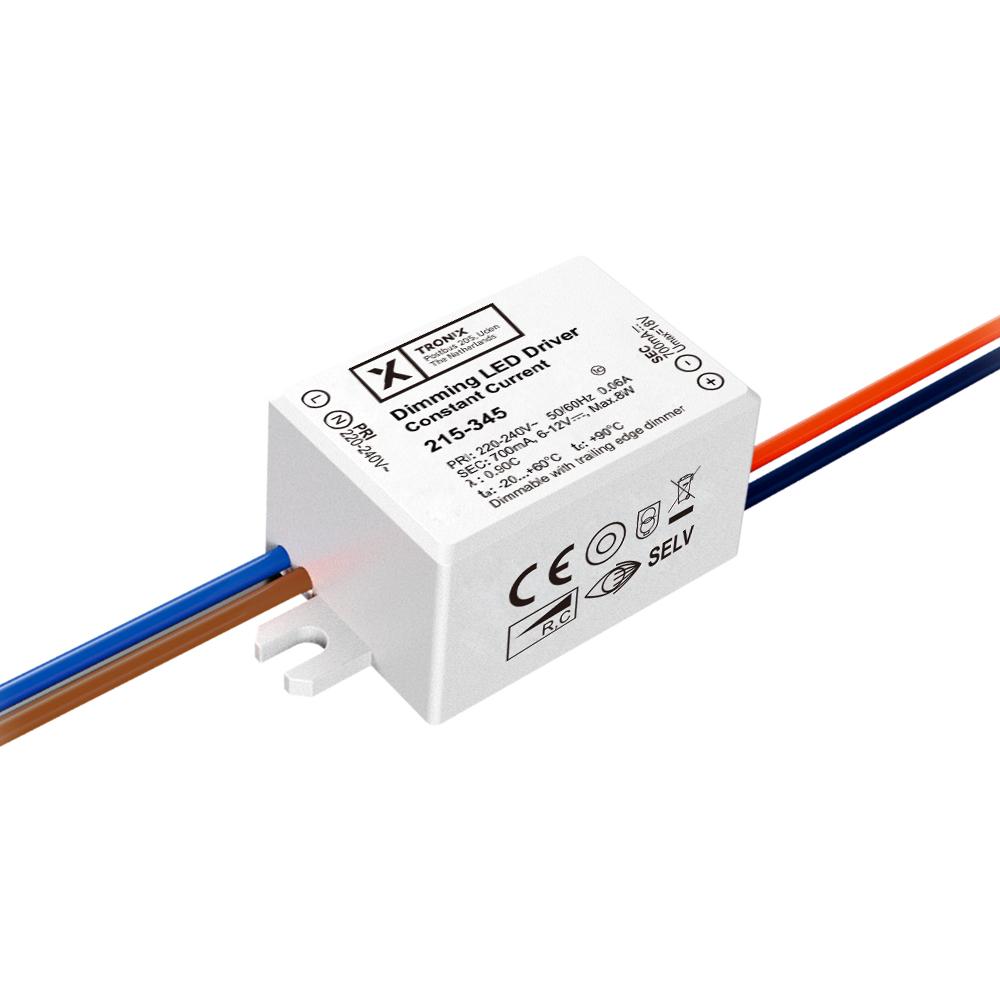

LED driver | 700mA | 8 watt | IP20 | 6 ~ 12 volt | dimmable
215-345This flicker-free LED driver has a maximum output of 8W and 700mA and is extremely well suited for use with various light sources. Thanks to the techniques present, this driver is flicker-free, which means that (dimmable) lighting looks calm at all times.
Features
- Dimmable on phase cut-off and cut-on
- Output voltage from 6 ~ 12 V

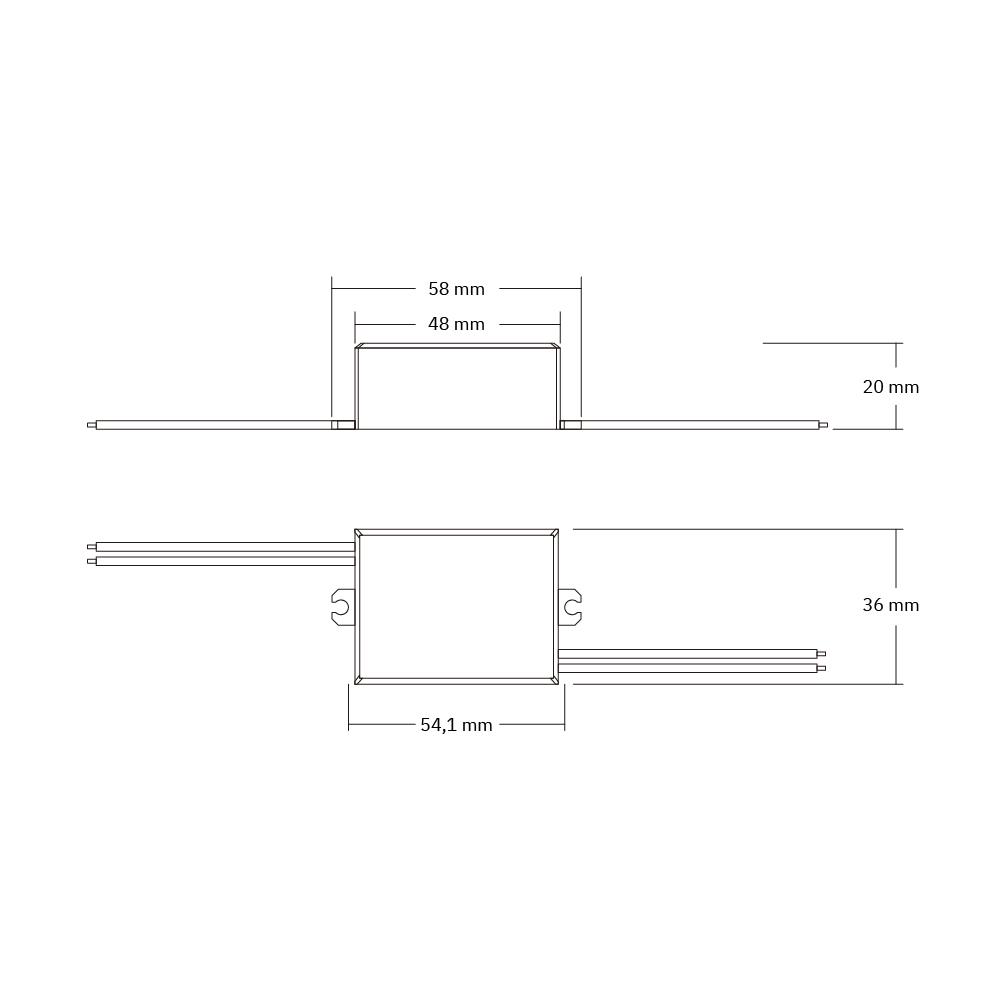

- Super compact size 58*36*20 mm
Product Name
LED driver | 700mA | 8 watt | IP20 | 6 ~ 12 volt | dimmable
Ean
8714984950986
Outer box qty
100st
Housing
Plastic housing
Model
Static
Output voltage
6 - 12V
Output current
700 - 700mA
Suitable for outdoor use
Yes
Suitable for DC-voltage (primary side)
No
Output power
8 - 8W
Degree of protection (IP)
IP20
Length
58mm
Width
36mm
Height
20mm
Power consumption
8W
Input voltage
220 - 240V
Frequency input voltage
50 - 60Hz
Overload protection
Yes
Overtemperature protection
Yes
Control method
Trailing edge dimming
Short-circuit protected
Yes
Ambient temperature
-20 - 60°C
Driver lifetime
50000h
DIN-rail mounting
No
Brand
Tronix Lighting
Dimmable
Yes
Emergency power supply system
None
Control type
Constant current
Warranty
5 years
Product Name
LED driver | 700mA | 8 watt | IP20 | 6 ~ 12 volt | dimmable
Input voltage
220 - 240V
Ean
8714984950986
Frequency input voltage
50 - 60Hz
Outer box qty
100st
Overload protection
Yes
Housing
Plastic housing
Overtemperature protection
Yes
Model
Static
Control method
Trailing edge dimming
Output voltage
6 - 12V
Short-circuit protected
Yes
Output current
700 - 700mA
Ambient temperature
-20 - 60°C
Suitable for outdoor use
Yes
Driver lifetime
50000h
Suitable for DC-voltage (primary side)
No
DIN-rail mounting
No
Output power
8 - 8W
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Dimmable
Yes
Length
58mm
Emergency power supply system
None
Width
36mm
Control type
Constant current
Height
20mm
Warranty
5 years
Power consumption
8W
This flicker-free LED driver has a maximum output of 8W and 700mA and is extremely well suited for use with various light sources. Thanks to the techniques present, this driver is flicker-free, which means that (dimmable) lighting looks calm at all times.
Datasheet
Datasheet-led-driver-700ma-8-watt-ip20-6-12-volt-dimmable-215-345.pdf
Characteristics sheet
215-345_technical_datasheet_extended.pdf
