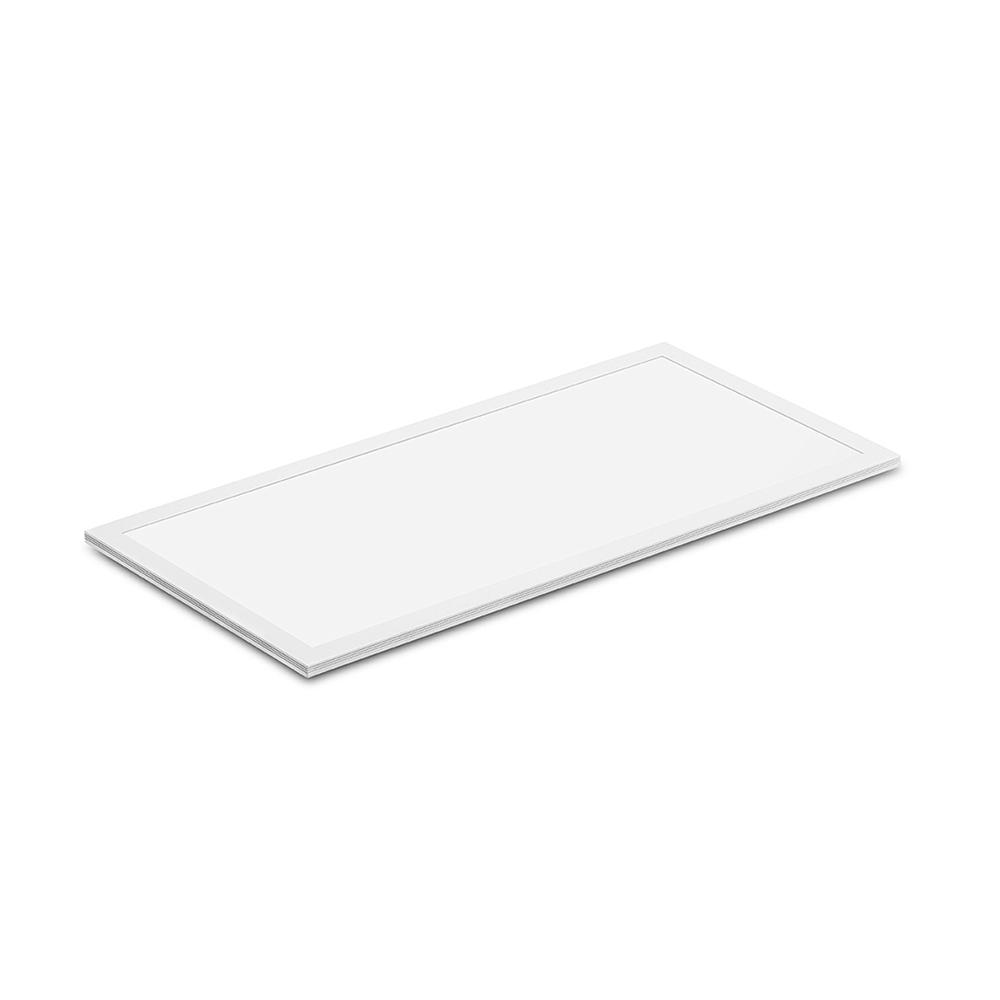

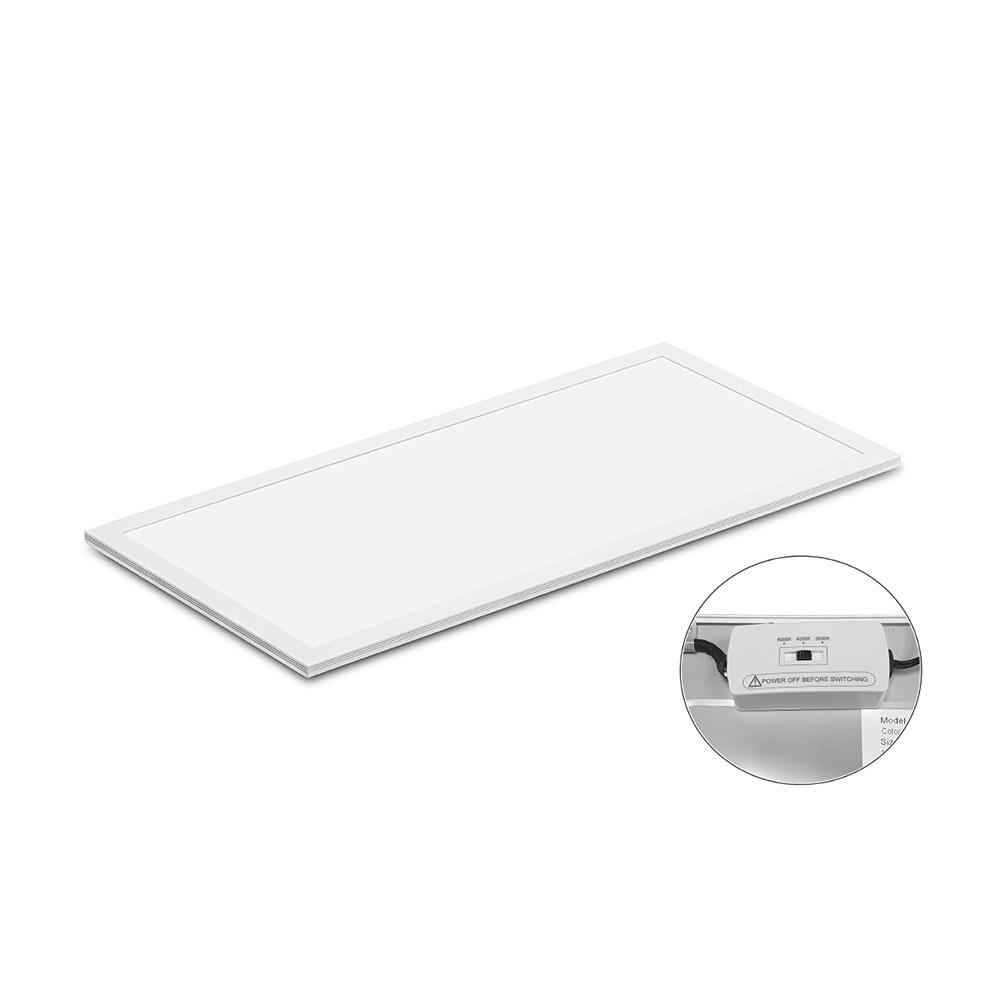

LED panel|| 60*120 | >100L/W | 3-CCT | white frame | non dim
174-237This LED panel is suitable for installation in (suspended) ceilings of 60x120 cm. A hanging up method is also possible, using a surface mounting kit. The smooth, soft and flicker-free light spread by the LED panel, makes it extremely suitable for use in offices and retail spaces, but also think of indoor lighting of schools and any other public spaces.
Features
- High quality external driver with optimum heat regulation
- Flicker-free (1%)
- Plug & Play due connection cable and euro plug
- High light efficiency of >100 Lm/W
- 5 year warranty
- Adjustable by a CCT switch in the color temperatures 3000K, 4000K and 6000K
Product Name
LED panel|| 60*120 | >100L/W | 3-CCT | white frame | non dim
Ean
8714984934795
Outer box qty
2st
Lamp type
LED not exchangeable
Housing material
Aluminium
Housing colour
White
Material cover
Other
Suitable for emergency lighting
Yes
Nominal current
200 - 218mA
Voltage type
AC
Type of control gear
LED operating device current-controlled
With control gear
Yes

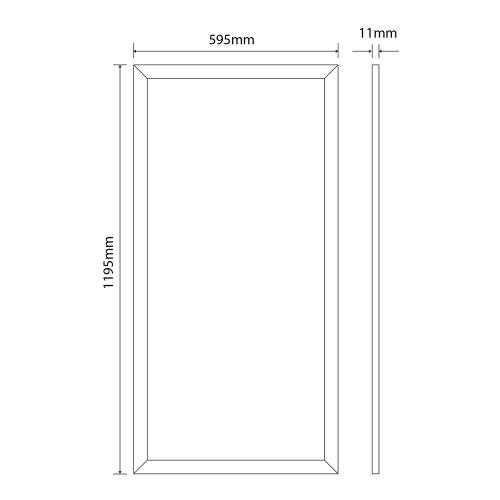

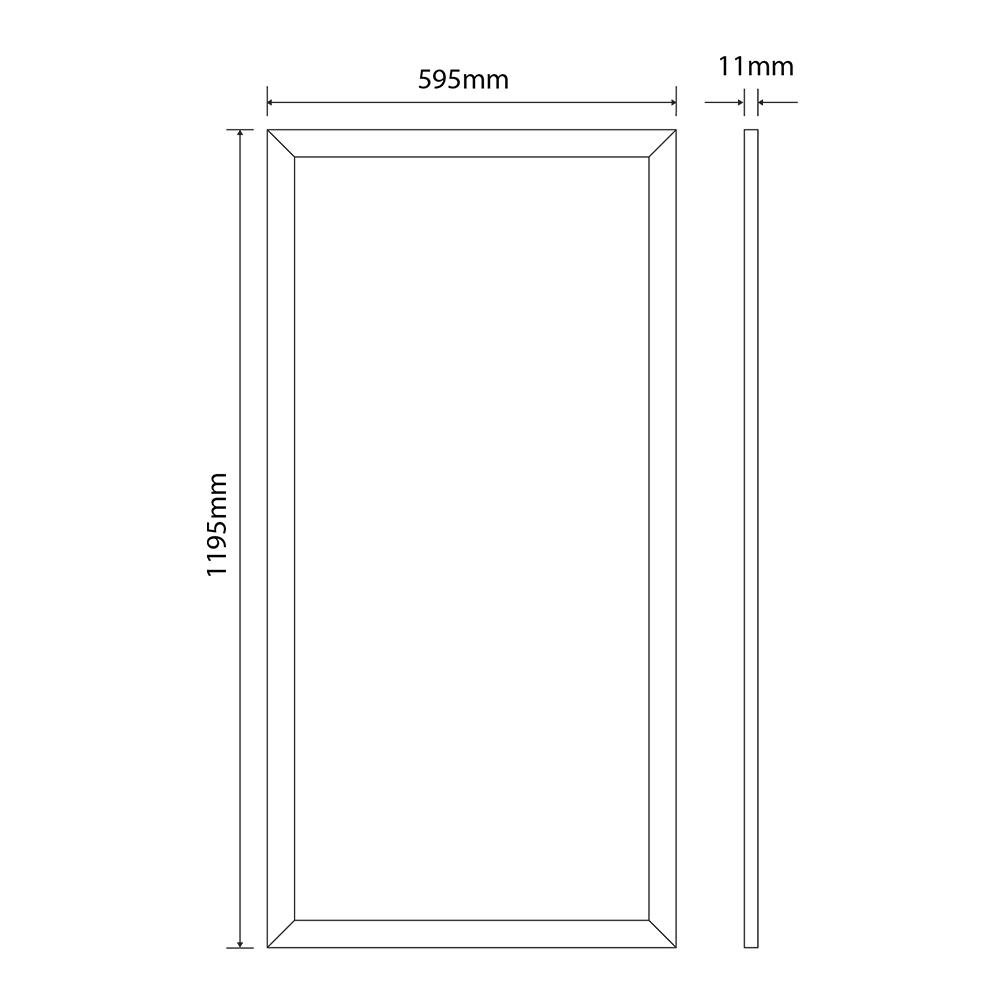

Built-in length
595mm
Built-in width
1195mm
Constant light output (CLO)
No
Type of grid
None
Nominal voltage
220 - 240V
Length
1195mm
Width
595mm
Height/depth
11mm
Colour of light
White
Colour rendering index CRI
80-89
Exchangeable control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming phase cut-off (trailing edge)
No
With movement sensor
No
With presence detector
No
Impact strength
IK02
With light sensor
No
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Indirect
Dimming RF
No
Dimming Zigbee
No
Light distributor
Diffuser lens/optic/panel
Surface protection housing
Lacquered
Colour consistency (McAdam ellipse)
SDCM6
Rated lifetime L70/B50 at 25 °C
83000h
Colour of light adjustable
Positions
Luminous flux adjustable
No
Max. system power
48W
Beam angle adjustable
No
Power factor
0.9
Type of wiring
Ending
Number of poles
2
Built-in height/depth
11mm
Compatible with Casambi
No
Luminaire efficacy
100 - 100lm/W
Dimmable
No
Rated luminous flux according to IEC 62722-2- 1
4800 - 4800lm
Emergency power supply system
None
Suitable for ceiling mounting
Yes
Connectable conductor cross section
0.75 - 0.75mm²
Suitable for wall mounting
Yes
Suitable for suspended mounting
Yes
Suitable for workplace according to EN 12464-1
No
Degree of protection (IP), rear side
IP20
With mounting material
Yes
Size
60x120 cm
Colour temperature
3000 - 4000 - 6000K
With connection cord and plug
Yes
Length of power cord
2000mm
Connection type
EU plug
Dimming method
Non-dimmable
Warranty
5 years
Product Name
LED panel|| 60*120 | >100L/W | 3-CCT | white frame | non dim
Light outlet
Indirect
Ean
8714984934795
Dimming RF
No
Outer box qty
2st
Dimming Zigbee
No
Lamp type
LED not exchangeable
Light distributor
Diffuser lens/optic/panel
Housing material
Aluminium
Surface protection housing
Lacquered
Housing colour
White
Colour consistency (McAdam ellipse)
SDCM6
Material cover
Other
Rated lifetime L70/B50 at 25 °C
83000h
Suitable for emergency lighting
Yes
Colour of light adjustable
Positions
Nominal current
200 - 218mA
Luminous flux adjustable
No
Voltage type
AC
Max. system power
48W
Type of control gear
LED operating device current-controlled
Beam angle adjustable
No
With control gear
Yes
Power factor
0.9
Built-in length
595mm
Type of wiring
Ending
Built-in width
1195mm
Number of poles
2
Constant light output (CLO)
No
Built-in height/depth
11mm
Type of grid
None
Compatible with Casambi
No
Nominal voltage
220 - 240V
Luminaire efficacy
100 - 100lm/W
Length
1195mm
Dimmable
No
Width
595mm
Rated luminous flux according to IEC 62722-2- 1
4800 - 4800lm
Height/depth
11mm
Emergency power supply system
None
Colour of light
White
Suitable for ceiling mounting
Yes
Colour rendering index CRI
80-89
Connectable conductor cross section
0.75 - 0.75mm²
Exchangeable control gear
No
Suitable for wall mounting
Yes
Dimming 0-10 V
No
Suitable for suspended mounting
Yes
Dimming 1-10 V
No
Suitable for workplace according to EN 12464-1
No
Dimming DALI
No
Degree of protection (IP), rear side
IP20
Dimming phase cut-off (trailing edge)
No
With mounting material
Yes
With movement sensor
No
Size
60x120 cm
With presence detector
No
Colour temperature
3000 - 4000 - 6000K
Impact strength
IK02
With connection cord and plug
Yes
With light sensor
No
Length of power cord
2000mm
Suitable for surface mounting
Yes
Connection type
EU plug
Suitable for built-in mounting
Yes
Dimming method
Non-dimmable
Light distribution
Symmetric
Warranty
5 years
Beam angle
> 80° - Extreme wide beam
This LED panel is suitable for installation in (suspended) ceilings of 60x120 cm. A hanging up method is also possible, using a surface mounting kit. The smooth, soft and flicker-free light spread by the LED panel, makes it extremely suitable for use in offices and retail spaces, but also think of indoor lighting of schools and any other public spaces.
Features
High quality external driver with optimum heat regulation
Flicker-free (1%)
Plug & Play due connection cable and euro plug
High light efficiency of >100 Lm/W
5 year warranty
Adjustable by a CCT switch in the color temperatures 3000K, 4000K and 6000K
