LED emergency pack | 10 - 60V | 70mA | auto test

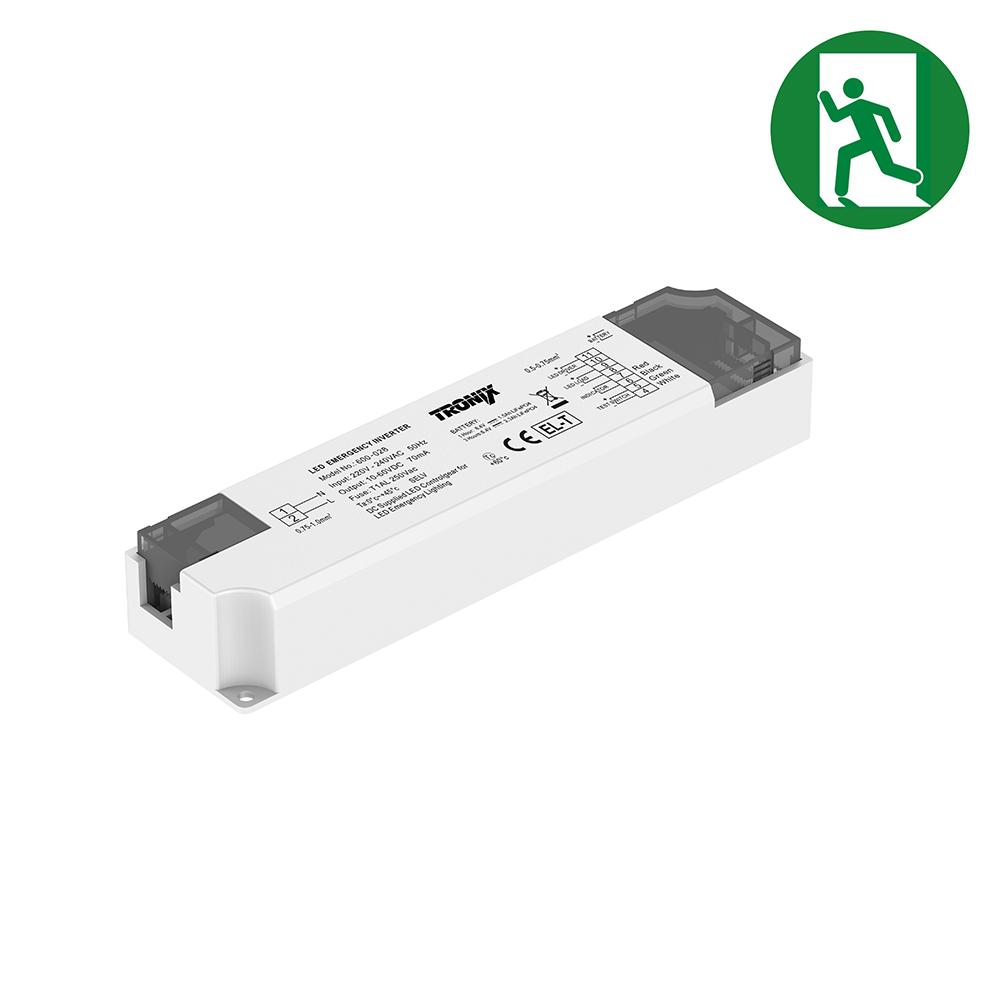

600-028LED emergency inverter with automatic test function, suitable for 10–60 V LED circuits. Output current adjustable to 50, 60 or 70 mA. Can be used in maintained or non-maintained mode. Enables conversion of standard LED luminaires into emergency lighting.
Key product features
- Power (W): 4
- Wiring system: Maintained/non-maintained
- Nominal operation time (h): 3
- Emergency function monitoring system: Automatic self-diagnosis
Product Name
LED emergency pack | 10 - 60V | 70mA | auto test
Ean
8714984935310
Outer box qty
48st
Lamp type
LED
Power
4W
Nominal voltage
200 - 240V
Wiring system
Continuous circuit/emergency circuit
Nominal operation time
3 - 3h
Emergency function monitoring system
Automatic self test
Warranty
2 years
Product Name
LED emergency pack | 10 - 60V | 70mA | auto test
Nominal voltage
200 - 240V
Ean
8714984935310
Wiring system
Continuous circuit/emergency circuit
Outer box qty
48st
Nominal operation time
3 - 3h
Lamp type
LED
Emergency function monitoring system
Automatic self test
Power
4W
Warranty
2 years

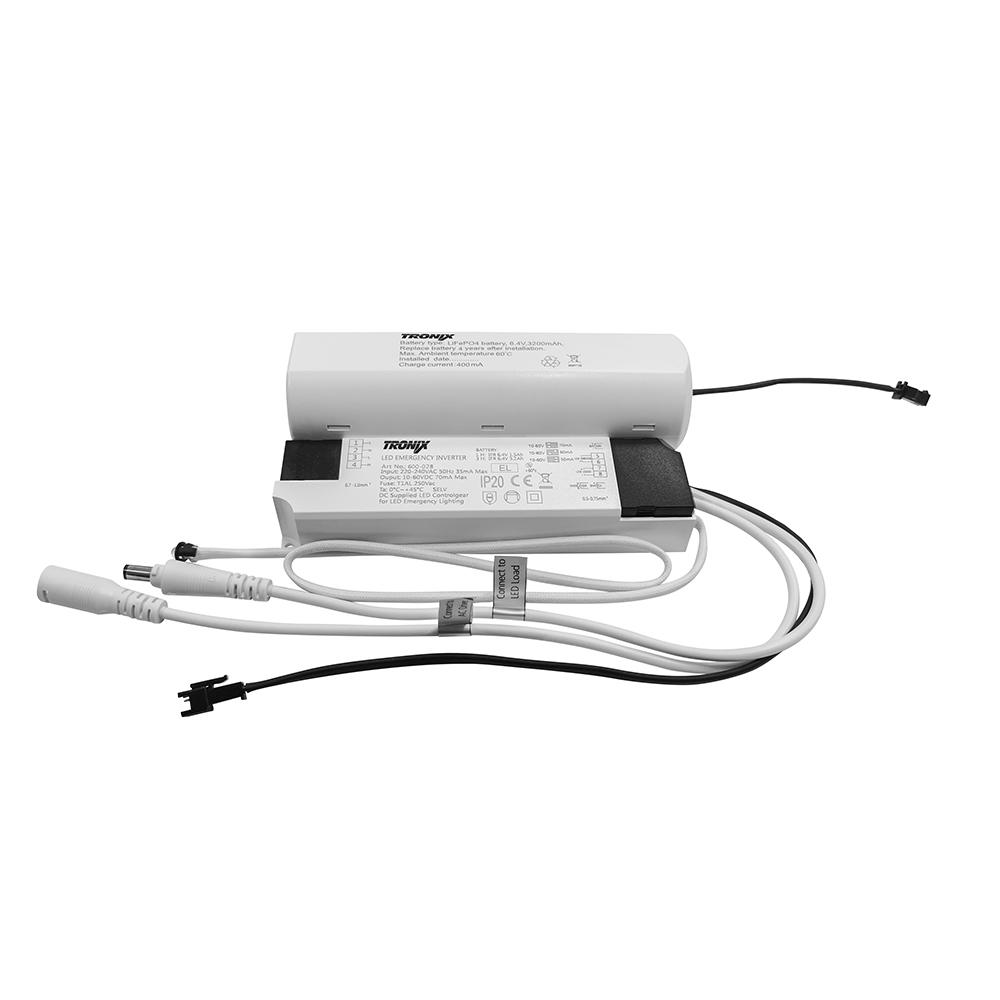

Compact LED emergency inverter with integrated self-test. Designed for use with external LED drivers and LiFePO4 batteries, allowing standard luminaires to be easily converted into full emergency lighting systems.
The inverter operates at an input voltage of 200–240 V AC (50/60 Hz) and offers a maximum output power of 4 W. Output voltage range: 10–60 V DC; output current adjustable to 50, 60 or 70 mA. Combined with a suitable battery, the inverter delivers up to 3 hours of autonomy during power failure.
Supports both maintained and non-maintained operation, with optional external switching. The automatic test function performs a monthly functional test (3 minutes) and an annual duration test (3 hours). Status and fault signals are shown via a two-colour LED indicator (green/red) in compliance with EN 61347-2-7.
The inverter features protection against reverse polarity, overloading, overheating, and overvoltage. Includes galvanic isolation between mains and battery circuits. Installation must be performed by a certified electrician. Operating temperature: 0–45 °C.
More information
More information about this product can be found in the technical specifications. For accessories, available options and related items, see the related products. For questions or advice, please contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
