Refl downl matt | Ø145mm | white | 3-CCT | 7~11W | EU plug
136-131This downlight combines efficiency with bright illumination, featuring a matte reflector and lens. The low UGR rating prevents glare, while Colour of light adjustable and Max. system power options make this fixture ideal for a range of professional applications.
Key product features:
- Max. system power (W): 7 - 11
- Colour temperature (K): 3000 – 5700
- Housing colour: White
- Reflector: Matt
- Outer diameter (mm): 145
- Built-in diameter (mm): 118 - 130
- Connection type: Plug
Product Name
Refl downl matt | Ø145mm | white | 3-CCT | 7~11W | EU plug
Ean
8714984947412
Outer box qty
12st
Lamp type
LED not exchangeable
Lamp holder
None
Housing colour
White
Housing material
Aluminium
Material cover
Plastic, transparent
Connection type
EU plug

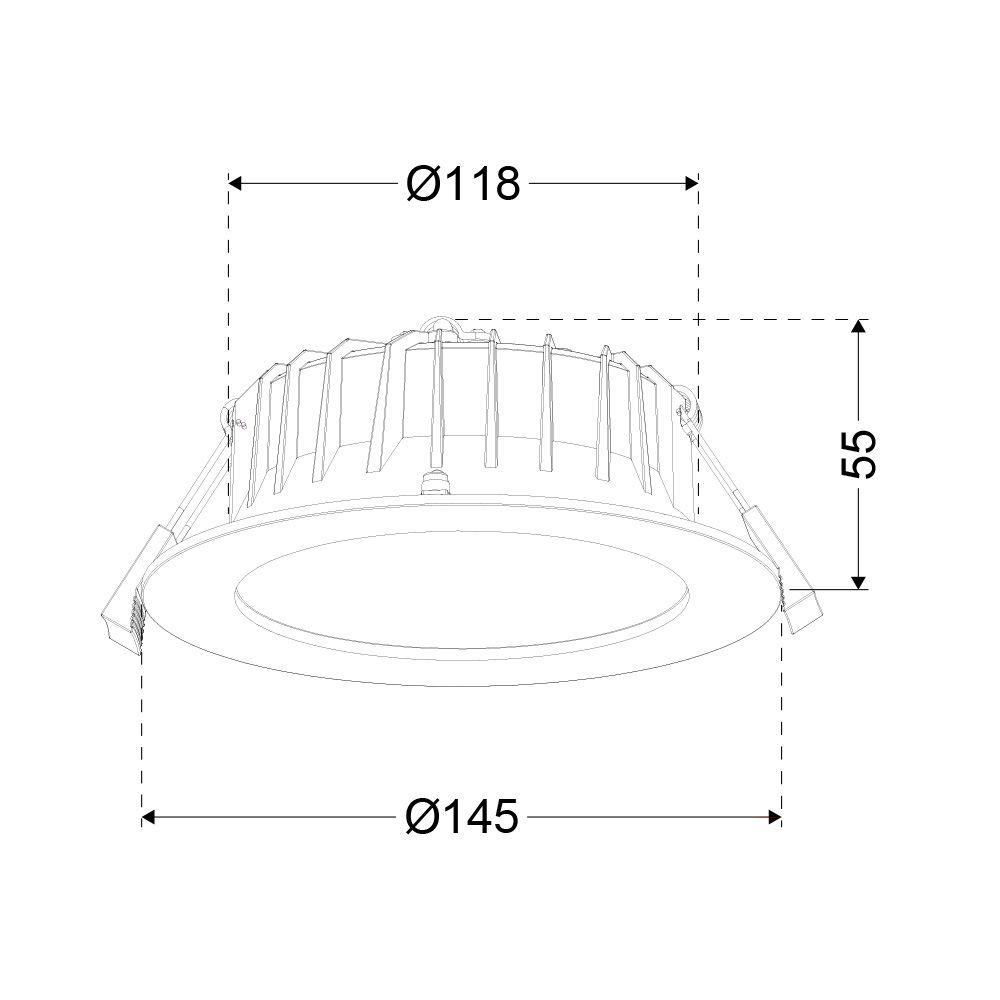

Height/depth
55mm
Outer diameter
145mm
Built-in diameter
118 - 135mm
Suitable for built-in mounting
Yes
Suitable for surface mounting
Yes
Suitable for pedestal/floor mounting
No
Suitable for wall mounting
No
Suitable for ceiling mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
With movement sensor
No
With presence detector
No
With light sensor
No
Colour of light
White
Colour consistency (McAdam ellipse)
SDCM6
Colour of light adjustable
Positions
Reflector colour
Silver
Colour temperature
3000 - 4000 - 5700K
Colour rendering index CRI
80-89
Luminous flux adjustable
Positions
Light outlet
Direct
Beam angle
41-80° - Wide beam
Beam angle adjustable
No
Voltage type
AC
Nominal voltage
220 - 240V
Nominal current
45 - 45mA
Number of poles
2
Light distributor
Reflector
Light distribution
Symmetric
Connectable conductor cross section
0.75 - 2.5mm²
Type of control gear
LED operating device current-controlled
Exchangeable control gear
Yes
With control gear
Yes
Degree of protection (IP), front side
IP54
Degree of protection (IP), rear side
IP20
Surface protection
Lacquered
Impact strength
IK02
Rated lifetime L70/B50 at 25 °C
50000h
Max. system power
11W
Rated luminous flux according to IEC 62722-2- 1
840 - 1320lm
Luminaire efficacy
120 - 120lm/W
Power factor
0.96
Suitable for lamp power
0 - 0W
Dimming method
Non-dimmable
Surface brushed
No
Type of wiring
Ending
Emergency power supply system
None
Emergency function monitoring system
None
Adjustability
not adjustable
Unified Glare Ratio (UGR)
18.8
Reflector
Matt
Warranty
5 years
Product Name
Refl downl matt | Ø145mm | white | 3-CCT | 7~11W | EU plug
Beam angle adjustable
No
Ean
8714984947412
Voltage type
AC
Outer box qty
12st
Nominal voltage
220 - 240V
Lamp type
LED not exchangeable
Nominal current
45 - 45mA
Lamp holder
None
Number of poles
2
Housing colour
White
Light distributor
Reflector
Housing material
Aluminium
Light distribution
Symmetric
Material cover
Plastic, transparent
Connectable conductor cross section
0.75 - 2.5mm²
Connection type
EU plug
Type of control gear
LED operating device current-controlled
Height/depth
55mm
Exchangeable control gear
Yes
Outer diameter
145mm
With control gear
Yes
Built-in diameter
118 - 135mm
Degree of protection (IP), front side
IP54
Suitable for built-in mounting
Yes
Degree of protection (IP), rear side
IP20
Suitable for surface mounting
Yes
Surface protection
Lacquered
Suitable for pedestal/floor mounting
No
Impact strength
IK02
Suitable for wall mounting
No
Rated lifetime L70/B50 at 25 °C
50000h
Suitable for ceiling mounting
Yes
Max. system power
11W
Suitable for light-track mounting
No
Rated luminous flux according to IEC 62722-2- 1
840 - 1320lm
Suitable for clamp-mounting
No
Luminaire efficacy
120 - 120lm/W
With movement sensor
No
Power factor
0.96
With presence detector
No
Suitable for lamp power
0 - 0W
With light sensor
No
Dimming method
Non-dimmable
Colour of light
White
Surface brushed
No
Colour consistency (McAdam ellipse)
SDCM6
Type of wiring
Ending
Colour of light adjustable
Positions
Emergency power supply system
None
Reflector colour
Silver
Emergency function monitoring system
None
Colour temperature
3000 - 4000 - 5700K
Adjustability
not adjustable
Colour rendering index CRI
80-89
Unified Glare Ratio (UGR)
18.8
Luminous flux adjustable
Positions
Reflector
Matt
Light outlet
Direct
Warranty
5 years
Beam angle
41-80° - Wide beam
The matte reflector is less prone to dust and fingerprints compared to a mirror reflector, keeping the downlight cleaner for longer. This makes it a practical choice for spaces where aesthetics and ease of maintenance are key.
This downlight is part of an extensive collection available in various power levels and sizes, ensuring a solution tailored to specific lighting needs. The collection includes additional options such as:
- Housing in white or black with a high-quality powder coating
- Choice of Euro or GST18i3 plugs
- Model with PIR sensor (see item number 136-139)
For added flexibility, the downlight can also be surface-mounted using a compatible mounting kit. More information on this option is available under related products.
Additional Information
More details about this product can be found in the specifications. For accessories, available options, and related products, see the related items section. For inquiries or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
