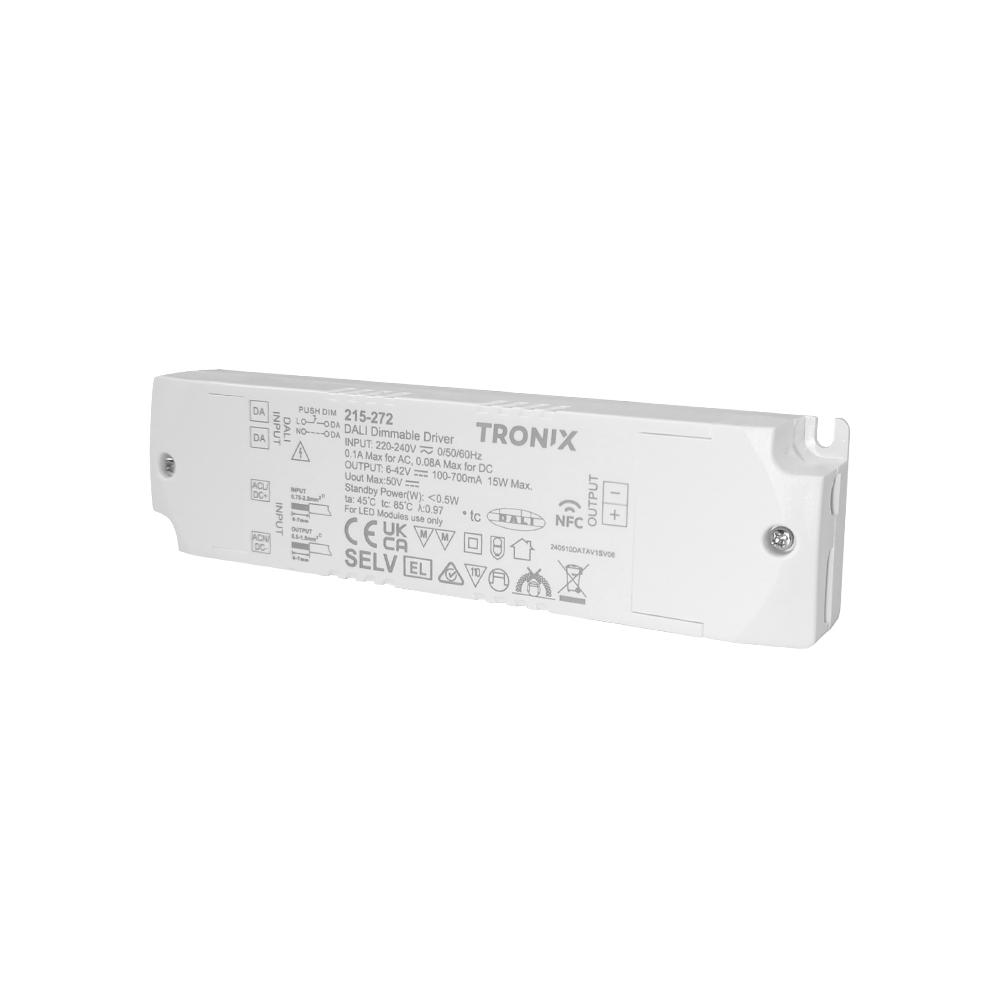

LED driver | 100-700mA | 12 watt | DALI dimmable
215-272This sturdy LED driver has a maximum output of 12W and 100-700mA and is extremely well suited for use with various light sources. In addition, the compact size allows for easy placement of the driver. In addition, this driver offers the ability to communicate with DALI, allowing lighting to be optimized.
Features
- Output voltage 6 ~ 52 V

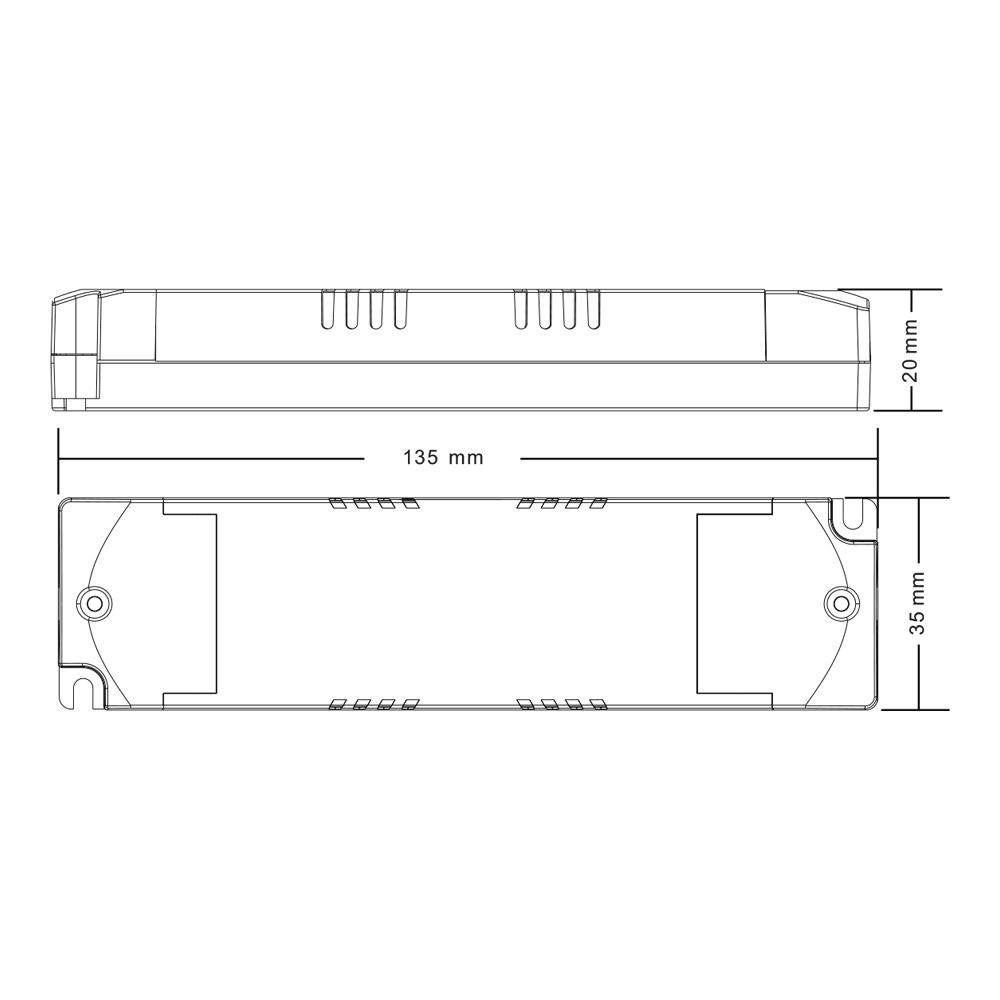

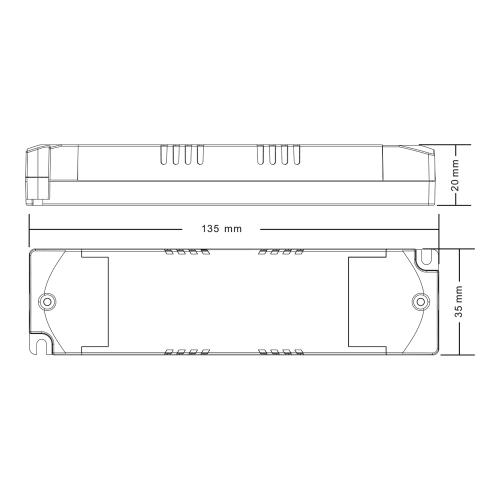

- Compact size 135*35*20 mm
Product Name
LED driver | 100-700mA | 12 watt | DALI dimmable
Ean
8714984946149
Outer box qty
100st
Housing
Plastic housing
Model
Static
Output voltage
6 - 52V
Output current
100 - 700mA
Suitable for outdoor use
No
Suitable for DC-voltage (primary side)
No
Output power
12 - 12W
Degree of protection (IP)
IP20
Length
135mm
Width
35mm
Height
20mm
Power consumption
12W
Input voltage
200 - 240V
Frequency input voltage
50 - 60Hz
PWM modulation
Yes
Overload protection
Yes
Overtemperature protection
Yes
Control method
DALI
Short-circuit protected
Yes
Ambient temperature
-25 - 45°C
Driver lifetime
100000h
DIN-rail mounting
No
Brand
Tronix Lighting
Dimmable
Yes
Emergency power supply system
None
Control type
Constant current
Warranty
5 years
Product Name
LED driver | 100-700mA | 12 watt | DALI dimmable
Input voltage
200 - 240V
Ean
8714984946149
Frequency input voltage
50 - 60Hz
Outer box qty
100st
PWM modulation
Yes
Housing
Plastic housing
Overload protection
Yes
Model
Static
Overtemperature protection
Yes
Output voltage
6 - 52V
Control method
DALI
Output current
100 - 700mA
Short-circuit protected
Yes
Suitable for outdoor use
No
Ambient temperature
-25 - 45°C
Suitable for DC-voltage (primary side)
No
Driver lifetime
100000h
Output power
12 - 12W
DIN-rail mounting
No
Degree of protection (IP)
IP20
Brand
Tronix Lighting
Length
135mm
Dimmable
Yes
Width
35mm
Emergency power supply system
None
Height
20mm
Control type
Constant current
Power consumption
12W
Warranty
5 years
This sturdy LED driver has a maximum output of 12W and 100-700mA and is extremely well suited for use with various light sources. In addition, the compact size allows for easy placement of the driver. In addition, this driver offers the ability to communicate with DALI, allowing lighting to be optimized.
Features
Output voltage 6 ~ 52 V
Compact size 135*35*20 mm
Datasheet
Datasheet-led-driver-100-700ma-12-watt-dali-dimmable-215-272.pdf
Characteristics sheet
215-272_technical_datasheet_extended.pdf
