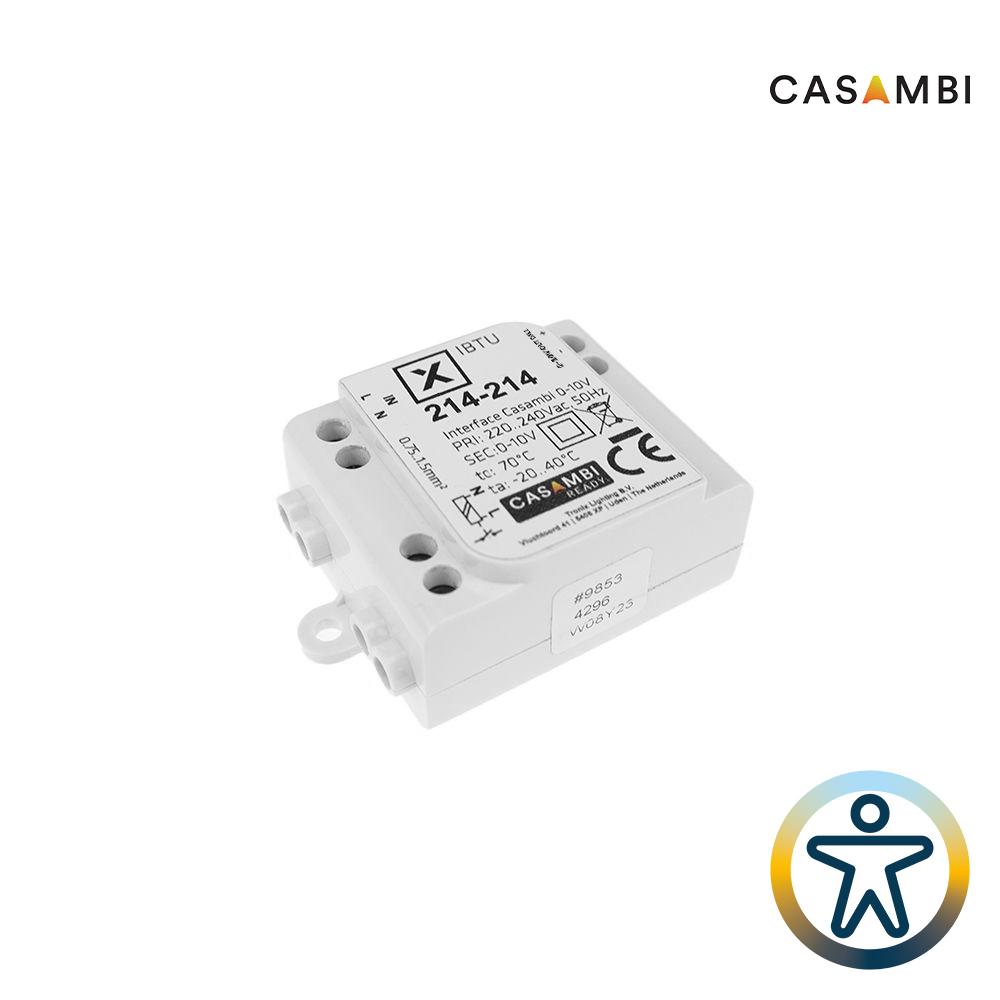

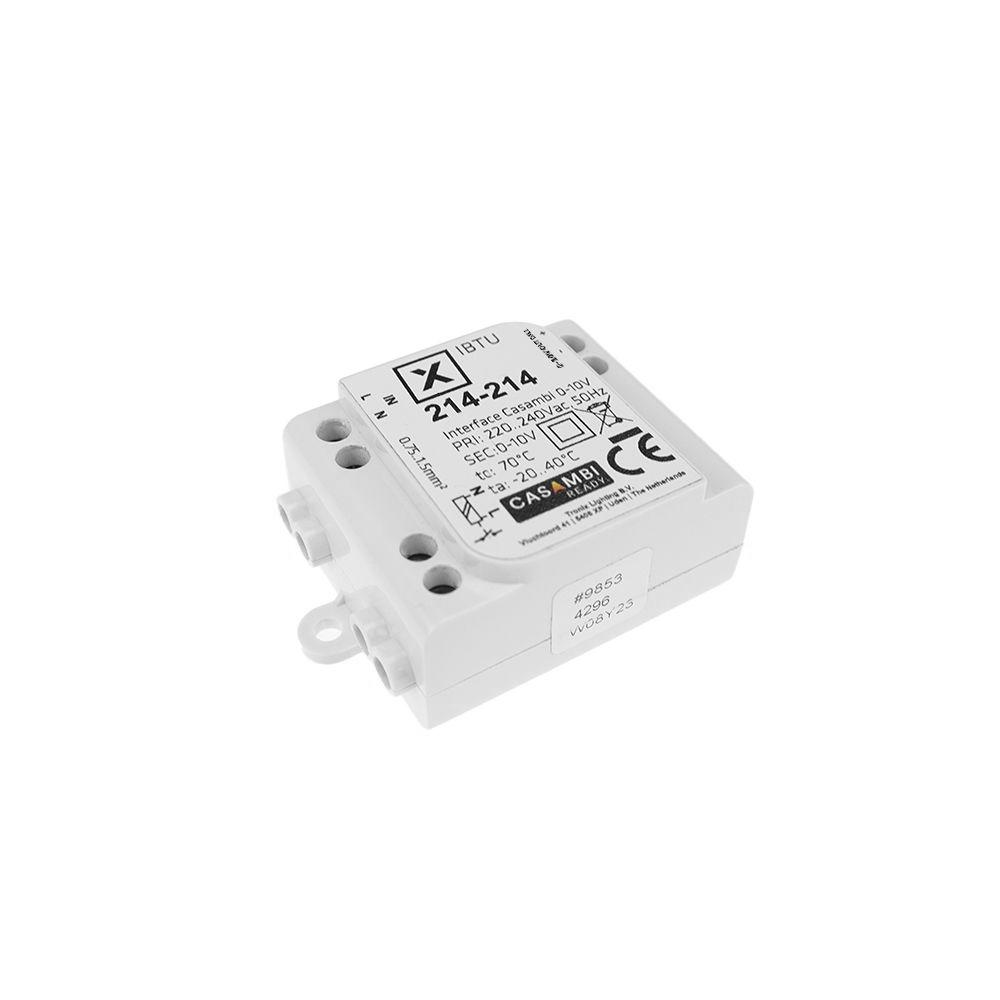

Casambi || Interface | 0-10V / DALI | recessed
214-214Casambi interface for drivers with 0–10V, 1–10V or DALI dimming. A compact solution for wireless control of brightness and colour temperature via smartphone or tablet. Operates without a gateway.
Key product features
- Number of colour channels: 1
- Input voltage (V): 220 – 240
- Type of control: Casambi
Product Name
Casambi || Interface | 0-10V / DALI | recessed
Ean
8714984946958
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
Yes
Max. output current
0.007A
Output voltage
1 - 10V
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Length
56.6mm
Width
35.8mm
Height
22.6mm
Number of zones
1
Number of colour channels
1, Single Colour
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Input voltage
220 - 240V
Control method
Casambi
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
Yes
Warranty
5 years
Product Name
Casambi || Interface | 0-10V / DALI | recessed
Height
22.6mm
Ean
8714984946958
Number of zones
1
Outer box qty
1st
Number of colour channels
1, Single Colour
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
Yes
Input voltage
220 - 240V
Max. output current
0.007A
Control method
Casambi
Output voltage
1 - 10V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Compatible with Casambi
Yes
Length
56.6mm
Warranty
5 years
Width
35.8mm
This Bluetooth control module enables conventional drivers with 0–10V, 1–10V or standalone DALI dimming to be wirelessly integrated into a Casambi network. It provides a smart lighting upgrade without requiring replacement of the dimming type or existing driver.
Powered by 230V AC (50 Hz), the module delivers a dimming signal via DALI or 0–10V, with a maximum output current of 7 mA. The Casambi app allows users to set brightness levels, colour modes, scenes and time-based schedules. No gateway is required.
With straightforward installation and broad driver compatibility, this module is ideal for renovation projects or smart lighting retrofits using the existing infrastructure.
More information
More information about this product can be found in the technical specifications. For accessories, available options and related products, see related items. For questions or advice, please contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
