LED panel | 60*60 | 36W | 3-CCT | 2m cable EU plug
173-050Practical LED panel with 120 lm/W output, adjustable colour temperature and EU plug. Available with standard or UGR<19 optics. Ideal for a wide range of applications.
Key product features:
- Colour temperature (K): 3000 - 5700
- Built-in height/depth (mm): 25
- Unified Glare Ratio (UGR): 22
- Connection type: Plug
- Luminaire efficacy (lm/W): 115 - 126
Product Name
LED panel | 60*60 | 36W | 3-CCT | 2m cable EU plug
Ean
8714984946736
Outer box qty
6st
Lamp type
LED not exchangeable
Housing material
Aluminium
Housing colour
White
Material cover
Plastic, opal
Suitable for emergency lighting
Yes
Nominal current
149 - 149mA
Voltage type
AC
Type of control gear
LED operating device current-controlled
With control gear
Yes

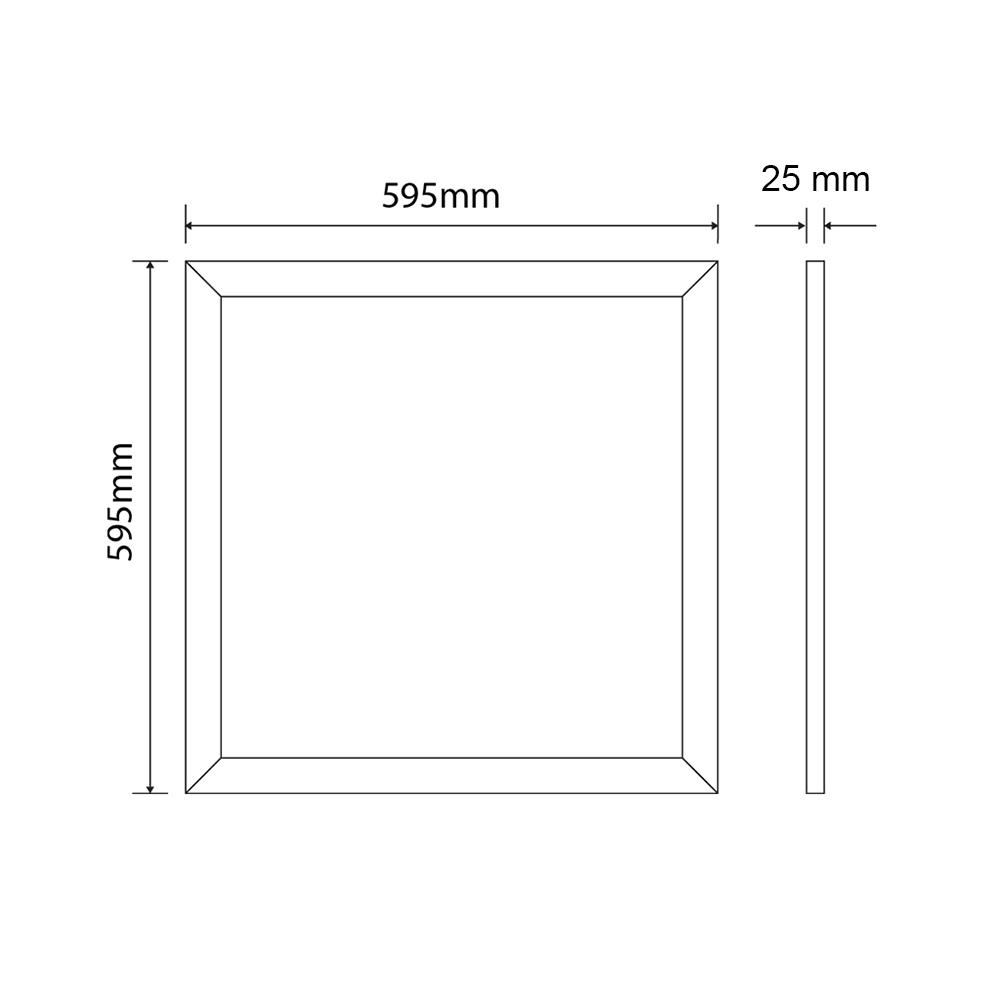

Built-in length
595mm
Built-in width
595mm
Constant light output (CLO)
No
Type of grid
None
Nominal voltage
220 - 240V
Length
595mm
Width
595mm
Height/depth
25mm
Colour of light
White
Colour rendering index CRI
80-89
Exchangeable control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming phase cut-off (trailing edge)
No
With movement sensor
No
With presence detector
No
Impact strength
IK02
With light sensor
No
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Indirect
Dimming RF
No
Dimming Zigbee
No
Light distributor
Diffuser lens/optic/panel
Surface protection housing
Lacquered
Colour consistency (McAdam ellipse)
SDCM3
Rated lifetime L70/B50 at 25 °C
60000h
Colour of light adjustable
Positions
Luminous flux adjustable
No
Max. system power
36W
Beam angle adjustable
No
Power factor
0.97
Type of wiring
Ending
Number of poles
2
Built-in height/depth
25mm
Compatible with Casambi
No
Luminaire efficacy
110 - 110lm/W
Dimmable
No
Rated luminous flux according to IEC 62722-2- 1
3960 - 3960lm
Emergency power supply system
None
Emergency function monitoring system
None
Suitable for ceiling mounting
Yes
Connectable conductor cross section
0.75 - 0.75mm²
Suitable for wall mounting
Yes
Suitable for suspended mounting
Yes
Suitable for workplace according to EN 12464-1
No
Unified Glare Ratio (UGR)
21.7
Degree of protection (IP), rear side
IP20
Degree of protection (IP), front side
IP20
With mounting material
Yes
Size
60x60 cm
Colour temperature
3000 - 4000 - 5700K
With connection cord and plug
Yes
Length of power cord
2000mm
Connection type
EU plug
Dimming method
Non-dimmable
Warranty
5 years
Product Name
LED panel | 60*60 | 36W | 3-CCT | 2m cable EU plug
Dimming RF
No
Ean
8714984946736
Dimming Zigbee
No
Outer box qty
6st
Light distributor
Diffuser lens/optic/panel
Lamp type
LED not exchangeable
Surface protection housing
Lacquered
Housing material
Aluminium
Colour consistency (McAdam ellipse)
SDCM3
Housing colour
White
Rated lifetime L70/B50 at 25 °C
60000h
Material cover
Plastic, opal
Colour of light adjustable
Positions
Suitable for emergency lighting
Yes
Luminous flux adjustable
No
Nominal current
149 - 149mA
Max. system power
36W
Voltage type
AC
Beam angle adjustable
No
Type of control gear
LED operating device current-controlled
Power factor
0.97
With control gear
Yes
Type of wiring
Ending
Built-in length
595mm
Number of poles
2
Built-in width
595mm
Built-in height/depth
25mm
Constant light output (CLO)
No
Compatible with Casambi
No
Type of grid
None
Luminaire efficacy
110 - 110lm/W
Nominal voltage
220 - 240V
Dimmable
No
Length
595mm
Rated luminous flux according to IEC 62722-2- 1
3960 - 3960lm
Width
595mm
Emergency power supply system
None
Height/depth
25mm
Emergency function monitoring system
None
Colour of light
White
Suitable for ceiling mounting
Yes
Colour rendering index CRI
80-89
Connectable conductor cross section
0.75 - 0.75mm²
Exchangeable control gear
No
Suitable for wall mounting
Yes
Dimming 0-10 V
No
Suitable for suspended mounting
Yes
Dimming 1-10 V
No
Suitable for workplace according to EN 12464-1
No
Dimming DALI
No
Unified Glare Ratio (UGR)
21.7
Dimming phase cut-off (trailing edge)
No
Degree of protection (IP), rear side
IP20
With movement sensor
No
Degree of protection (IP), front side
IP20
With presence detector
No
With mounting material
Yes
Impact strength
IK02
Size
60x60 cm
With light sensor
No
Colour temperature
3000 - 4000 - 5700K
Suitable for surface mounting
Yes
With connection cord and plug
Yes
Suitable for built-in mounting
Yes
Length of power cord
2000mm
Light distribution
Symmetric
Connection type
EU plug
Beam angle
> 80° - Extreme wide beam
Dimming method
Non-dimmable
Light outlet
Indirect
Warranty
5 years
This versatile LED panel combines energy efficiency with ease of use. The integrated switch allows manual selection of three colour temperatures: 3000K, 4000K and 5700K. Suitable for offices, educational, and healthcare environments.
Supplied with EU plug and available in two versions: standard optics or UGR<19 for glare-sensitive applications. With 120 lm/W output and simple installation, this is a reliable choice for professional lighting projects.
More information
More information about this product can be found in the product specifications. For accessories, available options, and related products, see the related items. For inquiries or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-led-panel-6060-36w-3-cct-2m-cable-eu-plug-173-050.pdf
Energy labels
Characteristics sheet
173-050-photometric-light-report.pdf
173-050-photometric-light-report-detailed.zip
173-050-eulumdat.zip
