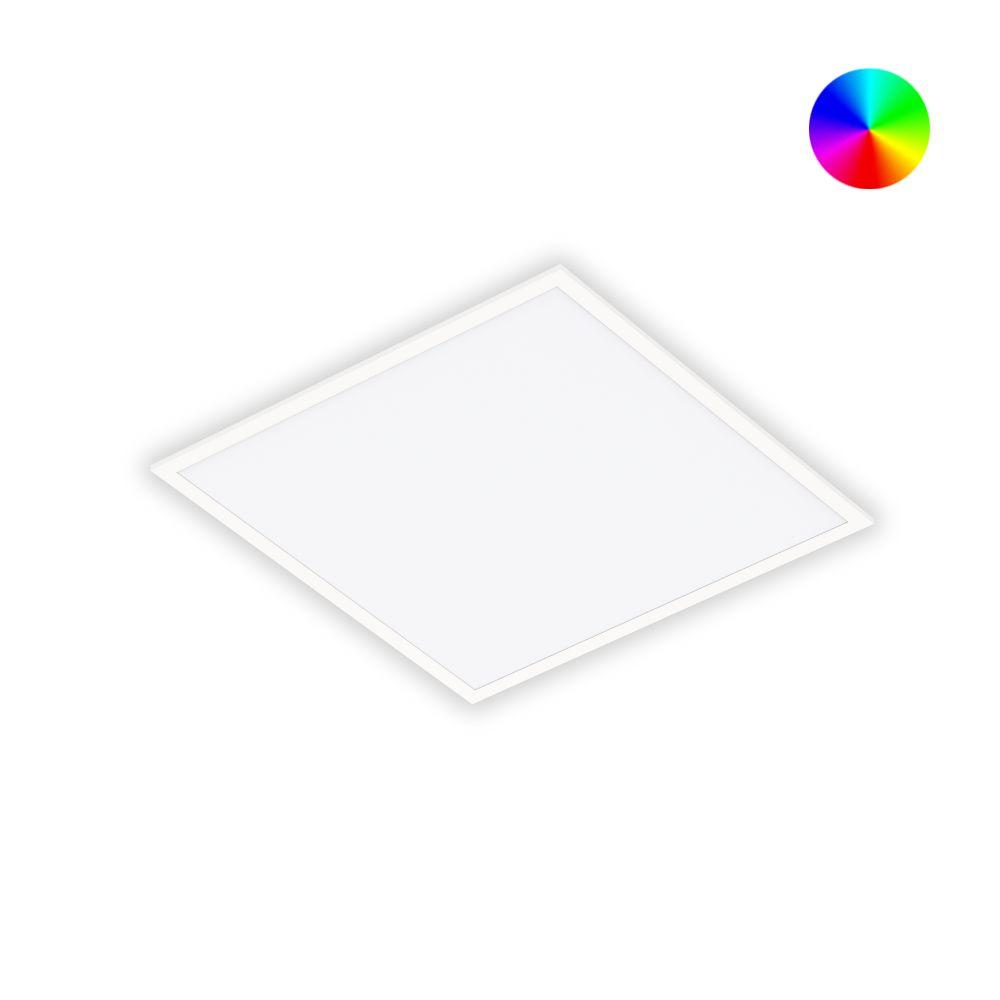

LED panel | 60*60 | 24V | 36W | RGBTW
173-048Multifunctional RGB + Tunable White LED panel (60x60 cm) combining ambient and functional light in one unit. High efficiency, 24V DC, compatible with DMX/DALI/RF.
Key product features:
- Nom. voltage (V): 24 - 24
- Colour temperature (K): 2700 – 6500
- Voltage type: DC
- Colour of light: Multicolour
- Connection type: Open cable end
Product Name
LED panel | 60*60 | 24V | 36W | RGBTW
Ean
8714984947870
Outer box qty
6st
Lamp type
LED not exchangeable
Housing material
Aluminium
Housing colour
White
Material cover
Plastic, opal
Suitable for emergency lighting
No
Nominal current
1500 - 1500mA
Voltage type
DC
Type of control gear
LED operating device voltage-controlled
With control gear
No

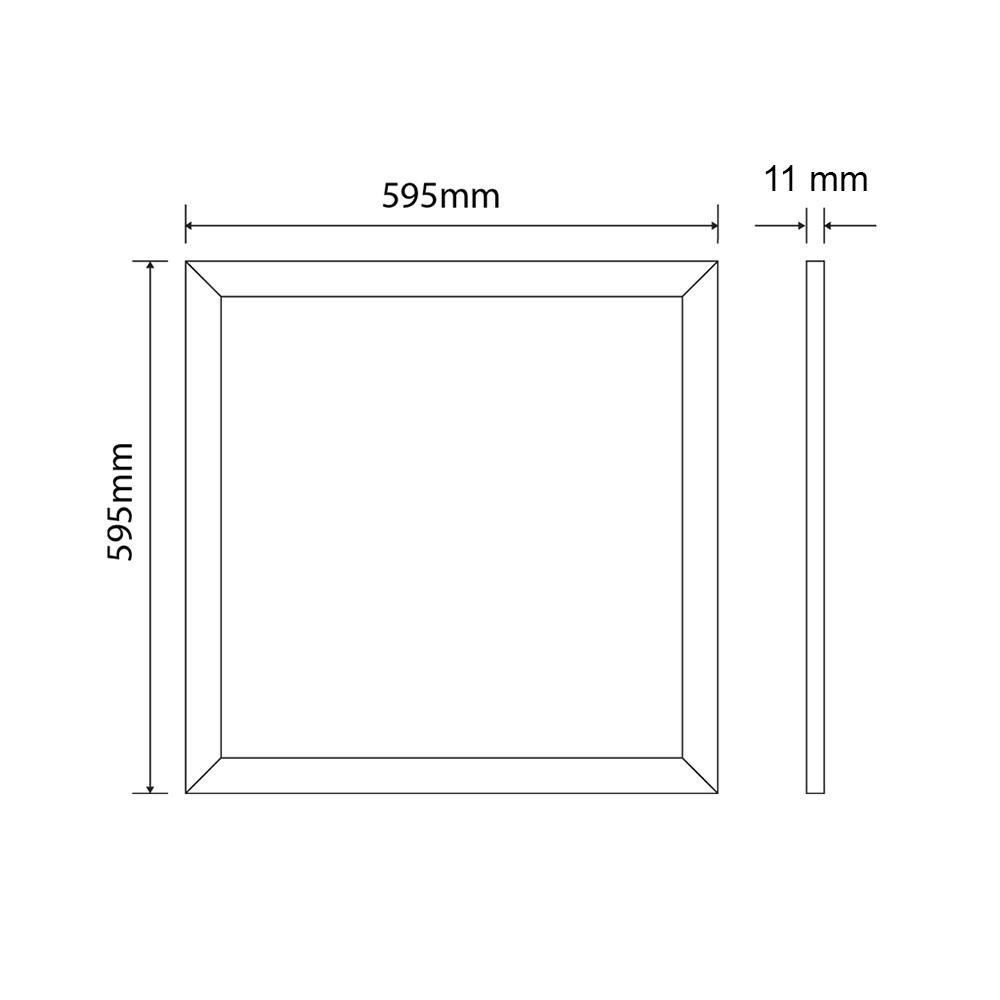

Built-in length
595mm
Built-in width
595mm
Constant light output (CLO)
No
Type of grid
None
Nominal voltage
24 - 24V
Length
595mm
Width
595mm
Height/depth
25mm
Colour of light
Multi-coloured
Colour rendering index CRI
80-89
Exchangeable control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming phase cut-off (trailing edge)
No
With movement sensor
No
With presence detector
No
Impact strength
IK02
With light sensor
No
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Direct
Dimming RF
Yes
Dimming Zigbee
Yes
Light distributor
Diffuser lens/optic/panel
Surface protection housing
Lacquered
Colour consistency (McAdam ellipse)
SDCM6
Rated lifetime L70/B50 at 25 °C
60000h
Colour of light adjustable
Continuously variable
Luminous flux adjustable
Continuously variable
Max. system power
36W
Beam angle adjustable
No
Power factor
1
Type of wiring
Ending
Number of poles
6
Built-in height/depth
25mm
Compatible with Casambi
Yes
Luminaire efficacy
90 - 90lm/W
Dimmable
Yes
Rated luminous flux according to IEC 62722-2- 1
3600 - 3600lm
Emergency power supply system
None
Emergency function monitoring system
None
Suitable for ceiling mounting
Yes
Connectable conductor cross section
0.75 - 2.5mm²
Suitable for wall mounting
Yes
Suitable for suspended mounting
Yes
Suitable for workplace according to EN 12464-1
No
Unified Glare Ratio (UGR)
18
Degree of protection (IP), rear side
IP20
Degree of protection (IP), front side
IP20
With mounting material
Yes
Size
60x60 cm
Colour temperature
RGBTW
With connection cord and plug
No
Connection type
Stripped wire
Dimming method
Optional
Warranty
3 years
Product Name
LED panel | 60*60 | 24V | 36W | RGBTW
Dimming RF
Yes
Ean
8714984947870
Dimming Zigbee
Yes
Outer box qty
6st
Light distributor
Diffuser lens/optic/panel
Lamp type
LED not exchangeable
Surface protection housing
Lacquered
Housing material
Aluminium
Colour consistency (McAdam ellipse)
SDCM6
Housing colour
White
Rated lifetime L70/B50 at 25 °C
60000h
Material cover
Plastic, opal
Colour of light adjustable
Continuously variable
Suitable for emergency lighting
No
Luminous flux adjustable
Continuously variable
Nominal current
1500 - 1500mA
Max. system power
36W
Voltage type
DC
Beam angle adjustable
No
Type of control gear
LED operating device voltage-controlled
Power factor
1
With control gear
No
Type of wiring
Ending
Built-in length
595mm
Number of poles
6
Built-in width
595mm
Built-in height/depth
25mm
Constant light output (CLO)
No
Compatible with Casambi
Yes
Type of grid
None
Luminaire efficacy
90 - 90lm/W
Nominal voltage
24 - 24V
Dimmable
Yes
Length
595mm
Rated luminous flux according to IEC 62722-2- 1
3600 - 3600lm
Width
595mm
Emergency power supply system
None
Height/depth
25mm
Emergency function monitoring system
None
Colour of light
Multi-coloured
Suitable for ceiling mounting
Yes
Colour rendering index CRI
80-89
Connectable conductor cross section
0.75 - 2.5mm²
Exchangeable control gear
Yes
Suitable for wall mounting
Yes
Dimming 0-10 V
No
Suitable for suspended mounting
Yes
Dimming 1-10 V
No
Suitable for workplace according to EN 12464-1
No
Dimming DALI
Yes
Unified Glare Ratio (UGR)
18
Dimming phase cut-off (trailing edge)
No
Degree of protection (IP), rear side
IP20
With movement sensor
No
Degree of protection (IP), front side
IP20
With presence detector
No
With mounting material
Yes
Impact strength
IK02
Size
60x60 cm
With light sensor
No
Colour temperature
RGBTW
Suitable for surface mounting
Yes
With connection cord and plug
No
Suitable for built-in mounting
Yes
Connection type
Stripped wire
Light distribution
Symmetric
Dimming method
Optional
Beam angle
> 80° - Extreme wide beam
Warranty
3 years
Light outlet
Direct

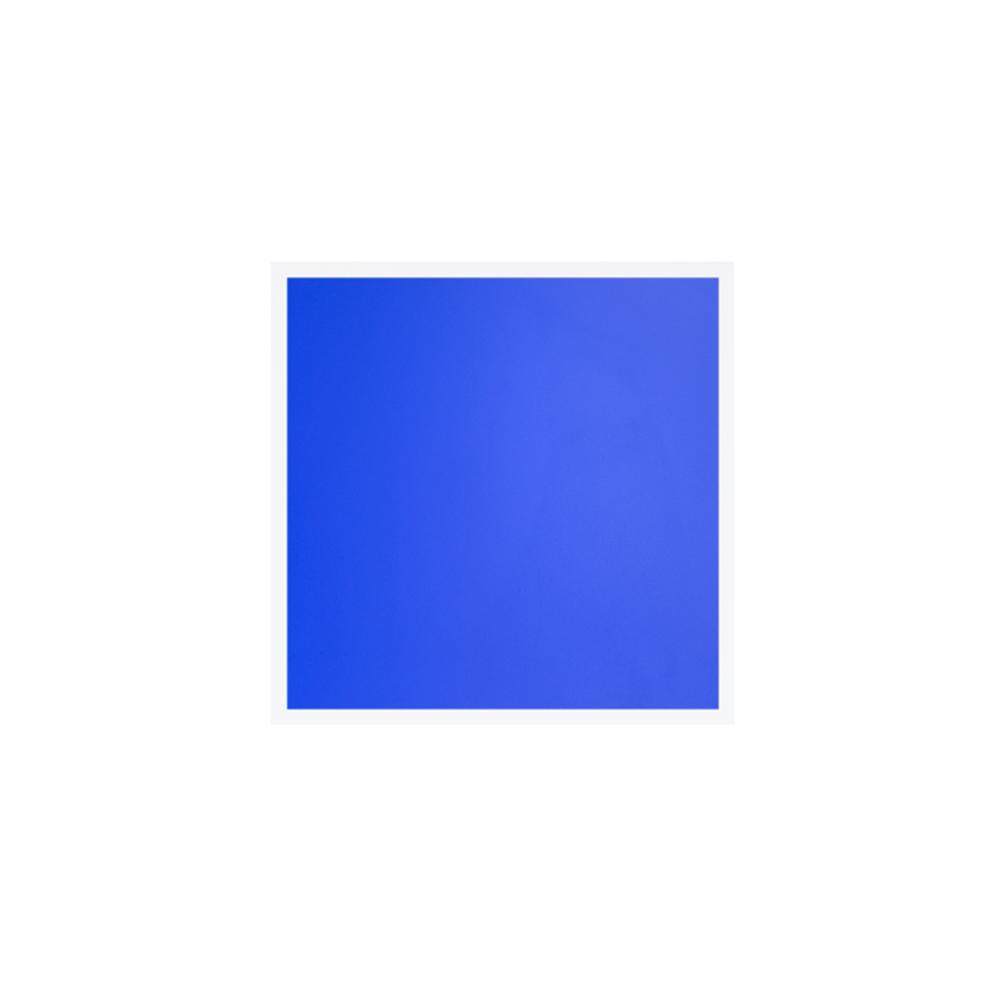

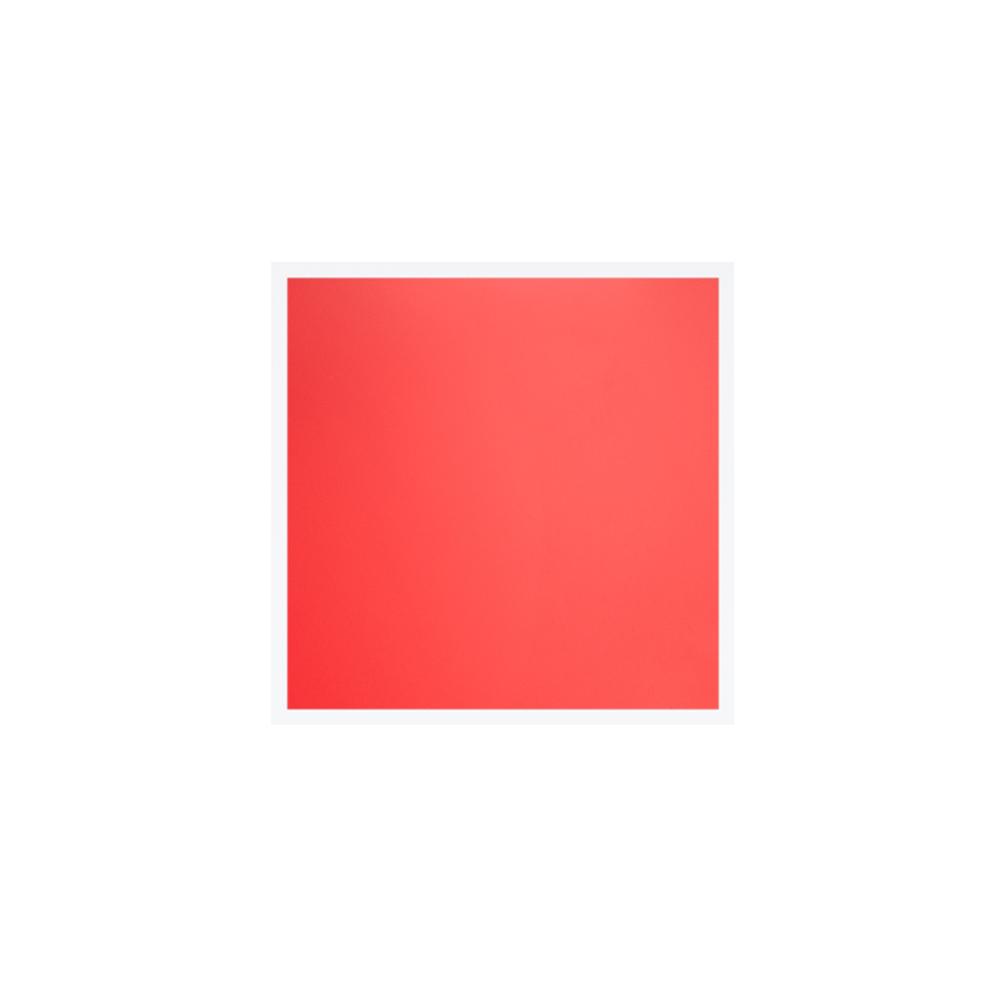

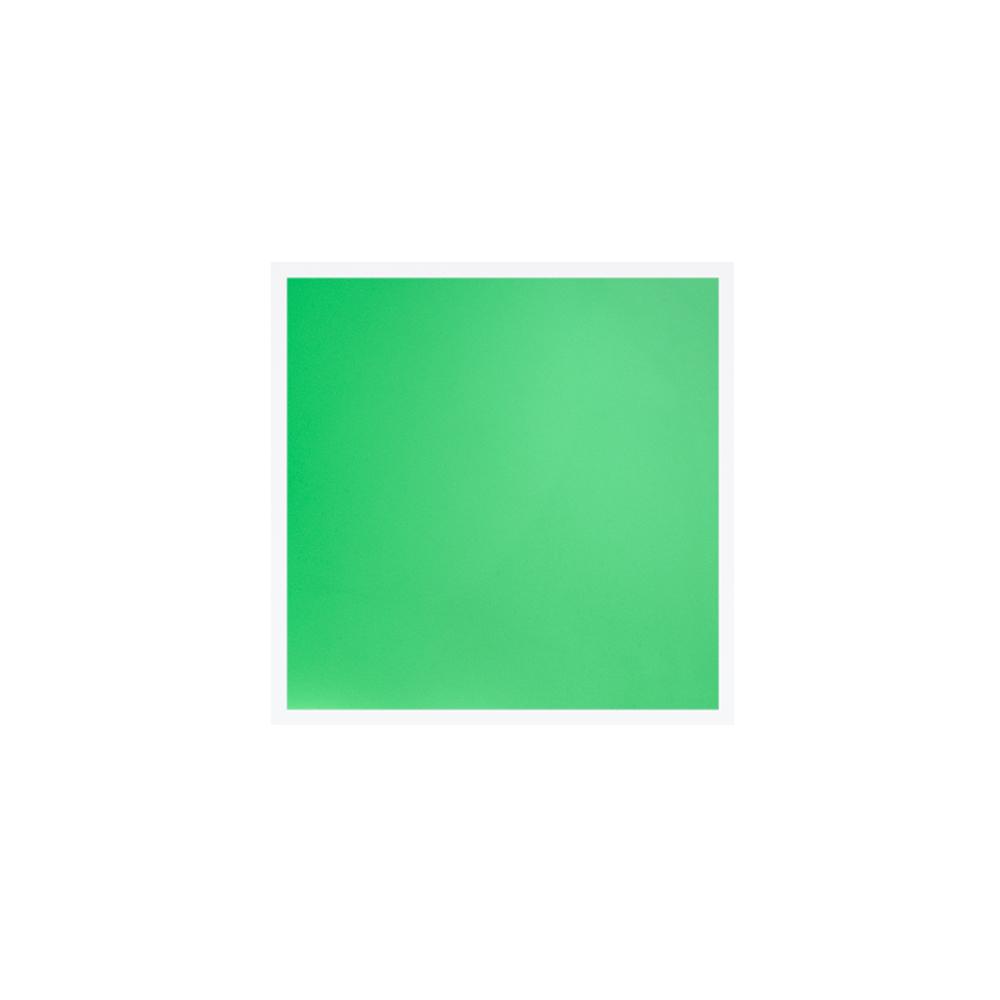

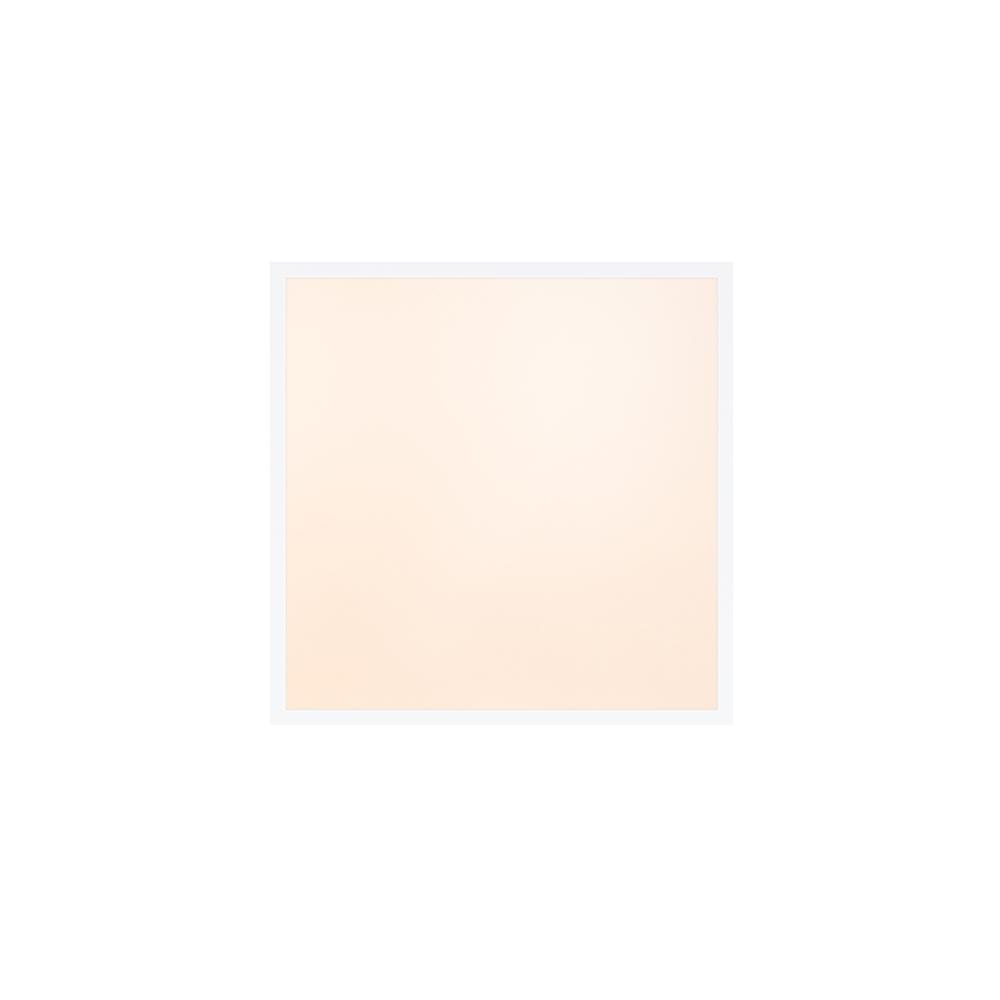

This 60x60 cm LED panel delivers both ambient colour effects and functional white lighting. Its integrated RGBTW technology (RGB + Tunable White) supports a white range from 2700K to 6500K alongside vivid RGB performance.
Offering over 100 lm/W in white mode, this panel is ideal for hospitality, retail, offices and presentation settings. Operating at 24V DC (36W), it works with controllers including DMX, DALI and RF, and supports recessed or suspended installation.
More information
More information about this product can be found in the product specifications. For accessories, available options, and related products, see the related items. For inquiries or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-led-panel-6060-24v-36w-rgbtw-173-048.pdf
Energy labels
Manual
173-048_Manual_EN.pdf
173-048_Manual_NL.pdf
Characteristics sheet
173-048-photometric-light-report.pdf
173-048.ldt
