LED panel | butterfly | 30*120 | 3-CCT | UGR<19 | TE dim.
174-276Stylish Butterfly panel with high visual comfort, selectable colour temperature and external dimmable driver. Available in 60x60 and 30x120 cm, incl. EU plug and mounting set.
Key product features:
• Colour temperature (K): 3000 - 5700
• Housing: White
• Connection type: Plug
• Unified Glare Ratio (UGR): 19
Product Name
LED panel | butterfly | 30*120 | 3-CCT | UGR<19 | TE dim.
Ean
8714984938700
Outer box qty
5st
Lamp type
LED not exchangeable
Housing material
Aluminium
Housing colour
White
Material cover
Plastic, opal
Suitable for emergency lighting
No
Nominal current
151 - 151mA
Voltage type
AC
Type of control gear
LED operating device current-controlled
With control gear
Yes

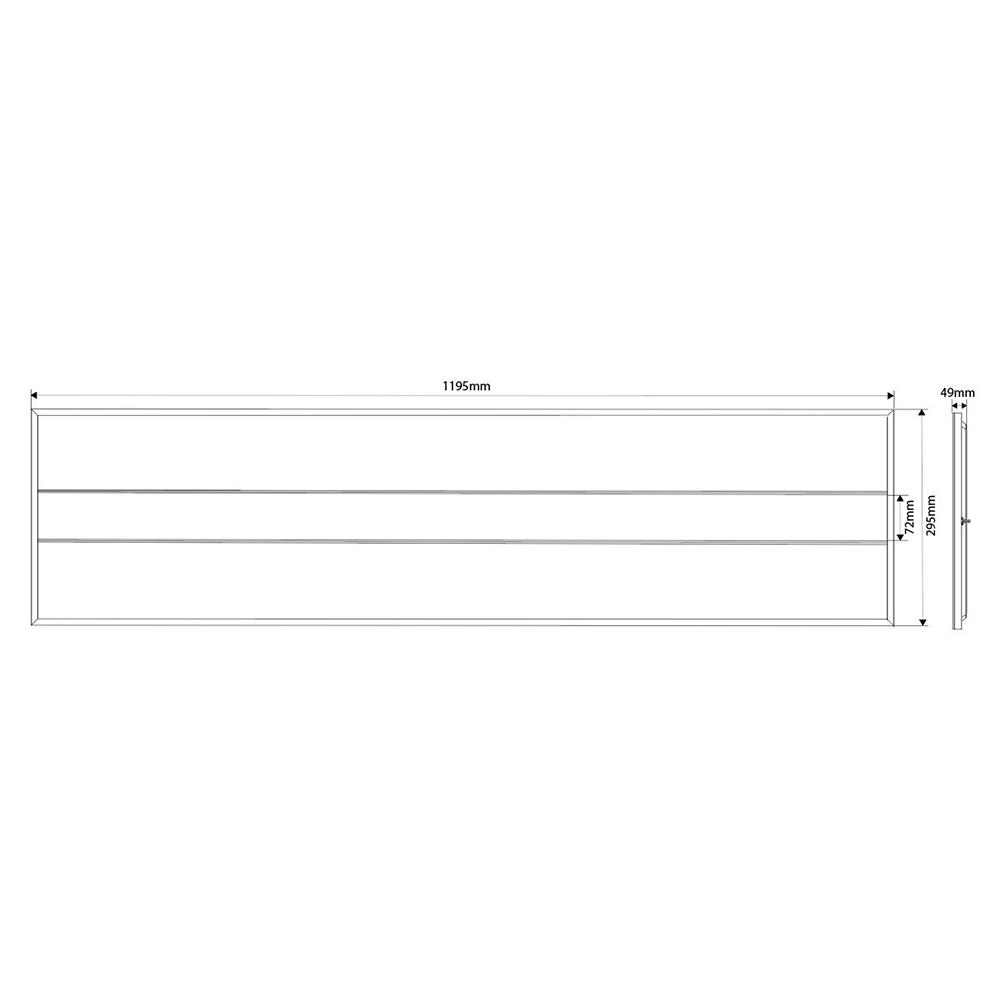

Built-in length
1195mm
Built-in width
295mm
Built-in diameter
49mm
Constant light output (CLO)
No
Type of grid
None
Nominal voltage
220 - 240V
Length
1195mm
Width
295mm
Height/depth
49mm
Colour of light
White
Colour rendering index CRI
80-89
Exchangeable control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming phase cut-off (trailing edge)
Yes
With movement sensor
No
With presence detector
No
Impact strength
IK02
With light sensor
No
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Direct
Dimming RF
No
Dimming Zigbee
No
Light distributor
Diffuser lens/optic/panel
Surface protection housing
Powder coating
Colour consistency (McAdam ellipse)
SDCM3
Rated lifetime L70/B50 at 25 °C
60000h
Colour of light adjustable
Positions
Luminous flux adjustable
Continuously variable
Max. system power
36W
Beam angle adjustable
No
Power factor
0.97
Type of wiring
Ending
Number of poles
2
Built-in height/depth
49mm
Compatible with Casambi
No
Luminaire efficacy
100 - 100lm/W
Dimmable
Yes
Rated luminous flux according to IEC 62722-2- 1
3600 - 3600lm
Emergency power supply system
None
Suitable for ceiling mounting
Yes
Connectable conductor cross section
0.75 - 2.5mm²
Suitable for wall mounting
Yes
Suitable for suspended mounting
Yes
Suitable for workplace according to EN 12464-1
Yes
Unified Glare Ratio (UGR)
18.3
Degree of protection (IP), rear side
IP20
Degree of protection (IP), front side
IP20
With mounting material
Yes
Size
30x120 cm
Colour temperature
3000 - 4000 - 5700K
With connection cord and plug
Yes
Length of power cord
2000mm
Connection type
EU plug
Dimming method
Trailing edge dimming
Warranty
5 years
Product Name
LED panel | butterfly | 30*120 | 3-CCT | UGR<19 | TE dim.
Light outlet
Direct
Ean
8714984938700
Dimming RF
No
Outer box qty
5st
Dimming Zigbee
No
Lamp type
LED not exchangeable
Light distributor
Diffuser lens/optic/panel
Housing material
Aluminium
Surface protection housing
Powder coating
Housing colour
White
Colour consistency (McAdam ellipse)
SDCM3
Material cover
Plastic, opal
Rated lifetime L70/B50 at 25 °C
60000h
Suitable for emergency lighting
No
Colour of light adjustable
Positions
Nominal current
151 - 151mA
Luminous flux adjustable
Continuously variable
Voltage type
AC
Max. system power
36W
Type of control gear
LED operating device current-controlled
Beam angle adjustable
No
With control gear
Yes
Power factor
0.97
Built-in length
1195mm
Type of wiring
Ending
Built-in width
295mm
Number of poles
2
Built-in diameter
49mm
Built-in height/depth
49mm
Constant light output (CLO)
No
Compatible with Casambi
No
Type of grid
None
Luminaire efficacy
100 - 100lm/W
Nominal voltage
220 - 240V
Dimmable
Yes
Length
1195mm
Rated luminous flux according to IEC 62722-2- 1
3600 - 3600lm
Width
295mm
Emergency power supply system
None
Height/depth
49mm
Suitable for ceiling mounting
Yes
Colour of light
White
Connectable conductor cross section
0.75 - 2.5mm²
Colour rendering index CRI
80-89
Suitable for wall mounting
Yes
Exchangeable control gear
Yes
Suitable for suspended mounting
Yes
Dimming 0-10 V
No
Suitable for workplace according to EN 12464-1
Yes
Dimming 1-10 V
No
Unified Glare Ratio (UGR)
18.3
Dimming DALI
No
Degree of protection (IP), rear side
IP20
Dimming phase cut-off (trailing edge)
Yes
Degree of protection (IP), front side
IP20
With movement sensor
No
With mounting material
Yes
With presence detector
No
Size
30x120 cm
Impact strength
IK02
Colour temperature
3000 - 4000 - 5700K
With light sensor
No
With connection cord and plug
Yes
Suitable for surface mounting
Yes
Length of power cord
2000mm
Suitable for built-in mounting
Yes
Connection type
EU plug
Light distribution
Symmetric
Dimming method
Trailing edge dimming
Beam angle
> 80° - Extreme wide beam
Warranty
5 years
The Tronix LED Butterfly panels combine a clean, contemporary design with high performance and flexibility. Available in 60x60 cm (174-275) and 30x120 cm (174-276), they offer >100 lm/W output and flicker-free trailing edge dimming down to <5%.
Colour temperature can be selected (3000K, 4000K, 5700K) via a switch between the panel and driver. The Butterfly design ensures soft, even light with UGR<19—ideal for offices, schools, and meeting rooms.
With 50,000 hours lifetime (L80B50), CRI >80 and 90° beam angle, these panels are both sustainable and visually comfortable. Supplied with EU plug, dimmable driver, 2-metre cable and mounting kit.
More information
More information about this product can be found in the product specifications. For accessories, available options, and related products, see the related items. For inquiries or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-led-panel-butterfly-30120-3-cct-ugr19-te-dim-174-276.pdf
Energy labels
Characteristics sheet
174-276-photometric-light-report.pdf
174-276-photometric-light-report-detailed.zip
174-276-eulumdat.zip
