LED panel || Ø61cm | 40W | 4000K | CRI>90 | UGR<19 | non dim

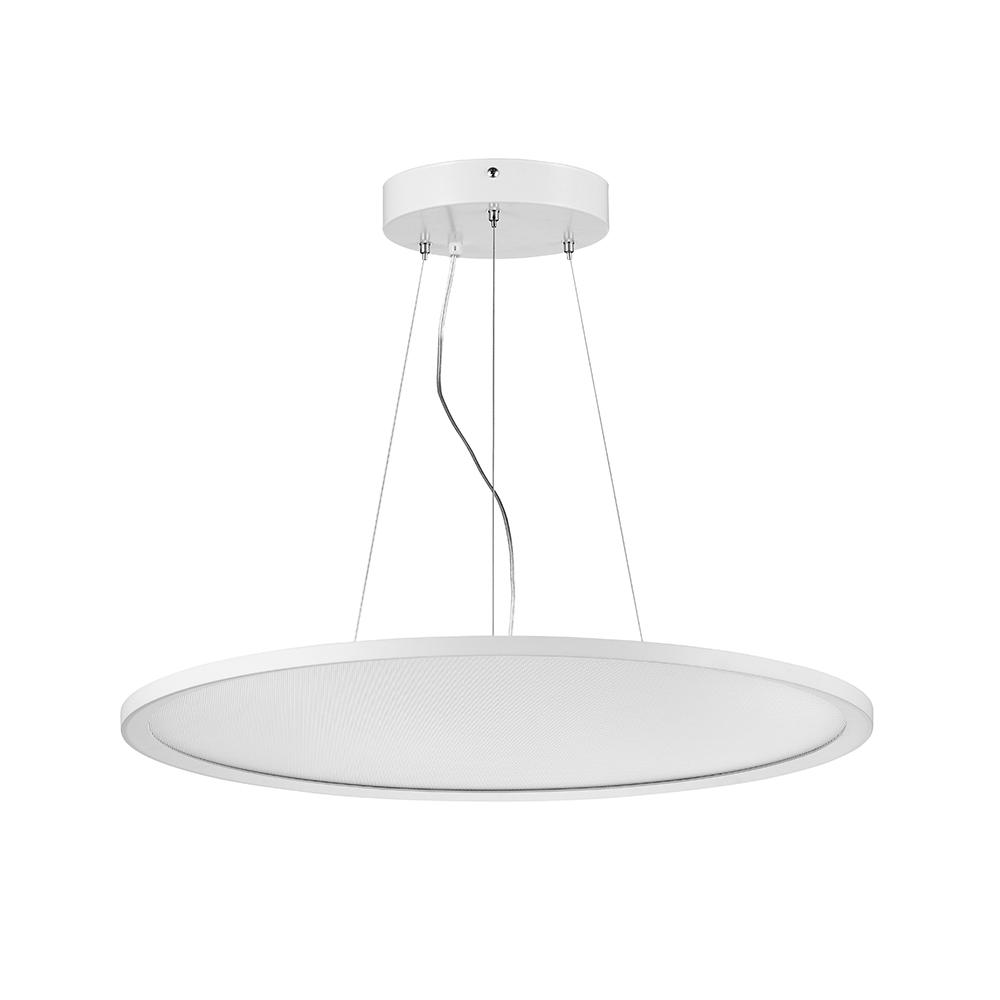

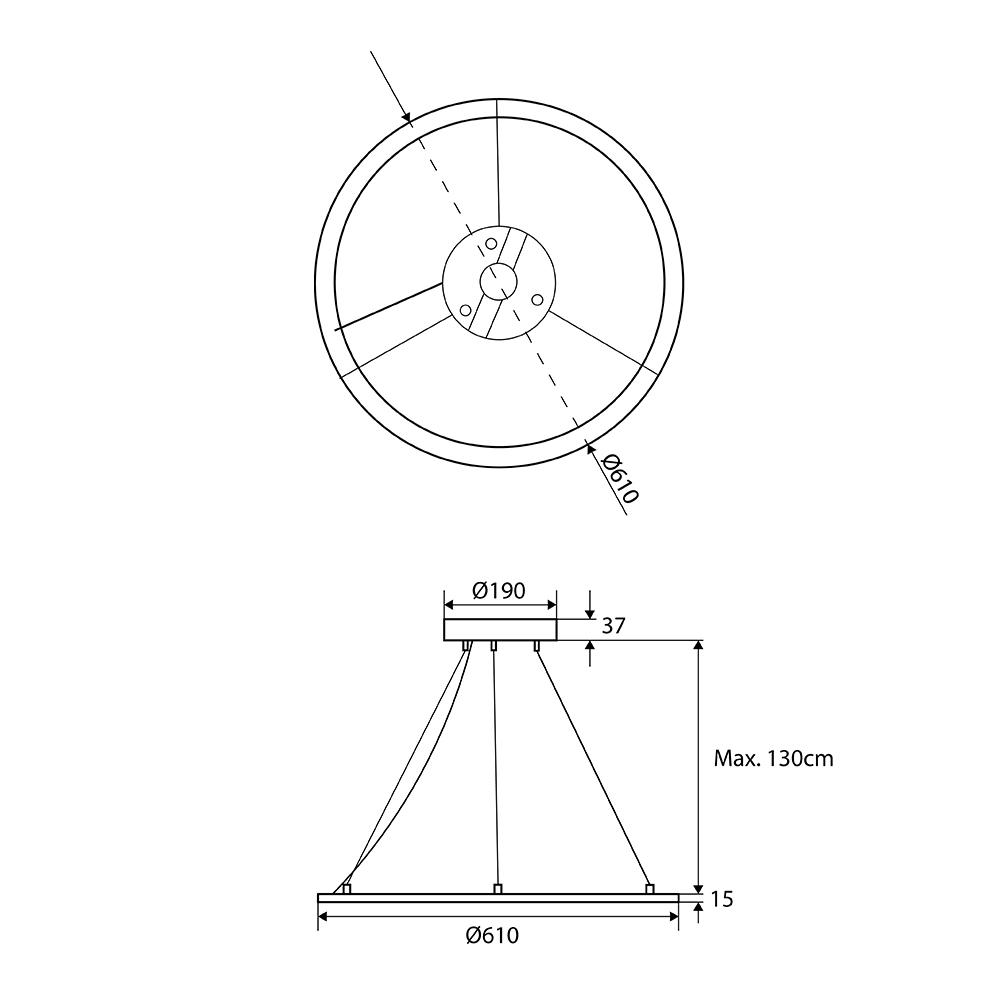

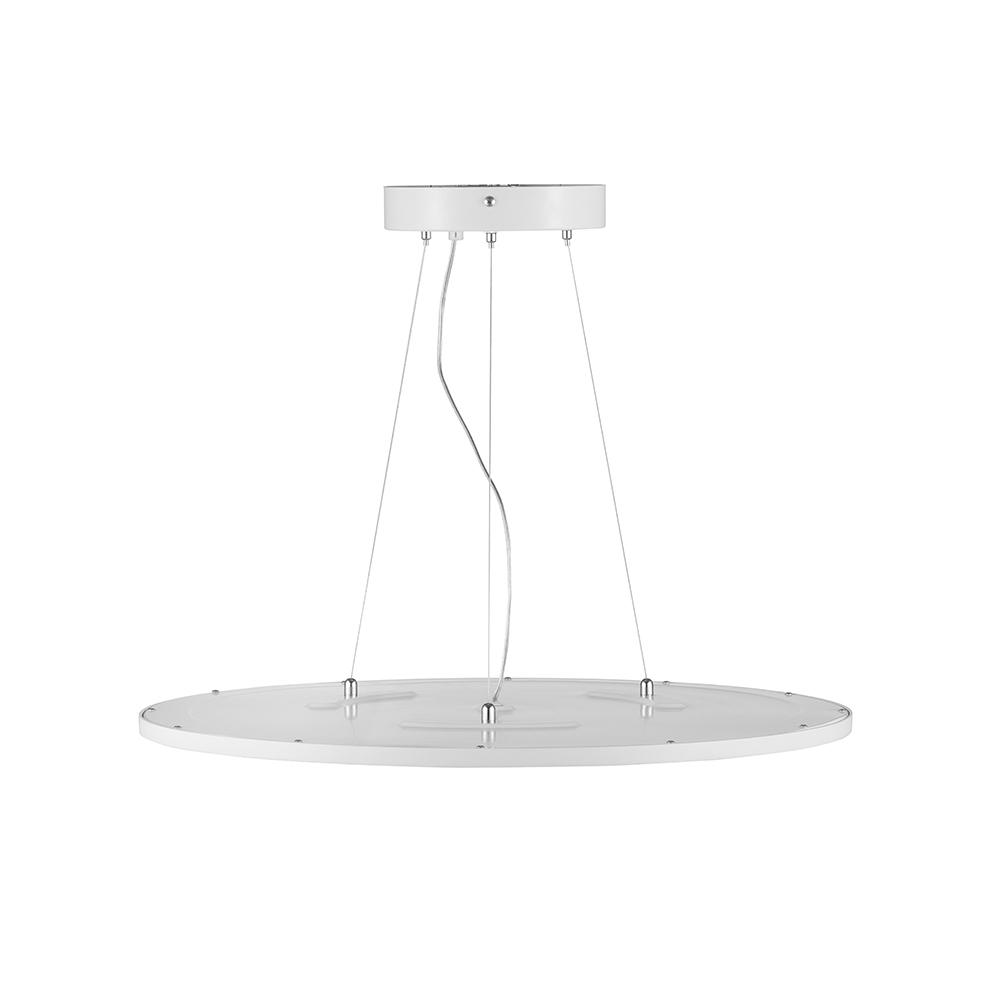

174-205This round LED panel comes with a suspension set and driverbox. This suspension set makes it possible to attach the panel to the ceiling with a maximum height of 130 cm. Due to the smooth, soft and flicker-free light that the LED panel spreads, panels are ideally suited for use in offices and shops, but also for interior lighting in schools and other public spaces.
Features
- High quality external driver with optimal heat regulation
- Flicker-free (1%)
- High light efficiency of >100 Lm/W
- 5 years warranty
- CRI> 90
- UGR<19 value for minimal discomfort from glare and high productivity

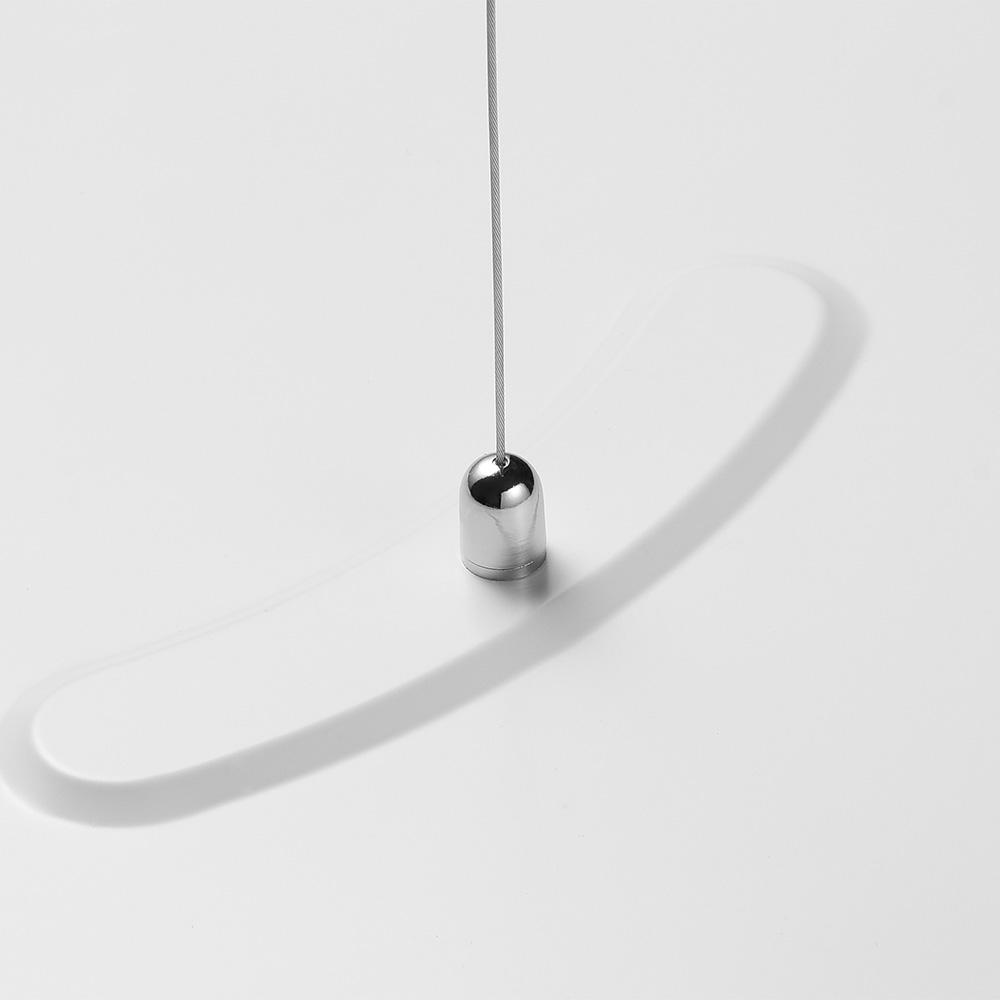

- Suspension set and driver box included
Product Name
LED panel || Ø61cm | 40W | 4000K | CRI>90 | UGR<19 | non dim
Ean
8714984919495
Outer box qty
4st
Lamp type
LED not exchangeable
Housing material
Aluminium
Housing colour
White

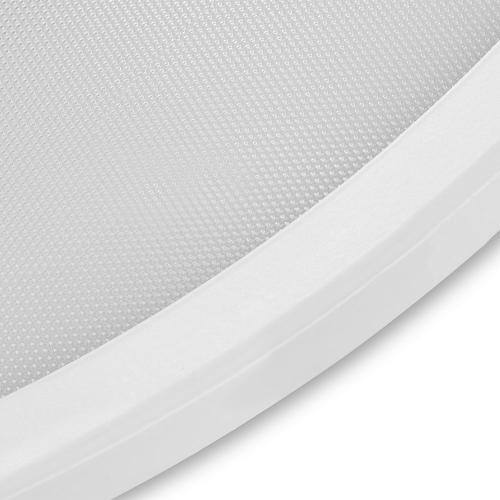

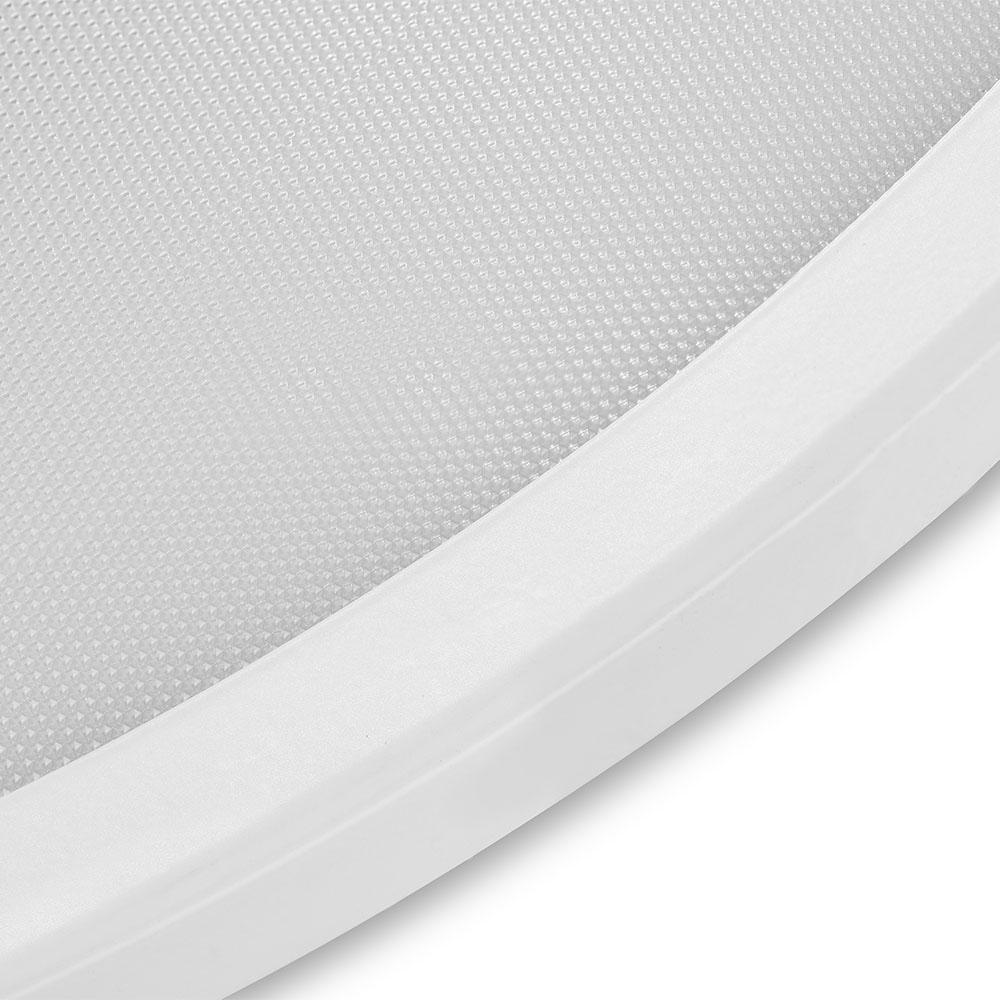

Material cover
Plastic, opal
Suitable for emergency lighting
No
Nominal current
167 - 182mA
Voltage type
AC
Type of control gear
LED operating device current-controlled
With control gear
Yes
Outer diameter
610mm
Constant light output (CLO)
No
Type of grid
None
Nominal voltage
220 - 240V
Height/depth
15mm
Colour of light
White
Colour rendering index CRI
90-100
Exchangeable control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming phase cut-off (trailing edge)
No
With movement sensor
No
With presence detector
No
Impact strength
IK02
With light sensor
No
Suitable for surface mounting
No
Suitable for built-in mounting
No
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Indirect
Dimming RF
No
Dimming Zigbee
No
Light distributor
Diffuser lens/optic/panel
Surface protection housing
Lacquered
Colour consistency (McAdam ellipse)
SDCM6
Rated lifetime L70/B50 at 25 °C
83000h
Colour of light adjustable
No
Luminous flux adjustable
No
Max. system power
40W
Beam angle adjustable
No
Power factor
0.9
Type of wiring
Ending
Number of poles
2
Compatible with Casambi
No
Luminaire efficacy
100 - 100lm/W
Dimmable
No
Rated luminous flux according to IEC 62722-2- 1
4000 - 4000lm
Emergency power supply system
None
Suitable for ceiling mounting
Yes
Connectable conductor cross section
0.75 - 0.75mm²
Suitable for wall mounting
No
Suitable for suspended mounting
Yes
Suitable for workplace according to EN 12464-1
Yes
Unified Glare Ratio (UGR)
19
Degree of protection (IP), rear side
IP20
With mounting material
Yes
Colour temperature
4000K
With connection cord and plug
Yes
Length of power cord
2000mm
Connection type
EU plug
Dimming method
Non-dimmable
Warranty
5 years
Product Name
LED panel || Ø61cm | 40W | 4000K | CRI>90 | UGR<19 | non dim
Dimming RF
No
Ean
8714984919495
Dimming Zigbee
No
Outer box qty
4st
Light distributor
Diffuser lens/optic/panel
Lamp type
LED not exchangeable
Surface protection housing
Lacquered
Housing material
Aluminium
Colour consistency (McAdam ellipse)
SDCM6
Housing colour
White
Rated lifetime L70/B50 at 25 °C
83000h
Material cover
Plastic, opal
Colour of light adjustable
No
Suitable for emergency lighting
No
Luminous flux adjustable
No
Nominal current
167 - 182mA
Max. system power
40W
Voltage type
AC
Beam angle adjustable
No
Type of control gear
LED operating device current-controlled
Power factor
0.9
With control gear
Yes
Type of wiring
Ending
Outer diameter
610mm
Number of poles
2
Constant light output (CLO)
No
Compatible with Casambi
No
Type of grid
None
Luminaire efficacy
100 - 100lm/W
Nominal voltage
220 - 240V
Dimmable
No
Height/depth
15mm
Rated luminous flux according to IEC 62722-2- 1
4000 - 4000lm
Colour of light
White
Emergency power supply system
None
Colour rendering index CRI
90-100
Suitable for ceiling mounting
Yes
Exchangeable control gear
No
Connectable conductor cross section
0.75 - 0.75mm²
Dimming 0-10 V
No
Suitable for wall mounting
No
Dimming 1-10 V
No
Suitable for suspended mounting
Yes
Dimming DALI
No
Suitable for workplace according to EN 12464-1
Yes
Dimming phase cut-off (trailing edge)
No
Unified Glare Ratio (UGR)
19
With movement sensor
No
Degree of protection (IP), rear side
IP20
With presence detector
No
With mounting material
Yes
Impact strength
IK02
Colour temperature
4000K
With light sensor
No
With connection cord and plug
Yes
Suitable for surface mounting
No
Length of power cord
2000mm
Suitable for built-in mounting
No
Connection type
EU plug
Light distribution
Symmetric
Dimming method
Non-dimmable
Beam angle
> 80° - Extreme wide beam
Warranty
5 years
Light outlet
Indirect
This round LED panel comes with a suspension set and driverbox. This suspension set makes it possible to attach the panel to the ceiling with a maximum height of 130 cm. Due to the smooth, soft and flicker-free light that the LED panel spreads, panels are ideally suited for use in offices and shops, but also for interior lighting in schools and other public spaces.
Features
High quality external driver with optimal heat regulation
Flicker-free (1%)
High light efficiency of >100 Lm/W
5 years warranty
CRI> 90
UGR<19 value for minimal discomfort from glare and high productivity
Suspension set and driver box included
Datasheet
Datasheet-led-panel-o61cm-40w-4000k-cri90-ugr19-non-dim-174-205.pdf
Energy labels
Other attachment
20220908103151102_1722931731.pdf
Manual
174-205_Manual_NL.pdf
174-205_Manual_EN.pdf
