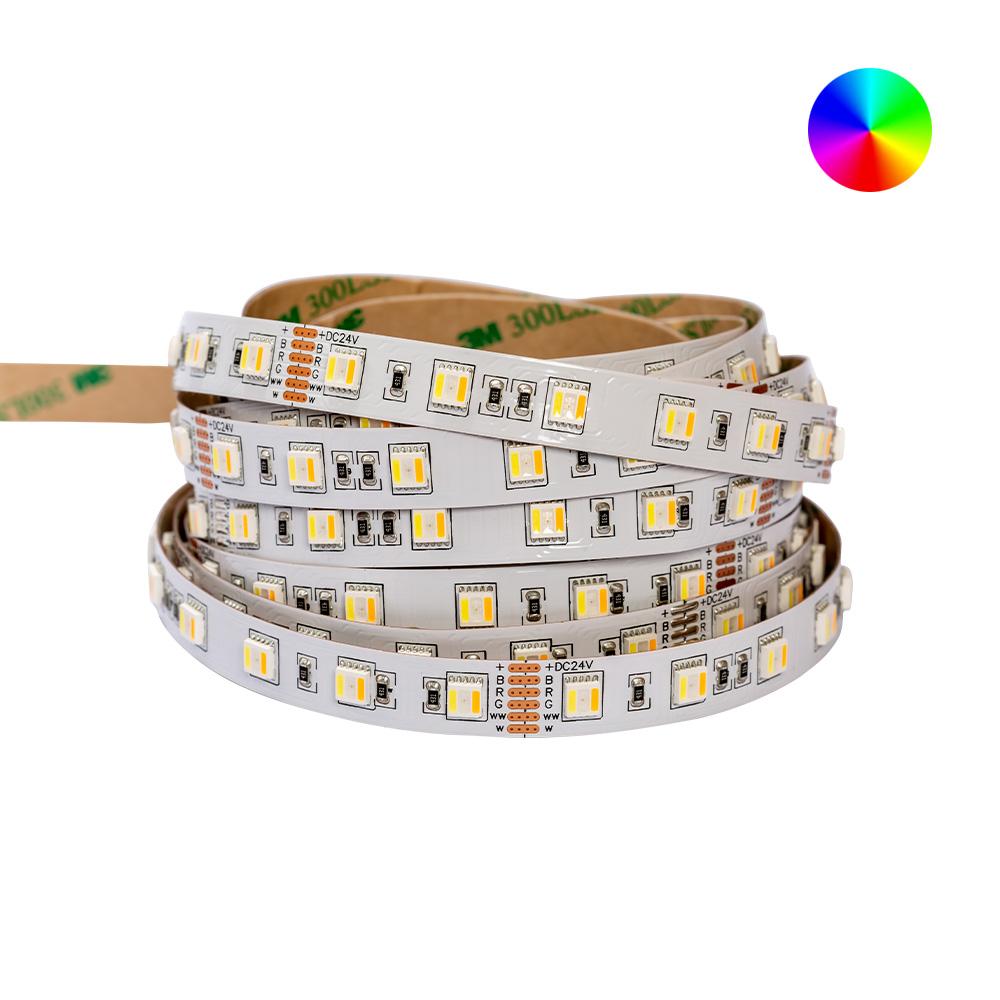

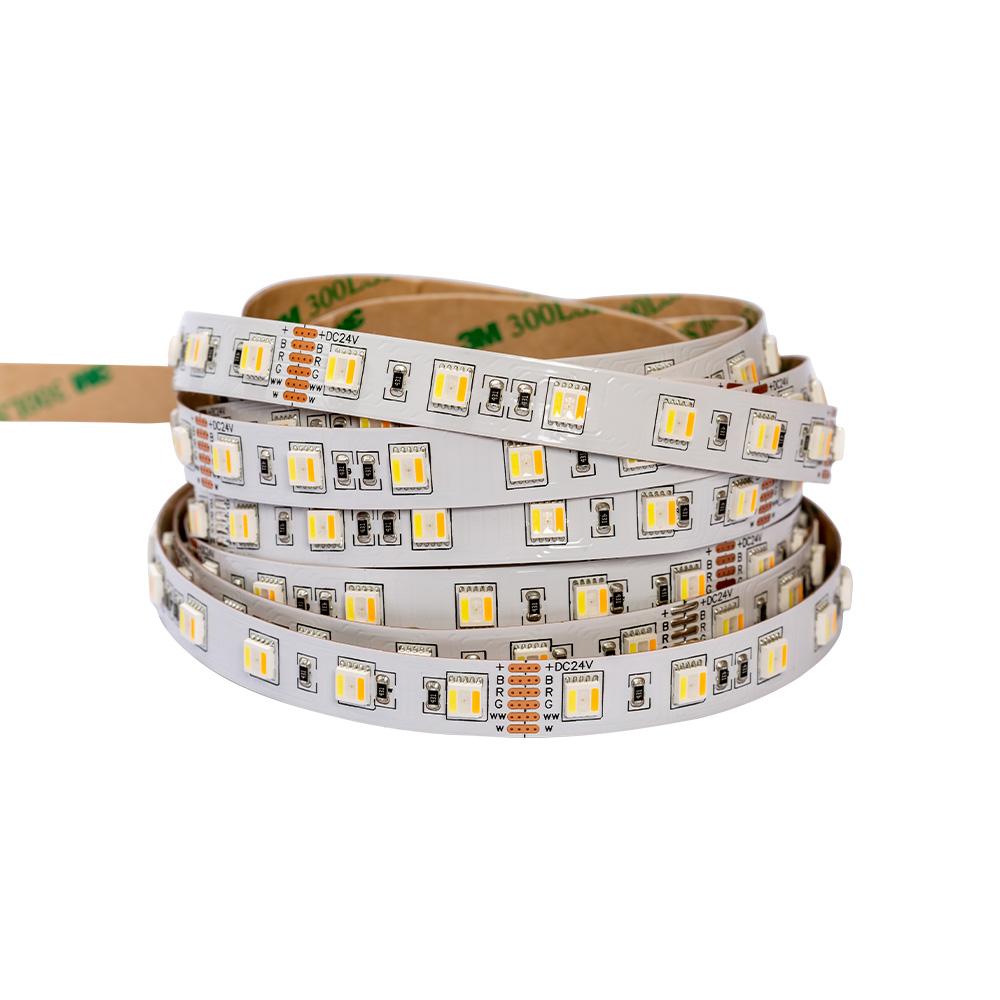

LED strip | 24V | 60LED/m 5050 | 5m | IP20 | RGBTW 5in1
127-085RGBTW LED strip with 60 LEDs per meter for dynamic colour light and tunable white (2400K–6000K). Compatible with Zigbee, DALI, RF, Casambi and DMX control.
Key product features
- Number of nodes per meter: 60
- Lamp power per meter (W): 19.2
- Colour temperature (K): 2400 - 6000
- Width (mm): 12
- Length of particular sections (mm): 100
- Degree of protection (IP): IP20
- Colour of light: Multicolour
Product Name
LED strip | 24V | 60LED/m 5050 | 5m | IP20 | RGBTW 5in1
Ean
8714984940574
Outer box qty
25st
Model
Strip
Lamp type
LED not exchangeable
Lamp voltage
0 - 24V
Number of nodes per meter
60
Lamp power per meter
19.2W
Beam angle
120°
Voltage type
DC
Type of control gear
LED operating device voltage-controlled
Input voltage tracklights
24V
With protective cover
No
Length of particular segments
100mm
Degree of protection (IP)
IP20
Self-adhesive
Yes
Luminous flux per meter
327lm
Total length
5m
Width
12mm
Height/depth
2mm
Colour of light
Multi-coloured
Suitable for dimmer
Yes
Colour rendering index CRI
80-89
Exchangeable control gear
Yes
Connection type
Other
Rated lifetime L70/B50 at 25 °C
54000h
Colour of light adjustable
Continuously variable
Luminous flux per foot
99.67lm
Luminous flux adjustable
Continuously variable
LED type
SMD
Max. system power
96W
Beam angle adjustable
No
Luminaire efficacy
88lm/W
Power factor
1
Type of wiring
Loop-through wiring included
Number of poles
6
Connectable conductor cross section
0.5 - 2.5mm²
Colour temperature
RGBTW
Warranty
3 years
Product Name
LED strip | 24V | 60LED/m 5050 | 5m | IP20 | RGBTW 5in1
Colour of light
Multi-coloured
Ean
8714984940574
Suitable for dimmer
Yes
Outer box qty
25st
Colour rendering index CRI
80-89
Model
Strip
Exchangeable control gear
Yes
Lamp type
LED not exchangeable
Connection type
Other
Lamp voltage
0 - 24V
Rated lifetime L70/B50 at 25 °C
54000h
Number of nodes per meter
60
Colour of light adjustable
Continuously variable
Lamp power per meter
19.2W
Luminous flux per foot
99.67lm
Beam angle
120°
Luminous flux adjustable
Continuously variable
Voltage type
DC
LED type
SMD
Type of control gear
LED operating device voltage-controlled
Max. system power
96W
Input voltage tracklights
24V
Beam angle adjustable
No
With protective cover
No
Luminaire efficacy
88lm/W
Length of particular segments
100mm
Power factor
1
Degree of protection (IP)
IP20
Type of wiring
Loop-through wiring included
Self-adhesive
Yes
Number of poles
6
Luminous flux per meter
327lm
Connectable conductor cross section
0.5 - 2.5mm²
Total length
5m
Colour temperature
RGBTW
Width
12mm
Warranty
3 years
Height/depth
2mm

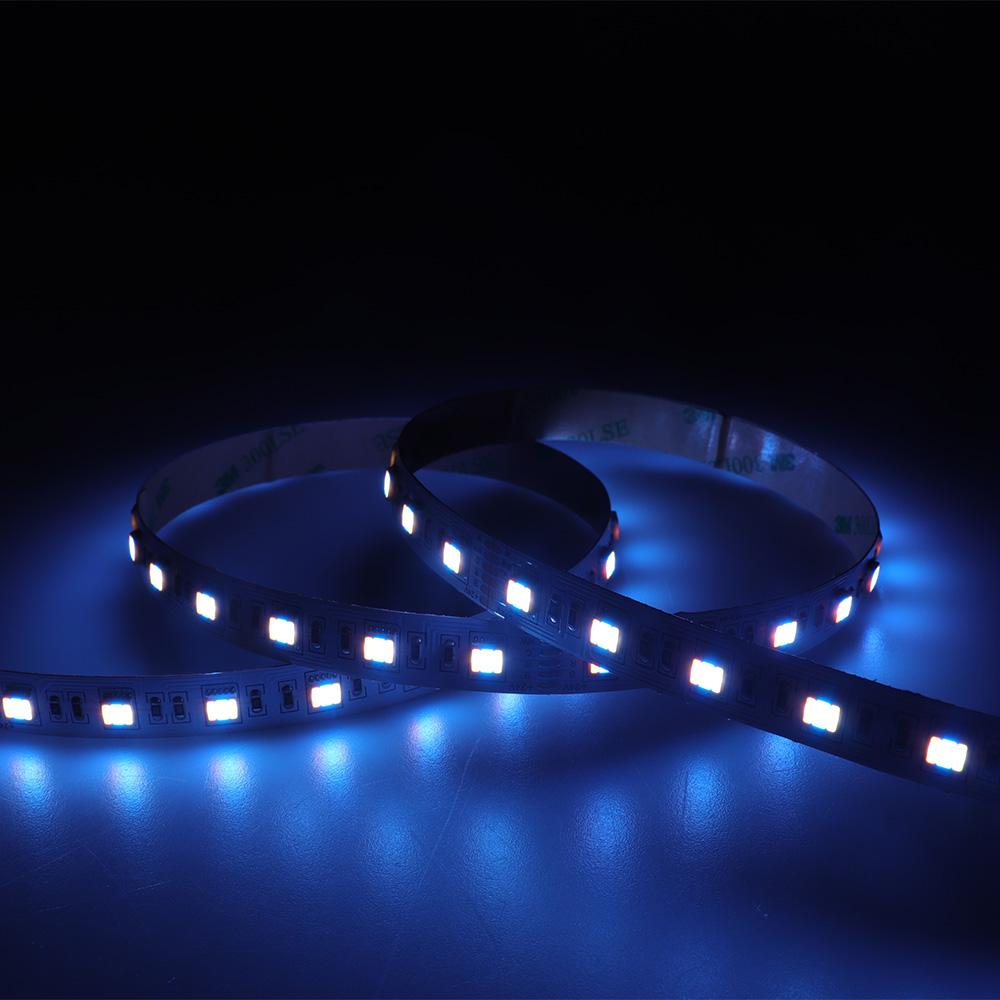

This 24V RGBTW LED strip with 60 powerful 5050 SMD LEDs per metre combines dynamic RGB colour light with tunable white from 2400K to 6000K. Each LED chip features five separate chips: red, green, blue, warm white (2400K) and cool white (6000K). This allows complete flexibility from warm and cosy to cool and bright lighting.
Compatible with Zigbee, DALI, RF, Casambi and DMX, the strip integrates easily into lighting control systems and smart installations – from professional projects to residential domotics. The 100 mm section length allows precise customisation.
Ideal for applications where colour and white light must blend or alternate, such as hospitality, retail, interiors and experience environments. Available in IP20 (dry interiors) and IP52 (dust-prone or slightly damp spaces).
Effective heat dissipation is essential for optimal performance and a long lifespan. Use an aluminium LED profile to prevent overheating and ensure a clean finish. Combined with GALAXY profiles, this creates a high-quality total solution.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-led-strip-24v-60ledm-5050-5m-ip20-rgbtw-5in1-127-085.pdf
Energy labels
Characteristics sheet
127-085-photometric-light-report.pdf
127-085-photometric-light-report-detailed.zip
127-085-eulumdat.zip
