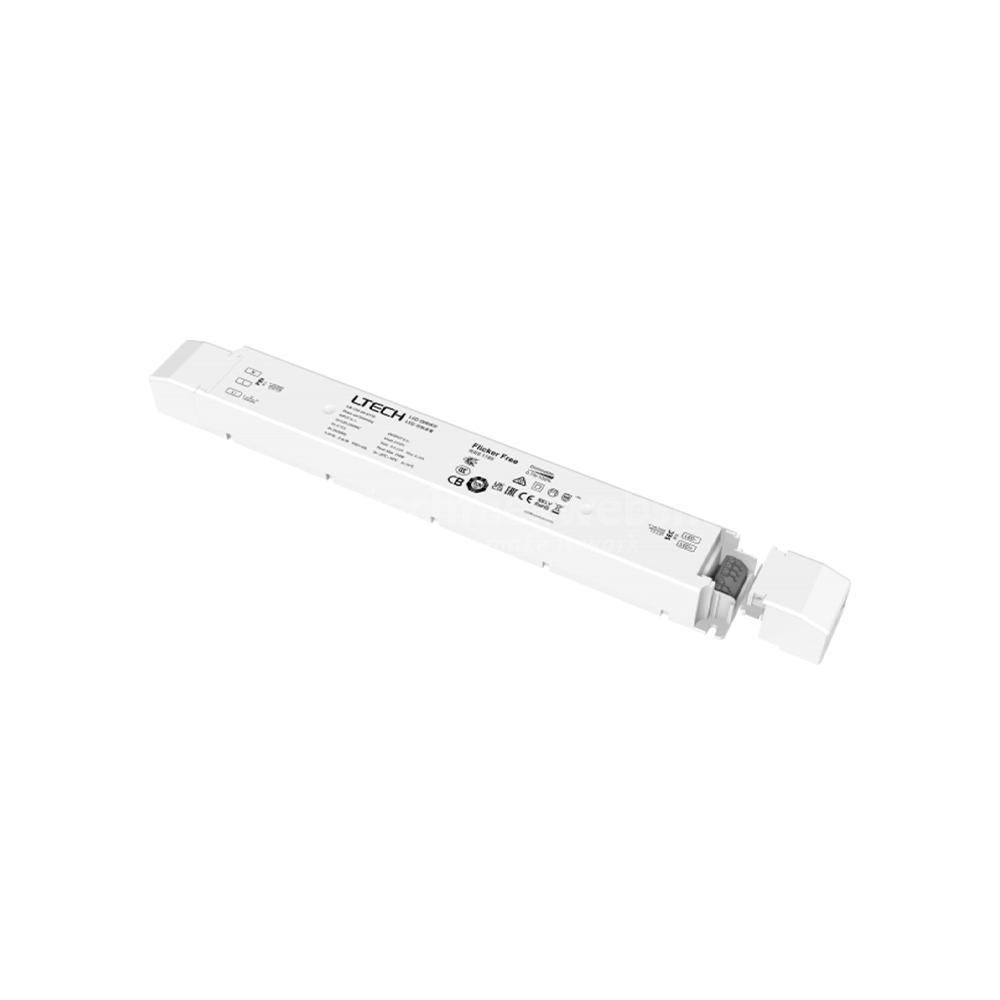

With an output of up to 150 watts, this LTECH LED transformer is an excellent power supply for LED lighting. This transformer provides a smooth dimming experience using the available technologies.

Features

Soft-on and fade-in dimming function for optimal comfort
Dimming range of 0 ~ 100% when combined with suitable LED lamps

LED dimmer universal | trailing edge | 2W ~ 350W 215-131

Casambi || receiver | 85~240V | 100W 214-206

230V AC dim receiver || 1 x 100W 214-158

Zigbee | receiver | 100-240V trailing edge | recessed 214-250

Product Name

LTECH | LM-150-24-G1T2 | 24V | 150W | trailing edge

Ean

8714984941250

Outer box qty

30st

Housing

Plastic housing

Model

Static

Output voltage

24 - 24V

Output current

12500 - 12500mA

Suitable for outdoor use

Suitable for DC-voltage (primary side)

Output power

0 - 150W

Degree of protection (IP)

IP20

Length

273mm

Width

57mm

Height

37mm

Power consumption

150W

Input voltage

220 - 240V

Frequency input voltage

50 - 60Hz

PWM modulation

Overload protection

Yes

Overtemperature protection

Yes

Control method

Trailing edge dimming

Short-circuit protected

Yes

Ambient temperature

-20 - 50°C

Driver lifetime

50000h

DIN-rail mounting

Brand

Tronix Lighting

Dimmable

Yes

Emergency power supply system

None

Control type

Constant voltage

Warranty

5 years
