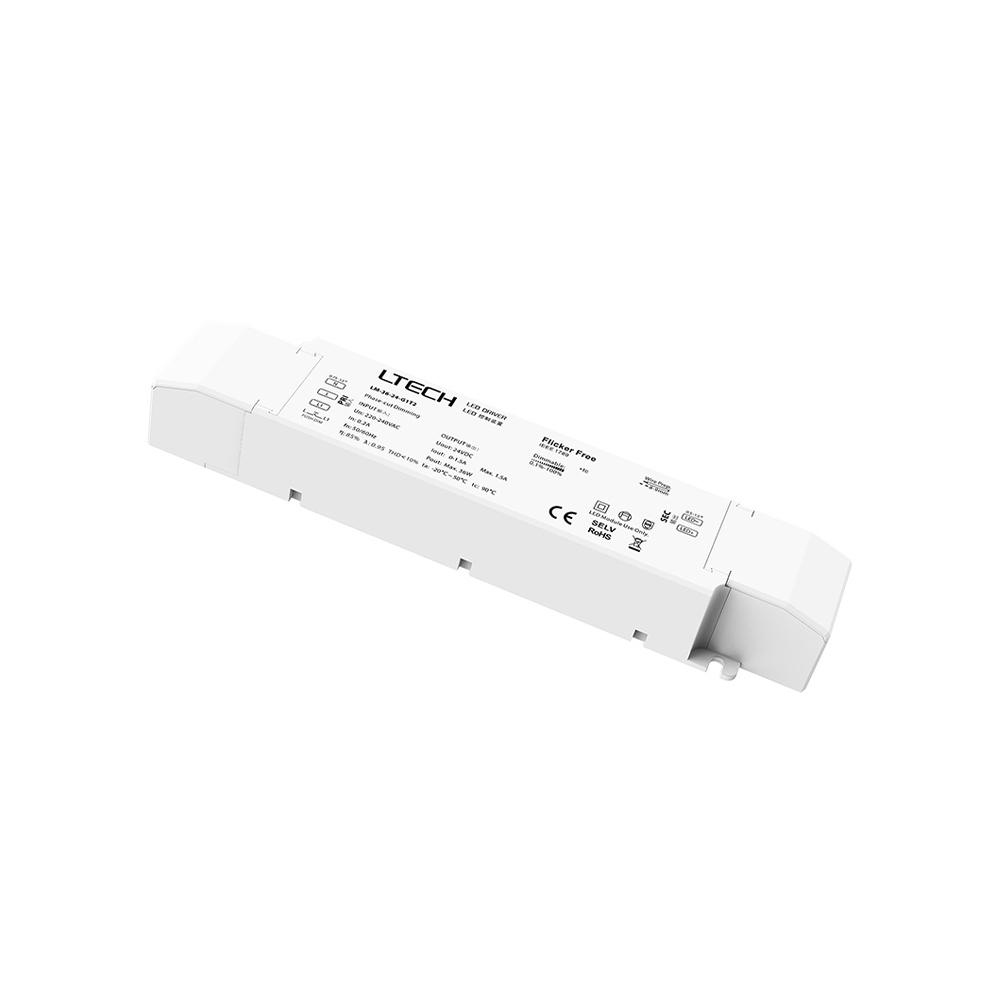

LTECH | LM-36-24-G1T2 | 24V | 36W | trailing edge
215-523With an output of up to 36 watts, this LTECH LED transformer is an excellent power supply for LED lighting. This transformer provides a smooth dimming experience using the available technologies.
Features
- Soft-on and fade-in dimming function for optimal comfort
- Flicker-free dimming range of 0 ~ 100% when combined with suitable LED lamps
Product Name
LTECH | LM-36-24-G1T2 | 24V | 36W | trailing edge
Ean
8714984941588
Outer box qty
50st
Housing
Plastic housing
Model
Static
Output voltage
24 - 24V
Output current
1500 - 1500mA
Suitable for outdoor use
No
Suitable for DC-voltage (primary side)
No
Output power
0 - 36W
Degree of protection (IP)
IP20

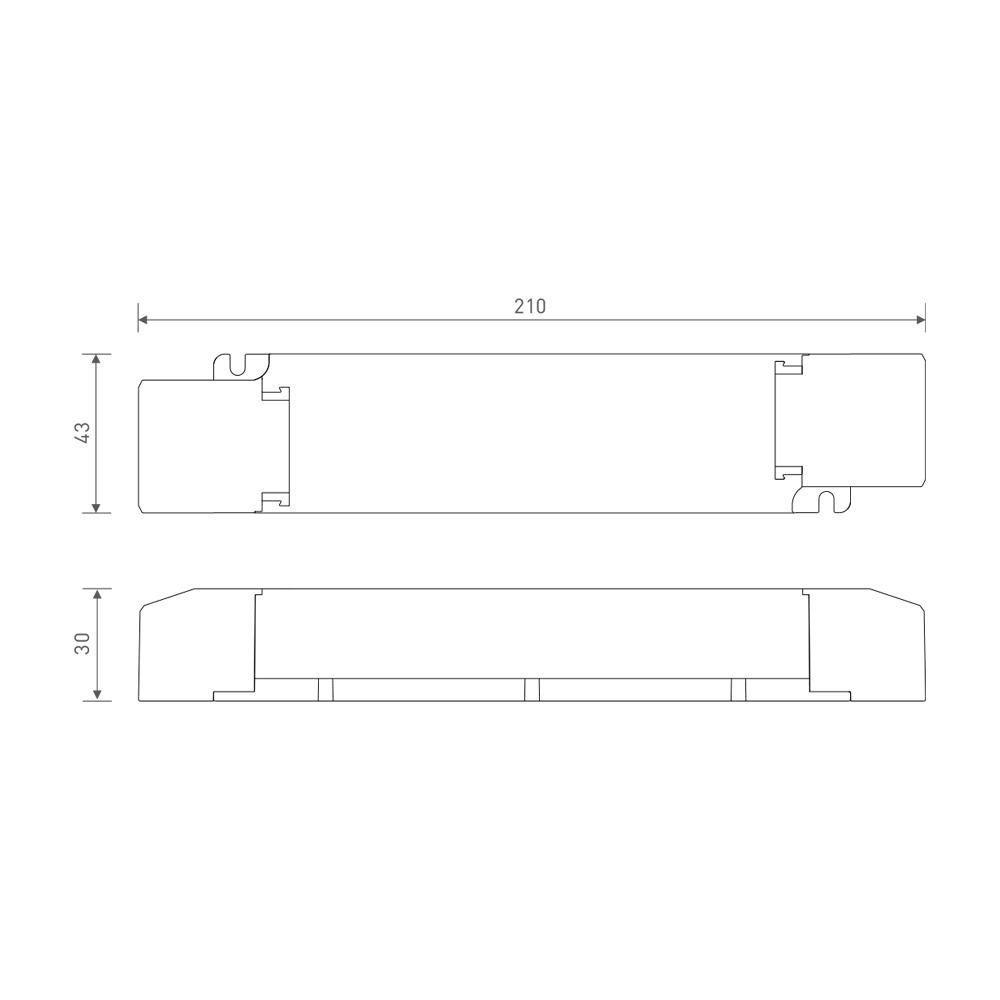

Length
210mm
Width
35mm
Height
30mm
Power consumption
36W
Input voltage
220 - 240V
Frequency input voltage
50 - 60Hz
PWM modulation
No
Overload protection
Yes
Overtemperature protection
Yes
Control method
Trailing edge dimming
Short-circuit protected
Yes
Ambient temperature
-20 - 50°C
Driver lifetime
50000h
DIN-rail mounting
No
Brand
Tronix Lighting
Dimmable
Yes
Emergency power supply system
None
Control type
Constant voltage
Warranty
5 years
Product Name
LTECH | LM-36-24-G1T2 | 24V | 36W | trailing edge
Input voltage
220 - 240V
Ean
8714984941588
Frequency input voltage
50 - 60Hz
Outer box qty
50st
PWM modulation
No
Housing
Plastic housing
Overload protection
Yes
Model
Static
Overtemperature protection
Yes
Output voltage
24 - 24V
Control method
Trailing edge dimming
Output current
1500 - 1500mA
Short-circuit protected
Yes
Suitable for outdoor use
No
Ambient temperature
-20 - 50°C
Suitable for DC-voltage (primary side)
No
Driver lifetime
50000h
Output power
0 - 36W
DIN-rail mounting
No
Degree of protection (IP)
IP20
Brand
Tronix Lighting
Length
210mm
Dimmable
Yes
Width
35mm
Emergency power supply system
None
Height
30mm
Control type
Constant voltage
Power consumption
36W
Warranty
5 years
With an output of up to 36 watts, this LTECH LED transformer is an excellent power supply for LED lighting. This transformer provides a smooth dimming experience using the available technologies.
Features
Soft-on and fade-in dimming function for optimal comfort
Flicker-free dimming range of 0 ~ 100% when combined with suitable LED lamps
Datasheet
Datasheet-ltech-lm-36-24-g1t2-24v-36w-trailing-edge-215-523.pdf
Characteristics sheet
215-523_technical_datasheet_extended.pdf
