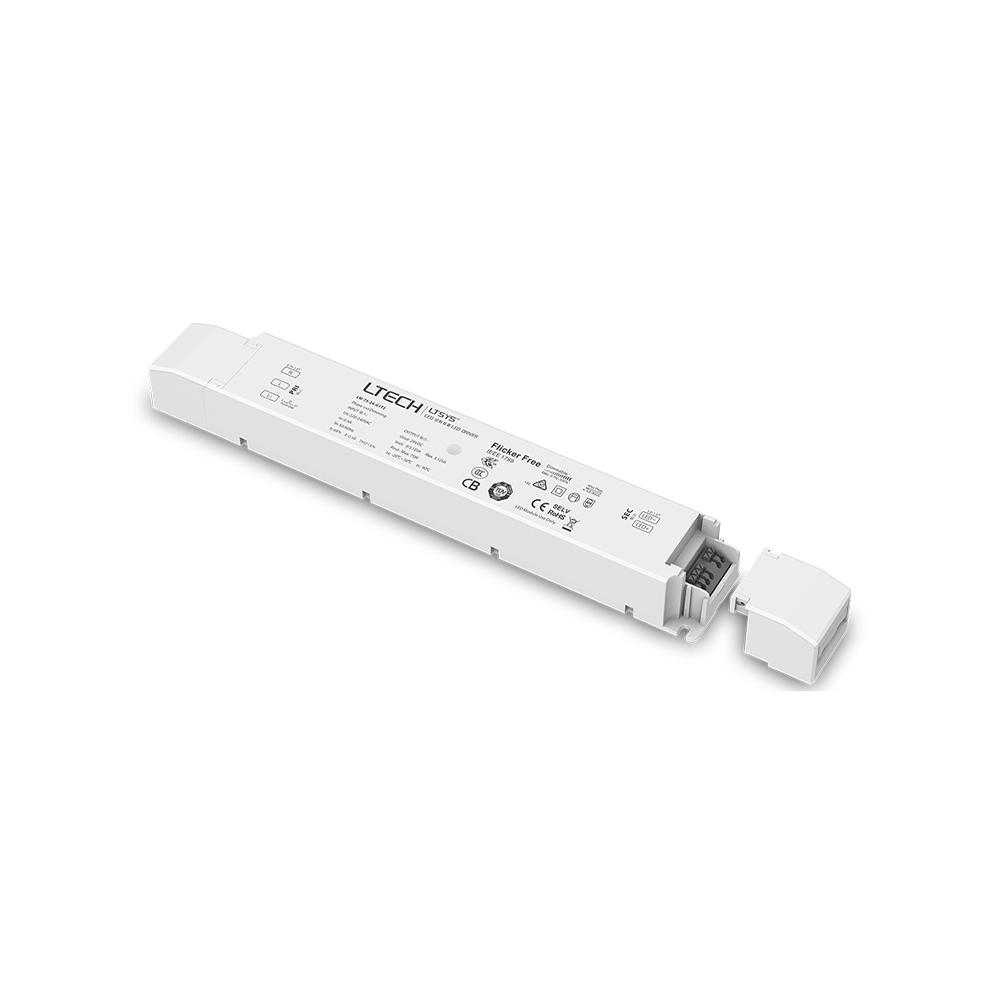

LTECH | LM-75-24-G1T2 | 24V | 75W | trailing edge
215-521With an output of up to 75 watts, this LTECH LED transformer is an excellent power supply for LED lighting. This transformer provides a smooth dimming experience using the available technologies.
Features
- Leading edge (trailing edge) and trailing edge (ELV)
- Dimming range of 0 ~ 100% in combination with suitable LED lamps
- Flicker-free dimming
Product Name
LTECH | LM-75-24-G1T2 | 24V | 75W | trailing edge
Ean
8714984941243
Outer box qty
50st
Housing
Plastic housing
Model
Static
Output voltage
24 - 24V
Output current
6250 - 6250mA
Suitable for outdoor use
No
Suitable for DC-voltage (primary side)
No
Output power
0 - 75W
Degree of protection (IP)
IP20

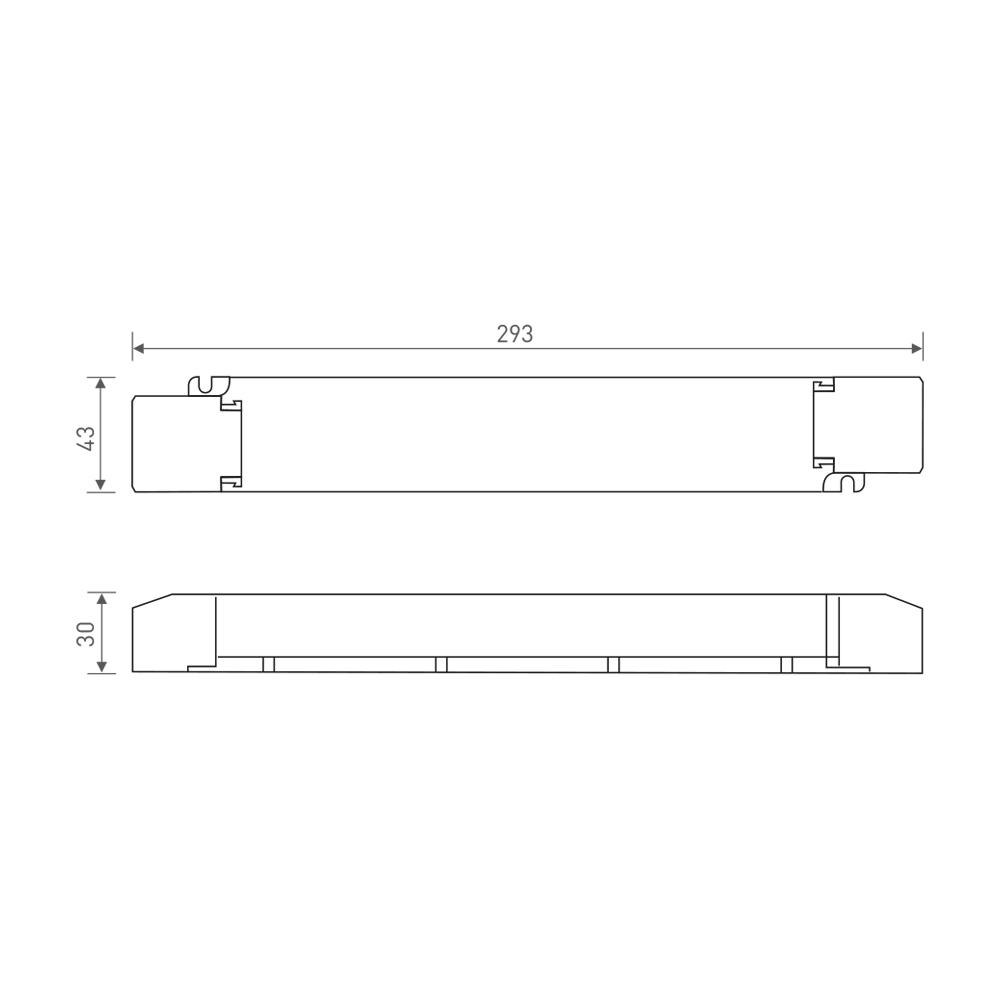

Length
293mm
Width
43mm
Height
30mm
Power consumption
75W
Input voltage
220 - 240V
Frequency input voltage
50 - 60Hz
PWM modulation
No
Overload protection
Yes
Overtemperature protection
Yes
Control method
Trailing edge dimming
Short-circuit protected
Yes
Ambient temperature
-20 - 50°C
DIN-rail mounting
No
Brand
Tronix Lighting
Dimmable
Yes
Emergency power supply system
None
Control type
Constant voltage
Warranty
5 years
Product Name
LTECH | LM-75-24-G1T2 | 24V | 75W | trailing edge
Input voltage
220 - 240V
Ean
8714984941243
Frequency input voltage
50 - 60Hz
Outer box qty
50st
PWM modulation
No
Housing
Plastic housing
Overload protection
Yes
Model
Static
Overtemperature protection
Yes
Output voltage
24 - 24V
Control method
Trailing edge dimming
Output current
6250 - 6250mA
Short-circuit protected
Yes
Suitable for outdoor use
No
Ambient temperature
-20 - 50°C
Suitable for DC-voltage (primary side)
No
DIN-rail mounting
No
Output power
0 - 75W
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Dimmable
Yes
Length
293mm
Emergency power supply system
None
Width
43mm
Control type
Constant voltage
Height
30mm
Warranty
5 years
Power consumption
75W
With an output of up to 75 watts, this LTECH LED transformer is an excellent power supply for LED lighting. This transformer provides a smooth dimming experience using the available technologies.
Features
Leading edge (trailing edge) and trailing edge (ELV).
Dimming range of 0 ~ 100% in combination with suitable LED lamps
Flicker-free dimming
Datasheet
Datasheet-ltech-lm-75-24-g1t2-24v-75w-trailing-edge-215-521.pdf
Characteristics sheet
215-521_technical_datasheet_extended.pdf
