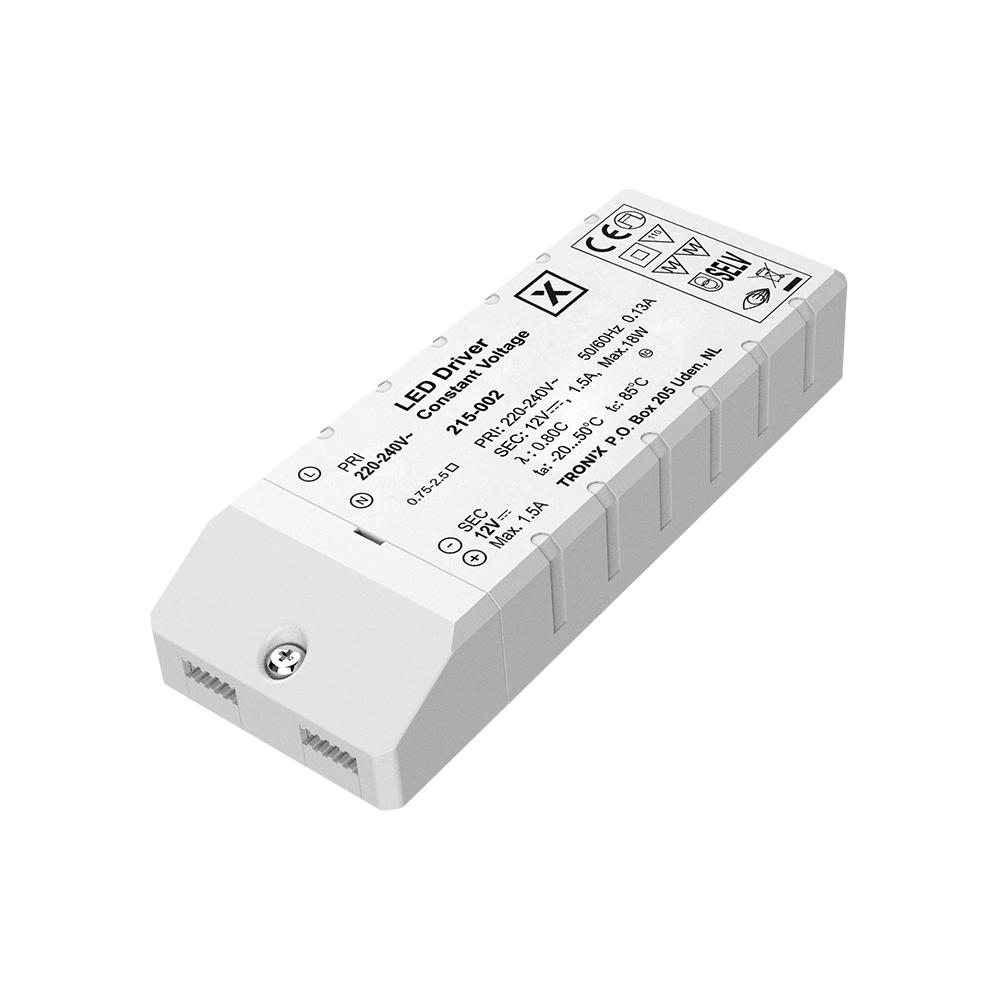

This compact, non-dimmable LED power supply operates on a constant voltage basis. The power supply features a maximum output of 18 Watts and provides a smooth, fluid light experience.

Features

Maximum 18 Watts
12 Volt output voltage
Compact size: 115x45x21 mm

230V AC switch receiver || 1 x 100W 214-174

Power cable | 2 meter with stripped wire 595-021

GST18/3 | 30 centimeter cable | stripped wire 595-042

LED strip wire | 2 core | pro meter 127-250

Product Name

Power supply || 12V | 18W | block type indoor

Ean

8714984919426

Outer box qty

100st

Housing

Plastic housing

Model

Static

Output voltage

12 - 12V

Output current

1500 - 1500mA

Suitable for outdoor use

Suitable for DC-voltage (primary side)

Output power

18 - 18W

Degree of protection (IP)

IP20

Length

115mm

Width

45mm

Height

21mm

Power consumption

18W

Input voltage

220 - 240V

Frequency input voltage

50 - 60Hz

PWM modulation

Overload protection

Yes

Overtemperature protection

Yes

Control method

Non-dimmable

Short-circuit protected

Yes

Ambient temperature

-20 - 50°C

Driver lifetime

30000h

DIN-rail mounting

Brand

Tronix Lighting

Dimmable

Emergency power supply system

None

Control type

Constant voltage

Warranty

5 years
