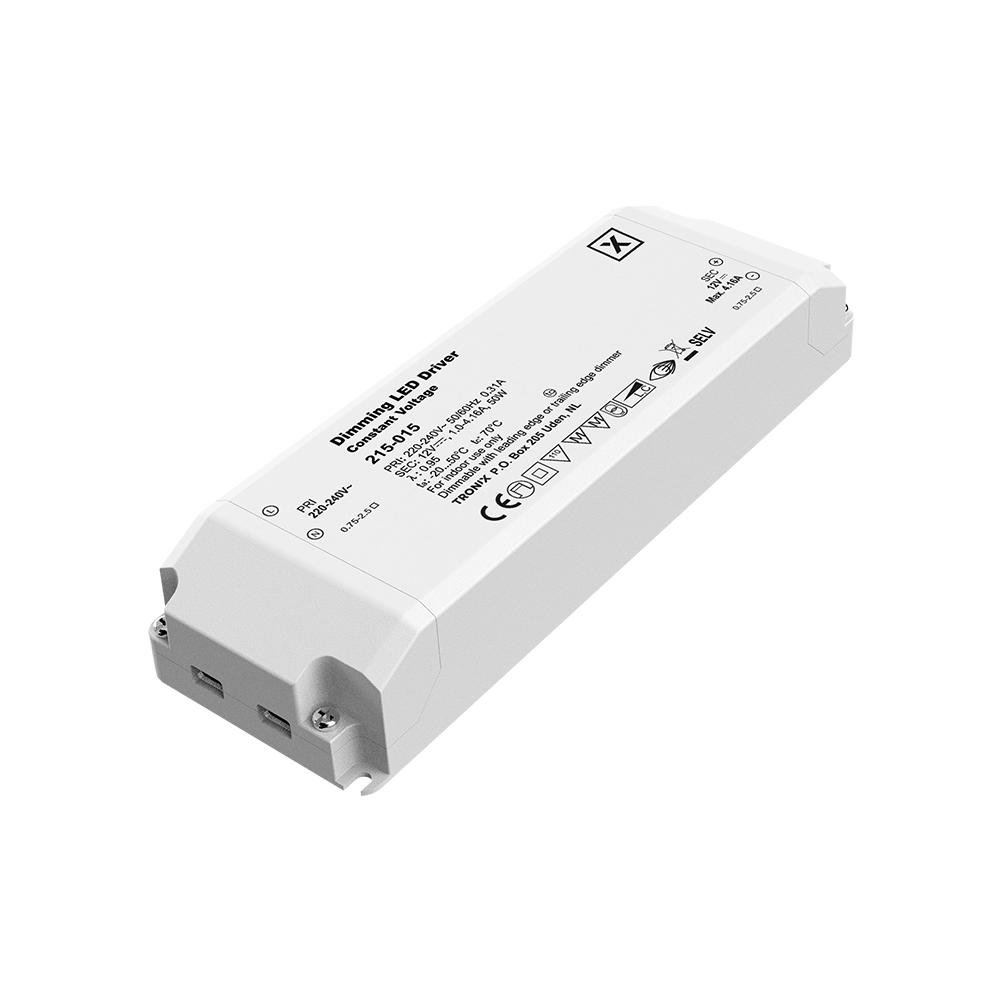

Power supply | 12V | 50W | trailing edge | indoor
215-01512V LED driver with dimmable output power from 12 to 50 watts. Compatible with leading and trailing edge dimmers and ideal for decorative and functional indoor lighting applications.
Key product features
- Suitable for constant voltage: Yes
- Output voltage (V): 12
- Output power (W): 12 – 50
- Dimmig phase cut-off (trailing edge): Yes
- Dimmig phase cut-on (leading edge): Yes
- Input voltage (V): 220 – 240
- Control type: Constant voltage
Product Name
Power supply | 12V | 50W | trailing edge | indoor
Ean
8714984925786
Outer box qty
50st
Housing
Plastic housing
Model
Static
Output voltage
12 - 12V
Output current
1000 - 4160mA
Suitable for outdoor use
No
Suitable for DC-voltage (primary side)
No
Output power
12 - 50W
Degree of protection (IP)
IP20

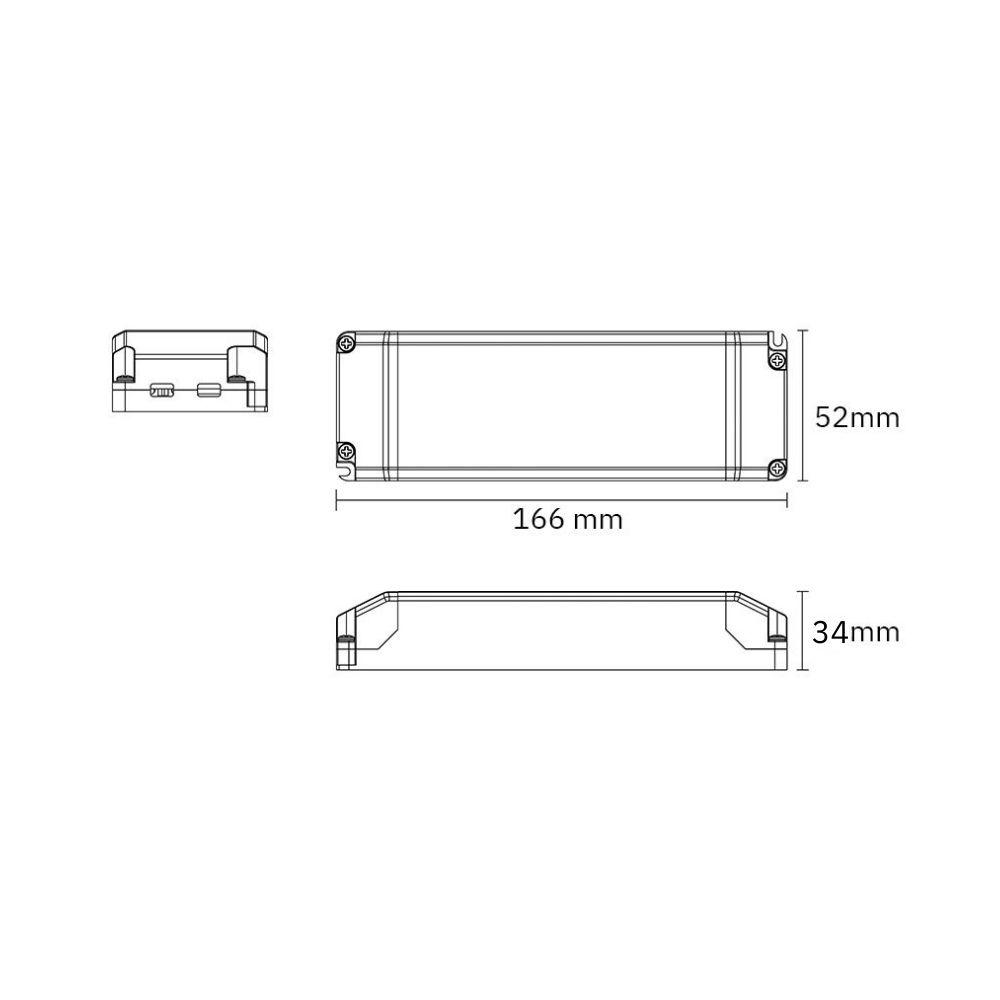

Length
166mm
Width
52mm
Height
34mm
Power consumption
50W
Input voltage
220 - 240V
Frequency input voltage
50 - 60Hz
Overload protection
Yes
Overtemperature protection
Yes
Control method
Trailing edge dimming
Short-circuit protected
Yes
Ambient temperature
-20 - 50°C
Driver lifetime
30000h
DIN-rail mounting
No
Brand
Tronix Lighting
Dimmable
Yes
Emergency power supply system
None
Control type
Constant voltage
Warranty
5 years
Product Name
Power supply | 12V | 50W | trailing edge | indoor
Input voltage
220 - 240V
Ean
8714984925786
Frequency input voltage
50 - 60Hz
Outer box qty
50st
Overload protection
Yes
Housing
Plastic housing
Overtemperature protection
Yes
Model
Static
Control method
Trailing edge dimming
Output voltage
12 - 12V
Short-circuit protected
Yes
Output current
1000 - 4160mA
Ambient temperature
-20 - 50°C
Suitable for outdoor use
No
Driver lifetime
30000h
Suitable for DC-voltage (primary side)
No
DIN-rail mounting
No
Output power
12 - 50W
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Dimmable
Yes
Length
166mm
Emergency power supply system
None
Width
52mm
Control type
Constant voltage
Height
34mm
Warranty
5 years
Power consumption
50W
This 12V constant voltage LED driver is designed for compact lighting setups such as LED strips, cabinet lighting, cove lighting, or accent lighting in furniture. With a dimmable output of 12 to 50 watts, it is well-suited for residential and commercial interior projects.
The driver supports both leading edge and trailing edge dimming and works seamlessly with most standard wall dimmers. The dimming function is stable and flicker-free from 1 to 100%, making it ideal for ambient lighting applications.
Its compact plastic housing is flame-retardant (class II), IP20-rated, and features thermal protection. Suitable for dry indoor spaces such as shops, kitchens, offices, counters, and interiors.
With an efficiency of ≥84% and a power factor of ≥0.95 at full load, this driver is a highly energy-efficient choice. It includes built-in protection against overload, short circuit, and no load, and will automatically restart after fault recovery.
More information
More information about this product can be found in the product specifications. For accessories, available options and related items, see related products. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-power-supply-12v-50w-trailing-edge-indoor-215-015.pdf
Characteristics sheet
215-015_technical_datasheet_extended.pdf
