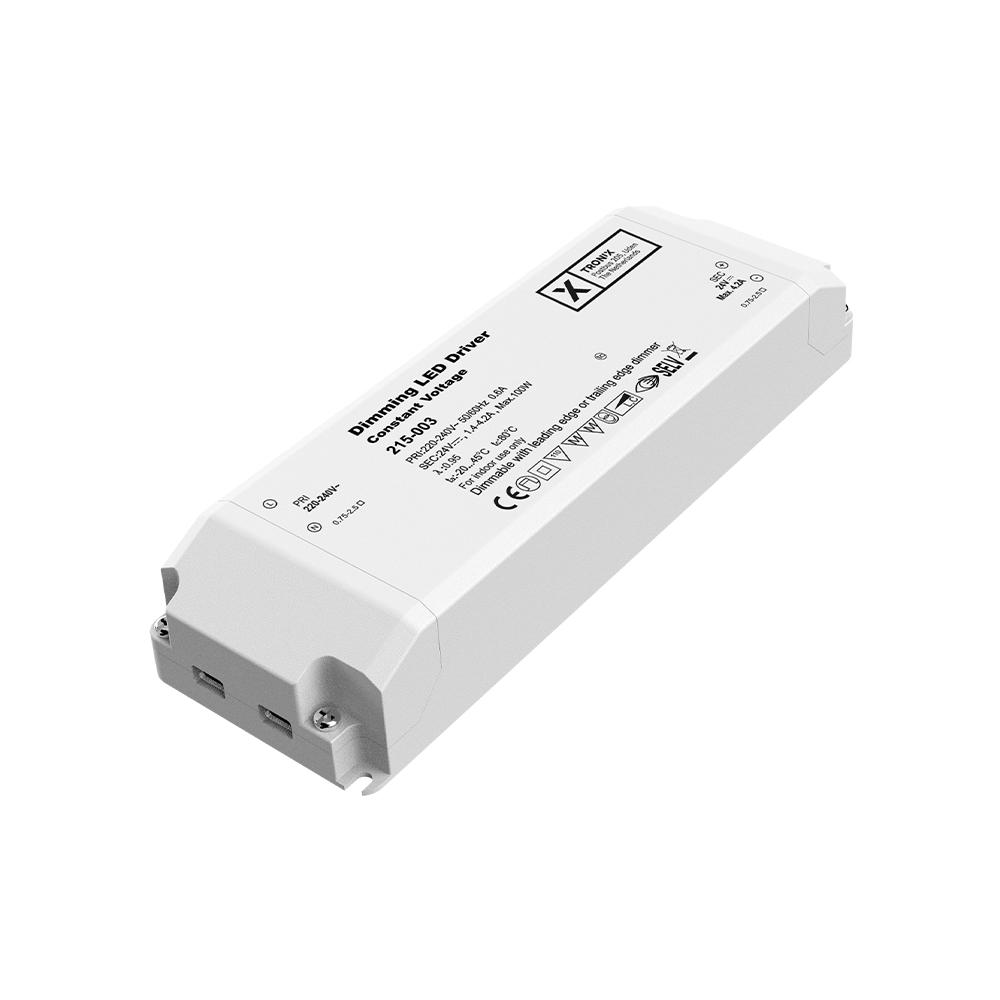

Power supply | 24V | 100W | trailing edge | indoor
215-003Powerful 24V LED driver (34–100 W) with high efficiency (≥91%) and both leading edge and trailing edge dimming. Ideal for LED strips, cove lighting and furniture applications.
Key product features
- Suitable for constant voltage: Yes
- Output voltage (V): 24
- Output power (W): 34 – 100
- Dimmig phase cut-off (trailing edge): Yes
- Dimmig phase cut-on (leading edge): Yes
- Input voltage (V): 220 – 240
- Control type: Constant voltage
Product Name
Power supply | 24V | 100W | trailing edge | indoor
Ean
8714984920354
Outer box qty
50st
Housing
Plastic housing
Model
Static
Output voltage
24 - 24V
Output current
1400 - 4200mA
Suitable for outdoor use
No
Suitable for DC-voltage (primary side)
No
Output power
34 - 100W
Degree of protection (IP)
IP20

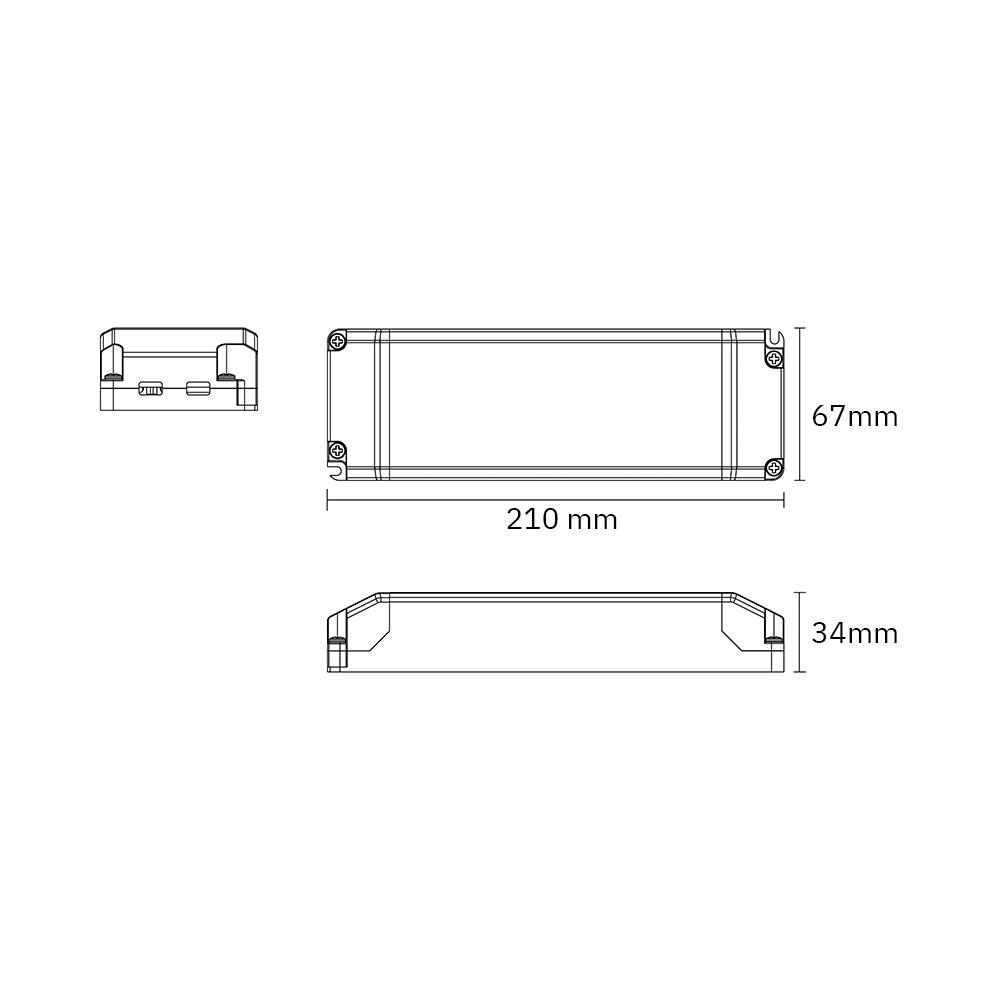

Length
210mm
Width
67mm
Height
34mm
Power consumption
100W
Input voltage
220 - 240V
Frequency input voltage
50 - 60Hz
PWM modulation
No
Overload protection
Yes
Overtemperature protection
Yes
Control method
Trailing edge dimming
Short-circuit protected
Yes
Ambient temperature
-20 - 50°C
Driver lifetime
30000h
DIN-rail mounting
No
Brand
Tronix Lighting
Dimmable
Yes
Emergency power supply system
None
Control type
Constant voltage
Warranty
5 years
Product Name
Power supply | 24V | 100W | trailing edge | indoor
Input voltage
220 - 240V
Ean
8714984920354
Frequency input voltage
50 - 60Hz
Outer box qty
50st
PWM modulation
No
Housing
Plastic housing
Overload protection
Yes
Model
Static
Overtemperature protection
Yes
Output voltage
24 - 24V
Control method
Trailing edge dimming
Output current
1400 - 4200mA
Short-circuit protected
Yes
Suitable for outdoor use
No
Ambient temperature
-20 - 50°C
Suitable for DC-voltage (primary side)
No
Driver lifetime
30000h
Output power
34 - 100W
DIN-rail mounting
No
Degree of protection (IP)
IP20
Brand
Tronix Lighting
Length
210mm
Dimmable
Yes
Width
67mm
Emergency power supply system
None
Height
34mm
Control type
Constant voltage
Power consumption
100W
Warranty
5 years
This 24V constant voltage driver is designed for installations where silent, smooth dimming and long-term reliability are key. It supports both leading edge and trailing edge dimmers and offers seamless dimming from 1 to 100%.
Thanks to its high efficiency (≥91%) and power factor ≥0.95 at full load, this driver ensures minimal energy loss. The compact plastic housing makes it suitable for installation in ceilings, coves, furniture or other confined spaces.
Low standby consumption (<1 W) and suitability for mounting on normally flammable surfaces (such as wood) increase its flexibility. Integrated protection against overload, short circuit and no-load ensures reliable operation. Auto-restart after fault recovery.
With a power range of 34 to 100 W, this driver is suitable for longer LED strips, indirect lighting and LED modules in furniture, counters and display cases. Typical applications include hospitality, retail, kitchens, office spaces, interior design and presentation displays – wherever dimmable 24V LED lighting is required.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-power-supply-24v-100w-trailing-edge-indoor-215-003.pdf
Characteristics sheet
215-003_technical_datasheet_extended.pdf
