Power supply | 24V | 25W | trailing edge | indoor

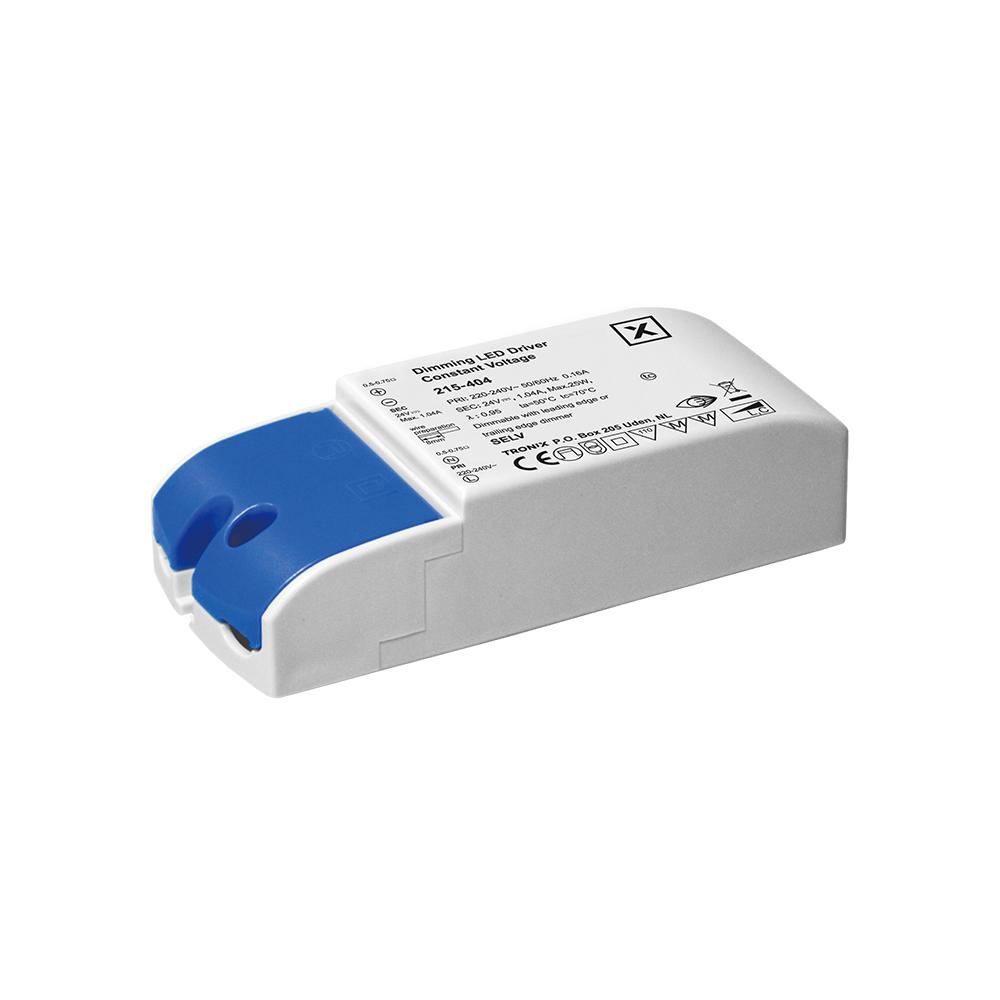

215-404This sturdy LED driver has a maximum output of 25W and 24V and is extremely well suited for use with various light sources. The technologies present provide a smooth, stepless dimming experience from 1 - 100%.
Features
- Dimmable on phase cut-off and cut-on
- Output power 100 ~ 1040 mA

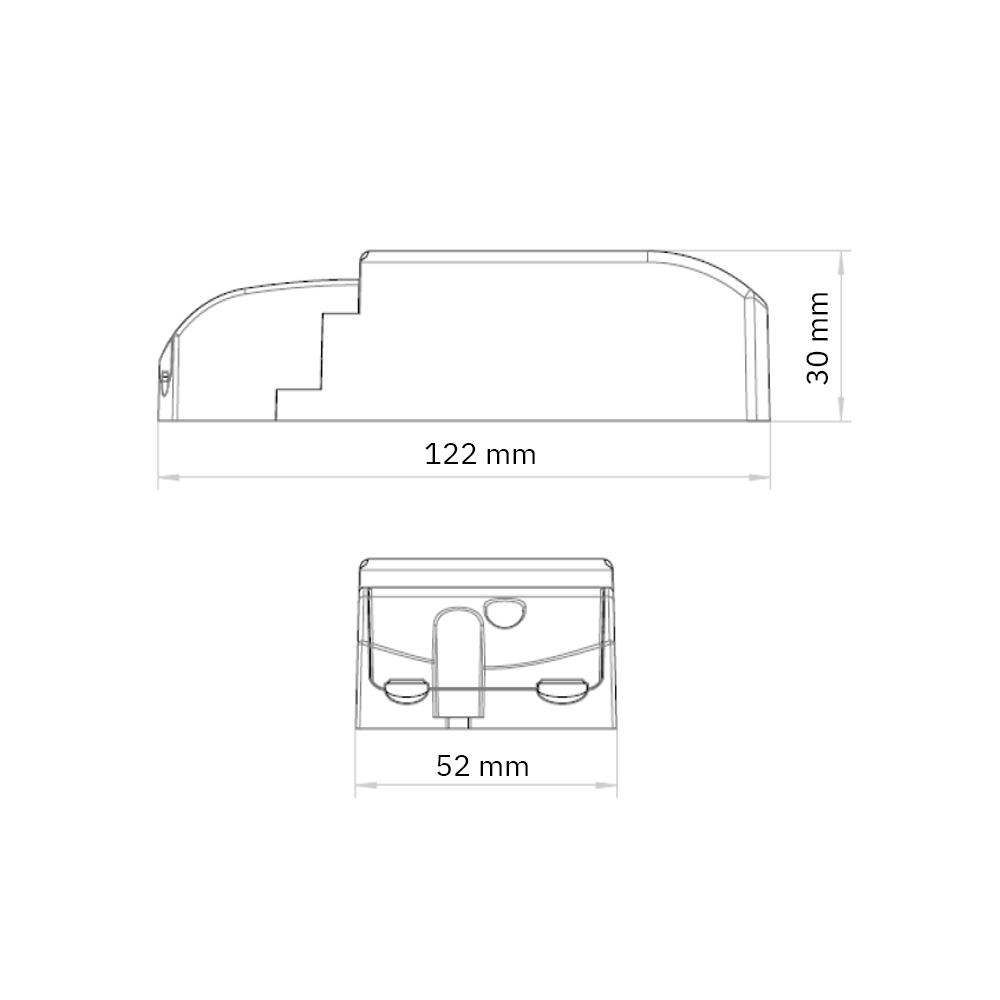

- Compact size 122*52*30 mm
Product Name
Power supply | 24V | 25W | trailing edge | indoor
Ean
8714984920255
Outer box qty
100st
Housing
Plastic housing
Model
Static
Output voltage
24 - 24V
Output current
100 - 1040mA
Suitable for outdoor use
No
Suitable for DC-voltage (primary side)
No
Output power
0 - 25W
Degree of protection (IP)
IP20
Length
122mm
Width
52mm
Height
30mm
Power consumption
25W
Input voltage
220 - 240V
Frequency input voltage
50 - 60Hz
Overload protection
Yes
Overtemperature protection
Yes
Control method
Trailing edge dimming
Short-circuit protected
Yes
Ambient temperature
-20 - 50°C
Driver lifetime
30000h
DIN-rail mounting
No
Brand
Tronix Lighting
Dimmable
Yes
Emergency power supply system
None
Control type
Constant voltage
Warranty
5 years
Product Name
Power supply | 24V | 25W | trailing edge | indoor
Input voltage
220 - 240V
Ean
8714984920255
Frequency input voltage
50 - 60Hz
Outer box qty
100st
Overload protection
Yes
Housing
Plastic housing
Overtemperature protection
Yes
Model
Static
Control method
Trailing edge dimming
Output voltage
24 - 24V
Short-circuit protected
Yes
Output current
100 - 1040mA
Ambient temperature
-20 - 50°C
Suitable for outdoor use
No
Driver lifetime
30000h
Suitable for DC-voltage (primary side)
No
DIN-rail mounting
No
Output power
0 - 25W
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Dimmable
Yes
Length
122mm
Emergency power supply system
None
Width
52mm
Control type
Constant voltage
Height
30mm
Warranty
5 years
Power consumption
25W
This sturdy LED driver has a maximum output of 25W and 24V and is extremely well suited for use with various light sources. The technologies present provide a smooth, stepless dimming experience from 1 - 100%.
Features
Dimmable on phase cut-off and cut-on
Output power 100 ~ 1040 mA
Compact size 122*52*30 mm
Datasheet
Datasheet-power-supply-24v-25w-trailing-edge-indoor-215-404.pdf
Characteristics sheet
215-404_technical_datasheet_extended.pdf
