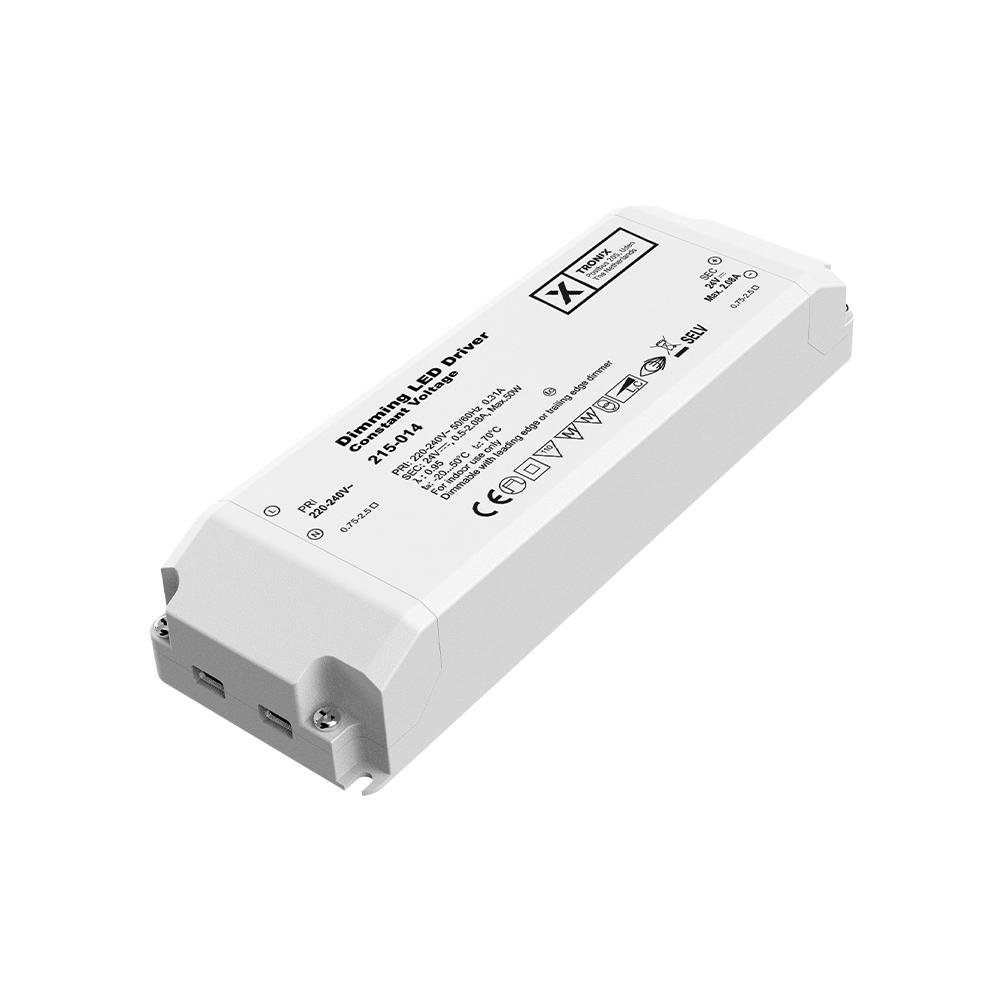

Power supply | 24V | 50W | trailing edge | indoor
215-014Efficient 24V LED driver up to 50 W, compatible with leading edge and trailing edge dimmers. Ideal for smaller LED installations in dry indoor environments.
Key product features
- Suitable for constant voltage: Yes
- Output voltage (V): 24
- Output power (W): 50
- Dimmig phase cut-off (trailing edge): Yes
- Dimmig phase cut-on (leading edge): Yes
- Input voltage (V): 220 – 240
- Control type: Constant voltage
Product Name
Power supply | 24V | 50W | trailing edge | indoor
Ean
8714984924130
Outer box qty
50st
Housing
Plastic housing
Model
Static
Output voltage
24 - 24V
Output current
500 - 2080mA
Suitable for outdoor use
No
Suitable for DC-voltage (primary side)
No
Output power
12 - 50W
Degree of protection (IP)
IP20

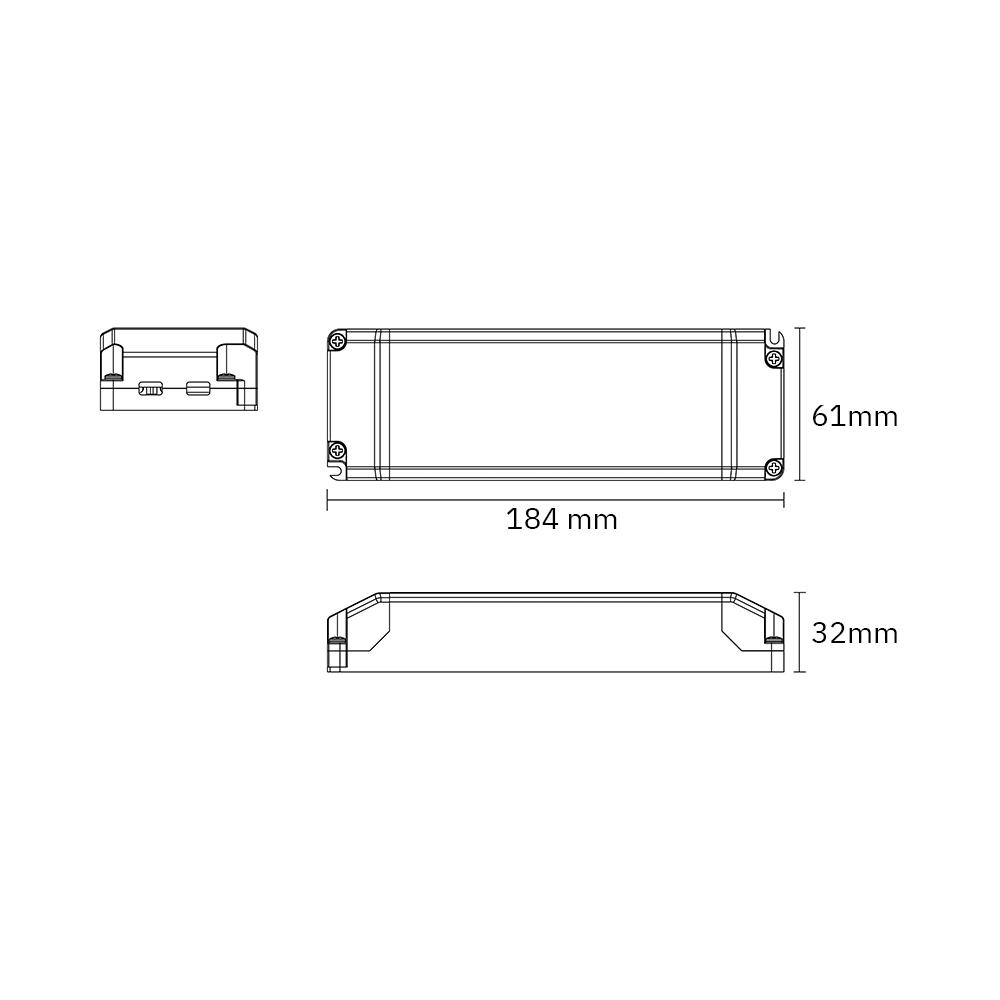

Length
184mm
Width
61mm
Height
32mm
Power consumption
50W
Input voltage
220 - 240V
Frequency input voltage
50 - 60Hz
Overload protection
Yes
Overtemperature protection
Yes
Control method
Trailing edge dimming
Short-circuit protected
Yes
Ambient temperature
-20 - 50°C
Driver lifetime
50000h
DIN-rail mounting
No
Brand
Tronix Lighting
Dimmable
Yes
Emergency power supply system
None
Control type
Constant voltage
Warranty
5 years
Product Name
Power supply | 24V | 50W | trailing edge | indoor
Input voltage
220 - 240V
Ean
8714984924130
Frequency input voltage
50 - 60Hz
Outer box qty
50st
Overload protection
Yes
Housing
Plastic housing
Overtemperature protection
Yes
Model
Static
Control method
Trailing edge dimming
Output voltage
24 - 24V
Short-circuit protected
Yes
Output current
500 - 2080mA
Ambient temperature
-20 - 50°C
Suitable for outdoor use
No
Driver lifetime
50000h
Suitable for DC-voltage (primary side)
No
DIN-rail mounting
No
Output power
12 - 50W
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Dimmable
Yes
Length
184mm
Emergency power supply system
None
Width
61mm
Control type
Constant voltage
Height
32mm
Warranty
5 years
Power consumption
50W
This 24V constant voltage LED driver is designed for compact lighting setups up to 50 W, such as short LED strips, showcases, cove lighting or decorative elements. The dimming function supports both leading edge and trailing edge dimmers, making it highly versatile for a wide range of indoor applications.
The stable 24V output ensures reliable operation of constant voltage LED strips and modules. The driver provides an output current of 2.08 A, operates at an efficiency of ≥86% and offers a power factor of ≥0.95 for optimised energy performance.
It supports smooth, flicker-free dimming from 1 to 100%. Built-in protections against overload, short-circuit and no-load are included, with automatic recovery after fault resolution.
The compact plastic housing features thermal protection and is IP20-rated. Suitable for dry indoor spaces such as retail, offices, kitchens, showcases and interior lighting. With a lifetime of 50,000 hours, this driver is a durable solution for long-term applications.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-power-supply-24v-50w-trailing-edge-indoor-215-014.pdf
Characteristics sheet
215-014_technical_datasheet_extended.pdf
