Remote wall controller | for Tuneable White
214-172Wireless wall-mounted RF-controller for tunable white LED lighting. Features dedicated buttons for on/off, dimming and colour temperature adjustment. Operates via a stable RF signal and fits standard wall switch frames.
Key product features
- Type of control: RF
- Number of colour channels: 2
Product Name
Remote wall controller | for Tuneable White
Ean
8714984926172
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
No
Output voltage
0 - 0V
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Length
86mm
Width
86mm
Height
14mm
Number of zones
1
Number of colour channels
2, Tuneable White
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Input voltage
3 - 3V
Control method
RF
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Warranty
5 years
Product Name
Remote wall controller | for Tuneable White
Height
14mm
Ean
8714984926172
Number of zones
1
Outer box qty
1st
Number of colour channels
2, Tuneable White
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
No
Programmable
No
Input voltage
3 - 3V
Output voltage
0 - 0V
Control method
RF
Suitable for outdoor use
No
DIN-rail mounting
No
Degree of protection (IP)
IP20
Brand
Tronix Lighting
Length
86mm
Compatible with Casambi
No
Width
86mm
Warranty
5 years

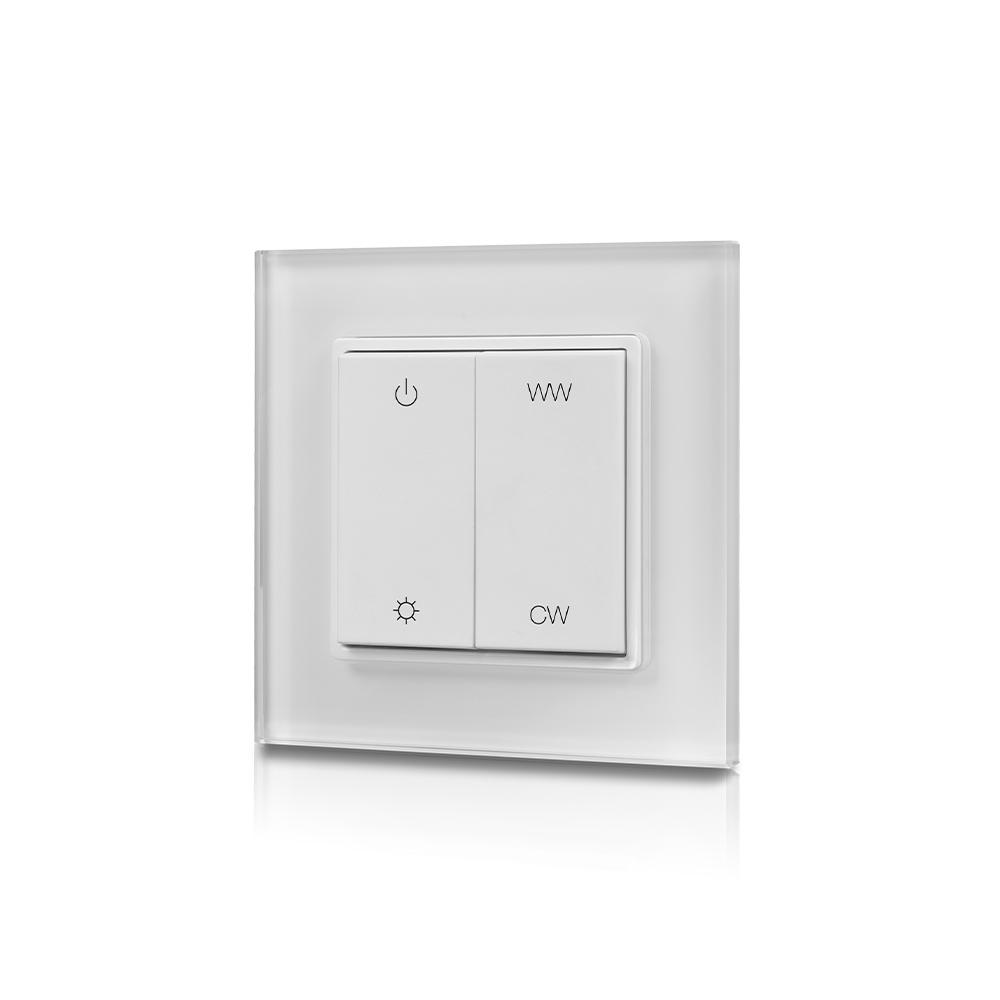

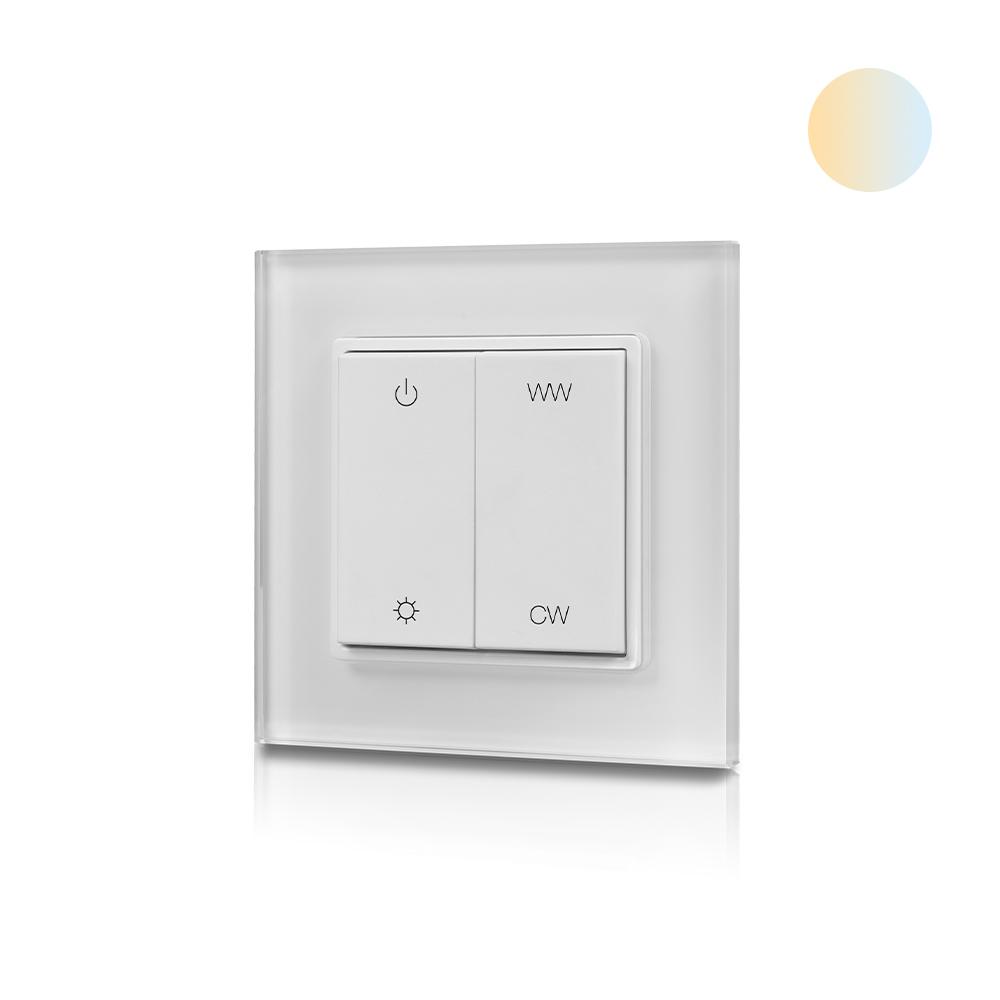

Wall-mounted controller for wireless control of tunable white LED lighting in constant voltage systems. The unit features two buttons: the left button switches the lighting on or off and enables dimming (press and hold), while the right button adjusts the colour temperature from warm white to cool white.
The controller is powered by a CR2430 coin cell battery (3V) and communicates via a stable RF signal. A single RF receiver can be paired with up to 8 transmitters. This controller supports one zone and is compatible with all RF receivers, also 230V.
Measuring 86 × 86 × 14 mm, the controller fits standard wall frames from brands such as GIRA, JUNG, MERTEN and BERKER. It can be mounted using screws or the included 3M adhesive strip. IP20 rated, suitable for dry indoor environments.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 (0)0413 330 380.
