RF | RGB(W) or TW controller | 12V ~ 36V | 4*5A
214-1434-channel RF controller for RGBW or tunable white LED lighting. Operates via RF remote control; external power supply required.
Key product features
- Type of control: RF
- Number of colour channels: 4
- Output voltage (V): 12–36
- Input voltage (V): 12–36
- Max. output current (A): 5
- Control type: Constant voltage
Product Name
RF | RGB(W) or TW controller | 12V ~ 36V | 4*5A
Ean
8714984914636
Outer box qty
100st
Model
Dynamic
Housing
Plastic housing
Programmable
Yes
Max. output current
5A
Output voltage
12 - 36V
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Length
178mm
Width
46mm
Height
22mm
Number of zones
1
Number of colour channels
4, RGBW
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Input voltage
12 - 36V
Control method
RF
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Control type
Constant voltage
Warranty
5 years
Product Name
RF | RGB(W) or TW controller | 12V ~ 36V | 4*5A
Height
22mm
Ean
8714984914636
Number of zones
1
Outer box qty
100st
Number of colour channels
4, RGBW
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
No
Programmable
Yes
Input voltage
12 - 36V
Max. output current
5A
Control method
RF
Output voltage
12 - 36V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Compatible with Casambi
No
Length
178mm
Control type
Constant voltage
Width
46mm
Warranty
5 years

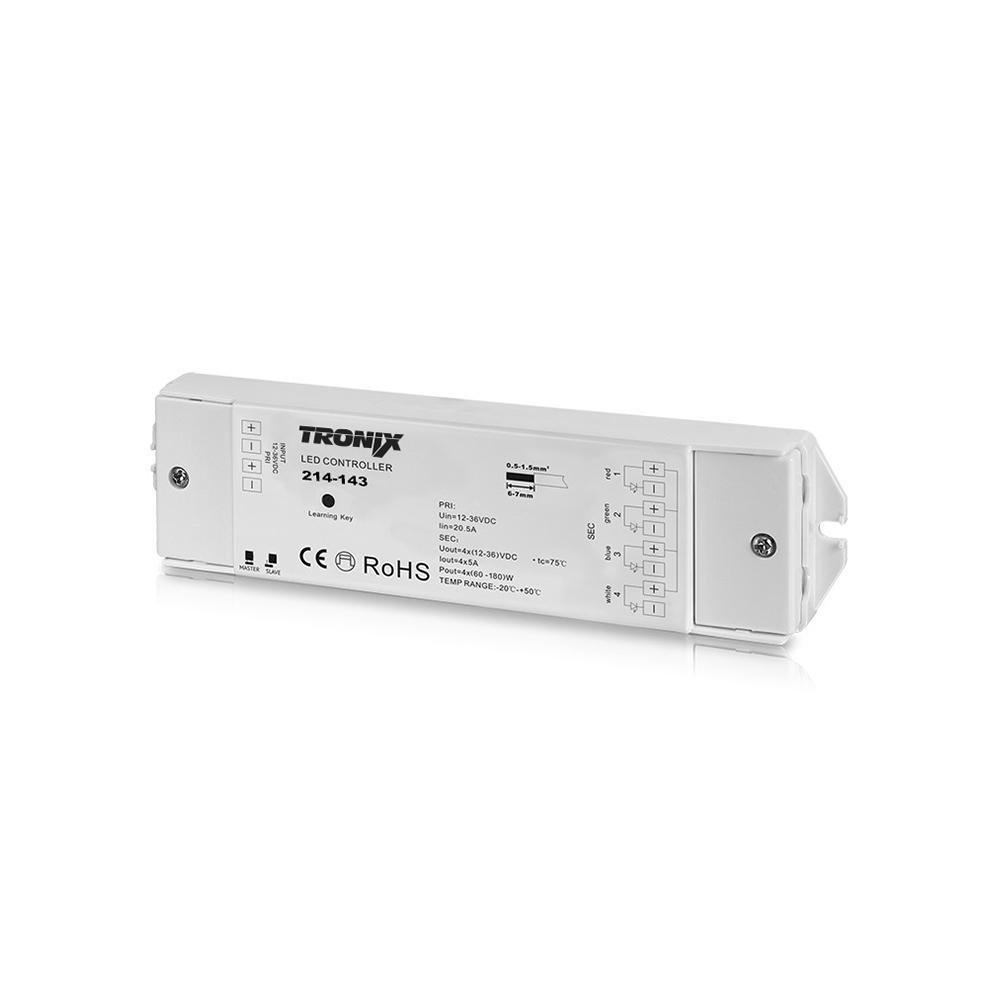

4-channel RF controller for constant voltage LED lighting, suitable for RGBW and tunable white (WW/CW) configurations. Operates on 12–36V DC and delivers up to 5 A per channel, with a total output of 720 W at 36V. Requires an external power supply matched to the application.

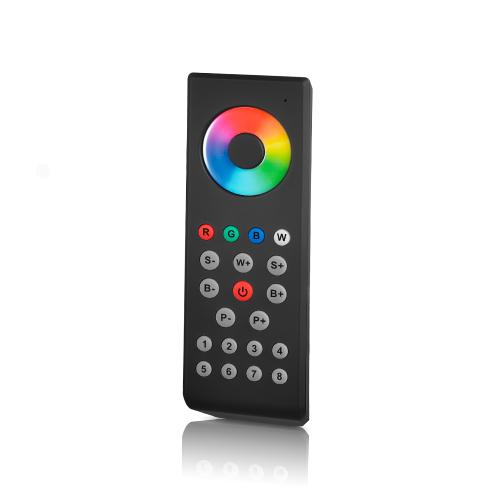

Wireless control via compatible RF remote. Simple pairing using the integrated learning key. Supports up to 8 remotes across one or multiple zones – suitable for centralised or segmented lighting setups.
Multiple units can be synchronised using a MASTER/SLAVE setup, ensuring uniform colour effects across parallel installations.
The 4 PWM outputs can be used for RGBW or CCT applications – from dynamic accent lighting to functional lighting with adjustable colour temperature.
With a compact size (178 × 46 × 22 mm) and IP20 rating, ideal for dry indoor spaces such as shops, offices, residential settings and hospitality environments.
More information
More information about this product can be found in the product specifications. For accessories, available options and related items, see related products. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
