RF wall controller || black

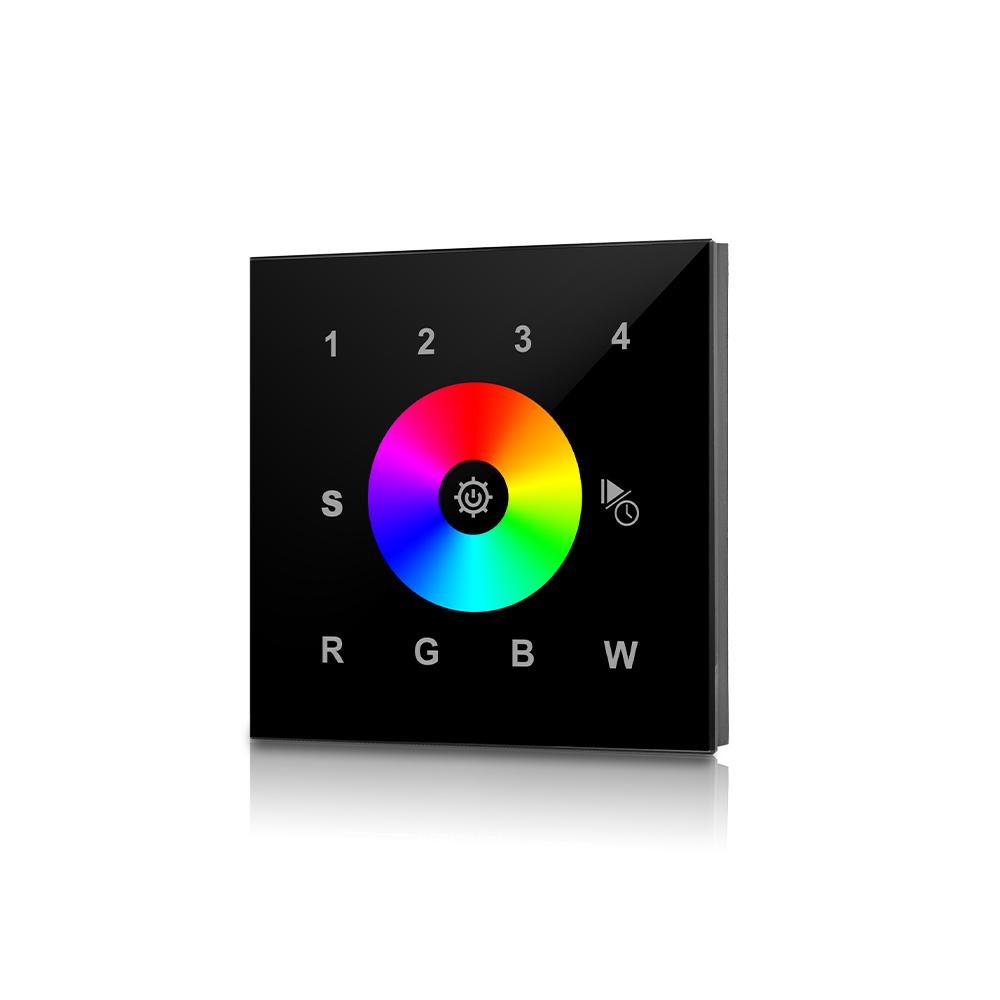

214-168Wall-mounted controller with integrated colour wheel for RGBW LED lighting across 4 zones. Supports colour selection, dimming and 10 programmes. Save and recall scenes. Available in black or white glass finish.
Key product features
- Type of control: RF
- Number of colour channels: 4
- Input voltage (V): 100 - 240
- Number of zones: 4
Product Name
RF wall controller || black
Ean
8714984923164
Outer box qty
24st
Model
Dynamic
Housing
Plastic housing
Programmable
Yes
Output voltage
0 - 0V
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Length
86mm
Width
86mm
Height
29mm
Number of zones
4
Number of colour channels
4, RGBW
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Input voltage
100 - 240V
Control method
RF
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Warranty
5 years
Product Name
RF wall controller || black
Height
29mm
Ean
8714984923164
Number of zones
4
Outer box qty
24st
Number of colour channels
4, RGBW
Model
Dynamic
Suitable for surface mounting
No
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
Yes
Input voltage
100 - 240V
Output voltage
0 - 0V
Control method
RF
Suitable for outdoor use
No
DIN-rail mounting
No
Degree of protection (IP)
IP20
Brand
Tronix Lighting
Length
86mm
Compatible with Casambi
No
Width
86mm
Warranty
5 years
This wall-mounted RF remote enables wireless control of RGBW LED lighting across up to 4 zones. The sensitive colour wheel allows quick and intuitive colour selection. Each zone can be controlled individually or simultaneously, with full control over colour, brightness and lighting effects.
The controller is available in a black or white glass finish and is powered directly from the mains (100–240V AC). Individual R/G/B/W buttons allow manual switching or dimming per colour channel via short or long press. Additionally, 8 built-in dynamic programmes (such as fades, flashes and transitions) can be activated separately for each zone.
Using the S button, up to 4 favourite scenes can be saved and recalled. The controller communicates via a stable RF signal with universal RF receivers (12–36V constant voltage). One receiver can pair with up to 8 transmitters.
The system is fully wireless and requires no direct wiring to the lighting. With its compact dimensions (86 × 86 × 29.1 mm), the controller is suitable for use in dry indoor environments such as residential, office and hospitality settings. IP20 rated.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
