RF | controller | SC | 100-240V trailing edge | DIN

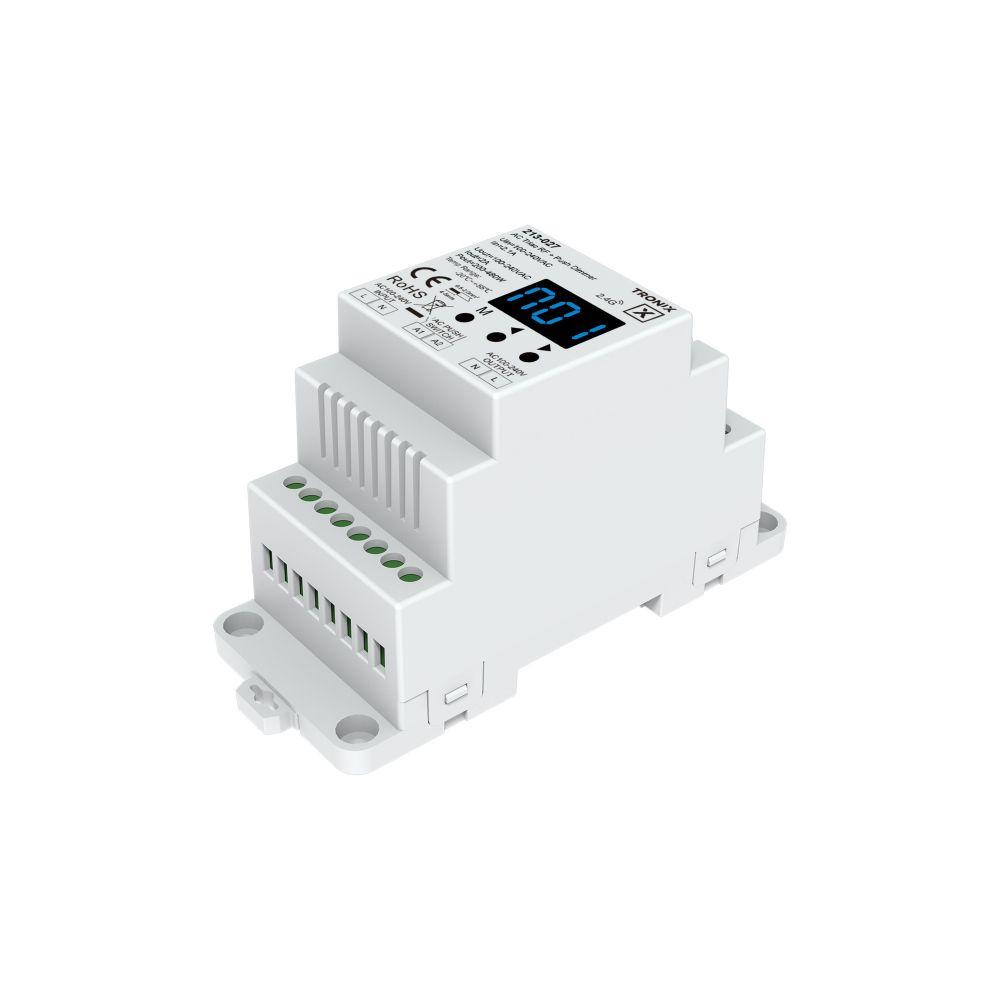

213-027This AC trailing edge RF + push dimmer for DIN rail mounting provides flexible and reliable control of 230V light sources in professional installations.
Key product features
- Control method: RF
- DIN rail mounting: Yes
- Input voltage (V): 100 – 240
- Output voltage (V): 100 – 240
- Max. output current (A): 2
Product Name
RF | controller | SC | 100-240V trailing edge | DIN
Ean
8714984956261
Outer box qty
1st
Colour
White
Connection type
Screwed terminal
Operating method
Radio frequency (RF)
Control method
RF
Mounting method
Built-in
Material
Plastic
Material quality
Thermoplastic
Applicable with presence indicator
Yes
Suitable for degree of protection (IP)
IP20
Applicable with movement sensor
Yes
Applicable with button
Yes
Applicable with transmission button
Yes
Applicable with time switch/timer
Yes
Nominal voltage
100 - 240V
Control voltage
100 - 240V
Min. brightness controllable
Yes
Max. switching power LED
300W
Light value memory
Yes
Halogen free
Yes
RAL-number (similar)
9016
Core cross section
0.75 - 2.5mm²
Warranty
5 years
Product Name
RF | controller | SC | 100-240V trailing edge | DIN
Applicable with button
Yes
Ean
8714984956261
Applicable with transmission button
Yes
Outer box qty
1st
Applicable with time switch/timer
Yes
Colour
White
Nominal voltage
100 - 240V
Connection type
Screwed terminal
Control voltage
100 - 240V
Operating method
Radio frequency (RF)
Min. brightness controllable
Yes
Control method
RF
Max. switching power LED
300W
Mounting method
Built-in
Light value memory
Yes
Material
Plastic
Halogen free
Yes
Material quality
Thermoplastic
RAL-number (similar)
9016
Applicable with presence indicator
Yes
Core cross section
0.75 - 2.5mm²
Suitable for degree of protection (IP)
IP20
Warranty
5 years
Applicable with movement sensor
Yes
This AC trailing edge dimmer combines RF 2.4 GHz control with a conventional AC push-dim input for switching and dimming single-colour dimmable LED lamps, trailing edge-dimmable LED drivers, incandescent lamps and halogen lighting on mains voltage.
With 1 output channel and a dimming range of 0–100% in 100 steps, the dimmer ensures smooth and flicker-free light control. The integrated digital display and control buttons allow direct adjustment of brightness and system settings. The menu selects leading edge or trailing edge dimming for optimal compatibility with different load types. Minimum brightness is adjustable between 1–40%, and the fade-in and fade-out time between 0–20 seconds for controlled light behaviour.
The dimmer supports RF remote controls for single-zone and multi-zone operation and synchronises multiple dimmers via one push button without additional control wiring. Local control via a momentary push button provides on/off switching and smooth dimming with memory function, also after power failure.
Thermal protection prevents overheating and enables automatic recovery. The unit operates on 100–240 V AC, is suitable for DIN rail mounting and designed for professional indoor use.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, please contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-rf-controller-sc-100-240v-trailing-edge-din-213-027.pdf
Characteristics sheet
213-027_Manual.pdf
