RF | driver | TW | 25W | 250~700mA | max. 54V | NFC

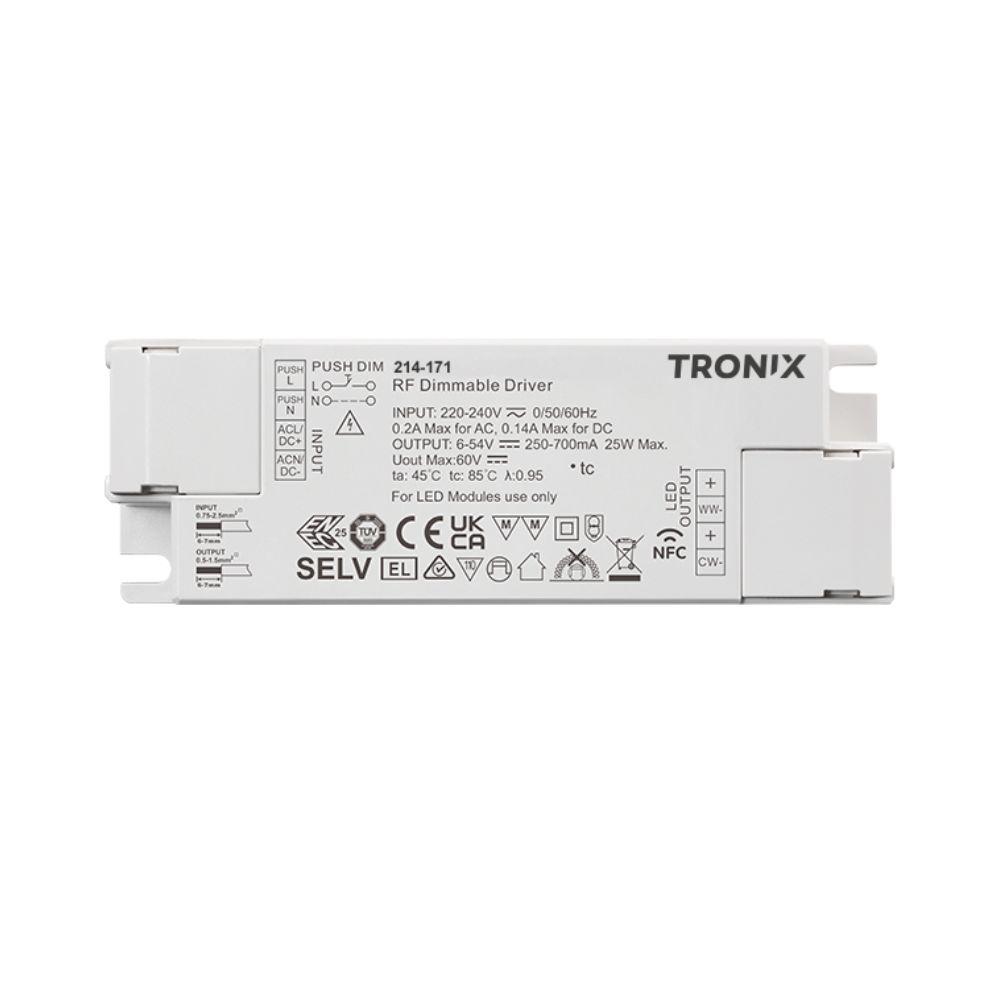

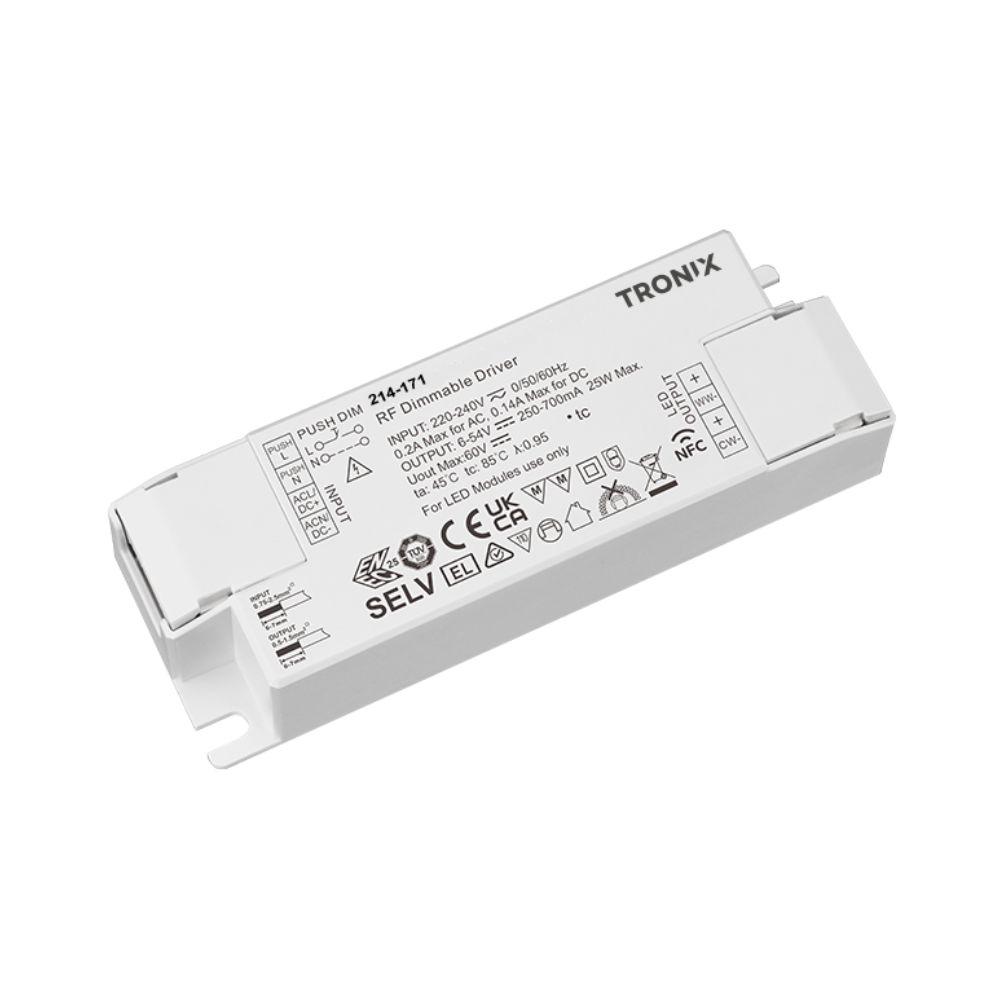

214-171Compact, professionally configurable LED driver for tunable white applications – NFC programmable and suitable for downlights, LED panels and other constant current luminaires.
Key product features
- Suitable for constant current: Yes
- Output voltage (V): 6 – 54
- Output current (mA): 250 - 700
- Output power (W): 1.5 - 25
- Dimming RF: Yes
- Dimming Touch and Dim: Yes
Product Name
RF | driver | TW | 25W | 250~700mA | max. 54V | NFC
Ean
8714984925014
Outer box qty
50st
Housing
Encapsulated
Model
Static
Output voltage
6 - 54V
Output current
250 - 700mA
Suitable for outdoor use
No
Suitable for DC-voltage (primary side)
Yes
Output power
1.5 - 25W
Degree of protection (IP)
IP20

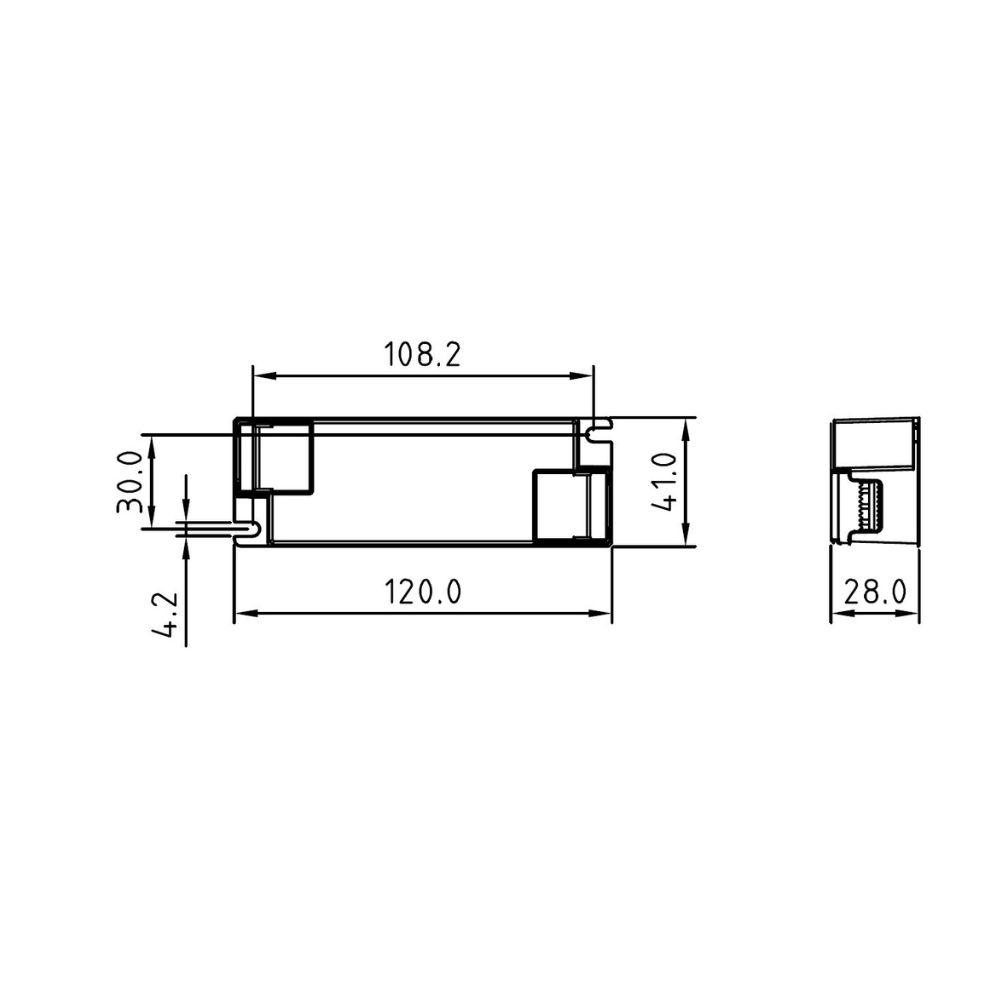

Length
120mm
Width
41mm
Height
28mm
Power consumption
25W
Input voltage
196 - 264V
Frequency input voltage
0 - 60Hz
PWM modulation
No
Overload protection
Yes
Overtemperature protection
Yes
Control method
RF
Short-circuit protected
Yes
Ambient temperature
-25 - 45°C
Driver lifetime
100000h
DIN-rail mounting
No
Brand
Tronix Lighting
Dimmable
Yes
Emergency power supply system
Central (central battery)
Control type
Constant current
Warranty
5 years
Product Name
RF | driver | TW | 25W | 250~700mA | max. 54V | NFC
Input voltage
196 - 264V
Ean
8714984925014
Frequency input voltage
0 - 60Hz
Outer box qty
50st
PWM modulation
No
Housing
Encapsulated
Overload protection
Yes
Model
Static
Overtemperature protection
Yes
Output voltage
6 - 54V
Control method
RF
Output current
250 - 700mA
Short-circuit protected
Yes
Suitable for outdoor use
No
Ambient temperature
-25 - 45°C
Suitable for DC-voltage (primary side)
Yes
Driver lifetime
100000h
Output power
1.5 - 25W
DIN-rail mounting
No
Degree of protection (IP)
IP20
Brand
Tronix Lighting
Length
120mm
Dimmable
Yes
Width
41mm
Emergency power supply system
Central (central battery)
Height
28mm
Control type
Constant current
Power consumption
25W
Warranty
5 years
This powerful constant current LED driver is ideal for tunable white applications requiring precise control and flexible integration. It delivers 250–700 mA at 6–54 V DC with a maximum output of 25 watts – perfect for downlights, panels and other compact luminaires.
The output current can be configured wirelessly via NFC using the SR NFC Tool app (Android/iOS), enabling fast on-site setup. Featuring a combination of amplitude dimming and CCR technology, the driver ensures flicker-free performance at low levels and smooth transitions at higher brightness.
Ideal for use in retail, hospitality, office and residential lighting. The driver is compatible with various wireless remotes (see related products), allowing users to intuitively adjust brightness and colour temperature.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
