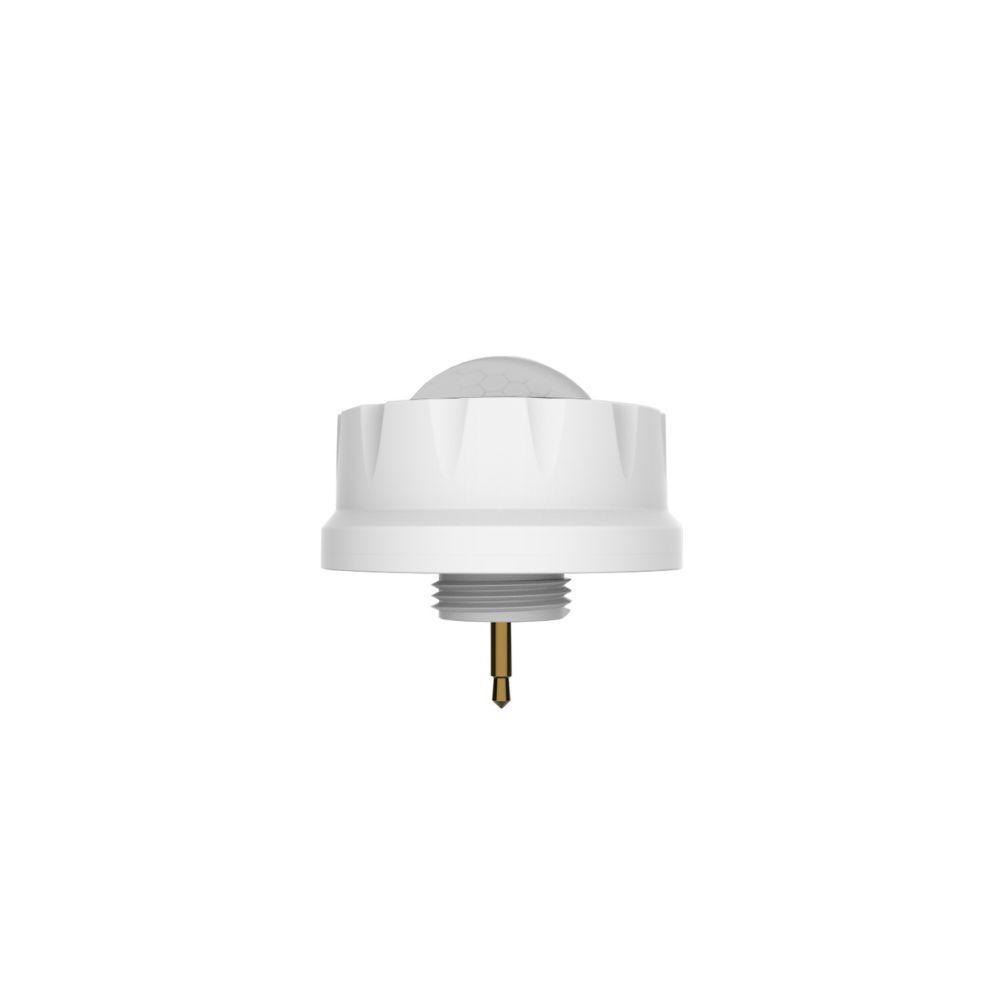

Sensor for UFO high bay 950-123
950-129PIR presence sensor for UFO High Bay 950-123. Plug & Play. This PIR enables 0–10V dimming and combines presence detection with daylight sensing. Suitable for mounting heights up to 12 m—ideal for energy savings in high-ceiling areas.
Key product features
- Mounting height (m): 12
- Diameter reach on floor (m): 14
- Response value sensitivity adjustable: Yes
- Response value luminosity adjustable: Yes
Product Name
Sensor for UFO high bay 950-123
Ean
8714984951846
Outer box qty
120st
Colour
White
Material
Plastic
Sensor connect
No
Material quality
Thermoplastic
Mounting method
Integrable
Mounting height
12m
Suitable for degree of protection (IP)
IP20
Suitable for wireless transmission
No
Constant light control
No
Networkable
No
Max. reach sideways
7m
Max. reach frontally
7m
Diameter reach on floor
14m
Detection angle horizontal
0 - 120°
Min. switch-on time
5s
Max. duty cycle
30min
With presence detector
No
With movement sensor
Yes
With light sensor
Yes
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
Teach-function for response value luminosity
No
Dim function with dimmer basic element
Yes
Switch-off delay self-learning
Yes
Operation mode switch
No
Staircase light controller
No
Halogen free
Yes
RAL-number (similar)
9016
Warranty
5 years
Product Name
Sensor for UFO high bay 950-123
Detection angle horizontal
0 - 120°
Ean
8714984951846
Min. switch-on time
5s
Outer box qty
120st
Max. duty cycle
30min
Colour
White
With presence detector
No
Material
Plastic
With movement sensor
Yes
Sensor connect
No
With light sensor
Yes
Material quality
Thermoplastic
Response value sensitivity adjustable
Yes
Mounting method
Integrable
Response value luminosity adjustable
Yes
Mounting height
12m
Teach-function for response value luminosity
No
Suitable for degree of protection (IP)
IP20
Dim function with dimmer basic element
Yes
Suitable for wireless transmission
No
Switch-off delay self-learning
Yes
Constant light control
No
Operation mode switch
No
Networkable
No
Staircase light controller
No
Max. reach sideways
7m
Halogen free
Yes
Max. reach frontally
7m
RAL-number (similar)
9016
Diameter reach on floor
14m
Warranty
5 years
The PIR sensor operates on 12 V DC and delivers a 0–10V control signal (DIM+/DIM–) to the driver. The detection area is adjustable and optimised for ceiling heights up to 12 m, with an effective radius of approximately 3–7 m. In addition to motion detection, the sensor also includes daylight sensing with adjustable thresholds (disabled, 2, 10, 30, 50, 80 or 120 lux).
The sensor supports multiple control modes, including on/off, hold-time, dim-to-standby, and infinite standby. Settings such as detection range, hold time, and dimming level are easily adjustable: detection area 25/50/75/100%, hold time 5 s–30 min, and standby level 10–50%. For quick and convenient setup, an LCD remote control is available (sold separately).
This sensor is intended for indoor use (IP20) and operates reliably in ambient temperatures from −20 to +60 °C.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-sensor-for-ufo-high-bay-950-123-950-129.pdf
Characteristics sheet
950-129_technical_datasheet_extended.pdf
