UFO high bay | 100/120/150W | 150 Lm/W | 3-CCT | 75/95/105°
950-123UFO high bay with selectable colour temperature, wattage, and beam angle. Efficient, durable, and versatile. Ideal for logistics, industrial, and commercial environments.
Key product features
- Degree of protection (IP): IP65
- Colour temperature (K): 3000 – 4000 – 5000
- Dimmable 0–10V: Yes
- Max. system power (W): 150
- Colour of light adjustable: step-based
- Beam angle adjustable: step-based
- Luminous flux adjustable: step-based
Product Name
UFO high bay | 100/120/150W | 150 Lm/W | 3-CCT | 75/95/105°
Ean
8714984951822
Outer box qty
1st
Dimmable
Yes
Dimming 0-10 V
Yes
Lamp type
LED not exchangeable
Housing colour
Black
Housing material
Aluminium
Connection type
Other

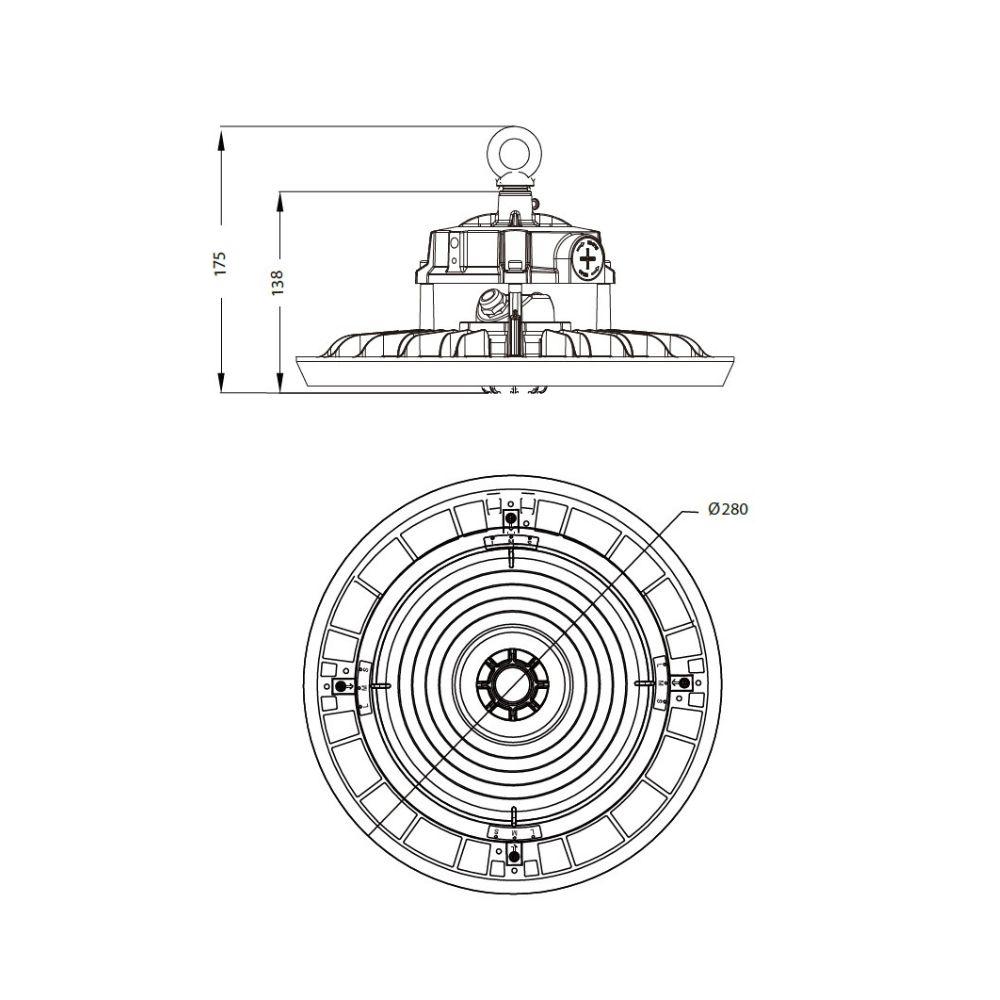

Length
280mm
Width
280mm
Height/depth
175mm
Outer diameter
280mm
With movement sensor
No
With presence detector
No
With light sensor
No
Colour of light
White
Colour consistency (McAdam ellipse)
SDCM3
Colour temperature
3000 - 4000 - 5000K
Colour rendering index CRI
80-89
Colour of light adjustable
Positions
Luminous flux adjustable
Positions
Beam angle
41-80° - Wide beam
Beam angle adjustable
Positions
Voltage type
AC
Nominal current
625 - 625mA
Nominal voltage
231 - 231V
Number of poles
3
Light distributor
Focal lens
Light distribution
Symmetric
Connectable conductor cross section
0.75 - 2.5mm²
Type of control gear
LED operating device current-controlled
Exchangeable control gear
No
With control gear
Yes
Degree of protection (IP)
IP65
Impact strength
IK08
Rated lifetime L70/B50 at 25 °C
50000h
Max. system power
150W
Rated luminous flux according to IEC 62722-2- 1
14500 - 21750lm
Luminaire efficacy
145 - 145lm/W
Power factor
0.97
Type of wiring
Ending
Suitable for ceiling mounting
Yes
Suitable for suspended mounting
Yes
Reflector
None
Warranty
5 years
Product Name
UFO high bay | 100/120/150W | 150 Lm/W | 3-CCT | 75/95/105°
Beam angle adjustable
Positions
Ean
8714984951822
Voltage type
AC
Outer box qty
1st
Nominal current
625 - 625mA
Dimmable
Yes
Nominal voltage
231 - 231V
Dimming 0-10 V
Yes
Number of poles
3
Lamp type
LED not exchangeable
Light distributor
Focal lens
Housing colour
Black
Light distribution
Symmetric
Housing material
Aluminium
Connectable conductor cross section
0.75 - 2.5mm²
Connection type
Other
Type of control gear
LED operating device current-controlled
Length
280mm
Exchangeable control gear
No
Width
280mm
With control gear
Yes
Height/depth
175mm
Degree of protection (IP)
IP65
Outer diameter
280mm
Impact strength
IK08
With movement sensor
No
Rated lifetime L70/B50 at 25 °C
50000h
With presence detector
No
Max. system power
150W
With light sensor
No
Rated luminous flux according to IEC 62722-2- 1
14500 - 21750lm
Colour of light
White
Luminaire efficacy
145 - 145lm/W
Colour consistency (McAdam ellipse)
SDCM3
Power factor
0.97
Colour temperature
3000 - 4000 - 5000K
Type of wiring
Ending
Colour rendering index CRI
80-89
Suitable for ceiling mounting
Yes
Colour of light adjustable
Positions
Suitable for suspended mounting
Yes
Luminous flux adjustable
Positions
Reflector
None
Beam angle
41-80° - Wide beam
Warranty
5 years
This multifunctional high bay offers maximum flexibility in lighting design and application. Colour temperature (3000K, 4000K, or 5000K), wattage (100W, 120W, or 150W), and beam angle (75°, 95°, or 105°) can be individually configured via internal dip switches. A single fixture can therefore meet a wide range of lighting requirements – from high industrial halls to lower workspaces.
The efficient SMD LED technology delivers up to 150 lm/W with a colour rendering index of CRI >80. With IP65 protection and IK08 impact resistance, the fixture is resistant to dust, moisture, and mechanical stress – making it an excellent choice for demanding environments.

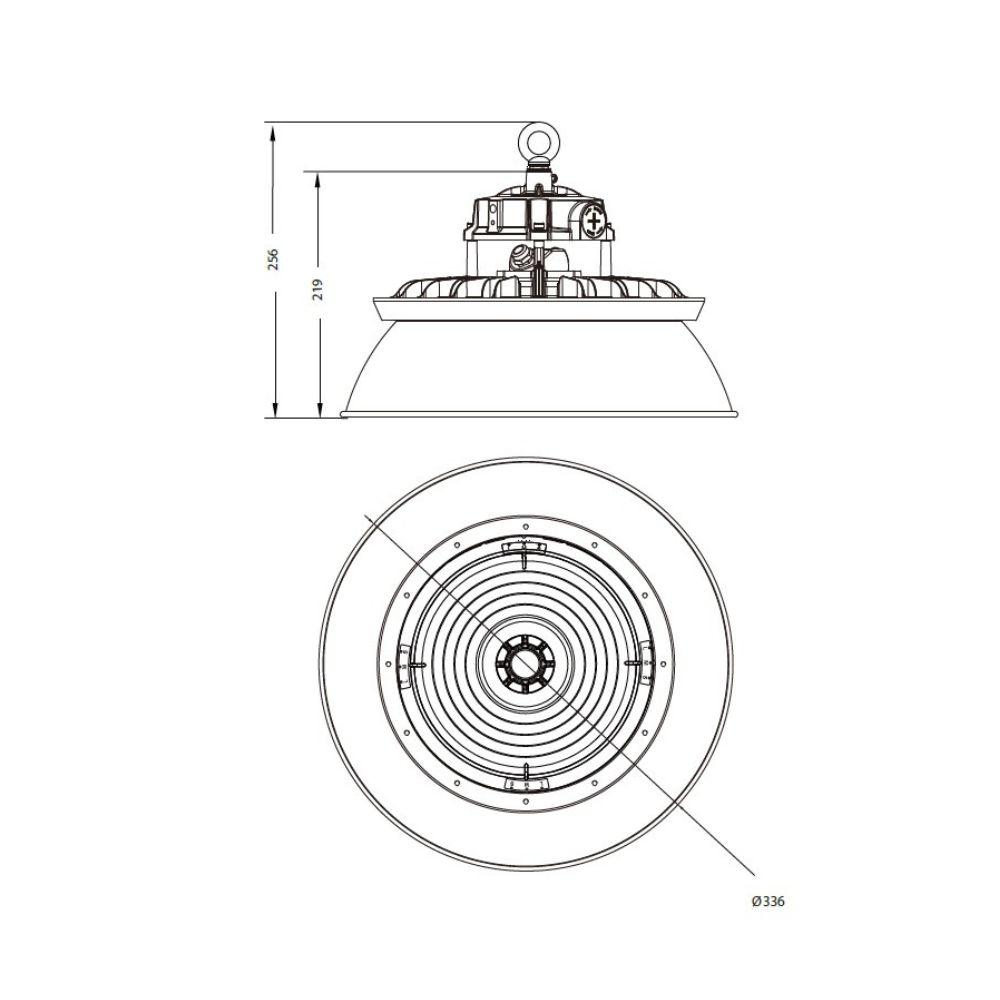

An optional reflector is available for areas where glare control is important, such as sports halls or production areas with workstations at floor level. It enhances visual comfort and gives the fixture a powerful, finished appearance. Sensor integration is also possible – for added energy efficiency and convenience.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-ufo-high-bay-100120150w-150-lmw-3-cct-7595105-950-123.pdf
Energy labels
Characteristics sheet
950-123-photometric-light-report.pdf
950-123+950-126-photometric-light-report.pdf
950-123+950-126-photometric-light-report-detailed.zip
950-123-Eulumdat.zip
950-123+950-126-eulumdat.ldt.zip
Manual
950-123_manual.pdf
