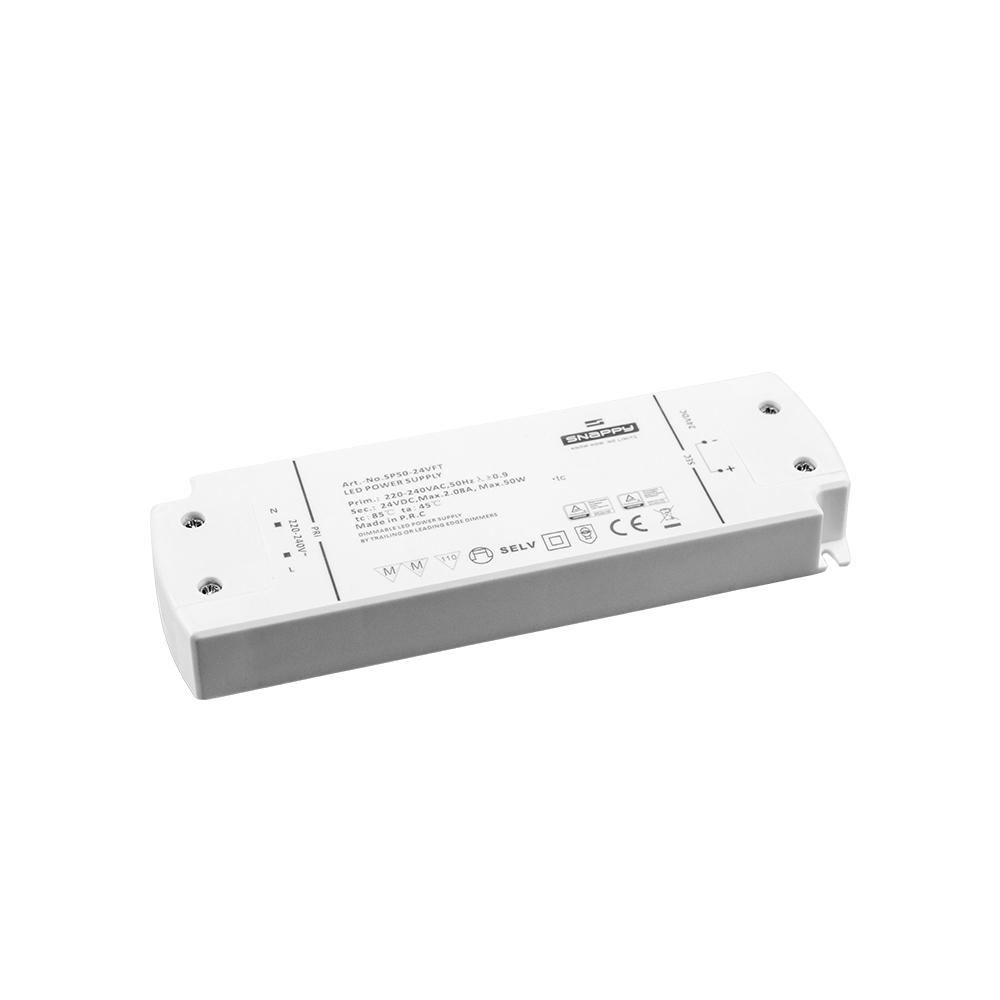

Snappy | SP50-24VFT | 24V | 50W | trailing edge
215-520This SP50-24VFT power supply makes dimming LED fixtures on a phase cut basis much easier. This power supply is supplied with incoming voltage at 220V mains, which is then quickly converted to constant voltage at 24VDC. In addition, this LED power supply features up-to-date protection in terms of short circuit, overload and overheating. This ensures a longer lifespan for both the power supply and the LED lamps present.
Features
- Maximum power rating of 50 watts
- Compact design for easy installation
- IP20 certified for indoor use
Product Name
Snappy | SP50-24VFT | 24V | 50W | trailing edge
Ean
8714984941236
Outer box qty
50st
Housing
Plastic housing
Model
Static
Output voltage
24 - 24V
Output current
800 - 2080mA
Suitable for outdoor use
No
Suitable for DC-voltage (primary side)
No
Output power
0 - 50W
Degree of protection (IP)
IP20

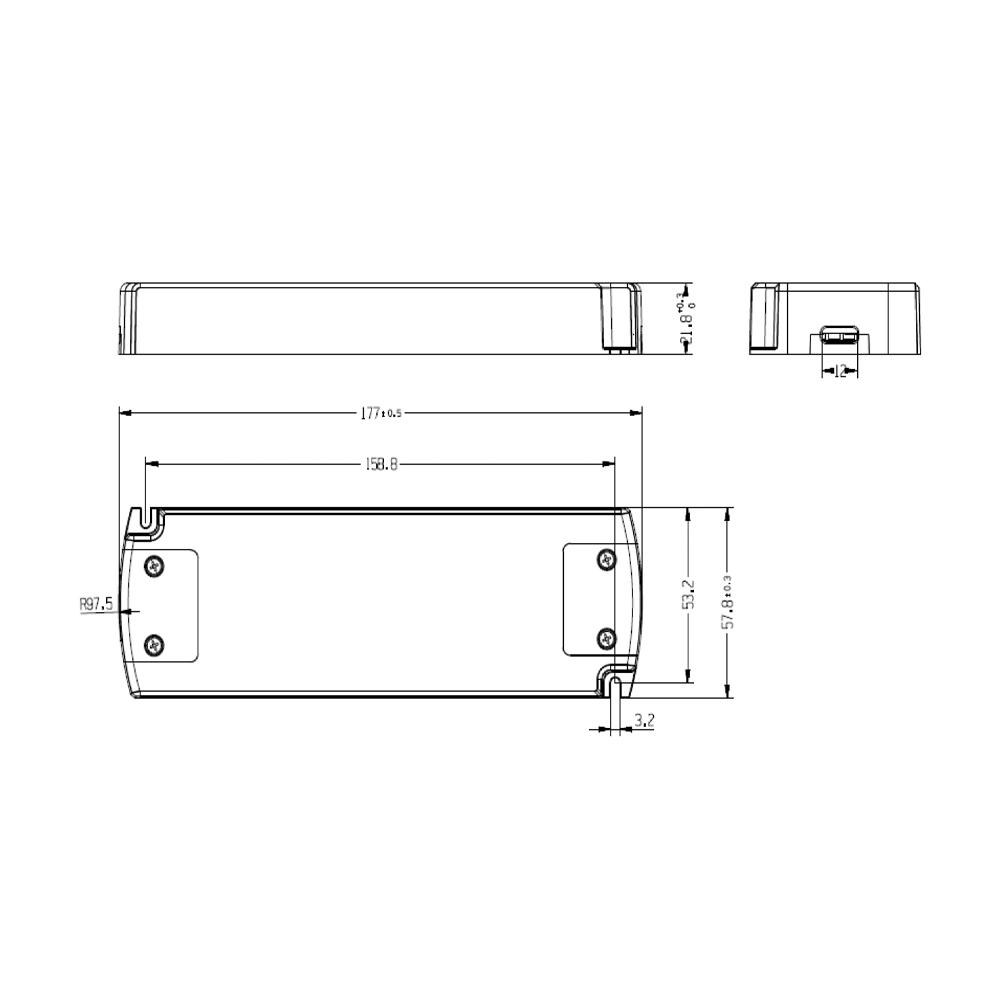

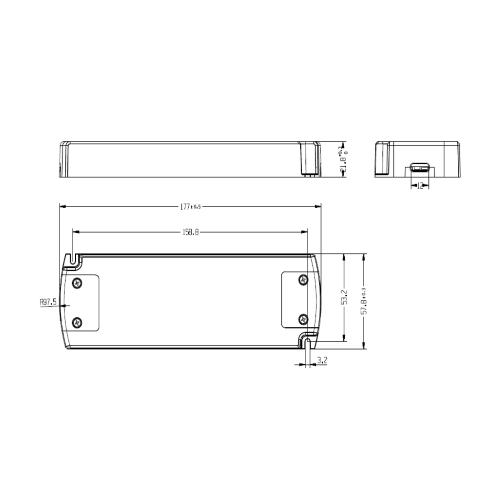

Length
177mm
Width
57.8mm
Height
21.8mm
Power consumption
50W
Input voltage
220 - 240V
Frequency input voltage
50 - 50Hz
PWM modulation
No
Overload protection
Yes
Overtemperature protection
Yes
Control method
Trailing edge dimming
Short-circuit protected
Yes
Ambient temperature
-20 - 45°C
Driver lifetime
30000h
DIN-rail mounting
No
Brand
Snappy
Dimmable
Yes
Emergency power supply system
None
Control type
Constant voltage
Warranty
5 years
Product Name
Snappy | SP50-24VFT | 24V | 50W | trailing edge
Input voltage
220 - 240V
Ean
8714984941236
Frequency input voltage
50 - 50Hz
Outer box qty
50st
PWM modulation
No
Housing
Plastic housing
Overload protection
Yes
Model
Static
Overtemperature protection
Yes
Output voltage
24 - 24V
Control method
Trailing edge dimming
Output current
800 - 2080mA
Short-circuit protected
Yes
Suitable for outdoor use
No
Ambient temperature
-20 - 45°C
Suitable for DC-voltage (primary side)
No
Driver lifetime
30000h
Output power
0 - 50W
DIN-rail mounting
No
Degree of protection (IP)
IP20
Brand
Snappy
Length
177mm
Dimmable
Yes
Width
57.8mm
Emergency power supply system
None
Height
21.8mm
Control type
Constant voltage
Power consumption
50W
Warranty
5 years
This SP50-24VFT power supply makes dimming LED fixtures on a phase cut basis much easier. This power supply is supplied with incoming voltage at 220V mains, which is then quickly converted to constant voltage at 24VDC. In addition, this LED power supply features up-to-date protection in terms of short circuit, overload and overheating. This ensures a longer lifespan for both the power supply and the LED lamps present.
Features
Maximum power rating of 50 watts
Compact design for easy installation
IP20 certified for indoor use
Datasheet
Datasheet-snappy-sp50-24vft-24v-50w-trailing-edge-215-520.pdf
Characteristics sheet
215-520_technical_datasheet_extended.pdf
