Spot | Ø82mm | round | white | 5W | RGBTW | Zigbee

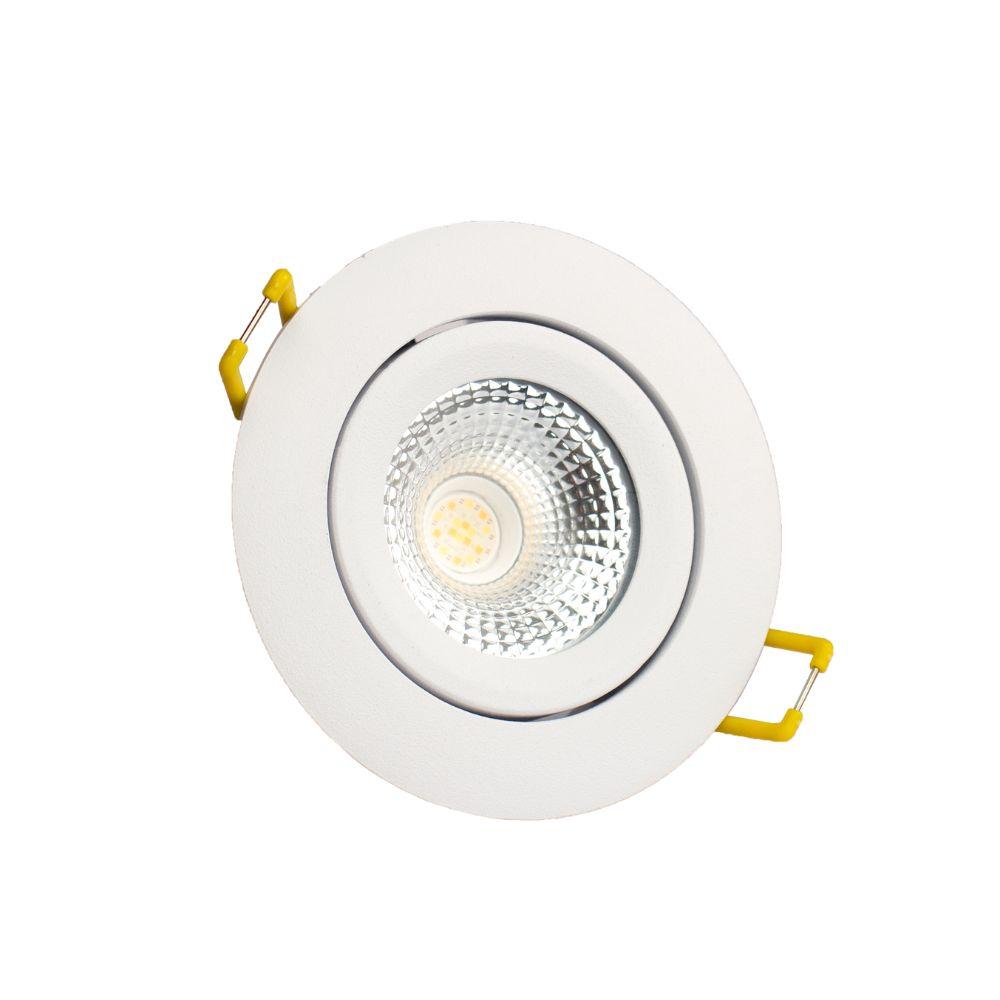

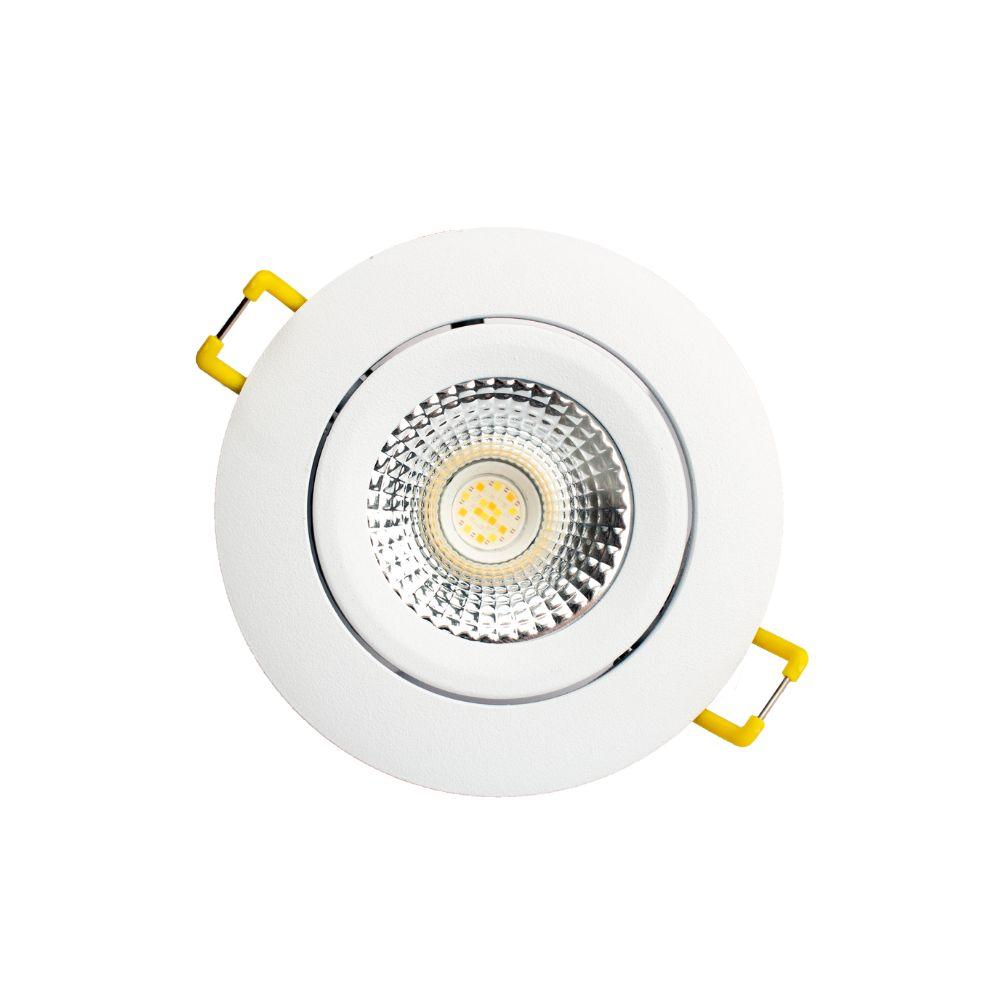

136-810This round recessed Ø82 mm spotlight combines a clean white design with RGBTW lighting technology. With 5 W output and Zigbee control, it offers full control over colour, Tuneable White and light intensity for flexible lighting applications.
Product features
- Nominal voltage (V): 220–240
- Max. system power (W): 5
- Dimming Zigbee: Yes
- Height/depth (mm): 26
- Built-in diameter (mm): 68–75
- Colour temperature: RGBTW
Product Name
Spot | Ø82mm | round | white | 5W | RGBTW | Zigbee
Ean
8714984951914
Outer box qty
100st
Lamp type
LED not exchangeable
Lamp holder
None
Housing colour
White
Housing material
Aluminium
Material cover
Glass transparent
Connection type
GST18i3
Height/depth
26mm
Outer diameter
82mm
Built-in diameter
68 - 75mm
Suitable for built-in mounting
Yes
Suitable for surface mounting
No
Suitable for pedestal/floor mounting
No
Suitable for wall mounting
No
Suitable for ceiling mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
Yes
With movement sensor
No
With presence detector
No
With light sensor
No
Colour of light
RGBW
Colour consistency (McAdam ellipse)
SDCM3
Colour of light adjustable
Continuously variable
Reflector colour
Silver
Colour temperature
RGBTW
Colour rendering index CRI
90-100
Luminous flux adjustable
Continuously variable
Light outlet
Direct
Beam angle
41-80° - Wide beam
Beam angle adjustable
No
Voltage type
AC
Nominal voltage
220 - 240V
Nominal current
22 - 22mA
Number of poles
2
Light distributor
Reflector
Light distribution
Symmetric
Connectable conductor cross section
0.5 - 2.5mm²
Type of control gear
LED operating device current-controlled
Exchangeable control gear
Yes
With control gear
Yes
Degree of protection (IP), front side
IP54
Degree of protection (IP), rear side
IP20
Surface protection
Powder coating
Impact strength
IK02
Rated lifetime L70/B50 at 25 °C
50000h
Max. system power
5W
Rated luminous flux according to IEC 62722-2- 1
300 - 300lm
Luminaire efficacy
60 - 60lm/W
Power factor
0.92
Suitable for lamp power
0 - 0W
Surface brushed
No
Type of wiring
Suitable for loop-through wiring
Emergency power supply system
None
Emergency function monitoring system
None
Adjustability
Rotatable
Unified Glare Ratio (UGR)
24
Reflector
High-gloss
Warranty
5 years
Control type
Constant voltage
Product Name
Spot | Ø82mm | round | white | 5W | RGBTW | Zigbee
Beam angle adjustable
No
Ean
8714984951914
Voltage type
AC
Outer box qty
100st
Nominal voltage
220 - 240V
Lamp type
LED not exchangeable
Nominal current
22 - 22mA
Lamp holder
None
Number of poles
2
Housing colour
White
Light distributor
Reflector
Housing material
Aluminium
Light distribution
Symmetric
Material cover
Glass transparent
Connectable conductor cross section
0.5 - 2.5mm²
Connection type
GST18i3
Type of control gear
LED operating device current-controlled
Height/depth
26mm
Exchangeable control gear
Yes
Outer diameter
82mm
With control gear
Yes
Built-in diameter
68 - 75mm
Degree of protection (IP), front side
IP54
Suitable for built-in mounting
Yes
Degree of protection (IP), rear side
IP20
Suitable for surface mounting
No
Surface protection
Powder coating
Suitable for pedestal/floor mounting
No
Impact strength
IK02
Suitable for wall mounting
No
Rated lifetime L70/B50 at 25 °C
50000h
Suitable for ceiling mounting
Yes
Max. system power
5W
Suitable for light-track mounting
No
Rated luminous flux according to IEC 62722-2- 1
300 - 300lm
Suitable for clamp-mounting
Yes
Luminaire efficacy
60 - 60lm/W
With movement sensor
No
Power factor
0.92
With presence detector
No
Suitable for lamp power
0 - 0W
With light sensor
No
Surface brushed
No
Colour of light
RGBW
Type of wiring
Suitable for loop-through wiring
Colour consistency (McAdam ellipse)
SDCM3
Emergency power supply system
None
Colour of light adjustable
Continuously variable
Emergency function monitoring system
None
Reflector colour
Silver
Adjustability
Rotatable
Colour temperature
RGBTW
Unified Glare Ratio (UGR)
24
Colour rendering index CRI
90-100
Reflector
High-gloss
Luminous flux adjustable
Continuously variable
Warranty
5 years
Light outlet
Direct
Control type
Constant voltage
Beam angle
41-80° - Wide beam

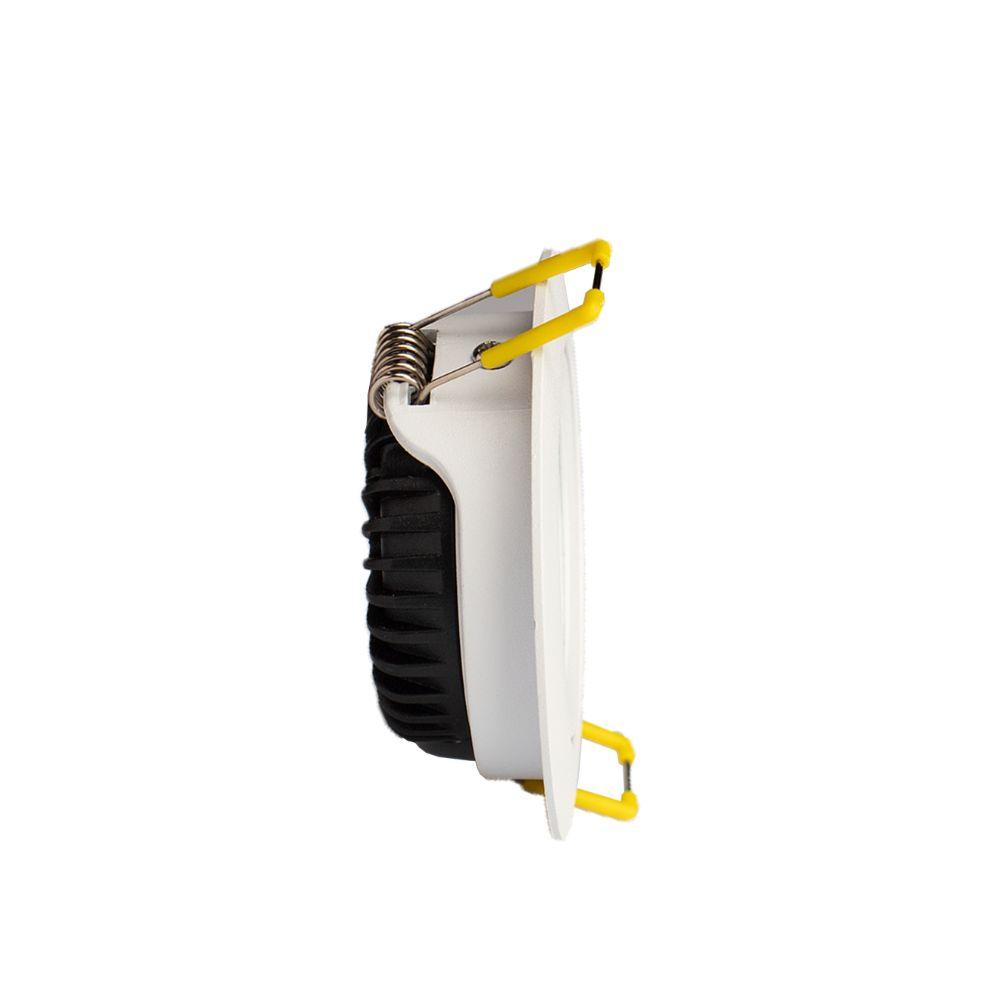

The luminaire features a white finish and is equipped with a reflector that provides a uniform light beam with minimal glare. Thanks to its high light quality, the spotlight is suitable for residential and professional applications that require dynamic lighting settings. With an installation depth of just 26 mm, the luminaire is ideally suited for ceilings with limited installation space.
Connection is via the integrated terminal block or a GST plug. The 2-in-1 connector can be unclipped for quick and organised installation. The spotlight is automatically recognised in a compatible Zigbee app and, once paired, can be controlled for colour, Tuneable White, dim level and scenes. The front side is rated IP54 after installation, providing protection against dust and splashing water.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, please contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-spot-o82mm-round-white-5w-rgbtw-zigbee-136-810.pdf
Energy labels
Characteristics sheet
136-810-photometric-light-report.pdf
136-810-photometric-light-report.zip
136-810-eulumdat.zip
Manual
136-810_Manual.pdf
