NEW
T48/20 | black | TS1 | rail deep | 3m | DALI
8123532T48/20 48V DALI track profile for surface mounting, available in 2 m and 3 m versions. Developed for professional 48V track systems where aesthetics, flexibility and high electrical load capacity come together.
Key product features
- Nominal voltage (V): 0-48
- Max. electrical capacity per phase (W): 288
- Length (mm): 2000
- Suitable for built-in mounting: No
Product Name
T48/20 | black | TS1 | rail deep | 3m | DALI
Ean
8714984955936
Outer box qty
1st
Colour
Black
Material
Aluminium
Type of accessory/spare part
Track rail
Length
3 metres
Length
3000mm
Width
26mm
Height
50mm
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Suitable for suspended mounting
Yes
Number of groups/phases
1
Nominal voltage
0 - 48V
Max. electrical capacity per phase
288W
Surface finishing
Matt
Warranty
5 years
Type
Track rail
Input voltage tracklights
48V
Product Name
T48/20 | black | TS1 | rail deep | 3m | DALI
Suitable for built-in mounting
No
Ean
8714984955936
Suitable for surface mounting
Yes
Outer box qty
1st
Suitable for suspended mounting
Yes
Colour
Black
Number of groups/phases
1
Material
Aluminium
Nominal voltage
0 - 48V
Type of accessory/spare part
Track rail
Max. electrical capacity per phase
288W
Length
3 metres
Surface finishing
Matt
Length
3000mm
Warranty
5 years
Width
26mm
Type
Track rail
Height
50mm
Input voltage tracklights
48V

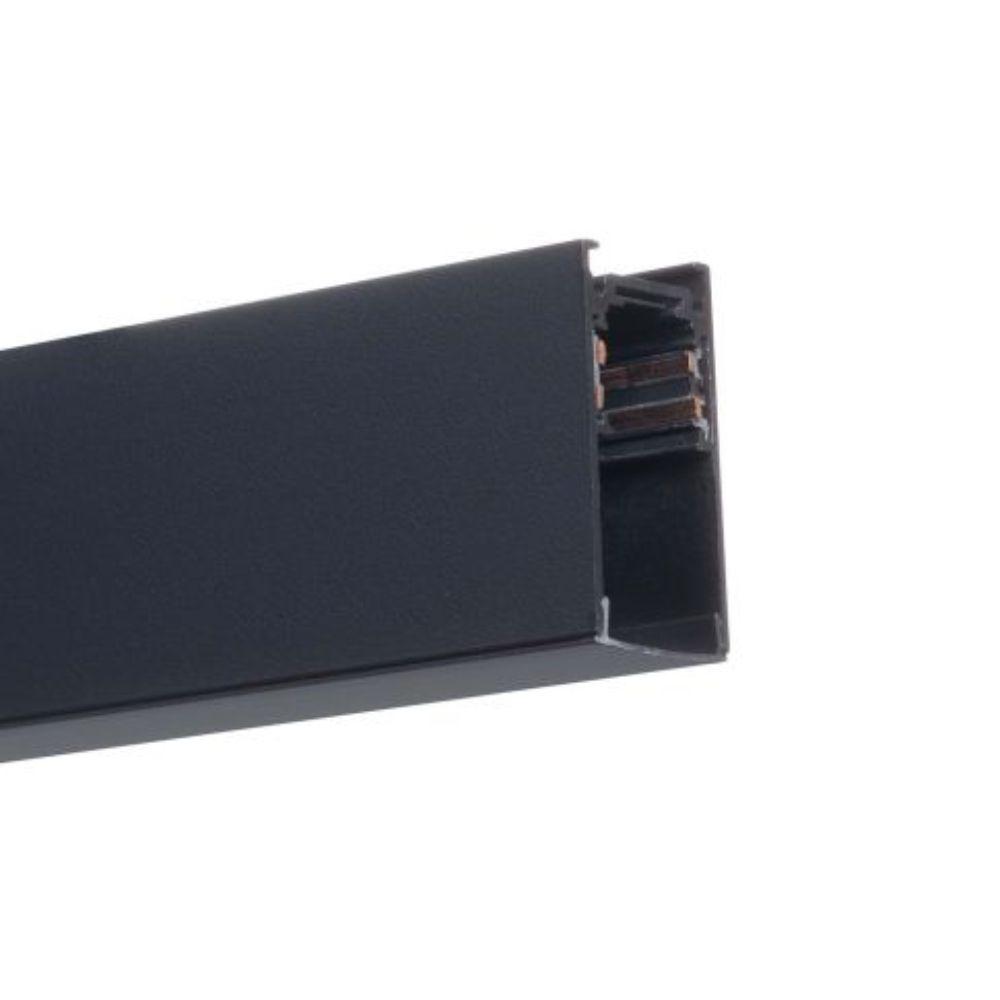

The TS1 profile (deep version) features a higher build, allowing track spots to sit deeper within the profile for a more integrated and minimalist appearance. The TS2 profile (shallow version) has a slimmer silhouette and emphasizes the linear character of the track system.

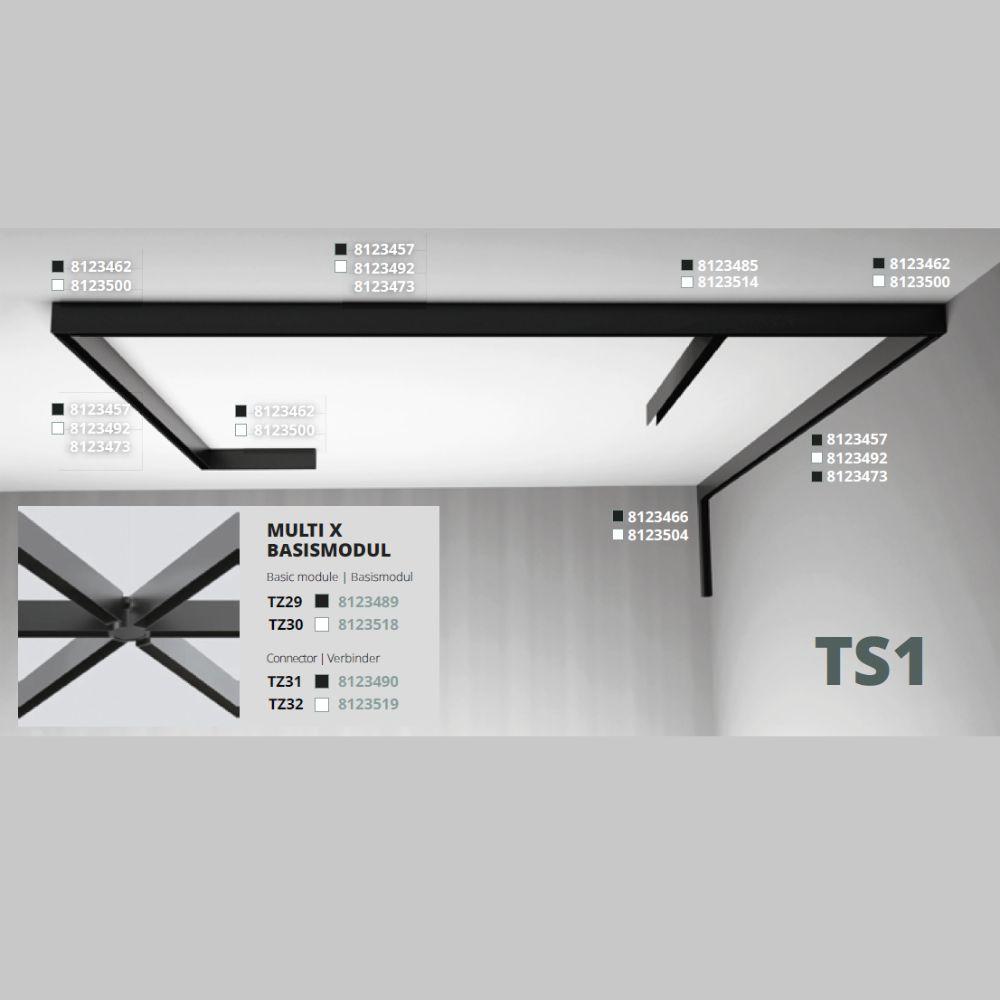

The profile is suitable for 48V track spots, linear modules and LED strips. Both straight runs and complex configurations are possible thanks to Multi-X compatibility. In combination with Multi-X base TZ29 and TZ30, multiple profiles can be connected into one central feed point using the Multi-X connector.

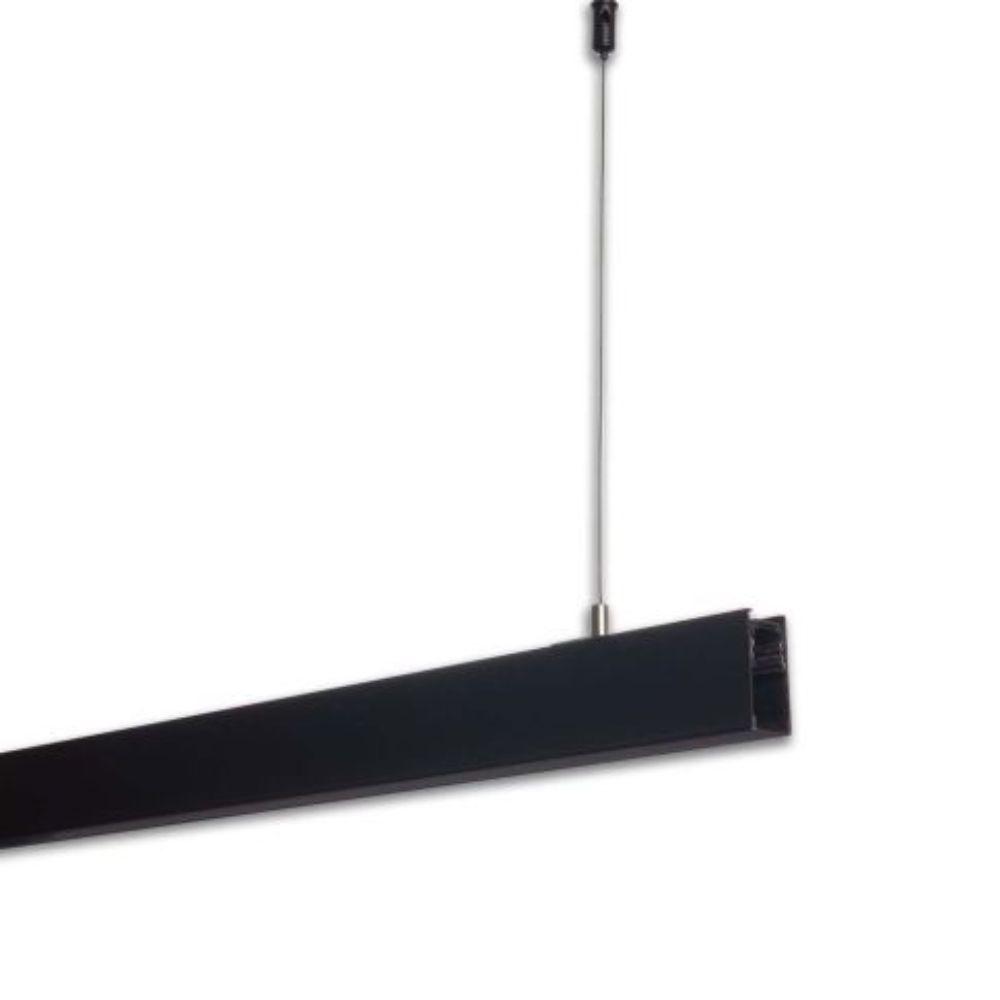

Suspended installation is also possible using suspension cables up to 2 metres, making the profile flexible for use in retail, hospitality and office environments where design and technical freedom go hand in hand.
Within this series, the T48/20 track profile is available in various lengths, finishes and profile variants for optimal project alignment.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, please contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
