NEW

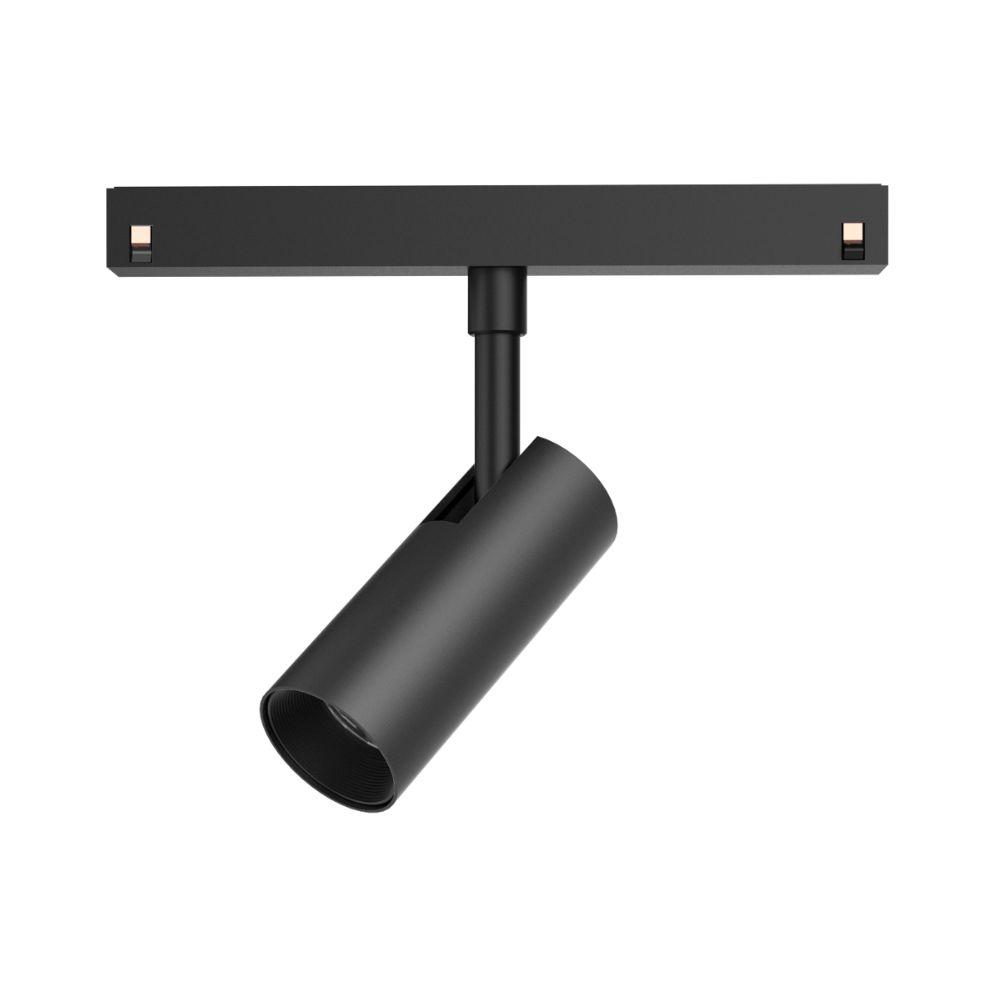

T48/20 | spot | Ø35mm | black | 10W | 3000K | 36° | DALI
168-117This 48V track spot with DALI-2 control offers precise dimming down to 0.1% and high colour rendering. Ideal for professional 48V track systems in retail, hospitality, museums and office environments.
Key product features
Nominal voltage (V): 48 - 48
Max. system power (W): 10
Colour temperature (K): 3000 - 3000
Housing colour: Black
Outer diameter (mm): 35
Dimming DALI-2: Yes
Product Name
T48/20 | spot | Ø35mm | black | 10W | 3000K | 36° | DALI
Ean
8714984954687
Outer box qty
20st
Lamp type
LED not exchangeable
Housing colour
Black
Housing material
Aluminium
Material cover
Without cover
Length
184mm
Height/depth
133mm
Outer diameter
35mm
Suitable for built-in mounting
Yes
Suitable for surface mounting
Yes
Suitable for pedestal/floor mounting
No
Colour
Black
Suitable for wall mounting
Yes
Suitable for ceiling mounting
No
Suitable for light-track mounting
Yes
Suitable for clamp-mounting
No
With movement sensor
No
With presence detector
No
With light sensor
No
Colour of light
White
Colour consistency (McAdam ellipse)
SDCM3
Colour of light adjustable
No
Colour temperature
3000K
Colour rendering index CRI
90-100
Luminous flux adjustable
Continuously variable
Light outlet
Direct
Beam angle
21-40° - Medium beam
Beam angle adjustable
No
Voltage type
DC
Nominal voltage
48 - 48V
Nominal current
206 - 206mA
Number of poles
4
Light source included
Yes, fixed LED
Light distributor
Focal lens
Light distribution
Symmetric
Type of control gear
LED operating device voltage-controlled
Exchangeable control gear
Yes
With control gear
No
Degree of protection (IP), front side
IP20
Degree of protection (IP), rear side
IP20
Surface protection
Powder coating
Impact strength
IK00
Rated lifetime L70/B50 at 25 °C
50000h
Max. system power
10W
Rated luminous flux according to IEC 62722-2- 1
760 - 760lm
Luminaire efficacy
80 - 80lm/W
Power factor
1
Dimming method
DALI
Surface brushed
No
Type of wiring
Ending
Emergency power supply system
None
Emergency function monitoring system
None
Adjustability
Rotating and swivelling
Unified Glare Ratio (UGR)
15
Reflector
None
Warranty
5 years
Input voltage tracklights
48V
Control type
Constant voltage
Product Name
T48/20 | spot | Ø35mm | black | 10W | 3000K | 36° | DALI
Voltage type
DC
Ean
8714984954687
Nominal voltage
48 - 48V
Outer box qty
20st
Nominal current
206 - 206mA
Lamp type
LED not exchangeable
Number of poles
4
Housing colour
Black
Light source included
Yes, fixed LED
Housing material
Aluminium
Light distributor
Focal lens
Material cover
Without cover
Light distribution
Symmetric
Length
184mm
Type of control gear
LED operating device voltage-controlled
Height/depth
133mm
Exchangeable control gear
Yes
Outer diameter
35mm
With control gear
No
Suitable for built-in mounting
Yes
Degree of protection (IP), front side
IP20
Suitable for surface mounting
Yes
Degree of protection (IP), rear side
IP20
Suitable for pedestal/floor mounting
No
Surface protection
Powder coating
Colour
Black
Impact strength
IK00
Suitable for wall mounting
Yes
Rated lifetime L70/B50 at 25 °C
50000h
Suitable for ceiling mounting
No
Max. system power
10W
Suitable for light-track mounting
Yes
Rated luminous flux according to IEC 62722-2- 1
760 - 760lm
Suitable for clamp-mounting
No
Luminaire efficacy
80 - 80lm/W
With movement sensor
No
Power factor
1
With presence detector
No
Dimming method
DALI
With light sensor
No
Surface brushed
No
Colour of light
White
Type of wiring
Ending
Colour consistency (McAdam ellipse)
SDCM3
Emergency power supply system
None
Colour of light adjustable
No
Emergency function monitoring system
None
Colour temperature
3000K
Adjustability
Rotating and swivelling
Colour rendering index CRI
90-100
Unified Glare Ratio (UGR)
15
Luminous flux adjustable
Continuously variable
Reflector
None
Light outlet
Direct
Warranty
5 years
Beam angle
21-40° - Medium beam
Input voltage tracklights
48V
Beam angle adjustable
No
Control type
Constant voltage
This 48V track spot is designed for professional lighting applications where low voltage, high light quality and precise control are essential. 48V track systems are widely used in retail, museums, hospitality, offices and high-end residential projects thanks to their safe low-voltage architecture, positioning flexibility and seamless interior integration.
The spot is equipped as standard with DALI-2 dimming down to 0.1%, ensuring stable and smooth dimming curves even at very low light levels. This makes the luminaire highly suitable for ambient and accent lighting and for precise scene setting.
With a CRI >90, the track spot delivers natural colour rendering, essential for accurately presenting products, materials and artworks. The modular design allows the housing and front ring to be easily exchanged, enabling adaptation to changing interior concepts without modifications to the track system.
Within this series, the track spot is available in two colours as well as various diameters and power ratings, suitable for a wide range of project applications.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-t4820-spot-o35mm-black-10w-3000k-36-dali-168-117.pdf
Energy labels
Characteristics sheet
168-117-photometric-light-report.pdf
168-117-eulumdat.ldt
