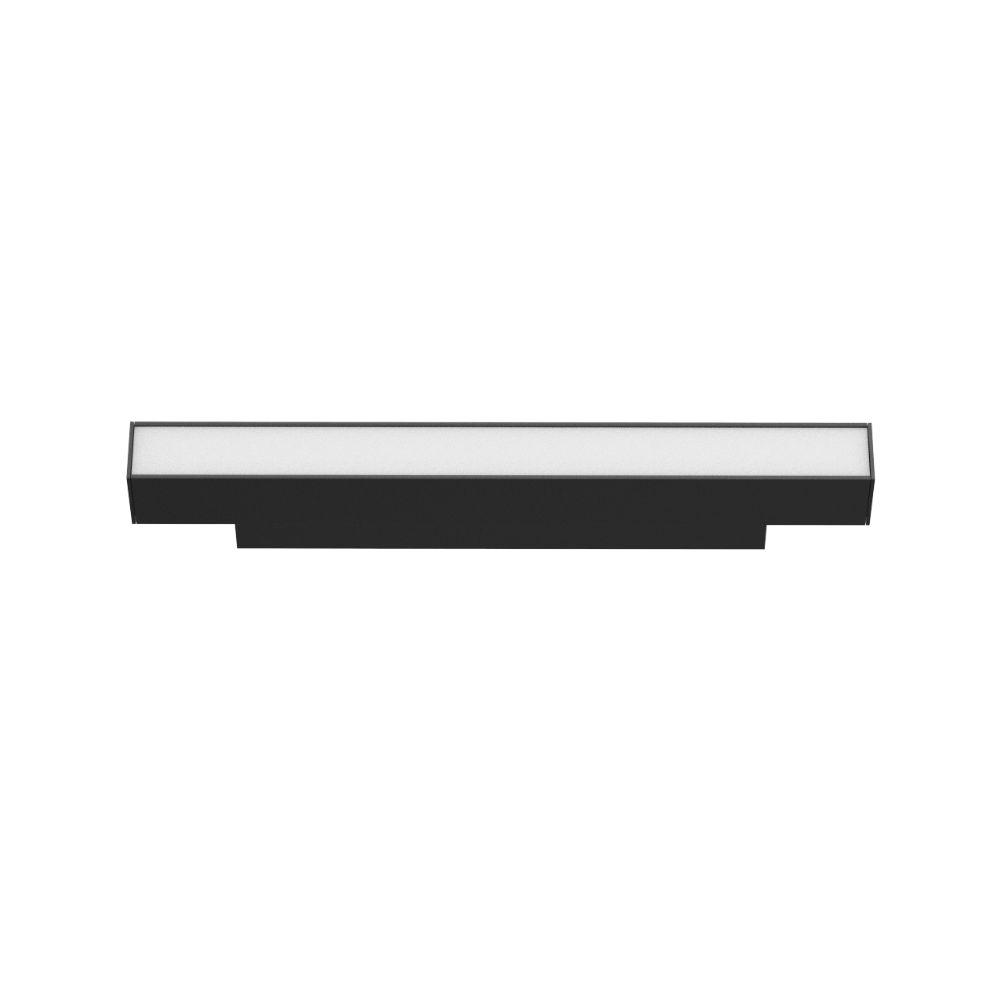

T48/20 | linear | black | 8W | 3000K | 100° | DALI
168-167Linear 48V track spotlight with 8W output and DALI-2 dimming down to 0.1%. Developed for professional applications where uniform light distribution, flexibility and precise light control are essential.
Key product features
- Nominal voltage (V): 48 - 48
- Max. system power (W): 8
- Colour temperature (K): 3000 - 3000
- Housing colour: Black
- Beam angle: >80° - Extreme wide beam
- Dimmable DALI-2: Yes
Product Name
T48/20 | linear | black | 8W | 3000K | 100° | DALI
Ean
8714984954809
Outer box qty
48st
Lamp type
LED not exchangeable
Housing colour
Black
Housing material
Aluminium
Material cover
Plastic, opal
Length
235mm
Width
22mm
Height/depth
42mm
Suitable for built-in mounting
Yes
Suitable for surface mounting
Yes
Suitable for pedestal/floor mounting
No
Colour
Black
Suitable for wall mounting
Yes
Suitable for ceiling mounting
No
Suitable for light-track mounting
Yes
Suitable for clamp-mounting
No
With movement sensor
No
With presence detector
No
With light sensor
No
Colour of light
White
Colour consistency (McAdam ellipse)
SDCM3
Colour of light adjustable
No
Colour temperature
3000K
Colour rendering index CRI
90-100
Luminous flux adjustable
Continuously variable
Light outlet
Direct
Beam angle
> 80° - Extreme wide beam
Beam angle adjustable
No
Voltage type
DC
Nominal voltage
48 - 48V
Nominal current
147 - 147mA
Number of poles
4
Light source included
Yes, fixed LED
Light distributor
Diffuser lens/optic/panel
Light distribution
Symmetric
Type of control gear
LED operating device voltage-controlled
Exchangeable control gear
Yes
With control gear
No
Degree of protection (IP), front side
IP20
Degree of protection (IP), rear side
IP20
Surface protection
Powder coating
Impact strength
IK00
Rated lifetime L70/B50 at 25 °C
50000h
Max. system power
8W
Rated luminous flux according to IEC 62722-2- 1
420 - 420lm
Luminaire efficacy
60 - 60lm/W
Power factor
1
Dimming method
DALI
Surface brushed
No
Type of wiring
Ending
Emergency power supply system
None
Emergency function monitoring system
None
Adjustability
not adjustable
Unified Glare Ratio (UGR)
27
Reflector
None
Warranty
5 years
Input voltage tracklights
48V
Control type
Constant voltage
Product Name
T48/20 | linear | black | 8W | 3000K | 100° | DALI
Voltage type
DC
Ean
8714984954809
Nominal voltage
48 - 48V
Outer box qty
48st
Nominal current
147 - 147mA
Lamp type
LED not exchangeable
Number of poles
4
Housing colour
Black
Light source included
Yes, fixed LED
Housing material
Aluminium
Light distributor
Diffuser lens/optic/panel
Material cover
Plastic, opal
Light distribution
Symmetric
Length
235mm
Type of control gear
LED operating device voltage-controlled
Width
22mm
Exchangeable control gear
Yes
Height/depth
42mm
With control gear
No
Suitable for built-in mounting
Yes
Degree of protection (IP), front side
IP20
Suitable for surface mounting
Yes
Degree of protection (IP), rear side
IP20
Suitable for pedestal/floor mounting
No
Surface protection
Powder coating
Colour
Black
Impact strength
IK00
Suitable for wall mounting
Yes
Rated lifetime L70/B50 at 25 °C
50000h
Suitable for ceiling mounting
No
Max. system power
8W
Suitable for light-track mounting
Yes
Rated luminous flux according to IEC 62722-2- 1
420 - 420lm
Suitable for clamp-mounting
No
Luminaire efficacy
60 - 60lm/W
With movement sensor
No
Power factor
1
With presence detector
No
Dimming method
DALI
With light sensor
No
Surface brushed
No
Colour of light
White
Type of wiring
Ending
Colour consistency (McAdam ellipse)
SDCM3
Emergency power supply system
None
Colour of light adjustable
No
Emergency function monitoring system
None
Colour temperature
3000K
Adjustability
not adjustable
Colour rendering index CRI
90-100
Unified Glare Ratio (UGR)
27
Luminous flux adjustable
Continuously variable
Reflector
None
Light outlet
Direct
Warranty
5 years
Beam angle
> 80° - Extreme wide beam
Input voltage tracklights
48V
Beam angle adjustable
No
Control type
Constant voltage
This linear 48V track spotlight combines a slim design with high-quality lighting performance. Thanks to DALI-2 control and dimming down to 0.1%, stable and smooth light regulation is ensured, even at low light levels. Ideal for retail, hospitality, offices and other professional environments where atmosphere and functionality meet.
Depending on the version, the luminaire is equipped with a reflector for controlled beam shaping or an opal diffuser for soft, uniform light distribution with minimal glare. A CRI >90 guarantees natural and accurate colour rendering.
Within this series, the track spotlight is available in various beam angles, light colours and housing finishes for optimal project alignment.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-t4820-linear-black-8w-3000k-100-dali-168-167.pdf
Energy labels
Characteristics sheet
168-167-photometric-light-report.pdf
168-167-eulumdat.ldt
