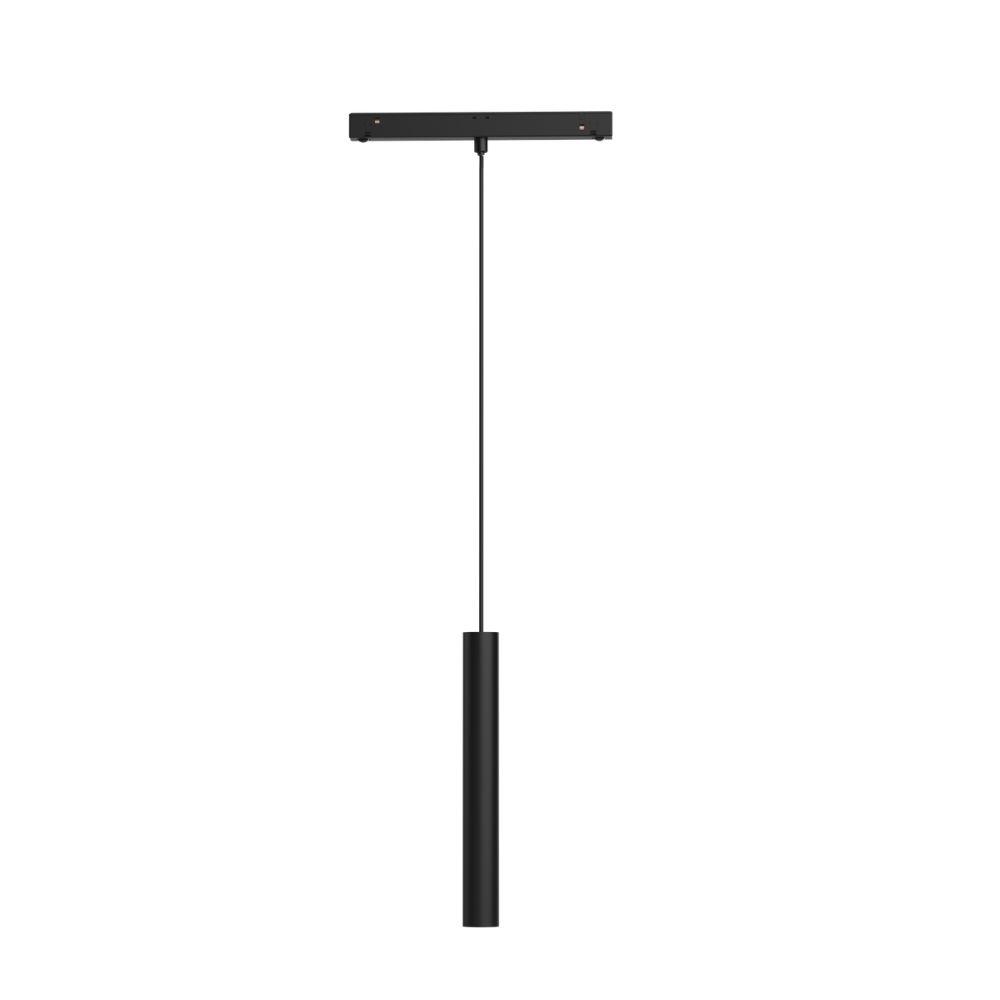

T48/20 | pendant | Ø26mm | black | 5W | 2700K | 36° | DALI
168-176This 48V pendant spot with DALI-2 control offers precise dimming down to 0.1% and high colour rendering. This suspended version is ideal for professional 48V track systems where the light source needs to be positioned closer to the surface being illuminated, such as above counters, tables, displays and workstations.
Key product features
- Nominal voltage (V): 48 - 48
- Max. system power (W): 5
- Colour temperature (K): 2700 - 2700
- Housing colour: Black
- Outer diameter (mm): 26
- Dimming DALI-2: Yes
Product Name
T48/20 | pendant | Ø26mm | black | 5W | 2700K | 36° | DALI
Ean
8714984956476
Outer box qty
20st
Lamp type
LED not exchangeable
Housing colour
Black
Housing material
Aluminium
Material cover
Without cover
Length
200mm
Outer diameter
26mm
Suitable for built-in mounting
Yes
Suitable for surface mounting
Yes
Colour
Black
Suitable for pedestal/floor mounting
No
Suitable for wall mounting
Yes
Suitable for ceiling mounting
No
Suitable for light-track mounting
Yes
Suitable for clamp-mounting
No
With movement sensor
No
With presence detector
No
With light sensor
No
Colour of light
White
Colour consistency (McAdam ellipse)
SDCM3
Colour of light adjustable
No
Colour temperature
2700K
Colour rendering index CRI
90-100
Luminous flux adjustable
Continuously variable
Light outlet
Direct
Beam angle
21-40° - Medium beam
Beam angle adjustable
No
Voltage type
DC
Nominal voltage
48 - 48V
Nominal current
125 - 125mA
Number of poles
4
Light source included
Yes, fixed LED
Light distributor
Focal lens
Light distribution
Symmetric
Type of control gear
LED operating device voltage-controlled
Exchangeable control gear
Yes
With control gear
No
Degree of protection (IP), front side
IP20
Degree of protection (IP), rear side
IP20
Surface protection
Powder coating
Impact strength
IK00
Rated lifetime L70/B50 at 25 °C
50000h
Max. system power
5W
Rated luminous flux according to IEC 62722-2- 1
420 - 420lm
Luminaire efficacy
70 - 70lm/W
Power factor
1
Dimming method
DALI
Surface brushed
No
Type of wiring
Ending
Emergency power supply system
None
Emergency function monitoring system
None
Adjustability
not adjustable
Unified Glare Ratio (UGR)
17
Reflector
None
Warranty
5 years
Ambient temperature
-20 - 45°C
Input voltage tracklights
48V
Control type
Constant voltage
Product Name
T48/20 | pendant | Ø26mm | black | 5W | 2700K | 36° | DALI
Nominal voltage
48 - 48V
Ean
8714984956476
Nominal current
125 - 125mA
Outer box qty
20st
Number of poles
4
Lamp type
LED not exchangeable
Light source included
Yes, fixed LED
Housing colour
Black
Light distributor
Focal lens
Housing material
Aluminium
Light distribution
Symmetric
Material cover
Without cover
Type of control gear
LED operating device voltage-controlled
Length
200mm
Exchangeable control gear
Yes
Outer diameter
26mm
With control gear
No
Suitable for built-in mounting
Yes
Degree of protection (IP), front side
IP20
Suitable for surface mounting
Yes
Degree of protection (IP), rear side
IP20
Colour
Black
Surface protection
Powder coating
Suitable for pedestal/floor mounting
No
Impact strength
IK00
Suitable for wall mounting
Yes
Rated lifetime L70/B50 at 25 °C
50000h
Suitable for ceiling mounting
No
Max. system power
5W
Suitable for light-track mounting
Yes
Rated luminous flux according to IEC 62722-2- 1
420 - 420lm
Suitable for clamp-mounting
No
Luminaire efficacy
70 - 70lm/W
With movement sensor
No
Power factor
1
With presence detector
No
Dimming method
DALI
With light sensor
No
Surface brushed
No
Colour of light
White
Type of wiring
Ending
Colour consistency (McAdam ellipse)
SDCM3
Emergency power supply system
None
Colour of light adjustable
No
Emergency function monitoring system
None
Colour temperature
2700K
Adjustability
not adjustable
Colour rendering index CRI
90-100
Unified Glare Ratio (UGR)
17
Luminous flux adjustable
Continuously variable
Reflector
None
Light outlet
Direct
Warranty
5 years
Beam angle
21-40° - Medium beam
Ambient temperature
-20 - 45°C
Beam angle adjustable
No
Input voltage tracklights
48V
Voltage type
DC
Control type
Constant voltage
This 48V pendant spot is designed for professional lighting applications where low voltage, high light quality and precise control are essential. The suspended design allows the light source to be positioned closer to the surface being illuminated, making the spot particularly suitable for applications above tables, counters, display cabinets, displays and reception desks. 48V track systems are widely used in retail, museums, hospitality, offices and high-end residential projects thanks to their safe low-voltage architecture, positioning flexibility and seamless interior integration.
The spot is equipped as standard with DALI-2 dimming down to 0.1%, ensuring stable and smooth dimming curves even at very low light levels. This makes the luminaire highly suitable for ambient and accent lighting and for precise scene setting.
With a CRI >90, the pendant spot delivers natural colour rendering, essential for accurately presenting products, materials and artworks. The modular design allows the housing and front ring to be easily exchanged, enabling adaptation to changing interior concepts without modifications to the track system.
Within this series, the pendant spot is available in two colours and in various diameters and power ratings, suitable for a wide range of project applications.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-t4820-pendant-o26mm-black-5w-2700k-36-dali-168-176.pdf
Energy labels
Characteristics sheet
168-176-photometric-light-report.pdf
168-176-eulumdat.ldt
Manual
168-171_172_176_177_181_182_186_187_191_192_196_197_handleiding.pdf
