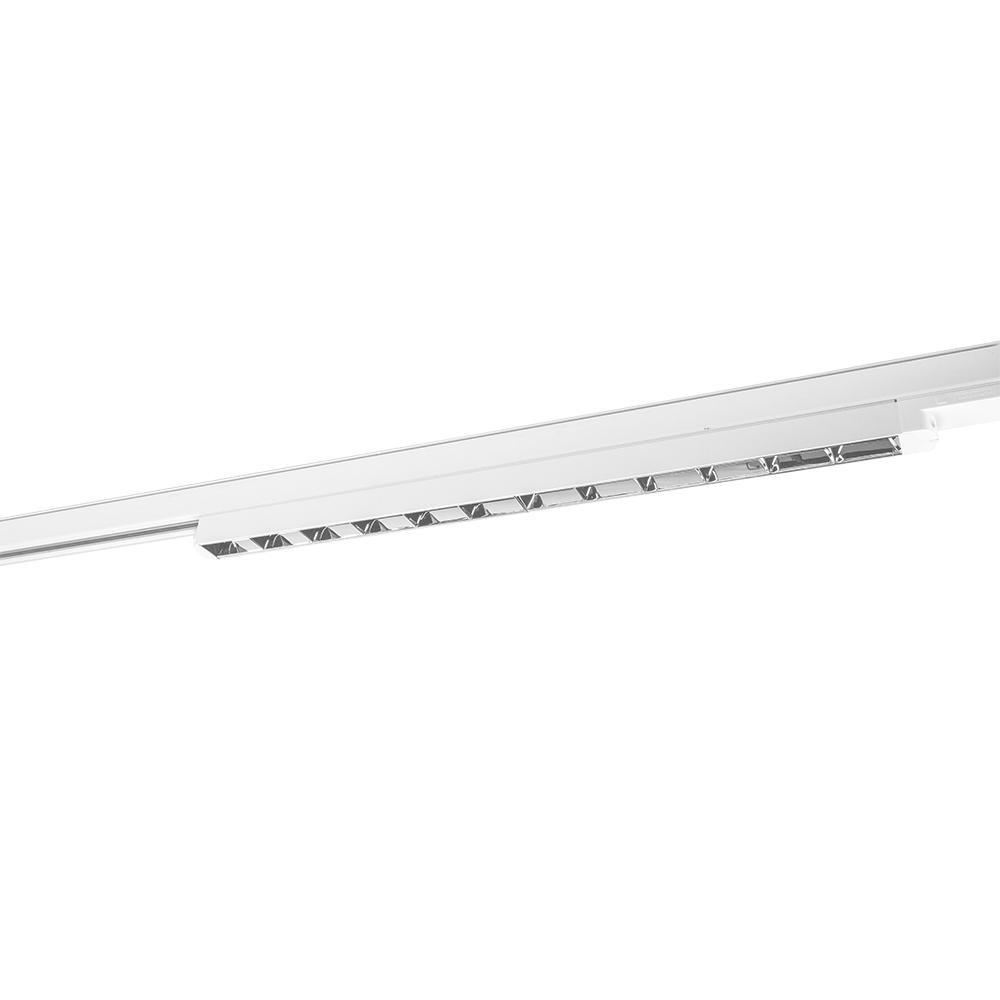

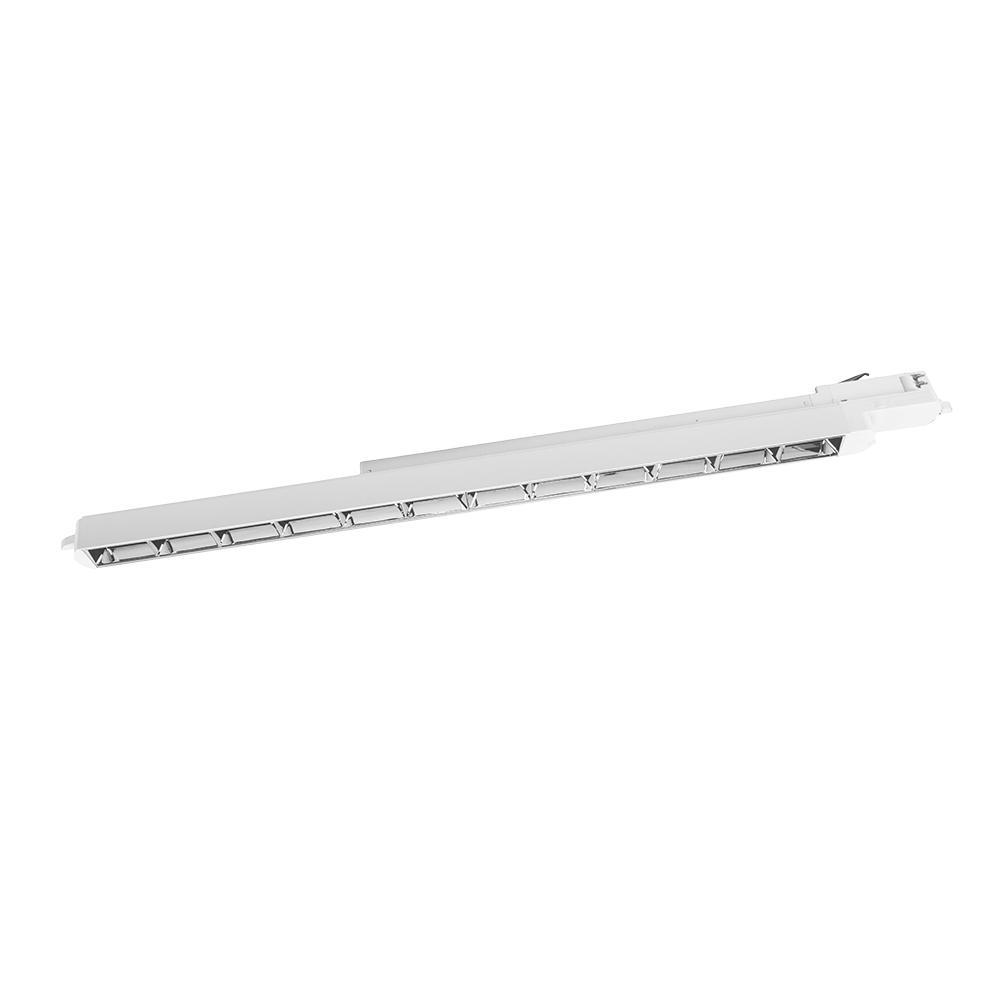

Track spot | 3-phase | white | linear | 16W | 3000K | dim
169-311This sturdy track spot operates with a warm white light color (3000K) and features a beam angle of >60x70° for ideal light distribution.
Rails & accessories - 3 phase track
Tronix Lighting offers a wide and diverse range in terms of 3 phase tracks and matching accessories. Each product is available in matching colors for a beautiful, customized result.
Features
- Colortemperature: 3000K
- Beam angle of >60x70°
Product Name
Track spot | 3-phase | white | linear | 16W | 3000K | dim
Ean
8714984932890
Outer box qty
12st
Lamp type
LED not exchangeable
Lamp holder
None
Housing colour
White
Housing material
Plastic
Material cover
Other

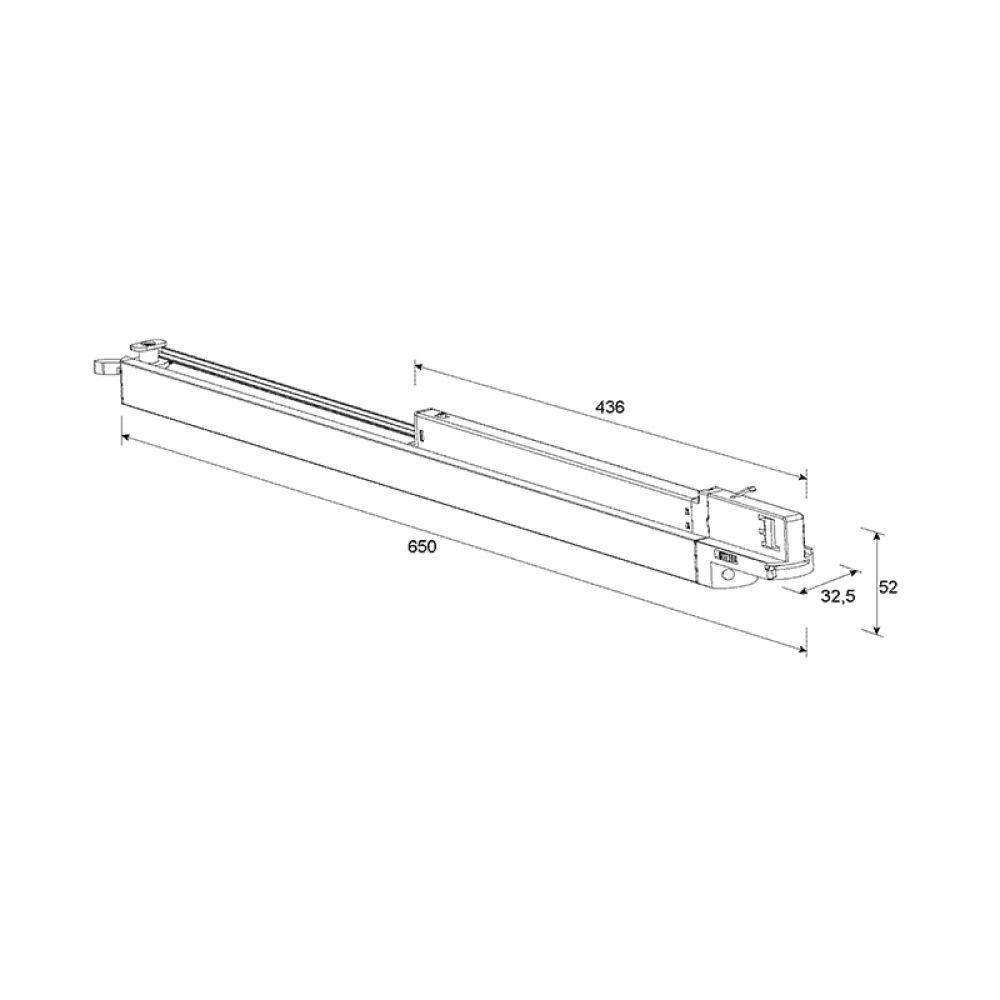

Length
650mm
Width
32.5mm
Height/depth
52mm
Built-in diameter
0 - 0mm
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Suitable for pedestal/floor mounting
No
Colour
White
Suitable for wall mounting
No
Suitable for ceiling mounting
Yes
Suitable for light-track mounting
Yes
Suitable for clamp-mounting
No
With movement sensor
No
With light sensor
No
Colour of light
White
Colour consistency (McAdam ellipse)
SDCM3
Colour of light adjustable
No
Reflector colour
Silver
Colour temperature
3000K
Colour rendering index CRI
90-100
Luminous flux adjustable
No
Light outlet
Direct/indirect
Beam angle
41-80° - Wide beam
Beam angle adjustable
No
Voltage type
AC
Nominal voltage
220 - 240V
Nominal current
68 - 68mA
Number of poles
3
Light source included
Yes, fixed LED
Light distributor
Reflector
Light distribution
Symmetric
Connectable conductor cross section
0 - 0mm²
Type of control gear
LED operating device current-controlled
Exchangeable control gear
No
With control gear
Yes
Degree of protection (IP), rear side
IP20
Surface protection
Other
Impact strength
IK02
Rated lifetime L70/B50 at 25 °C
50000h
Max. system power
16W
Rated luminous flux according to IEC 62722-2- 1
1440 - 1444lm
Luminaire efficacy
90 - 90lm/W
Power factor
0.93
Suitable for lamp power
0 - 0W
Surface brushed
No
Type of wiring
Ending
Emergency power supply system
None
Emergency function monitoring system
None
Adjustability
not adjustable
Unified Glare Ratio (UGR)
18.3
Reflector
High-gloss
Warranty
5 years
Input voltage tracklights
230V
Product Name
Track spot | 3-phase | white | linear | 16W | 3000K | dim
Beam angle adjustable
No
Ean
8714984932890
Voltage type
AC
Outer box qty
12st
Nominal voltage
220 - 240V
Lamp type
LED not exchangeable
Nominal current
68 - 68mA
Lamp holder
None
Number of poles
3
Housing colour
White
Light source included
Yes, fixed LED
Housing material
Plastic
Light distributor
Reflector
Material cover
Other
Light distribution
Symmetric
Length
650mm
Connectable conductor cross section
0 - 0mm²
Width
32.5mm
Type of control gear
LED operating device current-controlled
Height/depth
52mm
Exchangeable control gear
No
Built-in diameter
0 - 0mm
With control gear
Yes
Suitable for built-in mounting
No
Degree of protection (IP), rear side
IP20
Suitable for surface mounting
Yes
Surface protection
Other
Suitable for pedestal/floor mounting
No
Impact strength
IK02
Colour
White
Rated lifetime L70/B50 at 25 °C
50000h
Suitable for wall mounting
No
Max. system power
16W
Suitable for ceiling mounting
Yes
Rated luminous flux according to IEC 62722-2- 1
1440 - 1444lm
Suitable for light-track mounting
Yes
Luminaire efficacy
90 - 90lm/W
Suitable for clamp-mounting
No
Power factor
0.93
With movement sensor
No
Suitable for lamp power
0 - 0W
With light sensor
No
Surface brushed
No
Colour of light
White
Type of wiring
Ending
Colour consistency (McAdam ellipse)
SDCM3
Emergency power supply system
None
Colour of light adjustable
No
Emergency function monitoring system
None
Reflector colour
Silver
Adjustability
not adjustable
Colour temperature
3000K
Unified Glare Ratio (UGR)
18.3
Colour rendering index CRI
90-100
Reflector
High-gloss
Luminous flux adjustable
No
Warranty
5 years
Light outlet
Direct/indirect
Input voltage tracklights
230V
Beam angle
41-80° - Wide beam
This sturdy track spot operates with a warm white light color (3000K) and features a beam angle of >60x70° for ideal light distribution.
Rails & accessories - 3 phase track
Tronix Lighting offers a wide and diverse range in terms of 3 phase tracks and matching accessories. Each product is available in matching colors for a beautiful, customized result.
Features
Colortemperature: 3000K
Beam angle of >60x70°
Datasheet
Datasheet-track-spot-3-phase-white-linear-16w-3000k-dim-169-311.pdf
Energy labels
Manual
169-311_Manual_NL.pdf
169-311_Manual_EN.pdf
Characteristics sheet
169-311-photometric-light-report.pdf
169-311.ldt
