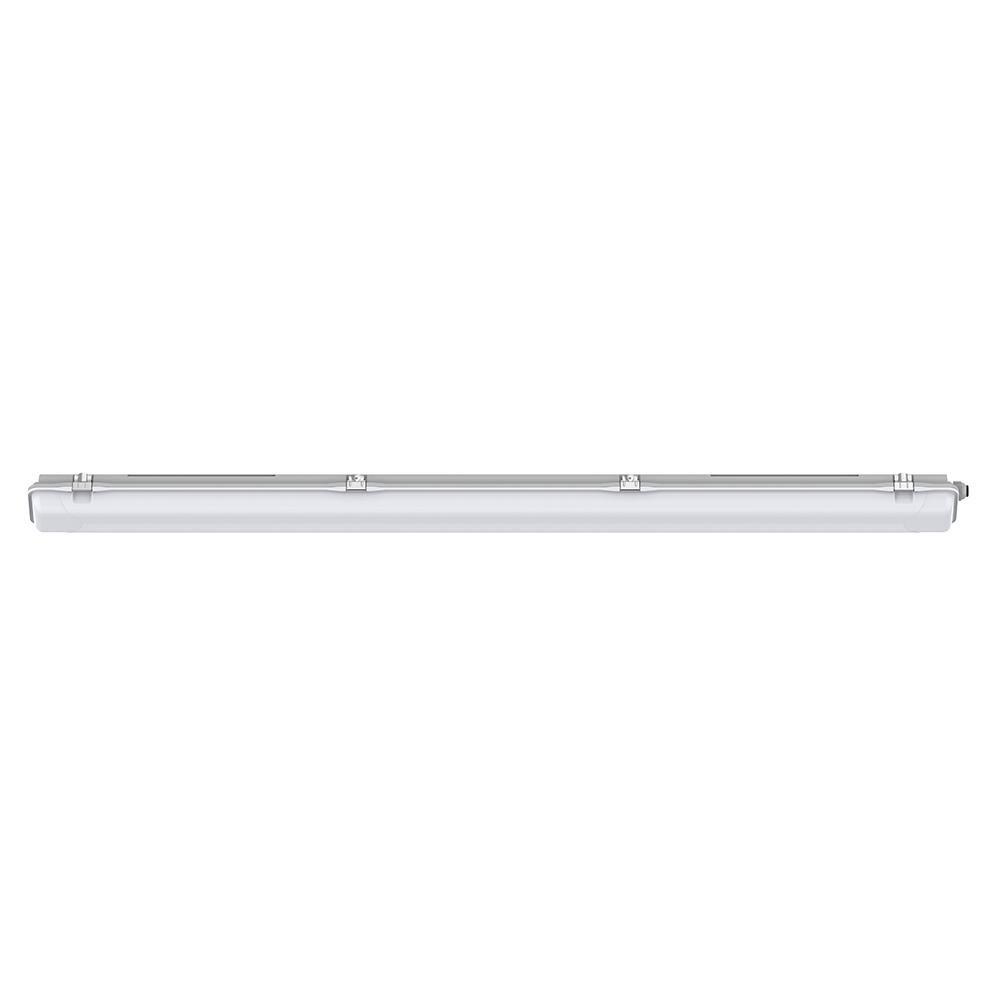

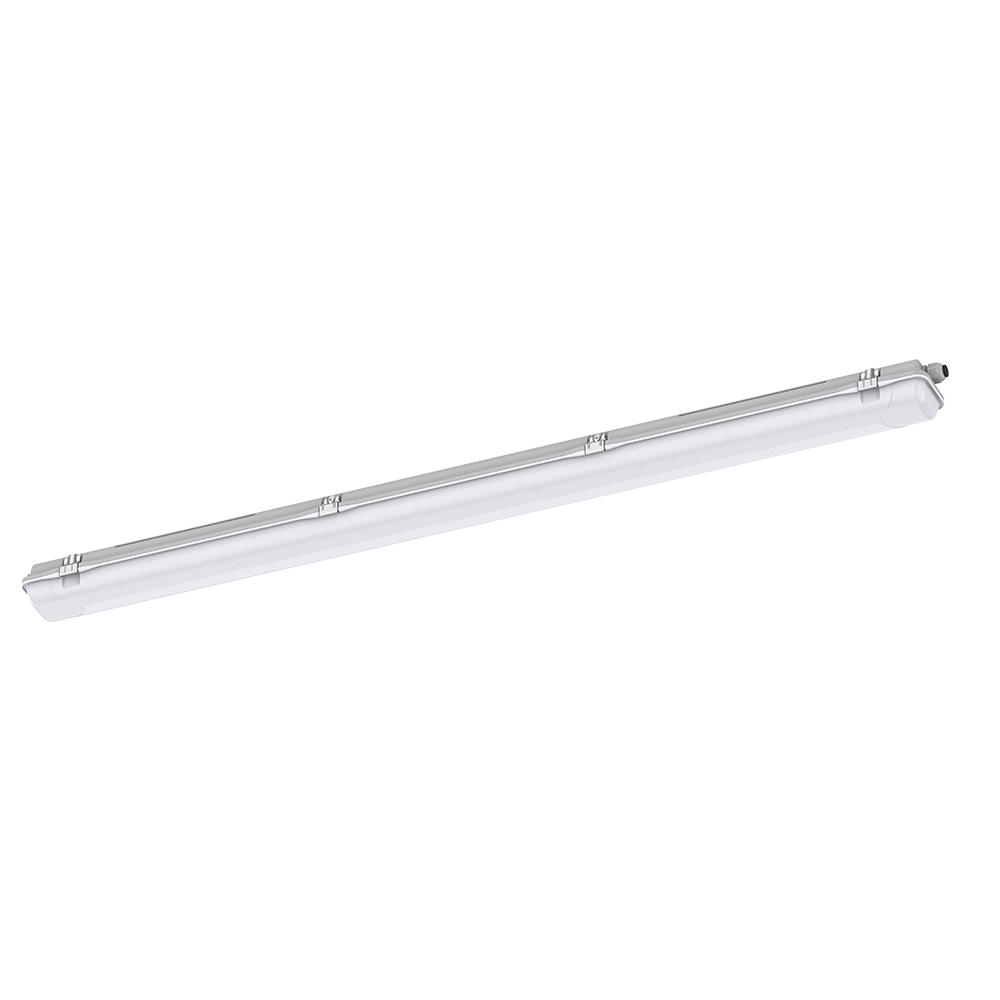

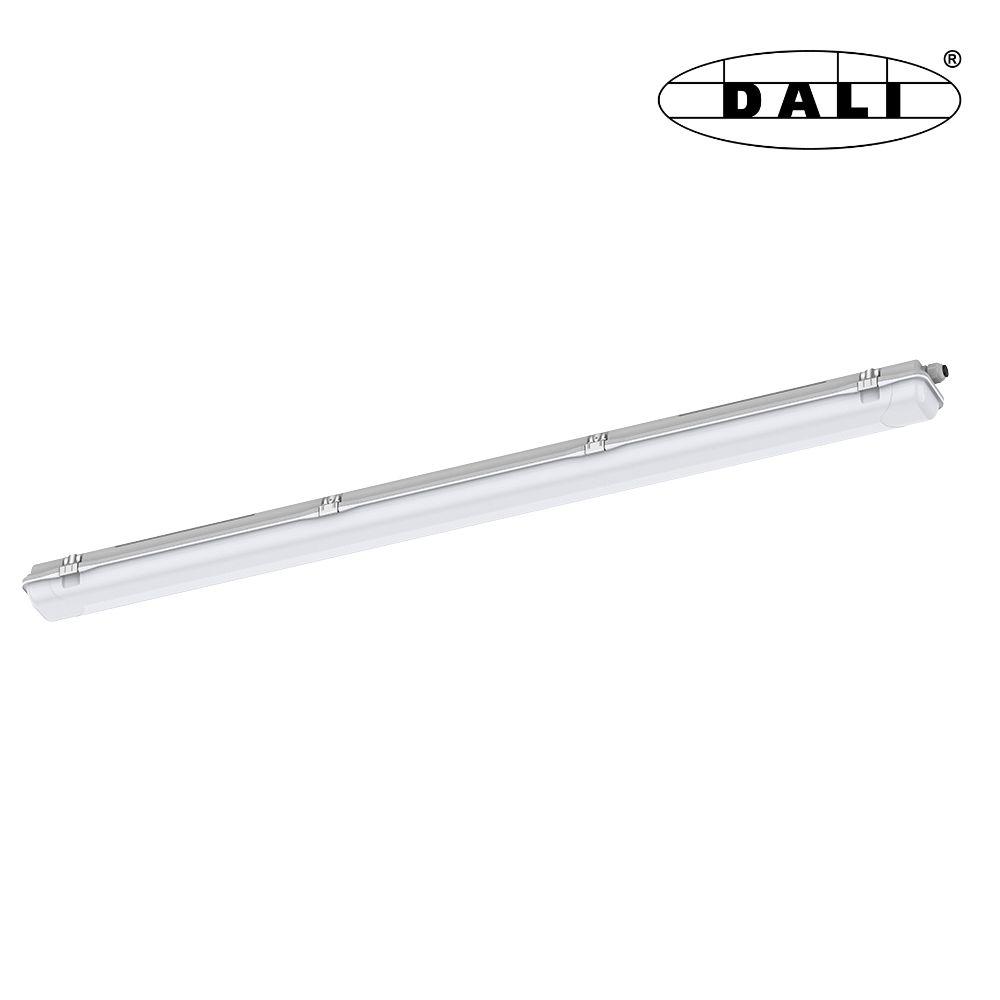

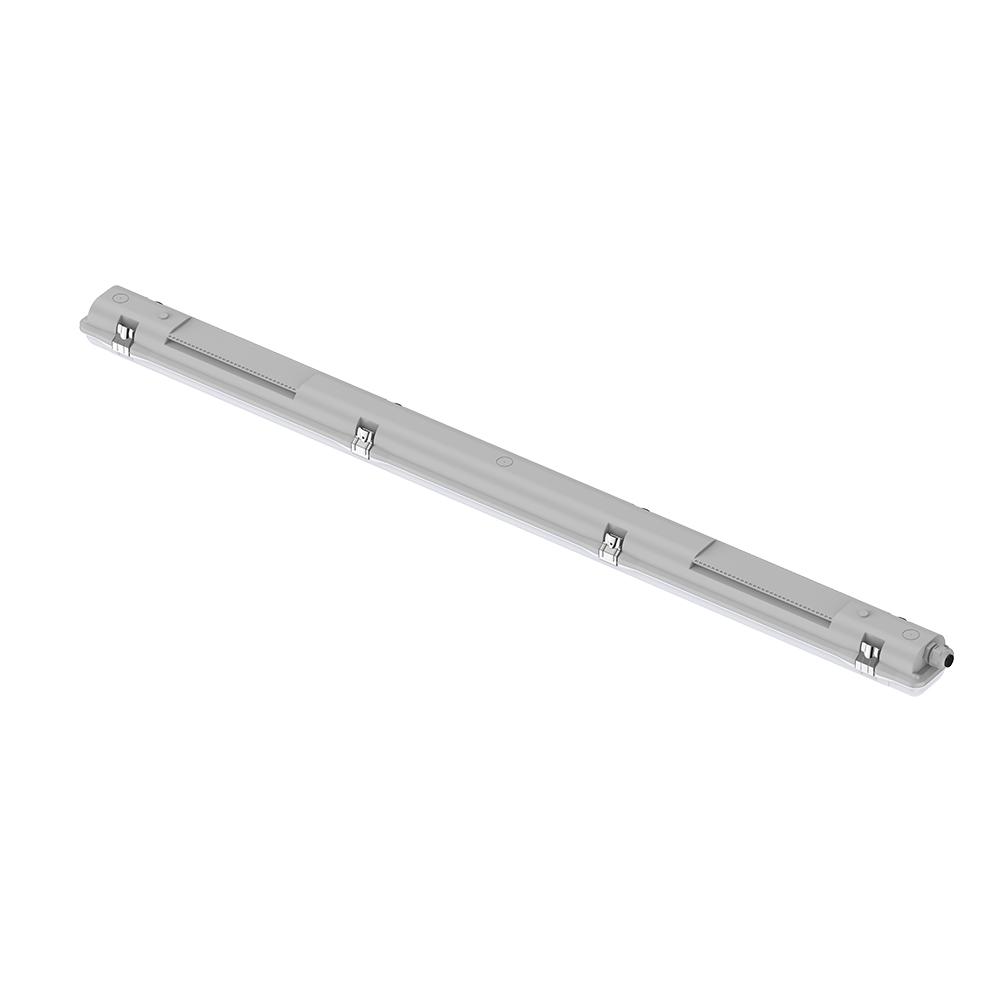

Tri-proof lightbar | 1260mm | 40W | 3-CCT | DALI
950-196This 1260 mm tri-proof luminaire with DALI dimming, integrated through wiring and selectable CCT delivers energy-efficient and reliable lighting in demanding environments where durability and easy installation are essential.
Key product features
- Length (mm): 1260
- Degree of protection (IP): IP65
- Dimming DALI: Yes
- Type of wiring: Incl. through wiring
- Rated luminous flux according to IEC 62722-2-1 (lm): 5200
Product Name
Tri-proof lightbar | 1260mm | 40W | 3-CCT | DALI
Ean
8714984954571
Outer box qty
12st
Dimmable
Yes
Connection type
Push-in clamp
Lamp type
LED exchangeable
Housing colour
Grey
Material
Plastic

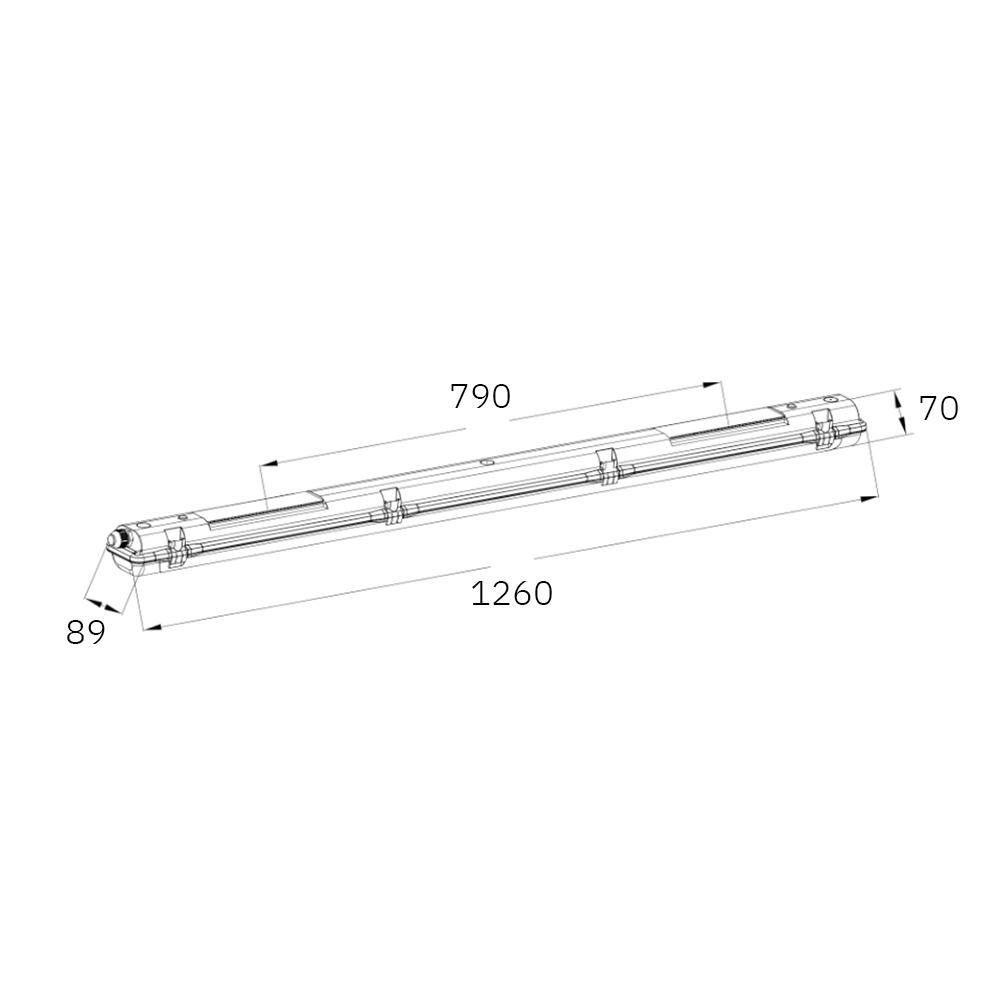

Length
120cm
Length
1260mm
Width
89mm
Height/depth
70mm
With movement sensor
No
With presence detector
No
With light sensor
No
Colour of light
White
Colour temperature
3000 - 4000 - 5700K
Colour rendering index CRI
80-89
Colour of light adjustable
Positions
Luminous flux adjustable
Continuously variable
Beam angle adjustable
No
Voltage type
AC
Nominal voltage
220 - 240V
Nominal current
174 - 174mA
Number of poles
4
Light distributor
Diffuser lens/optic/panel
Connectable conductor cross section
1 - 2.5mm²
Type of control gear
LED operating device current-controlled
Exchangeable control gear
No
With control gear
Yes
Degree of protection (IP)
IP65
Impact strength
IK08
Rated lifetime L70/B50 at 25 °C
102000h
Max. system power
40W
Rated luminous flux according to IEC 62722-2- 1
3250 - 5200lm
Luminaire efficacy
130lm/W
Power factor
0.97
Type of wiring
Loop-through wiring included
Suitable for emergency lighting
No
Emergency power supply system
None
Emergency function monitoring system
None
Warranty
5 years
Product Name
Tri-proof lightbar | 1260mm | 40W | 3-CCT | DALI
Voltage type
AC
Ean
8714984954571
Nominal voltage
220 - 240V
Outer box qty
12st
Nominal current
174 - 174mA
Dimmable
Yes
Number of poles
4
Connection type
Push-in clamp
Light distributor
Diffuser lens/optic/panel
Lamp type
LED exchangeable
Connectable conductor cross section
1 - 2.5mm²
Housing colour
Grey
Type of control gear
LED operating device current-controlled
Material
Plastic
Exchangeable control gear
No
Length
120cm
With control gear
Yes
Length
1260mm
Degree of protection (IP)
IP65
Width
89mm
Impact strength
IK08
Height/depth
70mm
Rated lifetime L70/B50 at 25 °C
102000h
With movement sensor
No
Max. system power
40W
With presence detector
No
Rated luminous flux according to IEC 62722-2- 1
3250 - 5200lm
With light sensor
No
Luminaire efficacy
130lm/W
Colour of light
White
Power factor
0.97
Colour temperature
3000 - 4000 - 5700K
Type of wiring
Loop-through wiring included
Colour rendering index CRI
80-89
Suitable for emergency lighting
No
Colour of light adjustable
Positions
Emergency power supply system
None
Luminous flux adjustable
Continuously variable
Emergency function monitoring system
None
Beam angle adjustable
No
Warranty
5 years

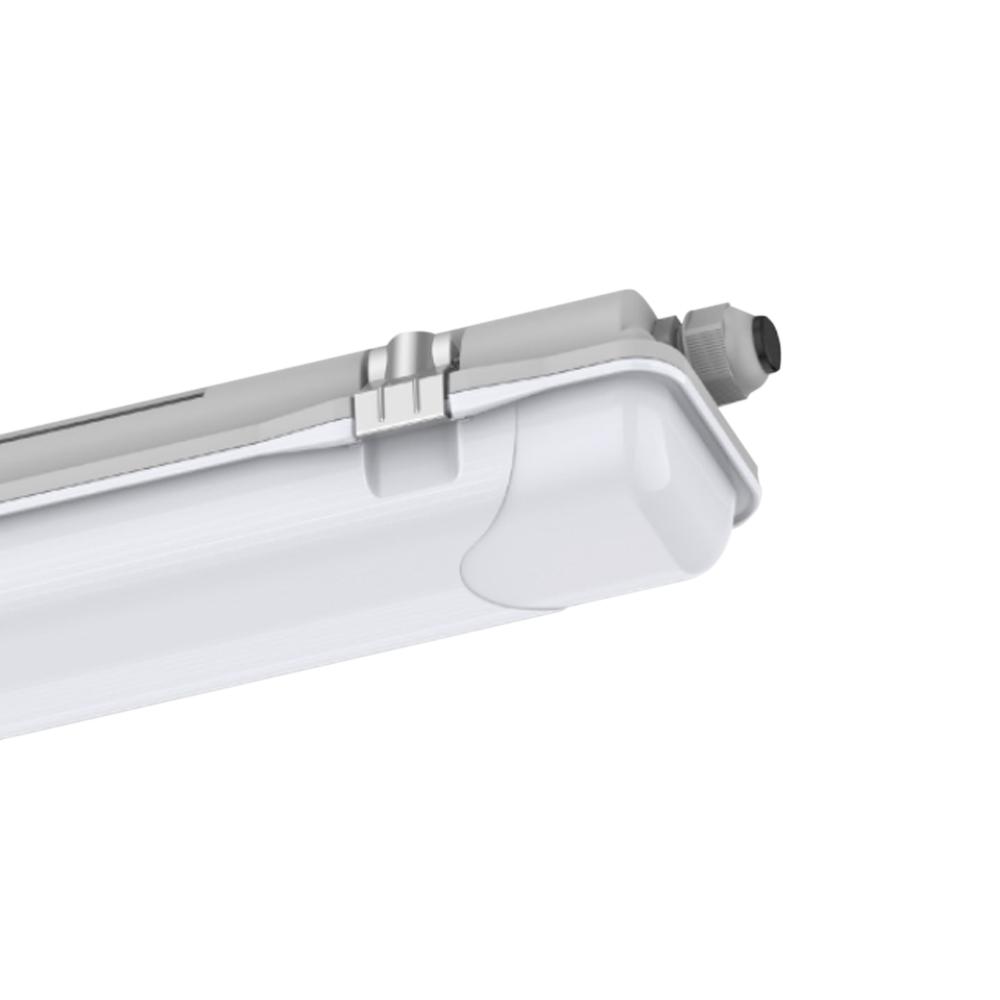

This tri-proof luminaire combines IP65 protection with a robust construction for long-term operation in demanding environments. The impact-resistant, water- and dustproof housing protects against mechanical stress and environmental influences. The opal diffuser ensures wide and uniform light distribution with high visual comfort.
The flicker-free LED driver is DALI dimmable and suitable for integration into central lighting control systems. Efficient SMD LED technology delivers stable and uniform illumination with high operational reliability. The colour temperature can be selected via the internal CCT switch.
Thanks to 4 × 2.5 mm² through wiring, luminaires can be efficiently looped without additional junction boxes. This reduces installation time and makes the luminaire suitable for continuous-row systems.

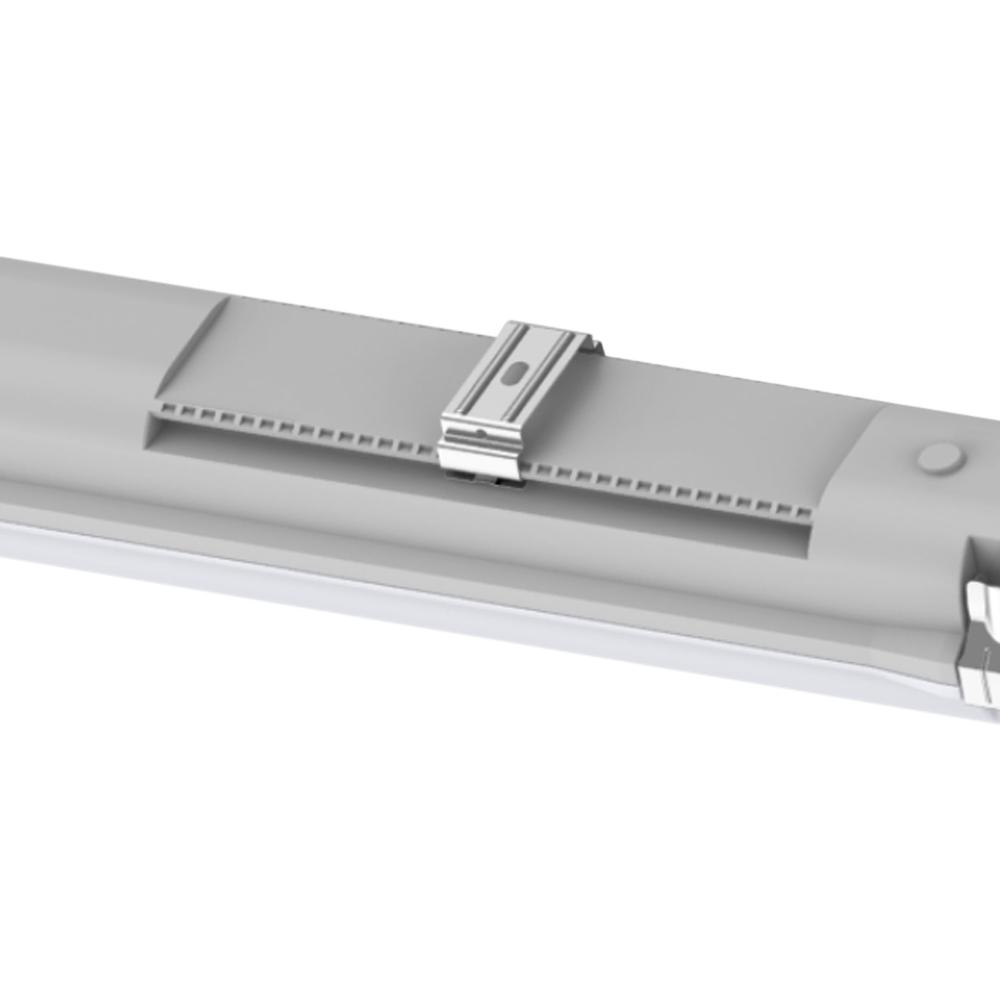

The modular design allows access to the LED module and driver for maintenance or replacement. Adjustable mounting brackets provide flexible surface mounting.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 (0)413 330 380.
