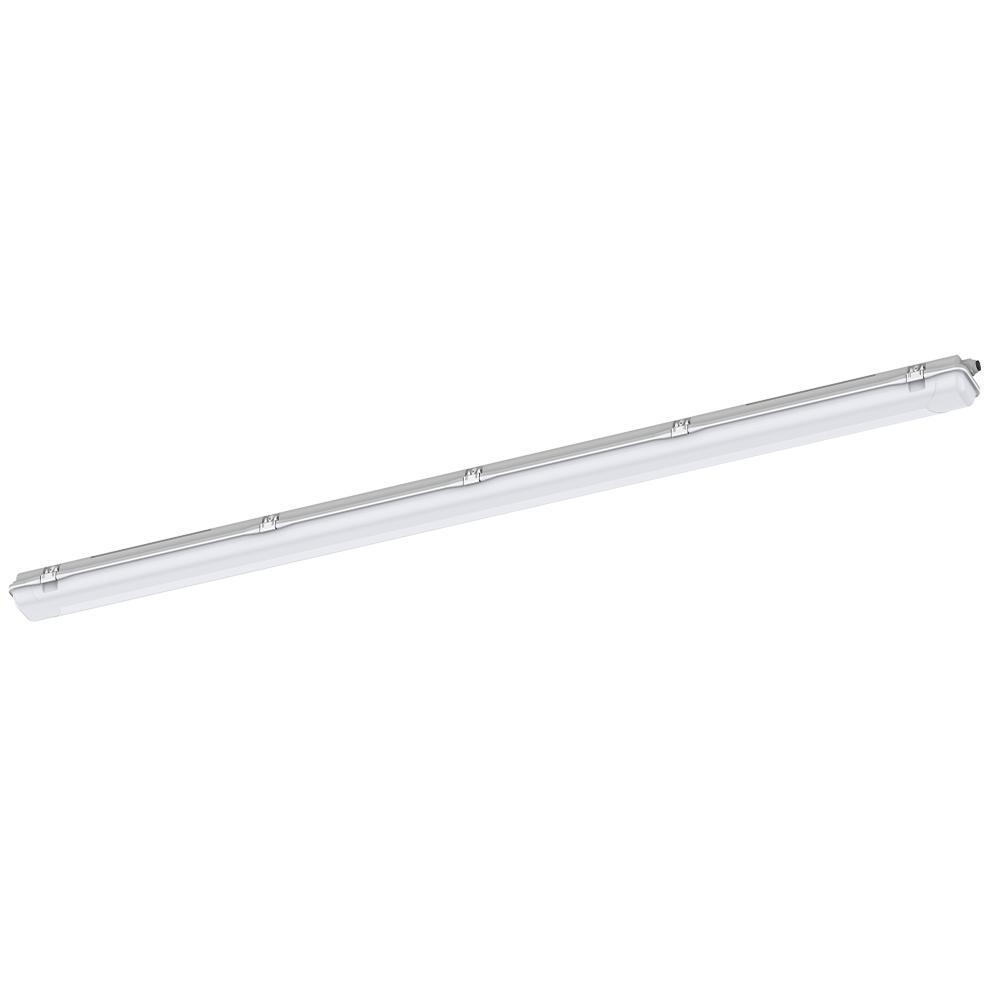

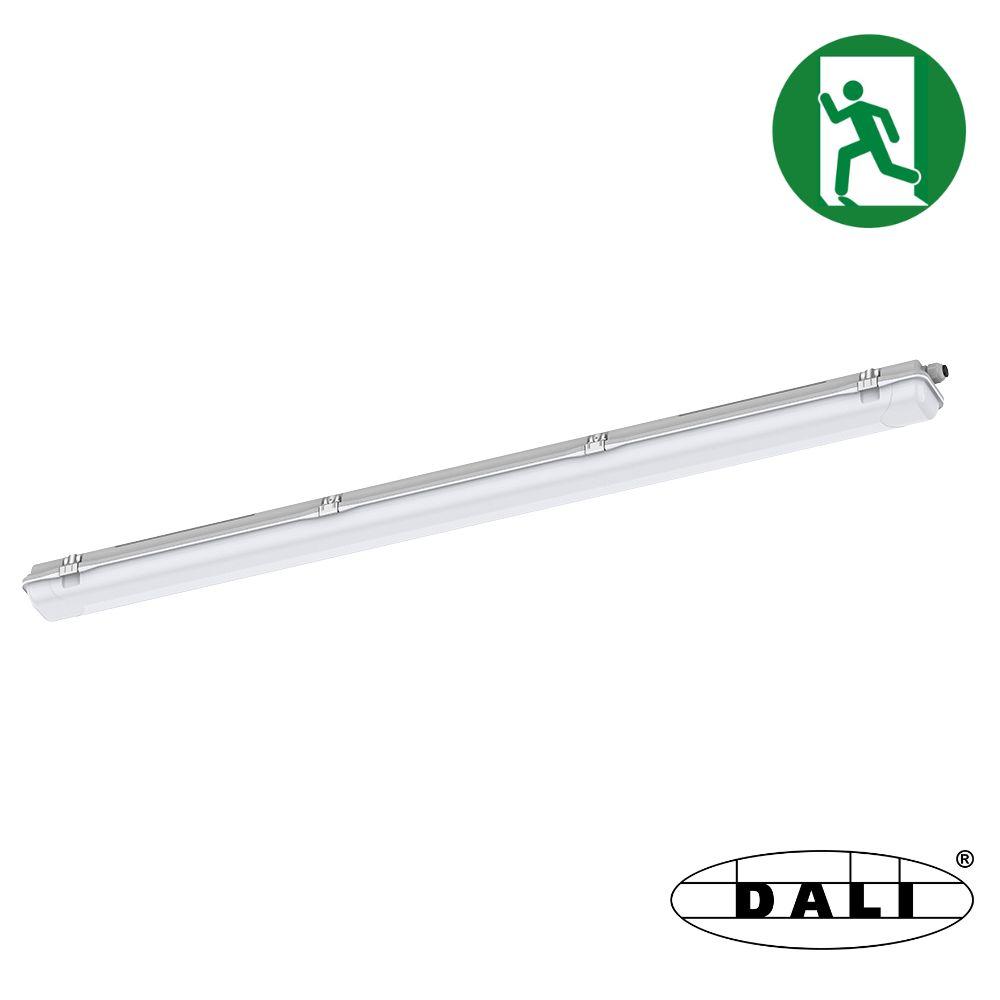

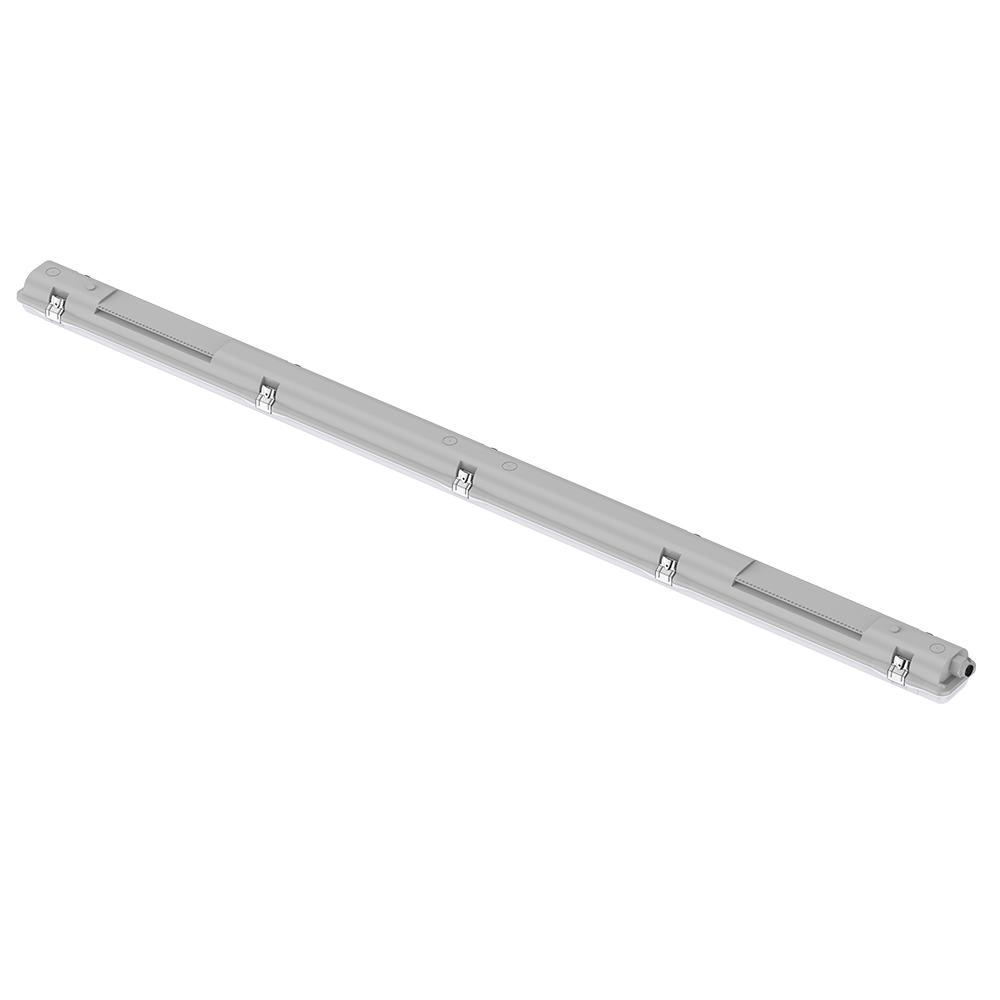

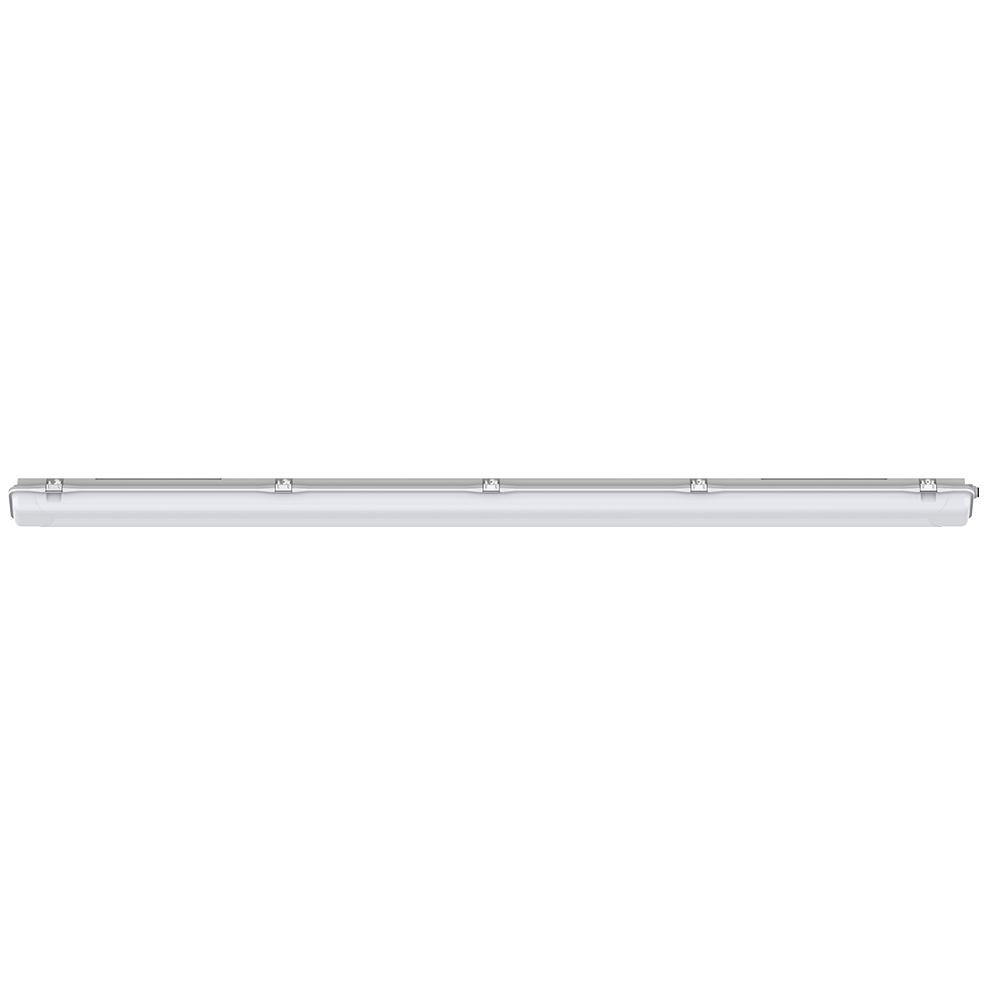

Tri-proof lightbar | 1560mm | 60W | 3-CCT | DALI + emergency
950-199This 1560 mm tri-proof luminaire with DALI dimming, integrated emergency lighting and through wiring delivers reliable general and emergency lighting in demanding environments where continuity and easy installation are essential.
Key product features
- Length (mm): 1560
- Degree of protection (IP): IP65
- Dimming DALI: Yes
- Type of wiring: Incl. through wiring
- Rated luminous flux according to IEC 62722-2-1 (lm): 7800
- Emergency power supply system: Decentralised (individual battery)
- Emergency function monitoring system: Automatic self-diagnosis
Product Name
Tri-proof lightbar | 1560mm | 60W | 3-CCT | DALI + emergency
Ean
8714984954601
Outer box qty
9st
Dimmable
Yes
Connection type
Push-in clamp
Lamp type
LED exchangeable
Housing colour
Grey
Material
Plastic

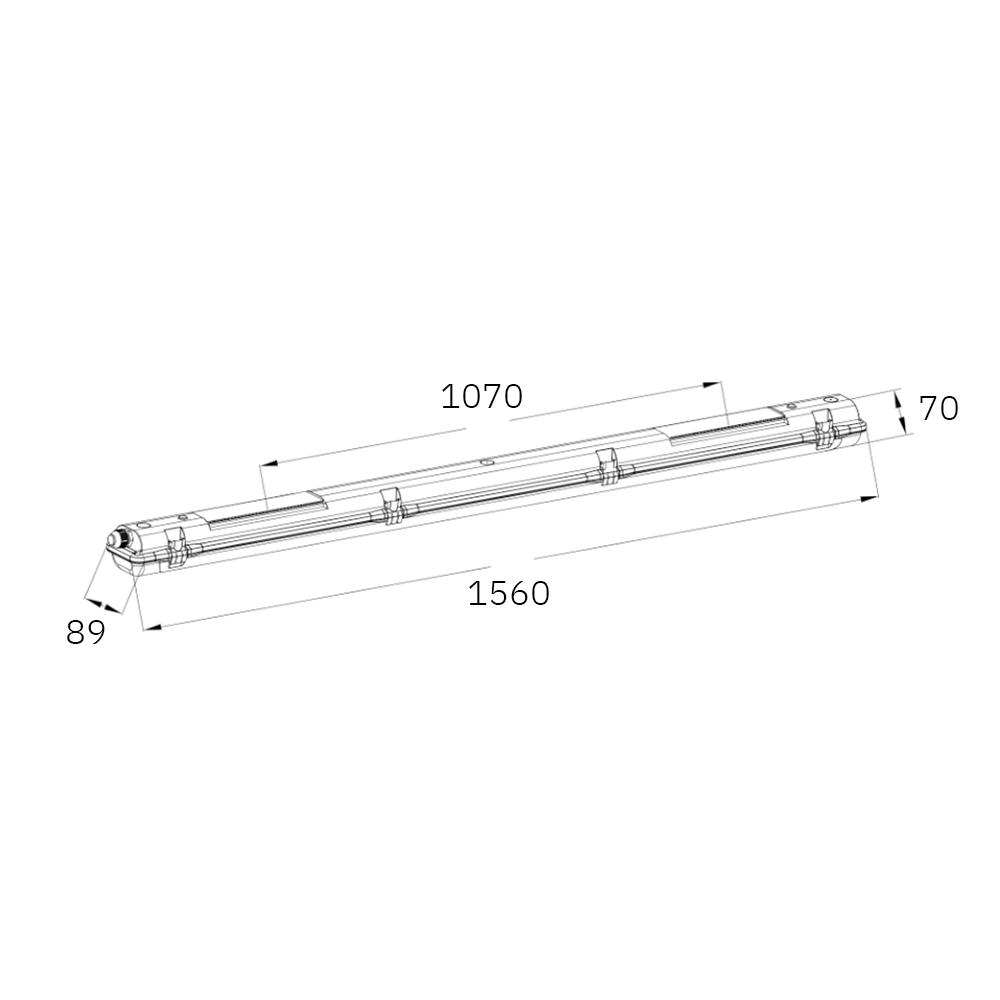

Length
150cm
Length
1560mm
Width
89mm
Height/depth
70mm
With movement sensor
No
With presence detector
No
With light sensor
No
Colour of light
White
Colour temperature
3000 - 4000 - 5700K
Colour rendering index CRI
80-89
Colour of light adjustable
Positions
Luminous flux adjustable
Continuously variable
Beam angle adjustable
No
Voltage type
AC
Nominal voltage
220 - 240V
Nominal current
261 - 261mA
Number of poles
4
Light distributor
Diffuser lens/optic/panel
Connectable conductor cross section
1 - 2.5mm²
Type of control gear
LED operating device current-controlled
Exchangeable control gear
No
With control gear
Yes
Degree of protection (IP)
IP65
Impact strength
IK08
Rated lifetime L70/B50 at 25 °C
102000h
Max. system power
60W
Rated luminous flux according to IEC 62722-2- 1
4550 - 7800lm
Luminaire efficacy
130lm/W
Power factor
0.96
Type of wiring
Loop-through wiring included
Suitable for emergency lighting
Yes
Emergency power supply system
Peripheral (individual battery)
Emergency function monitoring system
Automatic self test
Luminous flux in emergency mode
300lm
Power consumption in emergency mode
2W
Warranty
5 years
Product Name
Tri-proof lightbar | 1560mm | 60W | 3-CCT | DALI + emergency
Nominal voltage
220 - 240V
Ean
8714984954601
Nominal current
261 - 261mA
Outer box qty
9st
Number of poles
4
Dimmable
Yes
Light distributor
Diffuser lens/optic/panel
Connection type
Push-in clamp
Connectable conductor cross section
1 - 2.5mm²
Lamp type
LED exchangeable
Type of control gear
LED operating device current-controlled
Housing colour
Grey
Exchangeable control gear
No
Material
Plastic
With control gear
Yes
Length
150cm
Degree of protection (IP)
IP65
Length
1560mm
Impact strength
IK08
Width
89mm
Rated lifetime L70/B50 at 25 °C
102000h
Height/depth
70mm
Max. system power
60W
With movement sensor
No
Rated luminous flux according to IEC 62722-2- 1
4550 - 7800lm
With presence detector
No
Luminaire efficacy
130lm/W
With light sensor
No
Power factor
0.96
Colour of light
White
Type of wiring
Loop-through wiring included
Colour temperature
3000 - 4000 - 5700K
Suitable for emergency lighting
Yes
Colour rendering index CRI
80-89
Emergency power supply system
Peripheral (individual battery)
Colour of light adjustable
Positions
Emergency function monitoring system
Automatic self test
Luminous flux adjustable
Continuously variable
Luminous flux in emergency mode
300lm
Beam angle adjustable
No
Power consumption in emergency mode
2W
Voltage type
AC
Warranty
5 years

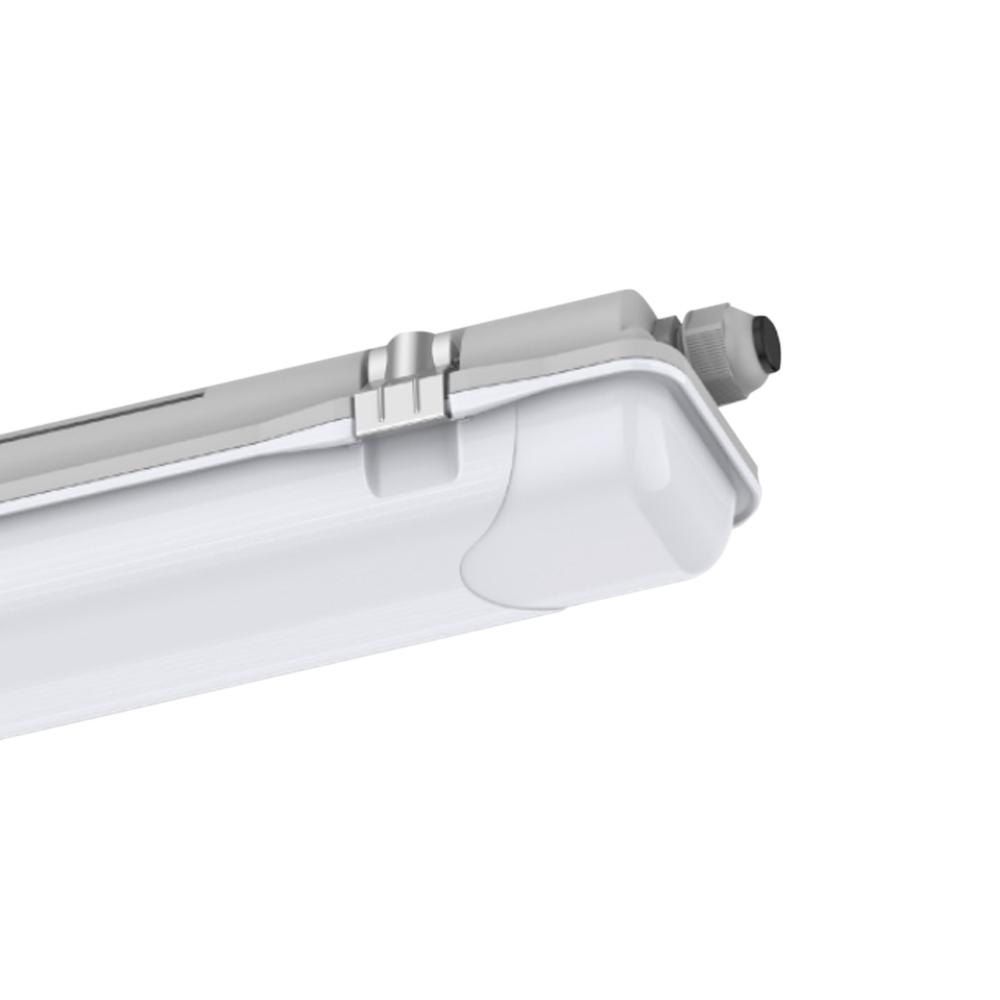

This tri-proof luminaire combines IP65 protection with integrated emergency lighting for maximum operational reliability in demanding environments. The impact-resistant, water- and dustproof housing protects against mechanical stress and environmental influences. The opal diffuser ensures wide and uniform light distribution.
The flicker-free LED driver supports DALI dimming for integration into central lighting control systems. The integrated emergency function operates autonomously via a battery pack and automatically switches to emergency mode in the event of power failure. This function is not DALI controllable and operates independently from the general lighting control.
The emergency unit features automatic self-diagnosis with periodic testing of the battery, electronics and light source, supported by LED status indication for quick visual inspection and efficient maintenance.
Thanks to 4 × 2.5 mm² through wiring, luminaires can be efficiently looped without additional junction boxes. This reduces installation time and makes the luminaire suitable for extended continuous-row systems and serial installations.

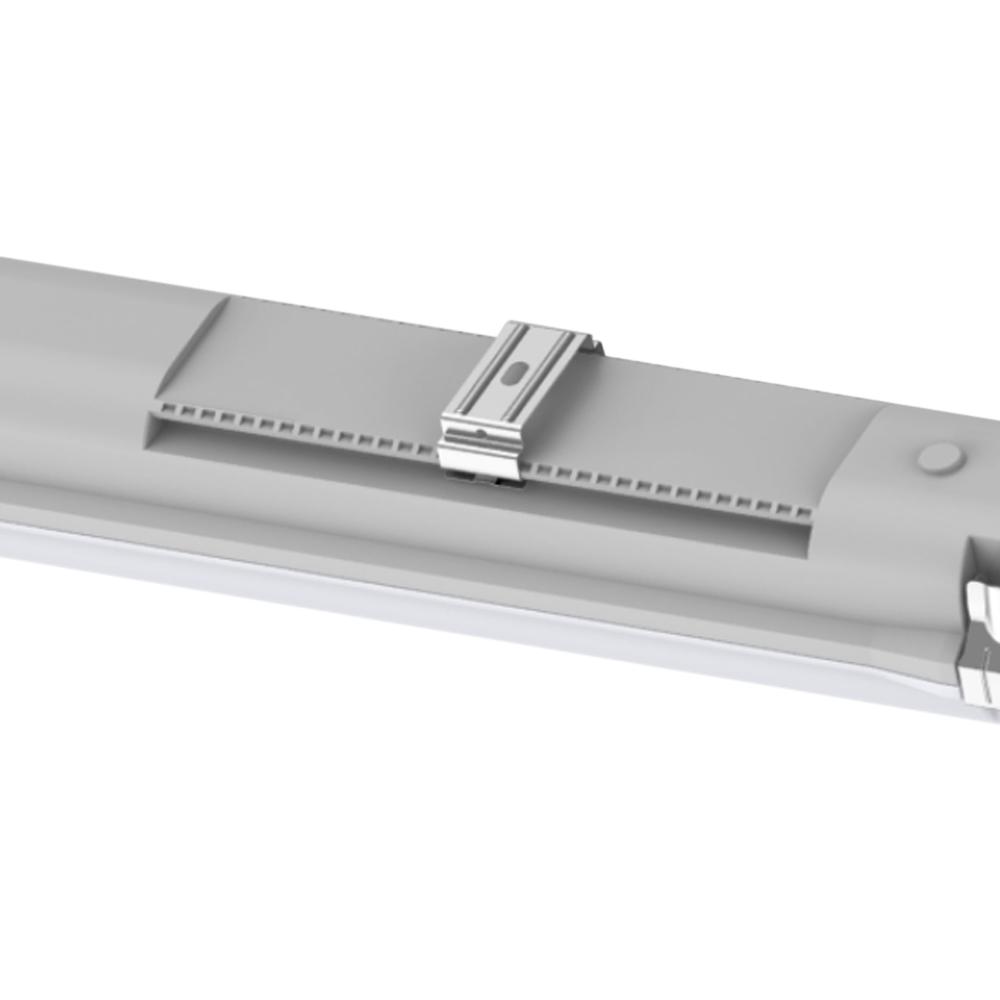

The modular design allows access to the LED module and driver for maintenance or replacement. Adjustable mounting brackets provide flexible surface mounting.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, please contact Tronix Lighting via sales@tronixlighting.com or +31 (0)413 330 380.
Datasheet
Datasheet-tri-proof-lightbar-1560mm-60w-3-cct-dali-emergency-950-199.pdf
