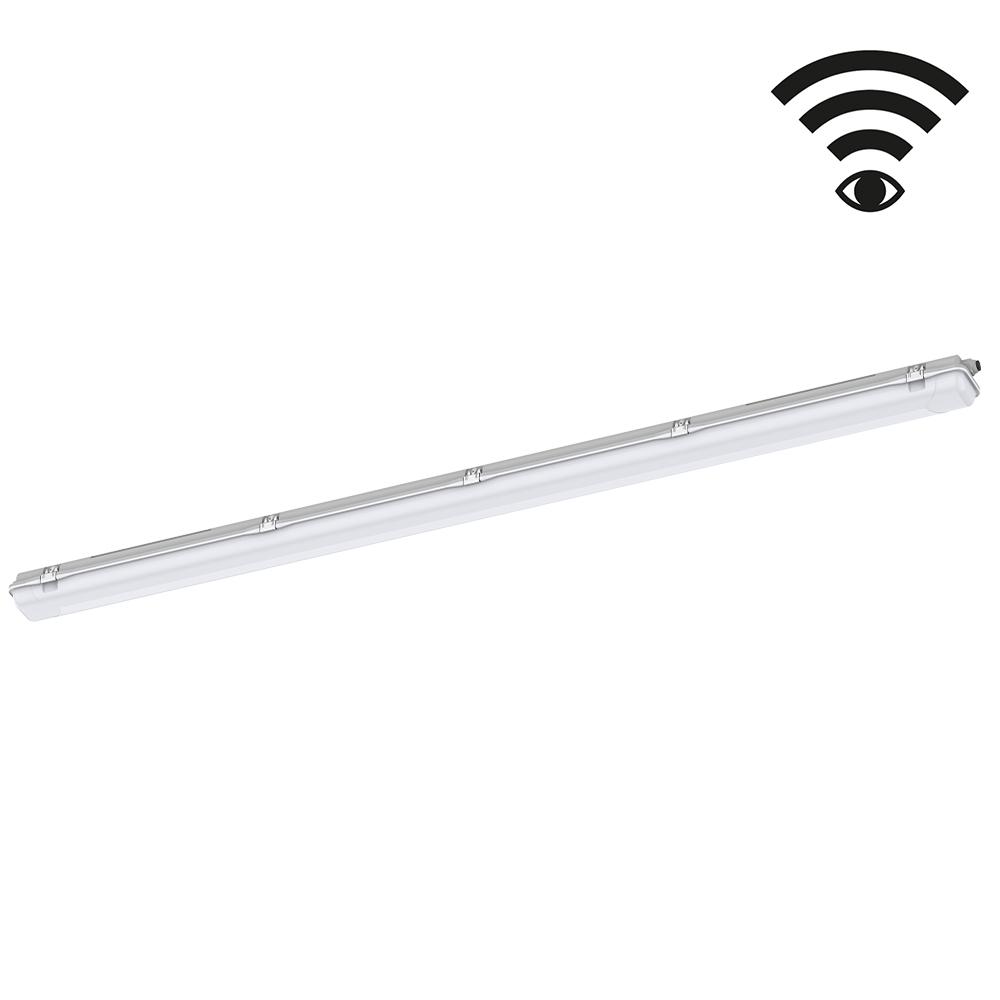

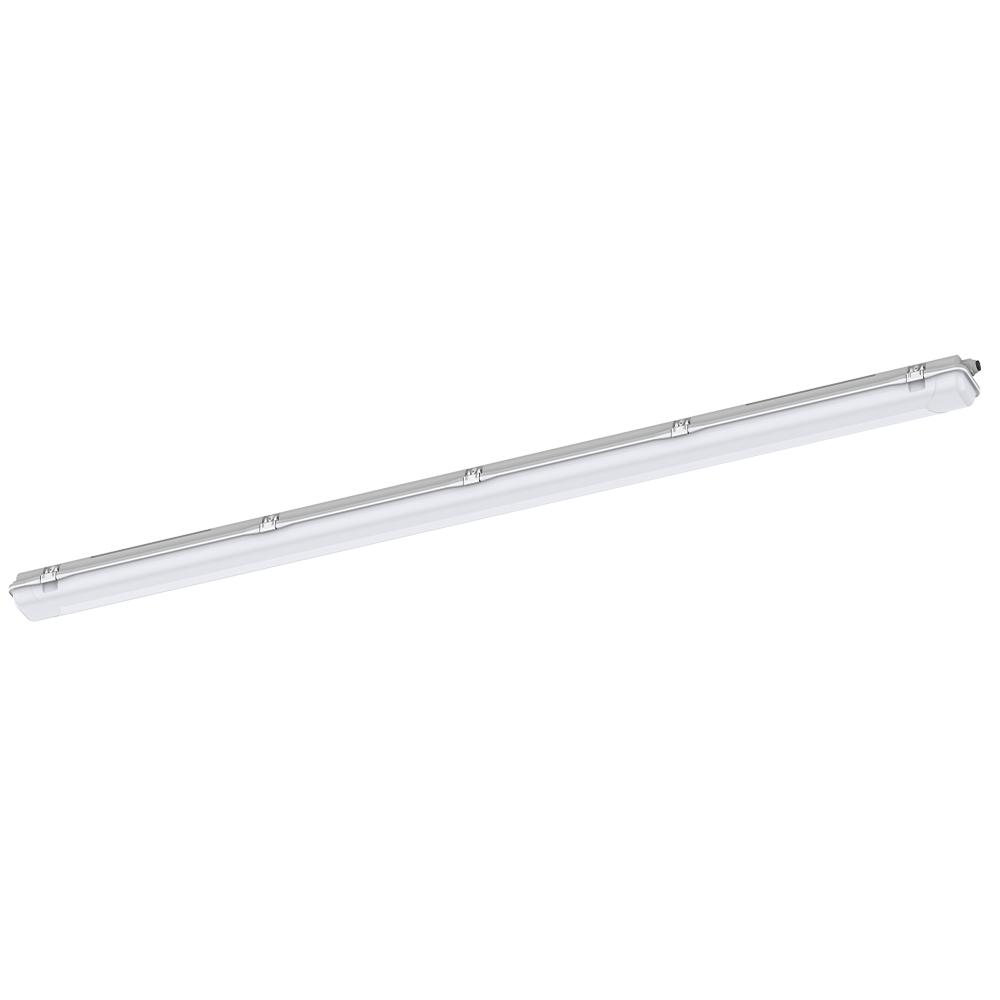

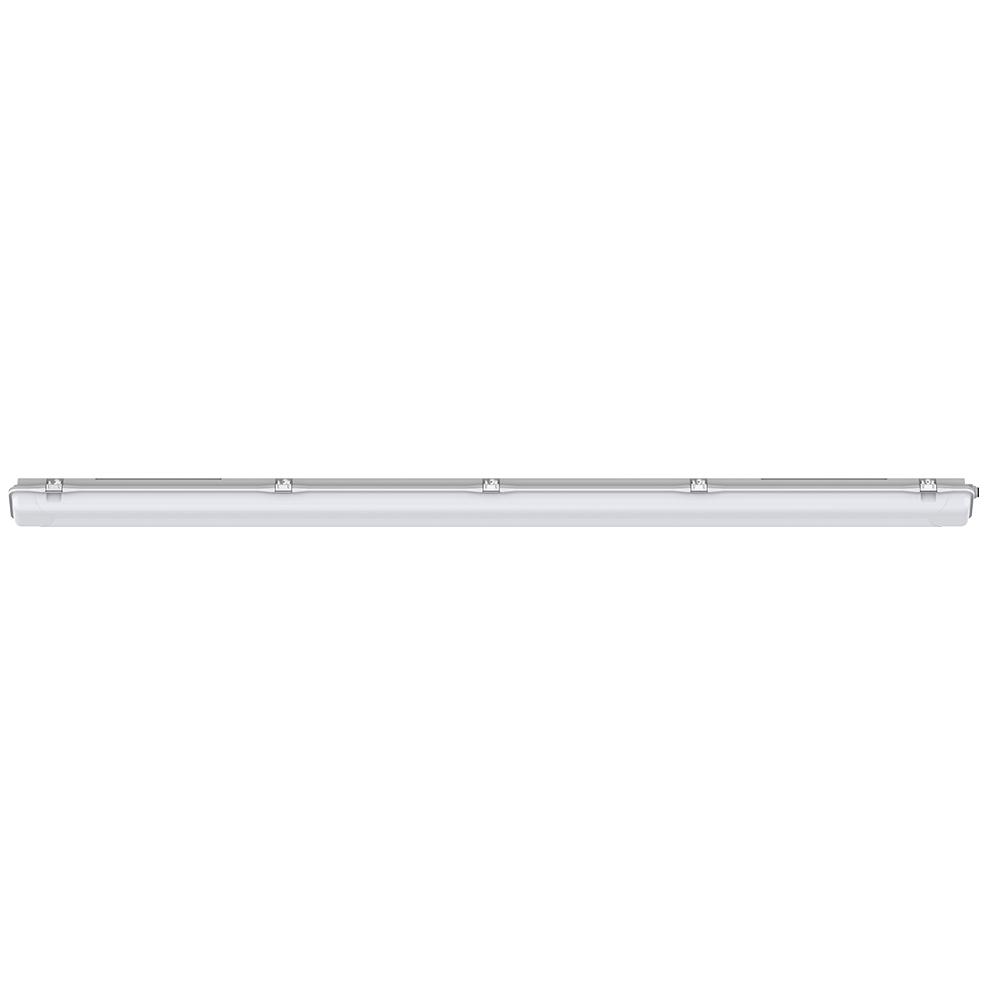

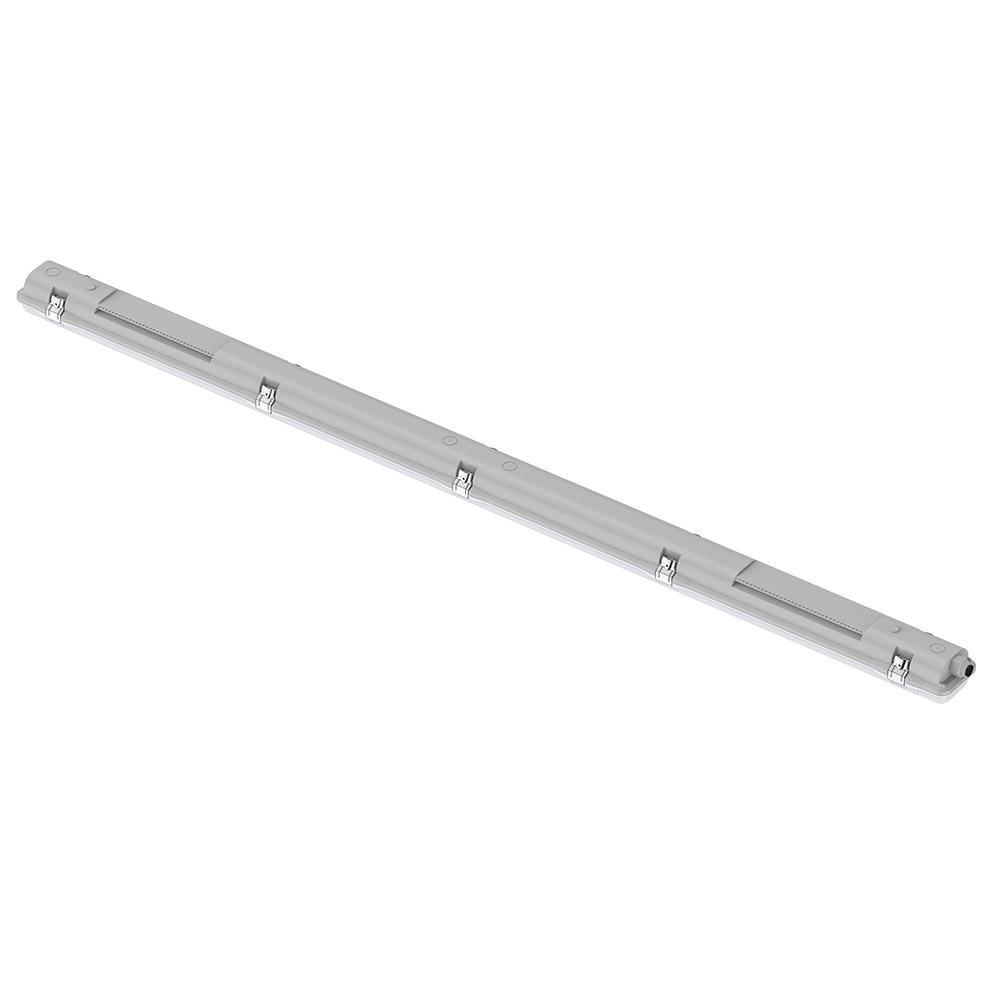

Tri-proof lightbar | 1560mm | 60W | 3-CCT | sensor
950-184These Tri-proof light bars are a perfect alternative to traditional fluorescent lamps, thanks in part to its durable and widely applicable design. This light bar is equipped with a high-quality SMD LED chip, ensuring you good and even illumination over a beam angle of 120º. Each product is equipped with waterproof glands, making these light bars come into their own even in damp locations.
Features
- High lumen efficiency with 120Lm/W
- High degree of protection, IP65 and IK08
- Power adjustable by a DIP switch in the wattages 35W, 45W, 55W and 60W
- Light color adjustable by a CCT switch into the color temperatures 3000K, 4000K and 5700K
- Includes microwave sensor with a 140-degree beam angle and a range of 4 to 6 meters
- Can couple up to 1500 watts, thanks in part to internal conduit wiring
- Easy installation as surface mounted
- Flicker-free, internal driver
Product Name
Tri-proof lightbar | 1560mm | 60W | 3-CCT | sensor
Ean
8714984949591
Outer box qty
9st
Dimmable
No
Connection type
Push-in clamp
Lamp type
LED exchangeable
Housing colour
Grey
Material
Plastic

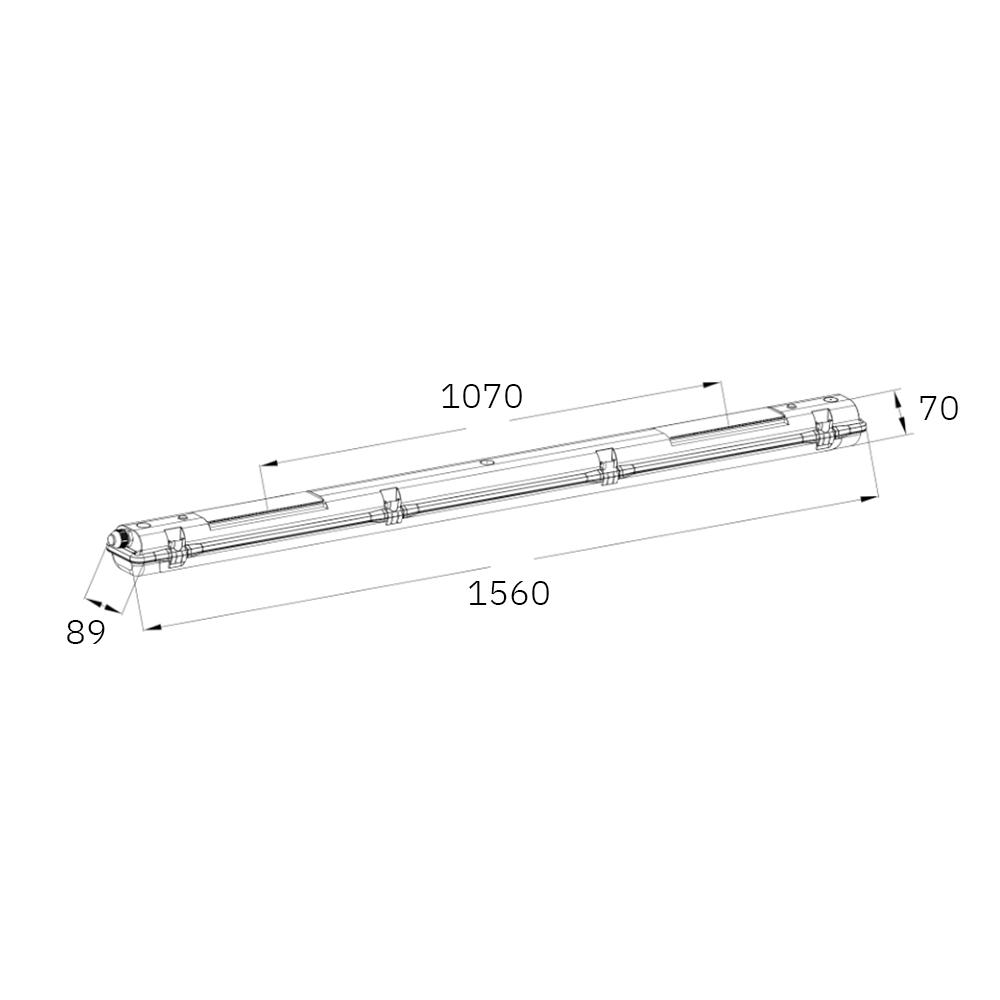

Length
150cm
Length
1560mm
Width
89mm
Height/depth
70mm
Movement sensor/presence detector technology
High frequency
With movement sensor
Yes
With presence detector
Yes
With light sensor
Yes
Colour of light
White
Colour temperature
3000 - 4000 - 5700K
Colour rendering index CRI
80-89
Colour of light adjustable
Positions
Luminous flux adjustable
Positions
Beam angle adjustable
No
Voltage type
AC
Nominal voltage
220 - 240V
Nominal current
259 - 259mA
Number of poles
4
Light distributor
Diffuser lens/optic/panel
Connectable conductor cross section
1 - 2.5mm²
Type of control gear
LED operating device current-controlled
Exchangeable control gear
No
With control gear
Yes
Degree of protection (IP)
IP65
Impact strength
IK08
Rated lifetime L70/B50 at 25 °C
102000h
Max. system power
60W
Rated luminous flux according to IEC 62722-2- 1
4550 - 7800lm
Luminaire efficacy
130lm/W
Power factor
0.96
Type of wiring
Loop-through wiring included
Suitable for emergency lighting
No
Emergency power supply system
None
Emergency function monitoring system
None
Warranty
5 years
Product Name
Tri-proof lightbar | 1560mm | 60W | 3-CCT | sensor
Voltage type
AC
Ean
8714984949591
Nominal voltage
220 - 240V
Outer box qty
9st
Nominal current
259 - 259mA
Dimmable
No
Number of poles
4
Connection type
Push-in clamp
Light distributor
Diffuser lens/optic/panel
Lamp type
LED exchangeable
Connectable conductor cross section
1 - 2.5mm²
Housing colour
Grey
Type of control gear
LED operating device current-controlled
Material
Plastic
Exchangeable control gear
No
Length
150cm
With control gear
Yes
Length
1560mm
Degree of protection (IP)
IP65
Width
89mm
Impact strength
IK08
Height/depth
70mm
Rated lifetime L70/B50 at 25 °C
102000h
Movement sensor/presence detector technology
High frequency
Max. system power
60W
With movement sensor
Yes
Rated luminous flux according to IEC 62722-2- 1
4550 - 7800lm
With presence detector
Yes
Luminaire efficacy
130lm/W
With light sensor
Yes
Power factor
0.96
Colour of light
White
Type of wiring
Loop-through wiring included
Colour temperature
3000 - 4000 - 5700K
Suitable for emergency lighting
No
Colour rendering index CRI
80-89
Emergency power supply system
None
Colour of light adjustable
Positions
Emergency function monitoring system
None
Luminous flux adjustable
Positions
Warranty
5 years
Beam angle adjustable
No
These Tri-proof light bars are a perfect alternative to traditional fluorescent lamps, thanks in part to its durable and widely applicable design. This light bar is equipped with a high-quality SMD LED chip, ensuring you good and even illumination over a beam angle of 120º. Each product is equipped with waterproof glands, making these light bars come into their own even in damp locations.
Features
High lumen efficiency with 120Lm/W
High degree of protection, IP65 and IK08
Power adjustable by a DIP switch in the wattages 35W, 45W, 55W and 60W
Light color adjustable by a CCT switch into the color temperatures 3000K, 4000K and 5700K
Includes microwave sensor with a 140-degree beam angle and a range of 4 to 6 meters
Can couple up to 1500 watts, thanks in part to internal conduit wiring
Easy installation as surface mounted
Flicker-free, internal driver
Datasheet
Datasheet-tri-proof-lightbar-1560mm-60w-3-cct-sensor-950-184.pdf
Energy labels
Characteristics sheet
950-184-photometric-light-report.pdf
950-184-photometric-light-report-detailed.zip
950-184-eulumdat.zip
