Tri-proof lightbar | 1560mm | IP65 | 35/45/55/60W | 3-CCT
950-088This robust tri-proof light bar replaces fluorescent tubes and delivers durable lighting with adjustable Max. system power, customizable light color, high lumen output, through-wiring capability, and an opal diffuser for uniform light distribution.
Key product features:
- Degree of protection (IP): IP65
- Colour temperature (K): 3000 – 5700
- Type of wiring: Loop-through wiring included
- Max. system power (W): 60
- Colour of light adjustable: Positions
- Luminous flux adjustable: Positions
- Impact strength: IK08
Product Name
Tri-proof lightbar | 1560mm | IP65 | 35/45/55/60W | 3-CCT
Ean
8714984949140
Outer box qty
6st
Dimmable
No
Connection type
Push-in clamp
Lamp type
LED exchangeable
Housing colour
Grey
Material
Plastic

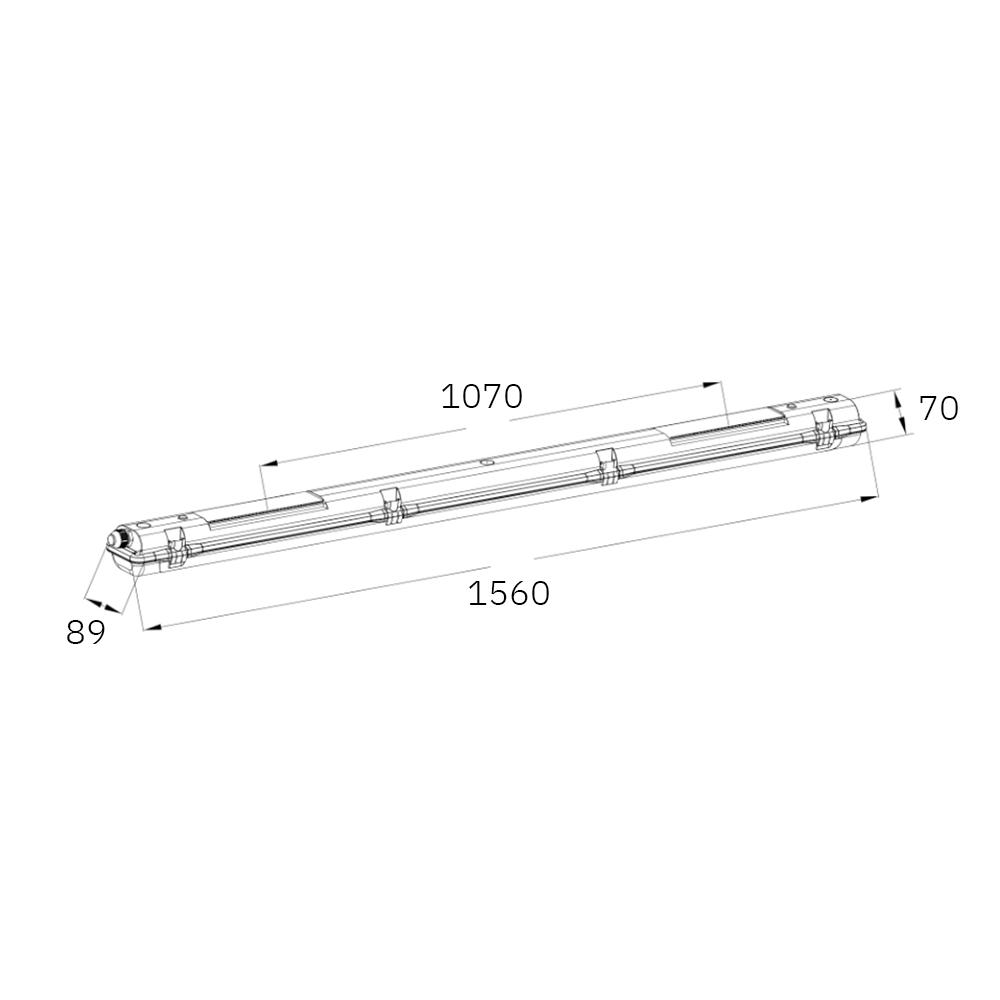

Length
150cm
Length
1560mm
Width
89mm
Height/depth
70mm
With movement sensor
No
With presence detector
No
With light sensor
No
Colour of light
White
Colour temperature
3000 - 4000 - 5700K
Colour rendering index CRI
80-89
Colour of light adjustable
Positions
Luminous flux adjustable
Positions
Beam angle adjustable
No
Voltage type
AC
Nominal voltage
231 - 231V
Nominal current
259 - 259mA
Number of poles
4
Light distributor
Diffuser lens/optic/panel
Connectable conductor cross section
1 - 2.5mm²
Type of control gear
LED operating device current-controlled
Exchangeable control gear
No
With control gear
Yes
Degree of protection (IP)
IP65
Impact strength
IK08
Rated lifetime L70/B50 at 25 °C
102000h
Max. system power
60W
Rated luminous flux according to IEC 62722-2- 1
4550 - 7800lm
Luminaire efficacy
130lm/W
Power factor
0.96
Type of wiring
Loop-through wiring included
Suitable for emergency lighting
No
Emergency power supply system
None
Emergency function monitoring system
None
Warranty
5 years
Product Name
Tri-proof lightbar | 1560mm | IP65 | 35/45/55/60W | 3-CCT
Voltage type
AC
Ean
8714984949140
Nominal voltage
231 - 231V
Outer box qty
6st
Nominal current
259 - 259mA
Dimmable
No
Number of poles
4
Connection type
Push-in clamp
Light distributor
Diffuser lens/optic/panel
Lamp type
LED exchangeable
Connectable conductor cross section
1 - 2.5mm²
Housing colour
Grey
Type of control gear
LED operating device current-controlled
Material
Plastic
Exchangeable control gear
No
Length
150cm
With control gear
Yes
Length
1560mm
Degree of protection (IP)
IP65
Width
89mm
Impact strength
IK08
Height/depth
70mm
Rated lifetime L70/B50 at 25 °C
102000h
With movement sensor
No
Max. system power
60W
With presence detector
No
Rated luminous flux according to IEC 62722-2- 1
4550 - 7800lm
With light sensor
No
Luminaire efficacy
130lm/W
Colour of light
White
Power factor
0.96
Colour temperature
3000 - 4000 - 5700K
Type of wiring
Loop-through wiring included
Colour rendering index CRI
80-89
Suitable for emergency lighting
No
Colour of light adjustable
Positions
Emergency power supply system
None
Luminous flux adjustable
Positions
Emergency function monitoring system
None
Beam angle adjustable
No
Warranty
5 years

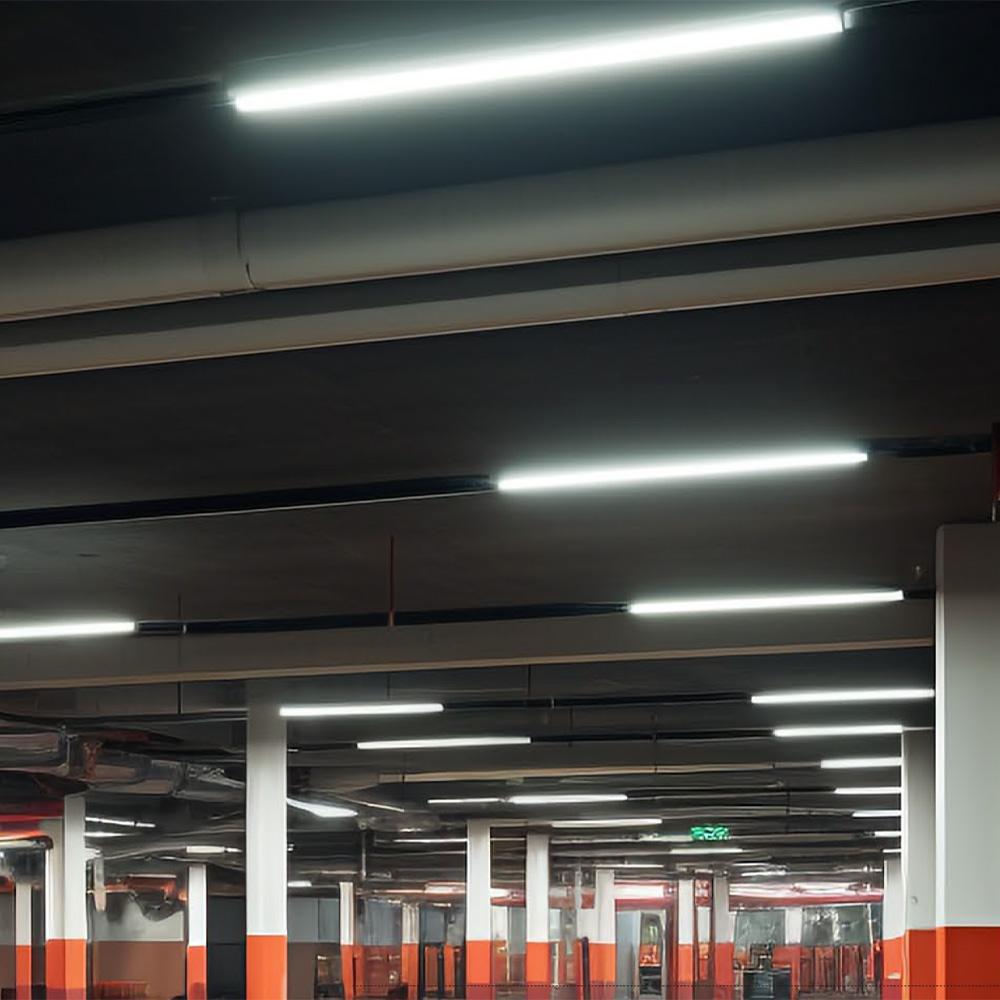

Designed for demanding environments like warehouses, industrial sites, and parking garages, this light bar combines robust construction with IP65 and IK08 ratings. Easy installation is ensured through included brackets and internal through-wiring, supporting connections of up to 1500 Watts. The bar's adjustable positioning (up to 200 mm) allows for optimal placement.
Available in multiple sizes, power options, and features, including automatic activation and emergency lighting, this range meets diverse lighting requirements.
Additional Information
More details about this product can be found in the specifications. For accessories, available options, and related products, see the related items section. For inquiries or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-tri-proof-lightbar-1560mm-ip65-35455560w-3-cct-950-088.pdf
Energy labels
Characteristics sheet
950-088-photometric-light-report.pdf
950-088-photometric-light-report-detailed.zip
950-088-eulumdat.zip
